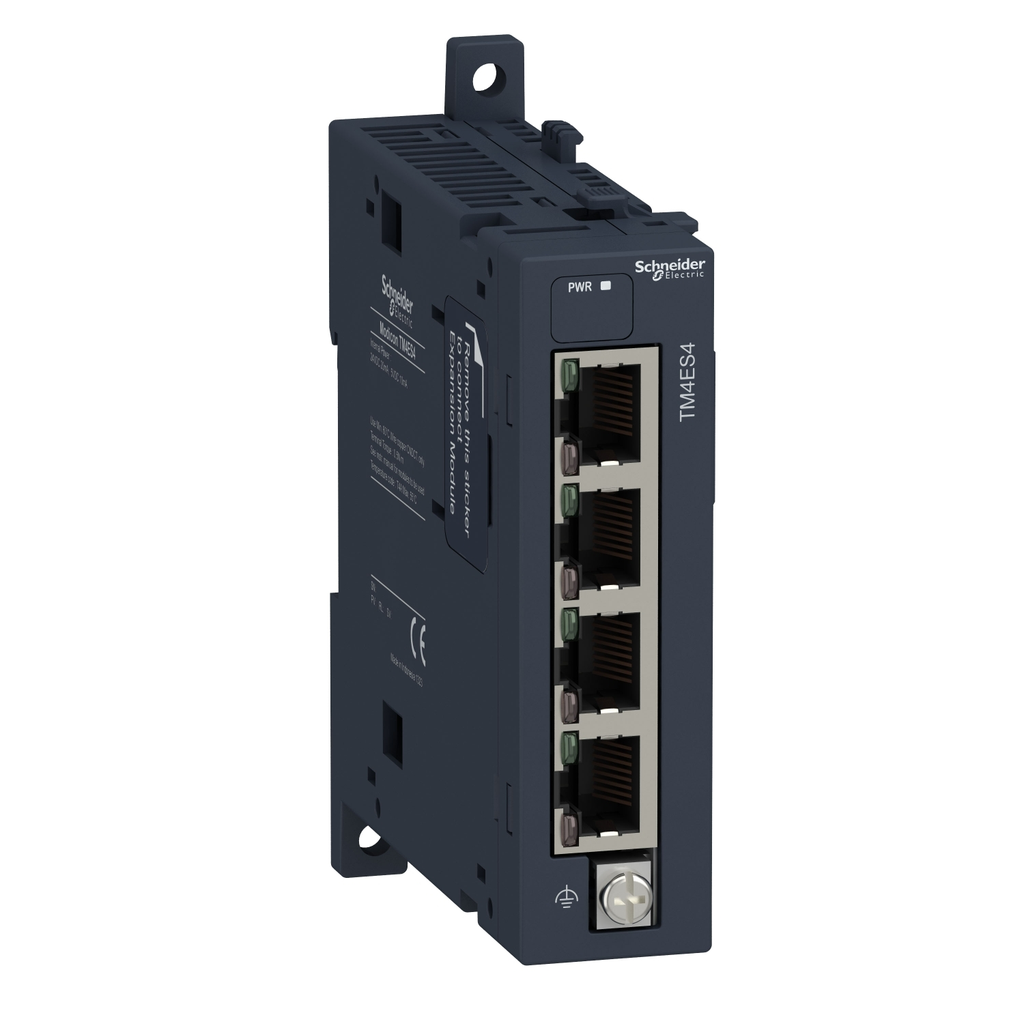

This communication module is proposed as an option Modicon M241/251 controllers. This module provides an Ethernet connection with 4 ports on controllers without embedded Ethernet. It also provides a second Ethernet connection with 4 ports on controllers with embedded Ethernet (except on TM241CEC24x). It is equipped with 4 x RJ45 connectors (10/100 Mbps, MDI/MDIX).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000772_3D-CAD
• Communications & Management Attributes
• Communication Port Protocol : Ethernet IP/Modbus TCP, TCP (Transmission Control Protocol), UDP (User Datagram Protocol), SNMP
• Communication Service : Modbus TCP server, Modbus TCP slave device, FTP, NGVL, monitoring, IEC VAR ACCESS, programming, SNMP, Modbus TCP client, downloading, updating firmware, Ethernet/IP slave device, DHCP client
• Conformance Attributes
• Product Certifications : cULus, C-tick
• Standards : UL 508, IEC 61131-2
• Complementary Attributes
• Maximum Number Of Connections : 8 Modbus server, 16 Ethernet/IP device
• Integrated Connection Type : Ethernet 4 RJ45
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Electrical Connection : RJ45 4 connectors for connecting Ethernet network, screw connector terminal for connecting the functional ground
• Electromagnetic Emission : conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011, conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011, conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011, conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBμV/m QP class A30-230 MHz IEC 55011, radiated emissions 60...54 dBμV/m QP30-100 MHz Marine specification (LR, ABS, DNV, GL), radiated emissions 24 dBμV/m QP156-165 MHz Marine specification (LR, ABS, DNV, GL), conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011, radiated emissions 47 dBμV/m QP class A230-1000 MHz IEC 55011, radiated emissions 80...50 dμV/m QP150-30000 kHz Marine specification (LR, ABS, DNV, GL), radiated emissions 54 dBμV/m QP100-2000 MHz Marine specification (LR, ABS, DNV, GL)
• Local Signalling : 1 LED (green) for PWR, 1 LED per channel (green/yellow) for Ethernet link, 1 LED per channel (green) for Ethernet port activity
• Mounting Support : top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
• Resistance To Conducted Disturbances : 10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
• Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3, 1 V/m 2...2.7 GHz IEC 61000-4-3
• Resistance To Electrostatic Discharge : 8 kV in air IEC 61000-4-2, 4 kV on contact IEC 61000-4-2, 8 kV in air Marine specification (LR, ABS, DNV, GL), 6 kV on contact Marine specification (LR, ABS, DNV, GL)
• Resistance To Fast Transients : 2 kV IEC 61000-4-4 power lines), 2 kV IEC 61000-4-4 relay output), 1.5 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link)
• Vibration Resistance : 1 mm 5-13.2 Hz symmetrical rail, 3 gn 8.7-150 Hz symmetrical rail, 1 mm 5-13.2 Hz panel mounting, 0.7 gn 13.2-100 Hz panel mounting
• Carbon Footprint Of The Distribution Phase A4 : 0.008057151095235932, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.3329293442925289
• Carbon Footprint Of The Installation Phase A5 : 0.003287669447066496, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 25 kg CO2 eq., 24.52987101482221
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 71 kg CO2 eq., 71.09680428130878
• Medium Desc : network switch module, Modicon M241, 4 Ethernet switchs
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : Commercialised
• Html Descr : Module network TM4 4 Ethernet switchs
• Return Indicator : Y
• Stocking Flag : N
• Manufacturer : Schneider Electric
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Legacy Weee Scope : In
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1403009EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Current Consumption : 360 mA 5 V DC communication bus
• Marking : CE
• Port Ethernet : 10BASE-T/100BASE-TX - 4 copper cable
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Ethernet unmanaged switch
• Redundancy : no
• Returnability : Yes
• Shock Resistance : 15 gn 11 ms
• Software Version : v6.1
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 96 kg CO2 eq.
• Transmission Rate : 10/100 Mbit/s
• Web Services : web server
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Pep Code : ENVPEP1403009EN
• Database Version : 2023-02
• Pep Verification Date : 2024-09-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3-EN-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• Data Source : referent product
• Functional Unit Description : Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To enhance the capabilities of logic controllers by offering an Ethernet connection with 4 ports (TM4ES4) or configuring a slave connection on the Profibus DP bus (TM4PDPS1) 78,60% of the time for 10 years with these parmeter
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Indonesia, ID
• Energy Model Installation A5 2 : Electricity Mix; Low voltage; 2018; China, CN
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2018; China, CN
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Low voltage; 2018; China, CN
• Height Nominal : 90 mm
• Width Nominal : 25 mm
• Environment Attributes Main
• Ambient Air Temperature For Operation : -10-55 °C horizontal installation, -10-55 °C horizontal installation, -10-50 °C vertical installation, -10-50 °C vertical installation, -10-55 °C horizontal installation, -10-55 °C horizontal installation, -10-50 °C vertical installation
• Product Compatibility : Modicon M241 logic controller, Modicon M251 logic controller
• Relative Humidity : 10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 95.97094946096581
• Ambient Air Temperature For Storage : -25-70 °C
• Circularity Profile : ENVEOLI1403009EN
• Environmental Disclosure : ENVPEP1403009EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20 with protective cover in place
• Operating Altitude : 0...6561.68 ft (0...2000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Storage Altitude : 0-3000 m
• Pep Code : ENVPEP1403009EN
• Pep Verification Date : 2024-09-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3-EN-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : Ethernet unmanaged switch
• ETIM
• ETIM 8 : EC001604
• ETIM 9 : EC001604
• Surge Protection And Filtering Attributes
• Surge Withstand : 1 kV power lines (AC) differential mode IEC 61000-4-5, 1 kV relay output differential mode IEC 61000-4-5, 0.5 kV I/O differential mode IEC 61000-4-5, 1 kV power lines (DC) common mode IEC 61000-4-5, 2 kV power lines (AC) common mode IEC 61000-4-5, 2 kV relay output common mode IEC 61000-4-5, 1 kV I/O common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV power lines (DC) differential mode IEC 61000-4-5
• Specifications
• Depth : 90 mm
