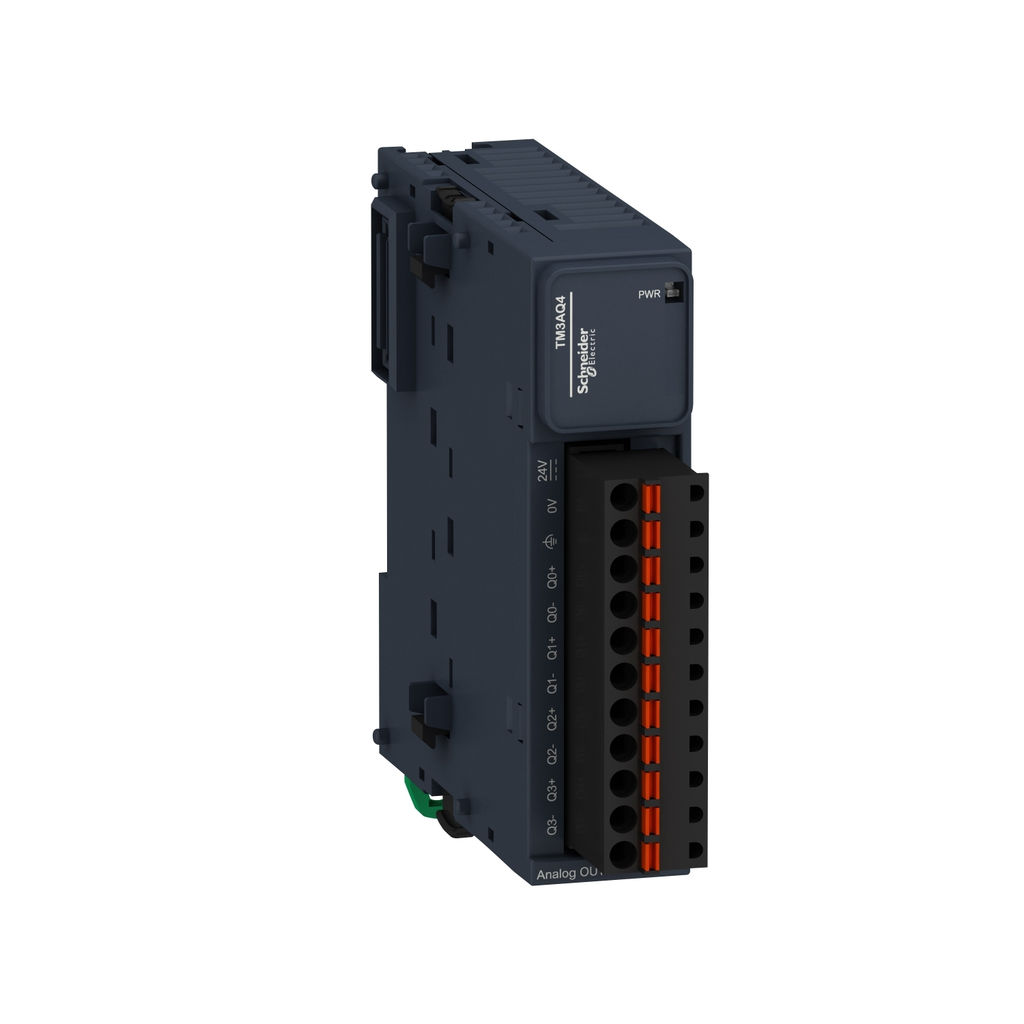

analog output module, Modicon TM3, 4 outputs, spring, 24V DC

TM3-4 ANALOG OUTPUTS SPRING

SQDTM3AQ4G TM3AQ4G 3606480648991
394.78 / EA
http://schema.org/OutOfStock
Mayer-DDS-analog output module, Modicon TM3, 4 outputs, spring, 24V DC-1
  • Country of Origin: Japan
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue output module provides 4 outputs with 11bit + sign and 12bit resolution. It is an output module with a rated supply volta
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue output module provides 4 outputs with 11bit + sign and 12bit resolution. It is an output module with a rated supply volta
  • US Rated Supply Voltage
    • 24 V DC
  • Current Consumption
    • 40 mA 5 V DC via bus connector no load
    • 50 mA 5 V DC via bus connector full load
    • 50 mA 5 V DC via b
  • Mounting Support
    • top hat type TH35-15 rail IEC 60715
    • top hat type TH35-7.5 rail IEC 60715
    • plate or panel with fixing kit
  • Resistance To Magnetic Fields
    • 30 A/m IEC 61000-4-8
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Analogue Output Type
    • current 4...20 mA
    • current 0...20 mA
    • voltage 0...10 V
    • voltage - 10...10 V
  • Carbon Footprint Of The Installation Phase A5
    • 0 kg CO2 eq.
    • 0.00561993731636851
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.5102658984244621
    • 0.5 kg CO2 eq.
  • Resistance To Conducted Disturbances
    • 10 V 0.15...80 MHz IEC 61000-4-6
    • 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
    • 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 1
  • LSB Value
    • 2.44 mV 0...10 V voltage
    • 4.88 mV - 10...10 V voltage
    • 4.88 µA 0...20 mA current
    • 3.91 µA 4...20 mA
  • Electrical Connection
    • 11 x 2.5 mm² removable spring terminal block with pitch 5.08 mm adjustment for outputs and supply
    • 11 x 2.5 mm² removable spring terminal block with pitch 5.
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 14 kg CO2 eq.
    • 13.788566778647954
  • Vibration Resistance
    • 3.5 mm 5-8.4 Hz DIN rail
    • 3 gn 8.4-150 Hz DIN rail
  • Persona Type Names
    • End User
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
  • Type Of Cable
    • twisted shielded pairs cable <30 m output
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 46 kg CO2 eq.
    • 45.53523314102323
  • Resistance To Fast Transients
    • 1 kV IEC 61000-4-4 I/O)
  • Relative Humidity
    • 10-95 %, without condensation in operation)
    • 10-95 %, without condensation in storage)
    • 10-95 %, without condensation in stora
  • Persona Type Ids
    • EU
    • OM
    • OM8
  • Surge Withstand
    • 1 kV power supply common mode IEC 61000-4-5
    • 0.5 kV power supply differential mode IEC 61000-4-5
    • 0.5 kV power supply differ
  • Electromagnetic Emission
    • radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011
    • radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz
  • Resistance To Electrostatic Discharge
    • 8 kV in air IEC 61000-4-2
    • 4 kV on contact IEC 61000-4-2
  • Carbon Footprint Of The Distribution Phase A4
    • 0.04765490592624833
    • 0 kg CO2 eq.
  • Insulation
    • between output and supply 1500 V AC
    • between output and internal logic 500 V AC
  • Analogue Input Resolution
    • 12 bits
    • 11 bits + sign
  • Resistance To Electromagnetic Fields
    • 10 V/m 80 MHz...1 GHz IEC 61000-4-3
    • 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3
    • 1 V/m 2 GHz...3 GHz IEC 61000-4-3
    • 1 V/
  • Shock Resistance
    • 15 gn 11 ms
  • Load Impedance Ohmic
    • 1 kOhm voltage
    • 300 Ohm current
  • Local Signalling
    • 1 LED (green) for PWR
  • Ambient Air Temperature For Operation
    • -10-55 °C horizontal installation
    • -10-35 °C vertical installation
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000751_3D-CAD
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 7/9/2025
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Manufacturing Carbon Footprint : 13.78856678
    • Distribution Carbon Footprint : 0.047654906
    • Installation Carbon Footprint : 0.005619937
    • Use Carbon Footprint : 45.53523314
    • End Of Life Carbon Footprint : 0.510265898
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1402009EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1901
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Conversion Time : 1 ms + 1 ms per channel + 1 controller cycle time
    • Cross Talk : <= 1 LSB
    • Non Linearity : +/- 0.2 %FS
    • Package Weight Lbs : 200.0 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : analog output module
    • Range Of Product : Modicon TM3
    • Repeat Accuracy : +/- 0.4 %FS
    • Returnability : No
    • Stabilisation Time : 1 ms
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 60 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 59.88734066
    • Relationship Type : Compatible relationship
    • Accessories : TMAM2
    • Pep Code : ENVPEP1402009EN
    • Pep Verification Date : 6/1/2024
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3-EN-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 320
    • Functional Unit Description : To enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 60.12864
    • Energy Model Manufacturing A1 A3 : Taiwan, TW
    • Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; China, CN
    • Energy Model Use B6 : Electricity Mix; Low voltage; 2018; China, CN
    • Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; China, CN
    • Recyclability Potential In : 3
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.423432248
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.099851893
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.000305907
    • Acidification Ap Mole Of H Equiv Installation A5 : 7.57189E-05
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.322848576
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.000350153
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
    • Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
    • Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
    • Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.066834946
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.051170718
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : -3.18941E-06
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.015626341
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 4.10766E-05
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 59.82042064
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 13.73731102
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.047654906
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.005623127
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 45.5196068
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.510224789
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 59.88734066
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 13.78856678
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.047654906
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.005619937
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 45.53523314
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.510265898
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.001554412
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.001553489
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 1.87369E-09
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 2.44639E-10
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 9.17206E-07
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 3.82296E-09
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 979.5351806
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 189.4778876
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.663963112
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.064427334
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 788.6953609
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.633541719
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 1040.71529
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 205.8939623
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.032069244
    • Ecotoxicity Fresh Water Ctue Installation A5 : 0.874706165
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 790.2019392
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 43.71261285
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : 0
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 2.39129E-06
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 5.45105E-07
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 2.53072E-09
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 3.06924E-10
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 1.84081E-06
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 2.53752E-09
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : 0
    • Exported Energy Mj By Energy Vector Total Life Cycle : 5.65577E-06
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 5.65577E-06
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 4.7559E-05
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 2.13117E-05
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 1.7853E-08
    • Freshwater Eutrophication Kg P Eq Installation A5 : 2.78491E-08
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 2.37633E-05
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 2.43829E-06
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 18.20774118
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 18.1102398
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 3.35402E-05
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.097467838
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 5.21373E-07
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 4.35021E-07
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 8.40315E-13
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 1.16232E-09
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 5.72265E-09
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 7.94664E-08
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 5.21814E-07
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 2.02596E-07
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 9.44987E-11
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 3.96158E-10
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 3.08615E-07
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 1.01126E-08
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : 0
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 0.53615343
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.238003075
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.245912782
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.052237574
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 24.92628087
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 11.86456239
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.000115926
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 4.30724E-05
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 13.05968214
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.001877355
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.047283061
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.011961048
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.000143627
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 3.57905E-05
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.03497389
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.000168706
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : 0
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.005898822
    • Materials For Recycling Kg Manufacturing A1 A3 : 1.52359E-06
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.005897298
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.119437851
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.073583094
    • Net Use Of Fresh Water M3 Distribution A4 : 4.2082E-06
    • Net Use Of Fresh Water M3 Installation A5 : 0.000309978
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.044869212
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.000671359
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : 0
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 14.31714632
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 6.429391397
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.001670665
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.14556624
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 7.660999519
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.079518499
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 1.97302E-06
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 1.72625E-06
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 7.29598E-11
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 2.23527E-10
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 2.45813E-07
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 6.5796E-10
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.158875434
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.041524081
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.000397983
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 8.74864E-05
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.11644053
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.000425353
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : 0
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.002011919
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.001487612
    • Radioactive Waste Disposed Of Kg Distribution A4 : 1.1899E-06
    • Radioactive Waste Disposed Of Kg Installation A5 : 1.17965E-07
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.00051902
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 3.97895E-06
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : 0
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.537778769
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.127257098
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.001575738
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.000364422
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.406825336
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.001756176
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 4.392671571
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4.392671571
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 1078.478038
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 196.2503555
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.66484914
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.064474141
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 880.8613173
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.637041712
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 98.94285717
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 6.772467927
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.000886028
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 4.6807E-05
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 92.16595642
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.003499992
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 4.392671571
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4.392671571
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 975.1425091
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 185.085216
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.663963112
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.064427334
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 788.6953609
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.633541719
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.963755933
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.963755933
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 95.97910124
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.808711994
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.000886028
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 4.6807E-05
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 92.16595642
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.003499992
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
    • Water Use M3 Eq Total Life Cycle : 5.086806989
    • Water Use M3 Eq Manufacturing A1 A3 : 3.117345191
    • Water Use M3 Eq Distribution A4 : 0.000180742
    • Water Use M3 Eq Installation A5 : 0.013313534
    • Water Use M3 Eq Maintenance B2 : 0
    • Water Use M3 Eq Repair B3 : 0
    • Water Use M3 Eq Replacement B4 : 0
    • Water Use M3 Eq Operational Energy Use B6 : 1.927132658
    • Water Use M3 Eq End Of Life C1 C4 : 0.028834863
    • Water Use M3 Eq Benefits Loads Beyond System Boundaries D : 0
    • Air Pollution M3 Total Life Cycle : 0
    • Air Pollution M3 Manufacturing A1 A3 : 0
    • Air Pollution M3 Distribution A4 : 0
    • Air Pollution M3 Installation A5 : 0
    • Air Pollution M3 Maintenance B2 : 0
    • Air Pollution M3 Repair B3 : 0
    • Air Pollution M3 Replacement B4 : 0
    • Air Pollution M3 Operational Energy Use B6 : 0
    • Air Pollution M3 End Of Life C1 C4 : 0
    • Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Water Pollution M3 Total Life Cycle : 0
    • Water Pollution M3 Manufacturing A1 A3 : 0
    • Water Pollution M3 Distribution A4 : 0
    • Water Pollution M3 Installation A5 : 0
    • Water Pollution M3 Maintenance B2 : 0
    • Water Pollution M3 Repair B3 : 0
    • Water Pollution M3 Replacement B4 : 0
    • Water Pollution M3 Operational Energy Use B6 : 0
    • Water Pollution M3 End Of Life C1 C4 : 0
    • Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : analog output module
    • Range Of Product : Modicon TM3
  • Output Attributes
    • Output Ripple : 20 mV
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=348994484&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 59.88734066
    • Circularity Profile : ENVEOLI1402009EN
    • Environmental Disclosure : ENVPEP1402009EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Storage Altitude : 0-3000 m
    • Pep Code : ENVPEP1402009EN
    • Pep Verification Date : 6/1/2024
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3-EN-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
  • Specifications
    • Country of Origin : Japan
