discrete output module, Modicon TM3, 16 relay outputs, screw, 24V DC

TM3-16 OUT RELAYS

SQDTM3DQ16R TM3DQ16R 3606480611445
289.07 / EA
http://schema.org/OutOfStock
  • Depth: 84.6 mm
  • Height: 90 mm
  • Net Weight: 0.145 kg
  • Weight: 0.145 kg
  • Width: 27.4 mm

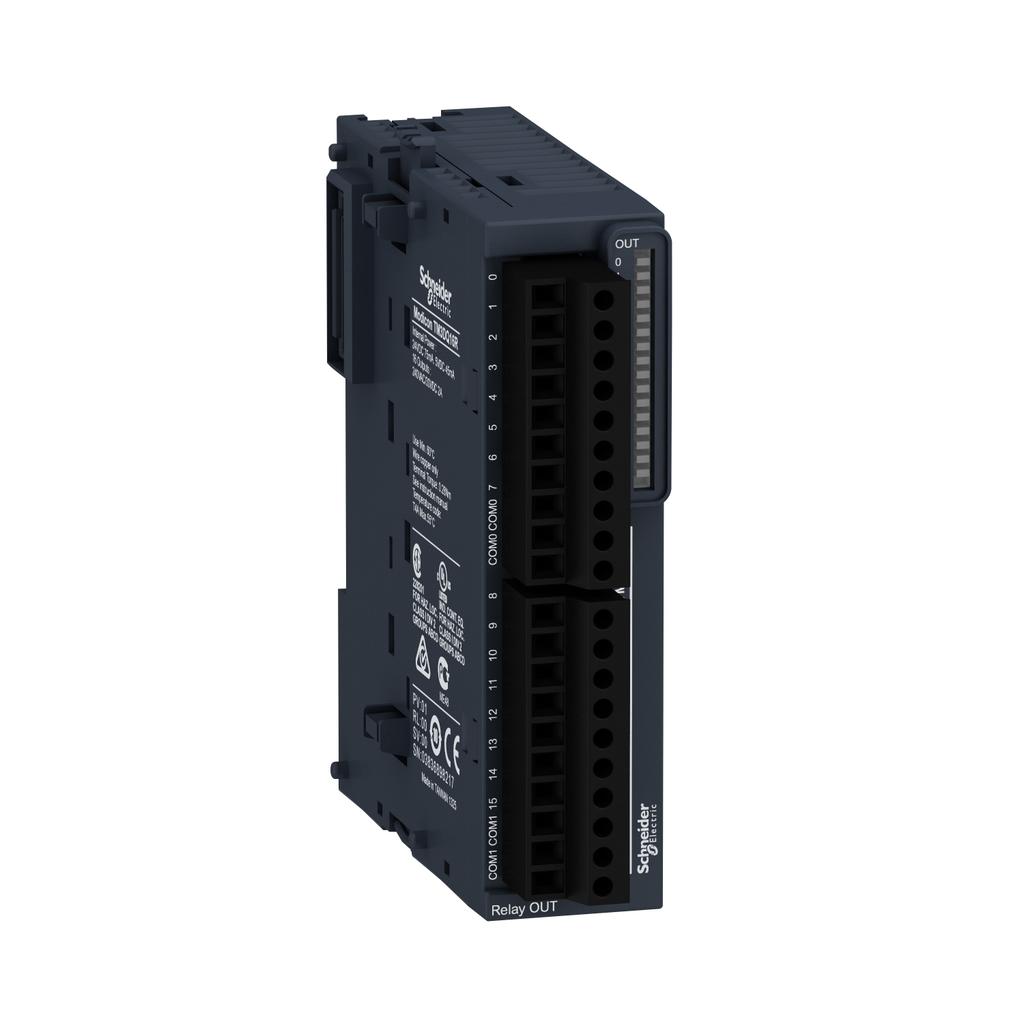

This digital output module is part of the Modicon TM3 range of I/O expansion modules for Modicon controllers It consists in 16 N/O relay outputs 2 A. It is equipped with one removable screw terminal block and can be mounted on a symmetrical DIN rail 35 mm. This digital I/O module complement the embedded I/O on Modicon M221, M221 Book, M241 and M251 logic controllers. There is an insulation between output and internal logic at 2300V AC, outputs at 750V AC, output groups at 1500V AC. It is furnished with removable spring terminal for electrical connection with 5.08mm pitch adjustment for inputs and outputs. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.14kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
QTY
  • Product Description
  • Features
  • Specifications
This digital output module is part of the Modicon TM3 range of I/O expansion modules for Modicon controllers It consists in 16 N/O relay outputs 2 A. It is equipped with one removable screw terminal block and can be mounted on a symmetrical DIN rail 35 mm. This digital I/O module complement the embedded I/O on Modicon M221, M221 Book, M241 and M251 logic controllers. There is an insulation between output and internal logic at 2300V AC, outputs at 750V AC, output groups at 1500V AC. It is furnished with removable spring terminal for electrical connection with 5.08mm pitch adjustment for inputs and outputs. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.14kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1402009EN
    • Packaging Without Single Use Plastic : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI1402009EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 68.30284971153483
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 16.972863919091964
    • Carbon Footprint Of The Distribution Phase [A4] : 0.1 kg CO2 eq.
    • Pvc Free : Yes
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 86 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.6281054293418613
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 85.96939706232261
  • Specifications
    • Width : 27.4 mm
    • Height : 90 mm
    • Weight : 0.145 kg
    • Discrete Output Type : relay normally open
    • Range Of Product : Modicon TM3
    • Discrete Output Logic : positive or negative
    • Discrete Output Number : 16
    • Product Or Component Type : discrete output module
    • Discrete Output Current : 2000 mA relay output
    • Discrete Output Voltage : 240 V AC relay output || 30 V DC relay output
    • Range Compatibility : Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
  • Environment
    • Product Certifications : cULus || CE || UKCA || RCM || EAC || cULus HazLoc
    • Resistance To Conducted Disturbances : 10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
    • Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
    • Standards : IEC 61131-2
    • Ambient Air Temperature For Operation : -10-35 °C vertical installation || -10-55 °C horizontal installation
    • Storage Altitude : 0-3000 m
    • Pollution Degree : 2
    • Shock Resistance : 15 gn 11 ms
    • Resistance To Magnetic Fields : 30 A/m 50/60 Hz IEC 61000-4-8
    • Vibration Resistance : 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
    • Ambient Air Temperature For Storage : -25-70 °C
    • Relative Humidity : 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
    • Surge Withstand : 1 kV I/O common mode IEC 61000-4-5 DC
    • Ip Degree Of Protection : IP20 with protective cover in place
    • Resistance To Electrostatic Discharge : 8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Resistance To Fast Transients : 2 kV relay outputIEC 61000-4-4
    • Electromagnetic Emission : radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
  • Complementary
    • Maximum Cable Distance Between Devices : unshielded cable <30 m relay output
    • Electrical Connection : 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs
    • Height : 90 mm
    • Marking : CE
    • Response Time : 10 ms (turn-on) || 5 ms (turn-off)
    • Discrete I/O Number : 16
    • Net Weight : 0.145 kg
    • Current Consumption : 0 mA 24 V DC via bus connector at state off) || 75 mA 24 V DC via bus connector at state on)
    • Mechanical Durability : 20000000 cycles
    • Mounting Support : top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
    • Local Signalling : 1 LED per channel (green) for output status
    • Width : 27.4 mm
    • Depth : 84.6 mm
    • Minimum Load : 10 mA 5 V DC relay output
    • Insulation : between output and internal logic 2300 V AC || between outputs 750 V AC || between output groups 1500 V AC
