discrete output module, Modicon TM3, 16 outputs transistor PNP, spring

TM3-16 OUT TR.PNP SPRING

SQDTM3DQ16TG TM3DQ16TG 3606480611490
233.72 / EA
http://schema.org/OutOfStock

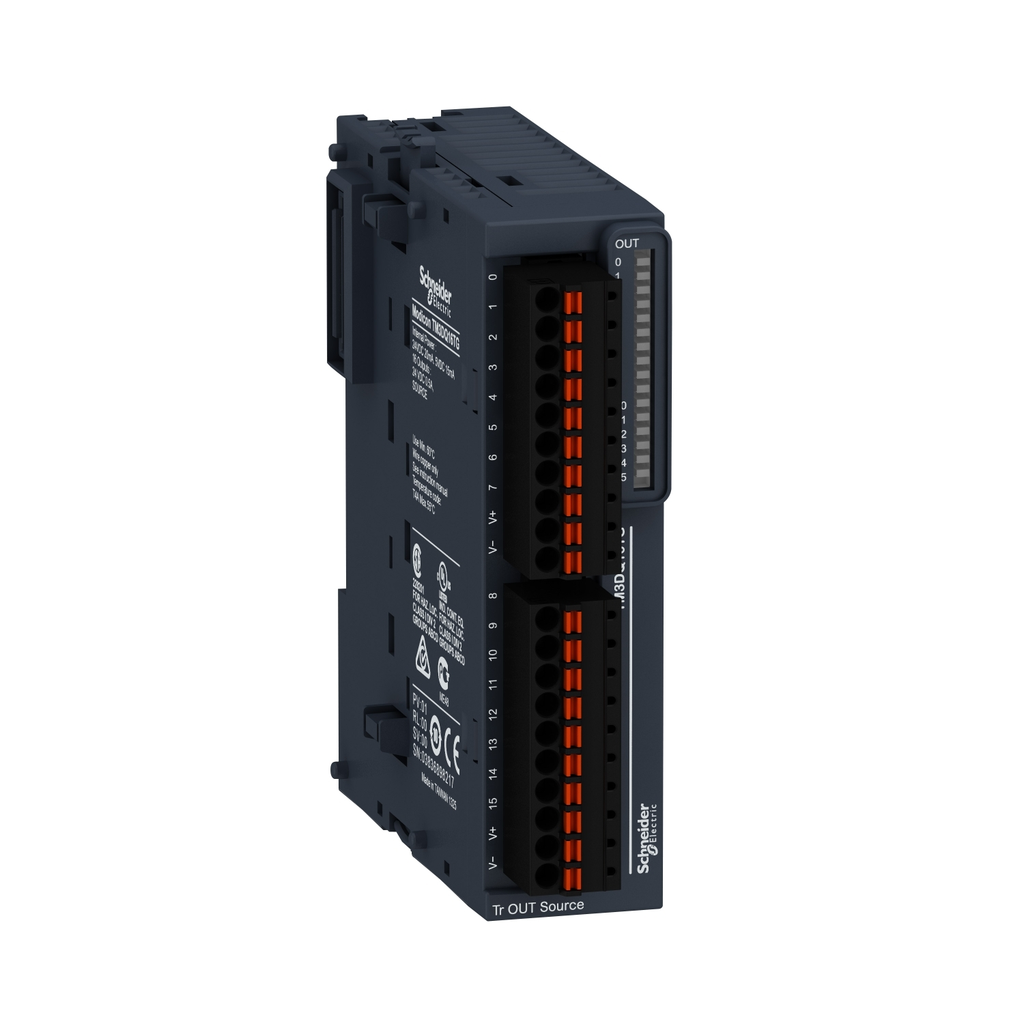

Mayer-DDS-discrete output module, Modicon TM3, 16 outputs transistor PNP, spring-1
  • Certifications: CE, CULus, CULus HazLoc, EAC, RCM, UKCA
  • Current: 0 mA, 24 V, 5 mA, 5 V
  • Depth: 84.6 mm
  • Height: 90 mm
  • Net Weight: 0.11 kg
  • Operating Temperature: -10-35 °C Vertical Installation || -10-55 °C Horizontal Installation
  • Standard: IEC 61131-2
  • Storage Temperature: -25-70 °C
  • Width: 27.4 mm
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 16 transistor outputs with source (positive) logic. It is an output module with an output voltage of 24V DC and a current consumption of 20mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with pitch 3.81mm adjustment for outputs. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.095kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
QTY
  • Product Description
  • Specifications
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 16 transistor outputs with source (positive) logic. It is an output module with an output voltage of 24V DC and a current consumption of 20mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with pitch 3.81mm adjustment for outputs. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.095kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1402009EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1402009EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Environment
    • Product Certifications : cULus || CE || UKCA || RCM || EAC || cULus HazLoc
    • Resistance To Conducted Disturbances : 10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
    • Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
    • Standards : IEC 61131-2
    • Ambient Air Temperature For Operation : -10-35 °C vertical installation || -10-55 °C horizontal installation
    • Storage Altitude : 0-3000 m
    • Pollution Degree : 2
    • Shock Resistance : 15 gn 11 ms
    • Resistance To Magnetic Fields : 30 A/m 50/60 Hz IEC 61000-4-8
    • Vibration Resistance : 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
    • Ambient Air Temperature For Storage : -25-70 °C
    • Relative Humidity : 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
    • Surge Withstand : 1 kV I/O common mode IEC 61000-4-5 DC
    • Ip Degree Of Protection : IP20 with protective cover in place
    • Resistance To Electrostatic Discharge : 8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Resistance To Fast Transients : 1 kV I/OIEC 61000-4-4
    • Electromagnetic Emission : radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
  • Complementary
    • Maximum Cable Distance Between Devices : unshielded cable <30 m transistor output
    • Electrical Connection : 10 x 1.5 mm² removable spring terminal block pitch 3.81 mm for outputs
    • Height : 90 mm
    • Marking : CE
    • Response Time : 450 µs (turn-on) || 450 µs (turn-off)
    • Discrete I/O Number : 16
    • Net Weight : 0.11 kg
    • Maximum Voltage Drop : <0.4 V
    • Current Consumption : 5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state off) || 15 mA 5 V DC via bus connector at state on) || 20 mA 24 V DC via bus connector at state on)
    • Mounting Support : top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
    • Local Signalling : for output status 1 LED per channel (green)
    • Width : 27.4 mm
    • Depth : 84.6 mm
    • Maximum Tungsten Load : <3 W transistor output
    • Maximum Leakage Current : 0.1 mA transistor output
    • Insulation : between output and internal logic 500 V AC || non-insulated between outputs
  • Specifications
    • Discrete Output Type : transistor
    • Range Of Product : Modicon TM3
    • Discrete Output Logic : positive logic (source)
    • Discrete Output Number : 16
    • Product Or Component Type : discrete output module
    • Discrete Output Current : 500 mA transistor output
    • Discrete Output Voltage : 24 V DC transistor output
    • Range Compatibility : Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
