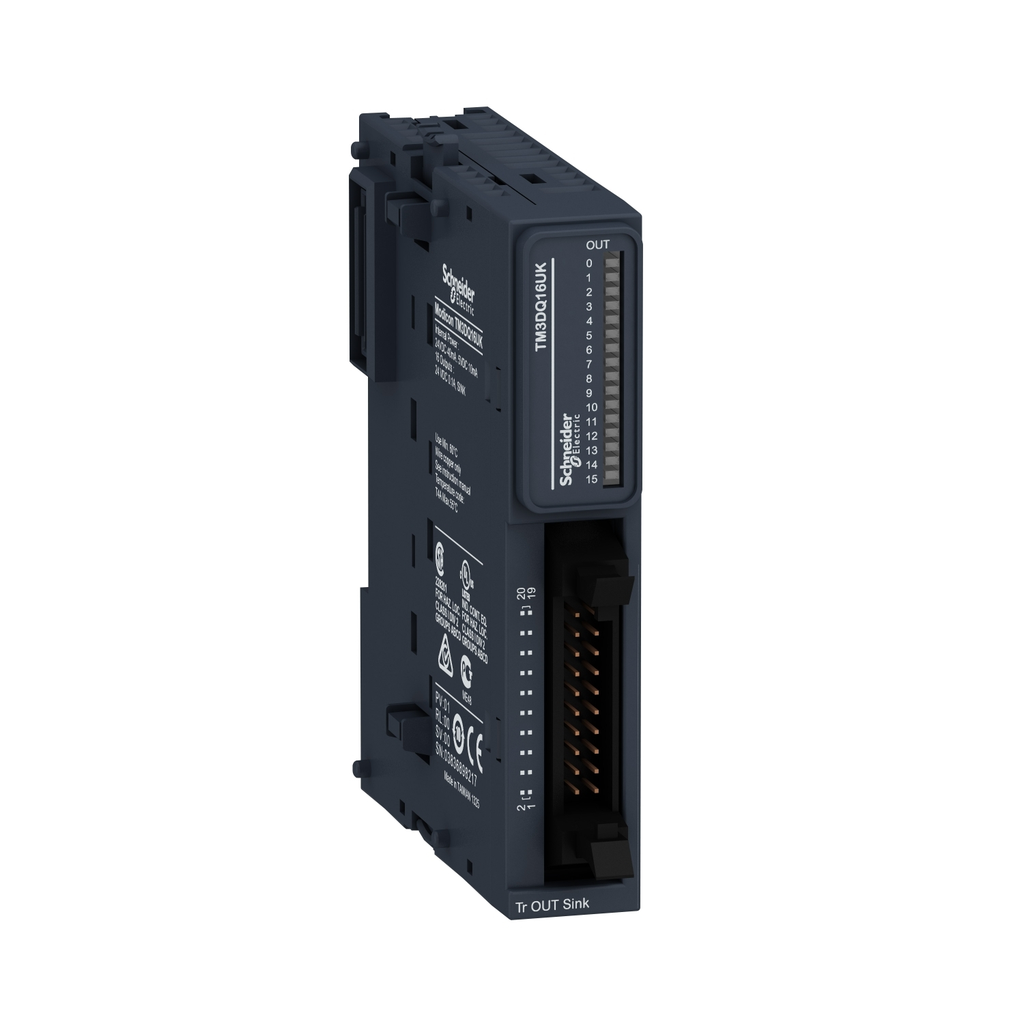

Discrete output module, Modicon TM3, 16 outputs transistor NPN (HE10)

TM3-16 OUT TR.NPN HE10

SQDTM3DQ16UK TM3DQ16UK 3606480611605
182.30 / EA
http://schema.org/OutOfStock
Mayer-DDS-Discrete output module, Modicon TM3, 16 outputs transistor NPN (HE10)-1
  • Depth: 81.3 mm
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000757_3D-CAD
  • Physical Attributes
    • Housing Color : grey
  • Conformance Attributes
    • Product Certifications : cULus, CE, UKCA, RCM, EAC, CE, cULus, UKCA, RCM, EAC, cULus HazLoc
    • Standards : IEC 61131-2
  • Complementary Attributes
    • Maximum Voltage Drop : <0.4 V, <0.4 V
    • Maximum Cable Distance Between Devices : unshielded cable <5 m transistor output
    • Maximum Leakage Current : 0.1 mA
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Mounting Support : top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
    • Typical Current Consumption : 5 mA 5 V DC, 0 mA 24 V DC, 20 mA 5 V DC, 10 mA 24 V DC
    • Vibration Resistance : 3 gn 8.4-150 Hz) on panel mounting, 3.5 mm 5-8.4 Hz) on DIN rail, 3 gn 8.4-150 Hz) on DIN rail, 3.5 mm 5-8.4 Hz) on panel mounting
    • Carbon Footprint Of The Distribution Phase A4 : 0.04259157217158444, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.456050146716863, 0.5 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.005022818976504355
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 12 kg CO2 eq., 12.323531558416608
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 21 kg CO2 eq., 21.060045327723248
    • Medium Desc : Discrete output module, Modicon TM3, 16 outputs transistor NPN (HE10)
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1402009EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Bearing Track Assembly Possible : true
    • Device Application : Industrial Application
    • Electrical Connection : HE-10 connector for outputs
    • Front Installation Possible : false
    • Io Link Master Present : false
    • Isolation Between Channels And Bus : 500 V AC
    • Local Signalling : 1 LED per channel (green) for output status
    • Marking : CE
    • Network Type : AC
    • Optical Interface Present : false
    • Power Supply Type : electronic powered by internal bus
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : discrete output module
    • Protective Treatment : none
    • Rack Assembly Possible : false
    • Radio Standard Bluetooth : false
    • Radio Standard Gprs : false
    • Radio Standard Gsm : false
    • Radio Standard Umts : false
    • Range Of Product : Modicon TM3
    • Returnability : No
    • Safety Reliability Data : MTBF = 110 years 40 °C
    • Shock Resistance : 15 gn 11 ms
    • Software Version : v6.1
    • Supporting Protocol For As Interface Safety At Work : false
    • Supporting Protocol For Asi : false
    • Supporting Protocol For Can : false
    • Supporting Protocol For Data Highway : false
    • Supporting Protocol For Devicenet : false
    • Supporting Protocol For Devicenet Safety : false
    • Supporting Protocol For Ethercat : false
    • Supporting Protocol For Ethernet Ip : false
    • Supporting Protocol For Foundation Fieldbus : false
    • Supporting Protocol For Interbus : false
    • Supporting Protocol For Knx : false
    • Supporting Protocol For Lon : false
    • Supporting Protocol For Modbus : false
    • Supporting Protocol For Other Bus Systems : false
    • Supporting Protocol For Profibus : false
    • Supporting Protocol For Profinet Cba : false
    • Supporting Protocol For Profinet Io : false
    • Supporting Protocol For Profisafe : false
    • Supporting Protocol For Safetybus P : false
    • Supporting Protocol For Sercos : false
    • Supporting Protocol For Suconet : false
    • Supporting Protocol For Tcp Ip : false
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 34 kg CO2 eq.
    • Wall Mounting Direct Mounting Possible : false
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Certified For Ul Hazardous Location Class I : false
    • Certified For Ul Hazardous Location Class Ii : false
    • Certified For Ul Hazardous Location Class Iii : false
    • Certified For Ul Hazardous Location Division 1 : false
    • Certified For Ul Hazardous Location Division 2 : false
    • Dc Supply Voltage : 24-24 V
    • Digital Outputs Configurable : false
    • Fieldbus Connection Over Separate Bus Coupler Possible : false
    • Housing Color : grey
    • Performance Level According To En Iso 13849 1 : none
    • System Accessory : false
    • Digital Inputs Configurable : false
    • Short Circuit Protection Outputs Present : true
    • Time Delay At Signal Change : 0.45-0.45 ms
    • Appendant Operation Agent Ex Ia : false
    • Appendant Operation Agent Ex Ib : false
    • Certified For Ul Hazardous Location Group A Acetylene : false
    • Certified For Ul Hazardous Location Group B Hydrogen : false
    • Certified For Ul Hazardous Location Group C Ethylene : false
    • Certified For Ul Hazardous Location Group D Propane : false
    • Certified For Ul Hazardous Location Group E Metal Dusts : false
    • Certified For Ul Hazardous Location Group F Carbonaceous Dust : false
    • Certified For Ul Hazardous Location Group G Non Conductive Dust : false
    • Pep Code : ENVPEP1402009EN
    • Database Version : 2023-02
    • Pep Verification Date : 2024-06-01
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3-EN-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : To enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Taiwan, TW
    • Energy Model Installation A5 2 : Electricity Mix; Low voltage; 2018; China, CN
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2018; China, CN
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Low voltage; 2018; China, CN
    • Height Nominal : 90 mm
    • Width Nominal : 21.4 mm
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation)
    • Ambient Air Temperature For Storage : -25-70 °C, -25-70 °C
    • Relative Humidity : 10-95 % without condensation for operation, 10-95 % without condensation for storage
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 33.887241424004806
    • Circularity Profile : ENVEOLI1402009EN
    • Environmental Disclosure : ENVPEP1402009EN
    • Eu Rohs Directive : Compliant
    • Ip Degree Of Protection : IP20
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1402009EN
    • Pep Verification Date : 2024-06-01
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3-EN-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : discrete output module
    • Range Of Product : Modicon TM3
  • ETIM
    • ETIM 8 : EC001599
    • ETIM 9 : EC001599
  • Output Attributes
    • Discrete Output Number : 16 transistor, 16
    • Response Time On Output : 450 µs maximum (turn on), 450 µs maximum (turn off)
    • Discrete Output Current : 100 mA transistor output
    • Discrete Output Logic : negative logic (sink)
    • Discrete Output Type : transistor
    • Discrete Output Voltage : 24 V DCtransistor
    • Discrete Output Voltage Type : AC/DC
  • Specifications
    • Country of Origin : Taiwan, United States
    • Depth : 81.3 mm
