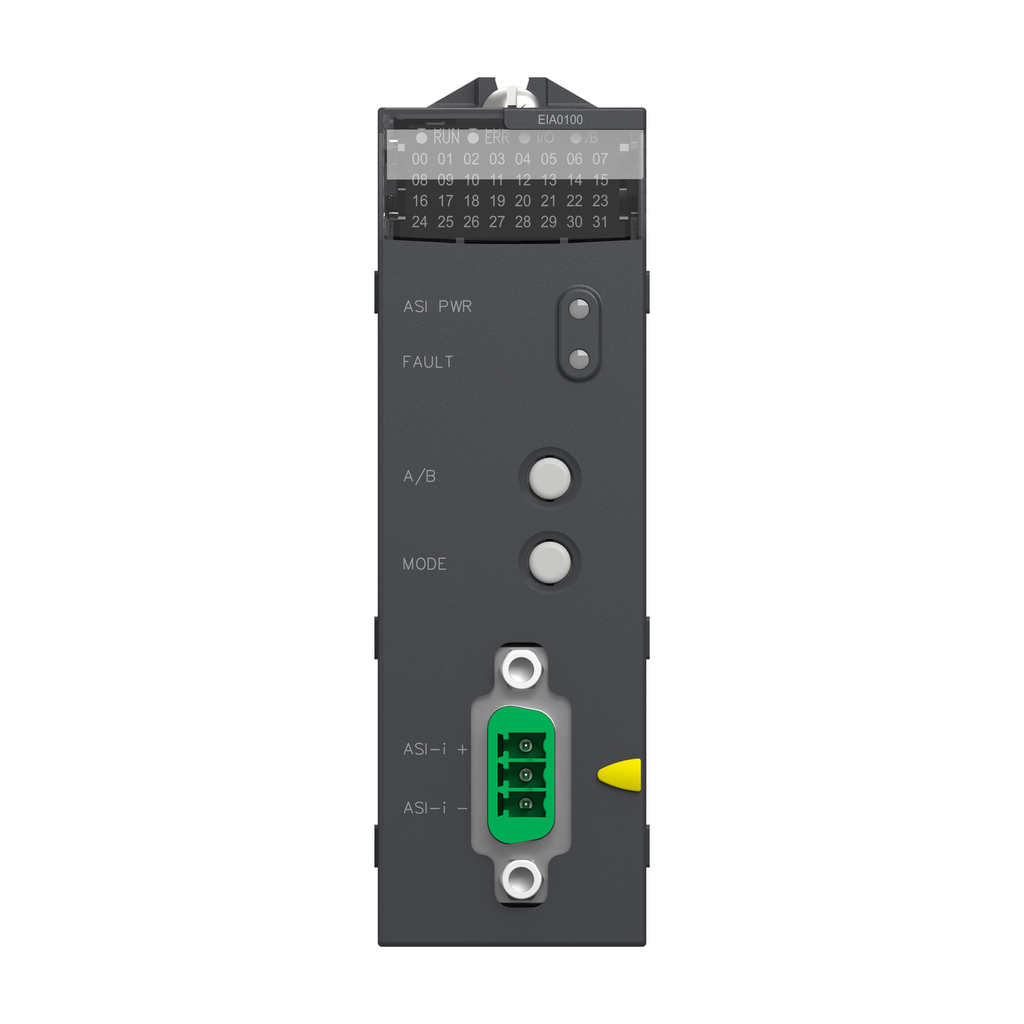

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This master module supports up to 62 I/O discrete devices and up to 31 I/O analogue devices. It is a master module with a current consumption of 160mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with 3-way SUB-D male connector for electrical connection. It is an IP20 rated product. Maximum cable distance between devices is 100m, 200m line extension, 300m 2 repeaters, 500m 2 repeaters and the master at the middle. It weighs 0.34kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_3D-simpl&p_File_name=BMXEIA0100_3D-Simpl.stp, https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_3D-simpl&p_File_name=BMXEIA0100_2D-BOTTOM.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_3D-simpl&p_File_name=bmxeia0100_2d-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_3D-simpl&p_File_name=BMXEIA0100_2D-FRONT.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_3D-simpl&p_File_name=bmxeia0100_2d-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_3D-simpl&p_File_name=BMXEIA0100_2D-isom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_3D-simpl&p_File_name=bmxeia0100_2d-isom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_3D-simpl&p_File_name=BMXEIA0100_2D-LEFT.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_3D-simpl&p_File_name=bmxeia0100_2d-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_3D-simpl&p_File_name=BMXEIA0100_2D-REAR.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_3D-simpl&p_File_name=bmxeia0100_2d-rear.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_3D-simpl&p_File_name=BMXEIA0100_2D-RIGHT.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_3D-simpl&p_File_name=bmxeia0100_2d-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_3D-simpl&p_File_name=BMXEIA0100_2D-TOP.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_3D-simpl&p_File_name=bmxeia0100_2d-top.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_CAD&p_File_name=BMXEIA0100_3D.stp, https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_CAD&p_File_name=BMXEIA0100_2D Front View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_CAD&p_File_name=BMXEIA0100_2D Front View.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_CAD&p_File_name=BMXEIA0100_2D Right Side View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXEIA0100_CAD&p_File_name=BMXEIA0100_2D Right Side View.dxf
• Conformance Attributes
• Product Certifications : CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22
• Standards : IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, IEC 61000-6-5, interface type 1 and type 2, IEC 61850-3, location G, IEC 60079-0
• Complementary Attributes
• Maximum Cable Distance Between Devices : 100 m, 200 m line extension, 300 m 2 repeaters, 500 m 2 repeaters and the master at the middle
• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Cycle Time : 5 ms 31, 10 ms 62
• Environmental Characteristic : hazardous location class I division 2, hazardous location
• Local Signalling : 1 LED (green) for module active (RUN), 1 LED (red) for module error (ERR), 1 LED (green) for displays the group of 31 slaves (A/B), 1 LED (red) for I/O module fault (I/O), 32 LEDs for diagnostics of the AS-Interface and each slave, 1 LED (green) for ASI power, 1 LED (red) for fault
• Number Of Server Device S : 124 server device(s) for analog inputs and outputs - extended, 124 server device(s) for discrete inputs and outputs - standard, 124 server device(s) for analog inputs and outputs - standard, 496 server device(s) for discrete inputs and outputs - extended
• Carbon Footprint Of The Distribution Phase A4 : 0.0274607812, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.33796875
• Carbon Footprint Of The Installation Phase A5 : 0.0835980469, 0.1 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 14 kg CO2 eq., 14.30296875
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 24 kg CO2 eq., 23.5456
• Medium Desc : master module, Modicon X80, upto 62 devices on discrete IO, upto 31 devices on analog IO
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-23
• Global Commercial Status : Commercialised
• Return Indicator : N
• Stocking Flag : Y
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2402021EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Addressing : standard and extended
• Current Consumption : 160 mA 3.3 V DC
• Electrical Connection : 1 male connector SUB-D, 3 pins
• Module Format : standard
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : master module
• Range Of Product : Modicon X80
• Returnability : No
• Software Version : v5.9.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 38 kg CO2 eq.
• Pep Code : ENVPEP2402021EN
• Database Version : 2022-01
• Pep Verification Date : 2023-11-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; FR
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
• Environment Attributes Main
• Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 38.2975963281
• Ambient Air Temperature For Operation : 0-60 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2402021EN
• Environmental Disclosure : ENVPEP2402021EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2402021EN
• Pep Verification Date : 2023-11-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : master module
• Range Of Product : Modicon X80
• ETIM
• ETIM 8 : EC001423
• ETIM 9 : EC001423
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
