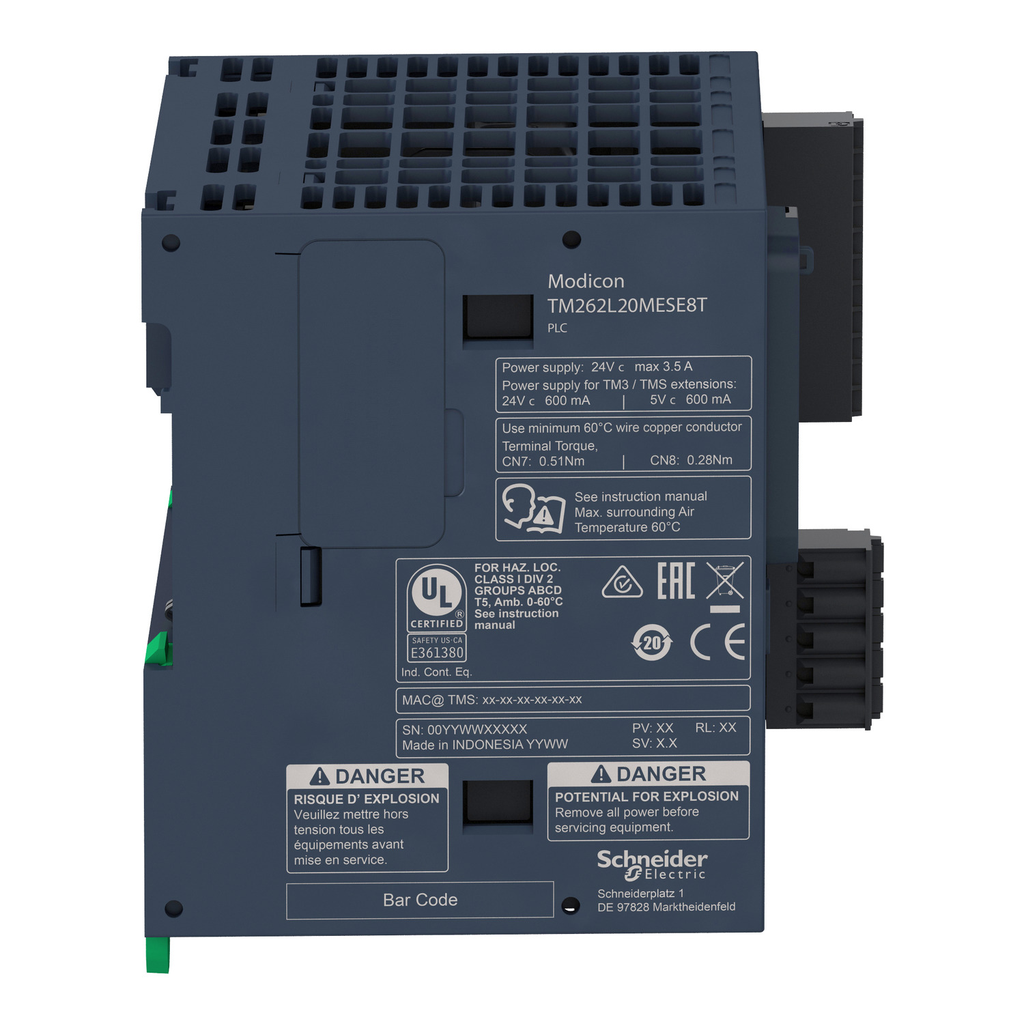

Modicon M262 logic/motion controllers are designed for performance-demanding machines, IIoT-ready and combine logic, motion and safety control applications. TM262L20MESE8T is specialized in the logic control of 4 fast digital inputs and 4 fast digital ouputs. It controls motion with independant axis in EtherNet/IP. This logic controller embeds two Ethernet-based networks (EtherNet/IP, Modbus/TCP), one serial port (Modbus, ASCII, Machine Expert protocols). Modicon M262 are logic/motion controllers with embedded cloud connectivity, figuring cybersecurity capabilities, supporting monitoring, analytics and predictive maintenance. It is powered with a non-isolated 24V DC power supply, has a built-in overload protection, embeds a dual-core processor, reaches a 5ns/instruction performance. This logic controller has one communication bus (Ethernet, CANopen), one IO bus, one IO port. It measures 125mm width, 90mm depth, and 100 mm height. It weighs 0.665kg. This controller is designed for machinery requiring integrated IIoT connectivity or encrypted communication. Certified with CE, cULus HazLoc, RCM, EAC, Achilles L2, EU RO Mutual, Conform to UL 61010-1/-2-201, CSAC22.2 No. 61010-1/-2-201, ANSI/ISA 12-12-01, EN 61131-2. This controller is compatible with TMS CANopen smart communication module, Modicon TM3 IO expansion modules, and configured by EcoStruxure Machine Expert. Modicon M262 logic controller installs on 35mm DIN rail with Clip-on locks. Modicon M262 logic/motion controllers are the IIoT-ready controllers for performance machines. Modicon M262 logic/motion controllers embed Industrial Internet of Things (IIoT) protocols and encryption to provide direct cloud connectivity & digital services.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary
• Discrete Input Logic : sink
• Power Consumption In W : 82 W
• Input Impedance : 2.81 kOhm input
• Discrete Input Voltage : 24 V
• Inrush Current : 40 A
• Discrete Output Number : 4 transistor fast output
• Discrete Input Voltage Type : DC
• Clock Drift : <= 10 s/month 25-25 °C
• Reset Time : 200 ms automatic reset fast output
• Maximum Number Of I/O Expansion Module : 7 TM3 IO module (remote I/O-Architecture) || 7 TM3 IO module (local I/O-Architecture) || 64 TM3, TM5 or TM7 IO island (distributed I/O-Architecture)
• Net Weight : 0.655 kg
• Output Voltage Limits : 30 V DC
• Voltage State 1 Guaranteed : >= 15 V DC
• Integrated Connection Type : Ethernet 1 RJ45 10/100BASE-T || Ethernet 2 2 RJ45 100/1000BASE-T || serial link RJ45 RS232/RS485 || Smart Communication Bus || TM3 IO bus || USB type mini B
• Mounting Support : top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
• Local Signalling : 1 LED (green/red) for PWR || 1 LED (green/red) for RUN || 1 LED (green/red) for ERROR (fault) || 1 LED (green/red) for stop forced || 1 LED (green/red) for I/O error (I/O) || 1 LED (green/orange) for SD card activity || 1 LED (green/orange) for SL activity || 1 LED (green/red) for ETH1 state || 1 LED (green/red) for ETH2 state || 1 LED (green/red) for EIP MS || 1 LED (green/red) for EIP NS
• Response Time : <= 1 µs turn-on, I0...I3 fast input || <= 1 µs turn-off, I0...I3 fast input || <= 1 µs turn-on, Q0...Q3 fast output || <= 1 µs turn-off, Q0...Q3 fast output
• Discrete Input Current : 7.5 mA fast input
• Overvoltage Protection : with
• Width : 125 mm
• Depth : 90 mm
• Maximum Tungsten Load : <1.5 W
• Maximum Leakage Current : 10 µA output
• Maximum Number Of Connected Devices : EtherNet/IP: 64 || Modbus TCP: 64 || Modbus TCP/EtherNet/IP: 128
• Data Backed Up : 1 GB built-in flash memory backup of user programs
• Discrete Output Type : transistor
• Electrical Connection : removable spring terminal block for inputs and outputs || removable spring terminal block for connecting the 24 V DC power supply
• Maximum Cable Distance Between Devices : shielded cable <3 m fast input || shielded cable <3 m fast output || unshielded cable <50 m input || unshielded cable <50 m output || shielded cable <30 m RS485 link || shielded cable <15 m RS232
• Height : 100 mm
• Discrete Output Logic : source
• Communication Service : MQTTs || OPC UA server (Encrypt) || OPC UA client (Encrypt) || HTTPs Methods (API) || web server || web visu || TLS 1.2 || TLS 1.3 || SNTP || NTP client/server || FTP client/server || FTPs server || SQL client (remote access) || DHCP client || DHCP server || DNS client || POP3s client || SMTP client || SNMP client/server
• Positioning Functions : libraries axes coordinated
• Accuracy : +/- 0.1 % 0.02-0.1 kHz fast output || +/- 1 % 0.1-1 kHz fast output
• Maximum Current Per Output Common : 0.5 A Q0...Q3 fast output
• Transmission Rate : 115 kbit/s 15-15 m RS485 || 115 kbit/s 3-3 m RS232 || 480 Mbit/s 3-3 m USB || 10/100 Mbit/s Ethernet1 || 10/100/1000 Mbit/s Ethernet2
• Communication Port Protocol : EtherNet/IP adapter || EtherNet/IP scanner || Modbus TCP client/server || Modbus TCP IO scanner || Modbus TCP NVL || Ethernet RSTP || Modbus SL client/server || Modbus SL IO scanner || Modbus SL modem management || Machine Expert || ASCII manager || ASCII modem management
• Backup Time : 1000 h 25 °C
• Cycle Time : 0.5 ms
• Discrete Output Current : 0.5 A fast output Q0...Q3)
• Application Structure : 8 event tasks || 4 cyclic master tasks || 3 cyclic master tasks + 1 freewheeling task || 8 external event tasks
• Voltage State 0 Guaranteed : <= 5 V DC
• Configurable Filtering Time : 0.001 ms fast input || 0.002 ms fast input || 0.005 ms fast input || 0.01 ms fast input || 0.05 ms fast input || 0.1 ms fast input || 0.5 ms fast input || 1 ms fast input || 4 ms fast input || 12 ms fast input
• Discrete Output Voltage : 24 V DC
• Memory Capacity : 32 MB program RAM || 32 MB OS/website RAM || 192 MB system memory RAM
• Supply Voltage Limits : 20.4-28.8 V DC
• Surge Withstand : 1 kV power lines (DC) common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV relay output differential mode IEC 61000-4-5 || 1 kV input common mode IEC 61000-4-5 || 1 kV transistor output common mode IEC 61000-4-5
• Maximum Output Frequency : 300 kHz
• Execution Time For 1 Kinstruction : 0.003 ms
• Realtime Clock : with
• Protection Type : short-circuit and overload protection with automatic reset || reverse polarity protection || short-circuit protection
• Discrete Input Number : 4 , discrete input fast input IEC 61131-2 Type 1
• Data Storage Equipment : <= 32 GB SDHC card optional)
• Insulation : between fast input and internal logic 550 V AC || non-insulated between inputs || between output and internal logic 550 V AC || non-insulated between outputs || between input and output 550 V AC || between supply and internal logic 550 V AC || non-insulated between supply and ground
• Environment
• Product Certifications : CE || cULus || cULus HazLoc Class I Division 2 CSA 22-2 No 213 || RCM || EAC || Achilles || KC
• Storage Altitude : 0-3000 m
• Shock Resistance : 15 gn 11 ms
• Vibration Resistance : 3.5 mm 2-8.4 Hz symmetrical rail || 1 gn 8.4-200 Hz symmetrical rail || 3.5 mm 2-8.4 Hz panel mounting || 1 gn 8.4-200 Hz panel mounting
• Operating Altitude : 0...6561.68 ft (0...2000 m)
• Electromagnetic Emission : conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || radiated emissions 40 dBµV/m30-230 kHz IEC 55011 || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011 || radiated emissions230-1000 MHz IEC 55011
• Resistance To Conducted Disturbances : 10 V 0.15...80 MHz IEC 61000-4-4 || 3 V 0.1...80 MHz || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)
• Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
• Immunity To Microbreaks : 0.01 ms
• Standards : UL 61010-1 || UL 61010-2-201 || CSA C22.2 No 61010-1 || CSA C22.2 No 61010-2-201 || CSA C22.2 No 213 || ANSI/ISA 12-12-01 || IEC 61131-2
• Pollution Degree : 2
• Ambient Air Temperature For Operation : -20-60 °C horizontal installation) || -20-50 °C vertical installation) || -20-45 °C flat mounting)
• Ambient Air Temperature For Storage : -40-85 °C
• Relative Humidity : 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
• Ip Degree Of Protection : IP20
• Resistance To Electrostatic Discharge : 4 kV on contact IEC 61000-4-2 || 8 kV on air IEC 61000-4-2
• Resistance To Fast Transients : 2 kV IEC 61000-4-4 power lines) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link) || 1 kV IEC 61000-4-4 input) || 1 kV IEC 61000-4-4 transistor output)
• Environmental data
• Mercury Free : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Take-Back : No
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 18.588071256
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 1 204 kg CO2 eq.
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 1203.7273373344
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP1904006EN
• Packaging Without Single Use Plastic : Yes
• Scip Number : aee2b861-0272-4e88-8e3e-89ad0cfa3229
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase [A5] : 0.0085801726
• Circularity Profile : ENVEOLI1904006EN
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 1184.6
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.4 kg CO2 eq.
• Carbon Footprint Of The Distribution Phase [A4] : 0.1 kg CO2 eq.
• Pvc Free : Yes
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Specifications
• Country of Origin : Indonesia
• Width : 125 mm
• Height : 100 mm
• Weight : 0.655 kg
• [Us] Rated Supply Voltage : 24 V DC - 15...20 %
• Product Or Component Type : logic controller
• Upstream Connectivity : IIoT-ready machine to cloud || connected machine to plant
• Range Of Product : Logic/motion controller - Modicon M262
• Discrete I/O Number : 8
