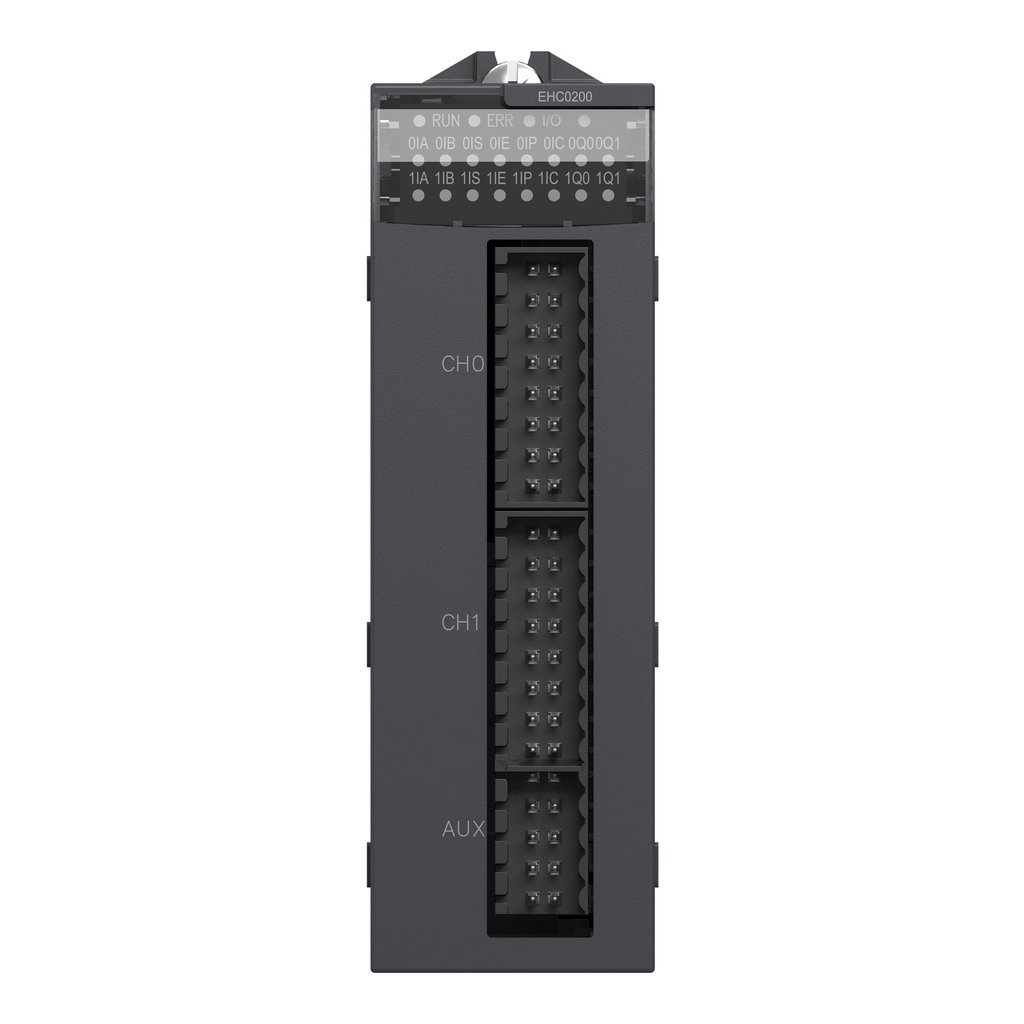

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This high speed counter module has 2 channels, 6 inputs and 2 outputs. It is a counter module with an I/O voltage of 24V DC and a current consumption of 100mA at 3.3V DC bus, 40mA at 24V DC rack, 80mA at 24V DC sensor. Counter functions are loop (modulo) counting, width modulation, down counting etc. This product is robust, high quality and based on the latest innovative technology. It is furnished with 10-pin connector with for wiring auxiliary input and sensor power supply, 16-pin connector for wiring the sensors of counter 0 and 16-pin connector for wiring the sensors of counter 1. It is an IP20 rated product. It weighs 0.112kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 19.2V to 30V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10V to 30V totem pole. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Ambient Air Temperature For Operation : 0-60 °C
• Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
• Relative Humidity : 10-95 % without condensation
• Protective Treatment : TC
• Ip Degree Of Protection : IP20
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2311046EN
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile : ENVEOLI2311046EN
• Take-Back : No
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 83.2725251397
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 17.8877575758
• Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
• Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 101 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.2484193939
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 101.4642880488
• Complementary
• Electrical Connection : 1 connector 10 pins for wiring auxiliary input and sensor power supply || 1 connector 16 pins for wiring the sensors of counter 0 || 1 connector 16 pins for wiring the sensors of counter 1
• Maximum Load Current : 1 A per module || 0.5 A per output
• Discrete Output Logic : positive or negative configurable
• Cycle Time : 1 ms
• Counter Functions : loop (modulo) counting || width modulation || down counting || measure time periods || ratio count || count events || 32-bit counter counting || frequency meter
• Maximum Voltage Drop : <3 V at state 1
• Overlap Time : 0.2 ms
• Current Consumption : 200 mA 3.3 V DC bus || 40 mA 24 V DC rack || 80 mA 24 V DC sensor
• Current State 0 Guaranteed : <= 1.5 mA
• Input Current : 2 mA at 11 V
• Net Weight : 0.112 kg
• Input Type : 3 auxiliary input || 3 high speed
• Voltage State 0 Guaranteed : < 5 V
• Current State 1 Guaranteed : >= 6 mA
• Input Voltage Limits : 30 V
• Isolation Voltage : 1500 V 60 s
• Output Voltage Limits : 19.2...30 V
• Output Short-Circuit Protection : 1.5 A integrated
• Maximum Output Current : 2 A per module || 0.5 A per output
• Output Overload Protection : integrated
• Module Format : standard
• Maximum Leakage Current : 0.1 mA at state 0
• Voltage State 1 Guaranteed : 11...30 V
• Specifications
• Country of Origin : France
• Weight : 0.112 kg
• Range Of Product : Modicon M340 automation platform
• Product Or Component Type : counter module
• Number Of Inputs : 6-6
• Input Compatibility : 19.2-30 V 2-wire/3-wire proximity sensor || incremental encoder with push-pull outputs, 10...30 V totem pole
• Number Of Channels : 2
• Input Voltage : 24 V DC type 3
• Output Voltage : 24 V DC
• Maximum Counting Frequency : 60000 Hz
• Number Of Outputs : 2
