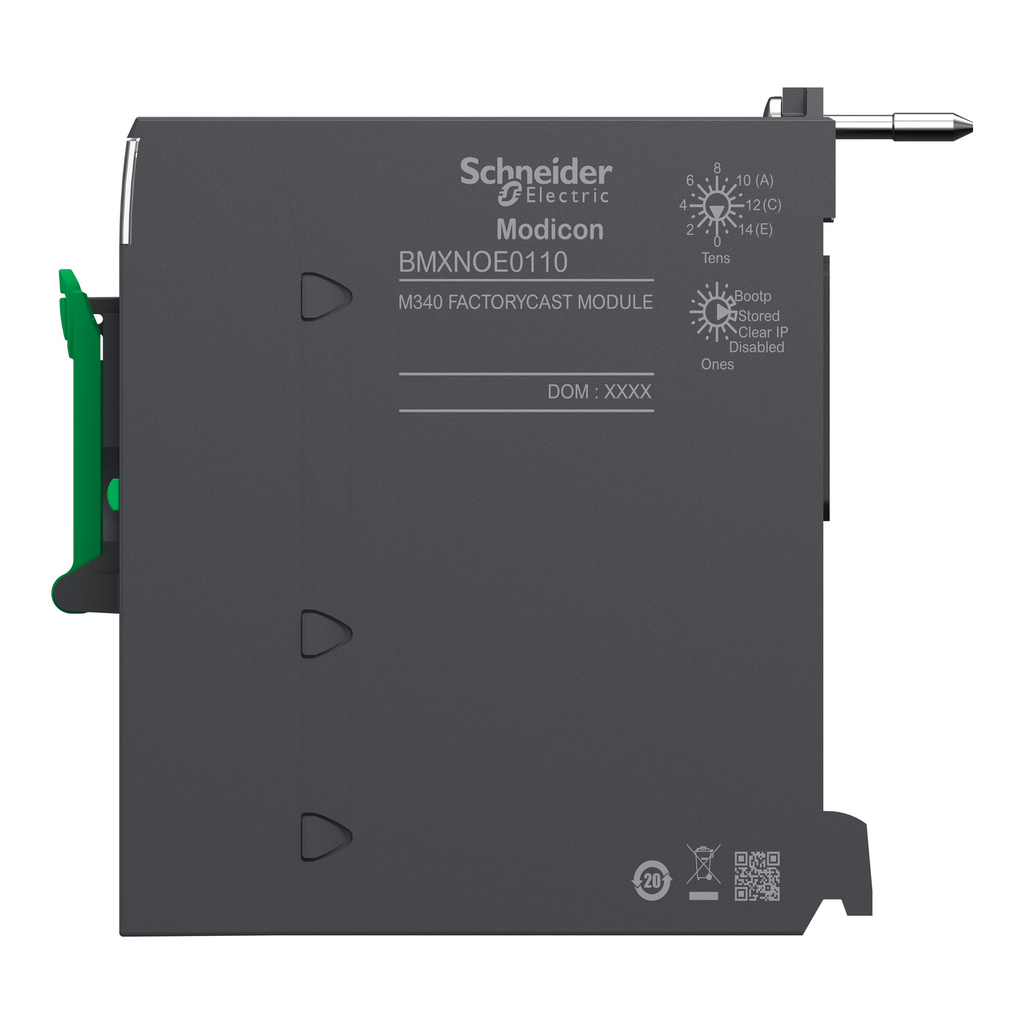

Ethernet TCP/IP network module, Modicon M340 automation platform, flash memory card, internal RAM 16 Mb, 1 x RJ45 10/100

M340 FACTORYCAST MODULE

SQDBMXNOE0110 BMXNOE0110 3595863972856
2928.94 / EA
http://schema.org/OutOfStock
Mayer-DDS-Ethernet TCP/IP network module, Modicon M340 automation platform, flash memory card, internal RAM 16 Mb, 1 x RJ45 10/100-1
  • Warranty Length: 18 mth
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet TCP/IP network module supports RJ45 10/100 connection. It is a network module with a current consumption of 90mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. It has reset push-button cold control. It is an IP20 rated product. Communication services are bandwidth management, data editor (via PC, pocket PC or PDA terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable etc. It weighs 0.2kg. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet TCP/IP network module supports RJ45 10/100 connection. It is a network module with a current consumption of 90mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. It has reset push-button cold control. It is an IP20 rated product. Communication services are bandwidth management, data editor (via PC, pocket PC or PDA terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable etc. It weighs 0.2kg. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110_3D-simpl&p_File_name=BMXNOE0110_3D-Simpl.stp, https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110_3D-simpl&p_File_name=BMXNOE0110_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110_3D-simpl&p_File_name=BMXNOE0110_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110_3D-simpl&p_File_name=BMXNOE0110_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110_3D-simpl&p_File_name=BMXNOE0110_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110_3D-simpl&p_File_name=BMXNOE0110_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110_3D-simpl&p_File_name=BMXNOE0110_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110_3D-simpl&p_File_name=BMXNOE0110_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110_3D-simpl&p_File_name=BMXNOE0110_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110_3D-simpl&p_File_name=BMXNOE0110_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110_3D-simpl&p_File_name=BMXNOE0110_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110_3D-simpl&p_File_name=BMXNOE0110_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110_3D-simpl&p_File_name=BMXNOE0110_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110_3D-simpl&p_File_name=BMXNOE0110_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110_3D-simpl&p_File_name=BMXNOE0110_2D-top.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110H_CAD&p_File_name=BMXNOE0110H_3D.stp, https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110H_CAD&p_File_name=BMXNOE0110H_2D Front View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110H_CAD&p_File_name=BMXNOE0110H_2D Front View.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110H_CAD&p_File_name=BMXNOE0110H_2D Right Side View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXNOE0110H_CAD&p_File_name=BMXNOE0110H_2D Right Side View.dxf
  • Communications & Management Attributes
    • Communication Service : bandwidth management, FDR server, Rack Viewer, SNMP network administrator, Global Data, I/O scanning, Modbus TCP messaging, web server configurable, Data Editor (via PC, pocket PC or PDA terminal), SOAP XML Web service (server)
  • Complementary Attributes
    • Integrated Connection Type : Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Local Signalling : 1 LED (green) for activity on Ethernet network (ETH ACT), 1 LED (green) for processor running (RUN), 1 LED (green) for status of Ethernet network (ETH STS), 1 LED (red) for data rate (ETH 100), 1 LED (red) for memory card fault (CARD ERR), 1 LED (red) for processor or system fault (ERR)
    • Memory Description : supplied Flash memory card (BMXRWSC016M), internal RAM 16000 kB
    • Memory Usage : user web page size internal RAM, activating the standard web server supplied Flash memory card (BMXRWSC016M), application saving supplied Flash memory card (BMXRWSC016M)
    • Carbon Footprint Of The Distribution Phase A4 : 0.0322991094, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.397515625
    • Carbon Footprint Of The Installation Phase A5 : 0.0983272266, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 17 kg CO2 eq., 16.823015625
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 96 kg CO2 eq., 96.3229090909
    • Medium Desc : Ethernet TCP/IP network module, Modicon M340 automation platform, flash memory card, internal RAM 16 Mb, 1 x RJ45 10/100
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-01-29
    • Global Commercial Status : Commercialised
    • Html Descr : Ethernet TCP/IP network module, Modicon M340 automation platform, flash memory card, internal RAM 16 Mb, 1 x RJ45 10/100
    • Return Indicator : Y
    • Stocking Flag : Y
    • Manufacturer : Schneider Electric
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2402021EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Concept : Transparent Ready
    • Control Type : RESET push-button cold restart
    • Current Consumption : 90 mA 24 V DC
    • Marking : CE
    • Module Format : standard
    • Port Ethernet : 10BASE-T/100BASE-TX
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Ethernet TCP/IP network module
    • Protective Treatment : TC
    • Range Of Product : Modicon M340 automation platform
    • Returnability : Yes
    • Software Version : v5.9.4
    • Supply : internal power supply via rack
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 114 kg CO2 eq.
    • Pep Code : ENVPEP2402021EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
  • Environment Attributes Main
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 113.6740666768
    • Ambient Air Temperature For Operation : 0-60 °C
    • Circularity Profile : ENVEOLI2402021EN
    • Environmental Disclosure : ENVPEP2402021EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 10-95 % without condensation
    • Pep Code : ENVPEP2402021EN
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : Ethernet TCP/IP network module
    • Range Of Product : Modicon M340 automation platform
  • ETIM
    • ETIM 8 : EC001423
    • ETIM 9 : EC001423
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
