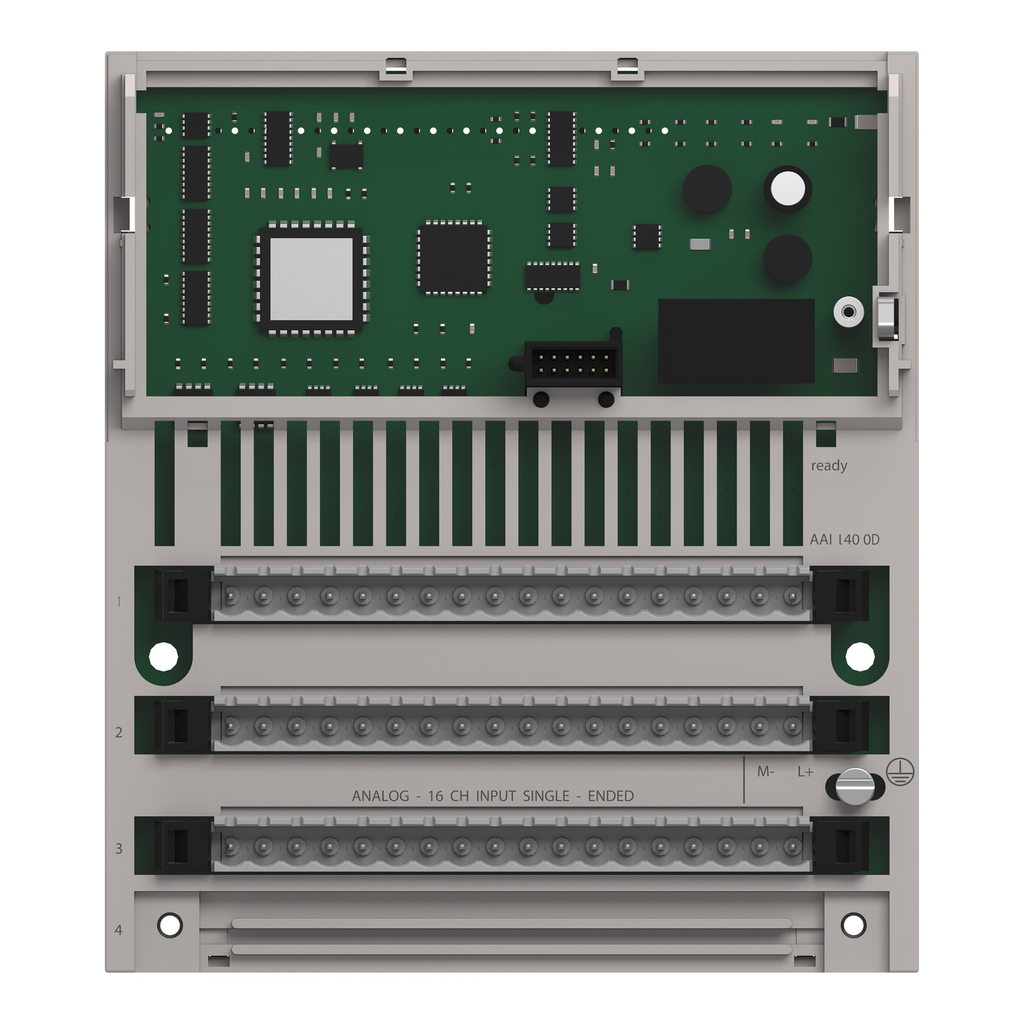

distributed analog input Modicon Momentum - 16 Input

ANALOG INPUT 16 CH.SINGLE

SQD170AAI14000 170AAI14000 3595861147690
1796.79 / EA
http://schema.org/OutOfStock
Mayer-DDS-distributed analog input Modicon Momentum - 16 Input-2
  • Country of Origin: Indonesia
  • Depth: 47.5 mm
  • Height: 125 mm
  • Net Weight: 0.215 kg
  • Warranty Length: 18 mth
  • Weight: 0.215 kg
  • Width: 141.5 mm
This product is part of the Modicon Momentum range, an offer of controllers for IP20 monoblock I/Os. This analog input base offers 16 inputs with a full 16bit signed resolution. It offers analog input ranges from 4mA to 20mA, ±10V, ±5V. There is an isolation between channels and ground at 1780V AC, supply and ground at 500V. It is furnished with 2 removable terminal blocks for electrical connection. It features 16 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. It is suitable for infrastructures and energy, material handling and simple machine control applications. This product is certified by CE, CSA, FM Class 1 Division 2 and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snaps together in various combinations to form versatile control systems or subsystems.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon Momentum range, an offer of controllers for IP20 monoblock I/Os. This analog input base offers 16 inputs with a full 16bit signed resolution. It offers analog input ranges from 4mA to 20mA, ±10V, ±5V. There is an isolation between channels and ground at 1780V AC, supply and ground at 500V. It is furnished with 2 removable terminal blocks for electrical connection. It features 16 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. It is suitable for infrastructures and energy, material handling and simple machine control applications. This product is certified by CE, CSA, FM Class 1 Division 2 and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snaps together in various combinations to form versatile control systems or subsystems.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL || FM Class 1 Division 2 || CSA
    • Ambient Air Temperature For Operation : 0-60 °C
    • Resistance To Electromagnetic Fields : 10 V/m 80...1000 MHz IEC 801-3
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 95-95 % without condensation
    • Resistance To Electrostatic Discharge : 4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
    • Protective Treatment : TC
    • Operating Altitude : <= 16404.2 ft (5000 m)
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1403005EN
    • Packaging Without Single Use Plastic : No
    • Scip Number : 441d5619-6318-4bbf-ac83-96d05888ee7e
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI1403005EN
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Electrical Connection : 2 connectors for removable terminal blocks
    • Height : 125 mm
    • Temperature Drift : 30 %oFS/°C +/- 10 V 60 °C || 30 %oFS/°C +/- 5 V 60 °C || 60 %oFS/°C 4...20 mA 60 °C
    • Isolation Between Channels And Ground : 1780 V AC for 1 minute
    • Current Consumption : 305 mA 24 V DC
    • Data Format : full 16 bits signed
    • Marking : CE
    • External Power Requirement : +/- 30 V DC
    • Associated Fuse Rating : 500 mA, fast blow
    • Net Weight : 0.215 kg
    • Full Scale : 10 V +/- 10 V || 16 mA 4...20 mA || 5 V +/- 5 V
    • Maximum Power Dissipation In W : 5.55 W
    • Permissible Common Mode Voltage : 100 V 47...63 Hz DC between channels to ground || 250 V 47...63 Hz AC between channels to ground
    • Absolute Accuracy Error : +/- 0.15 % of full scale 25 °C +/- 10 V || +/- 0.15 % of full scale 25 °C +/- 5 V || +/- 0.25 % full scale 25 °C 4...20 mA || +/- 0.25 % full scale 60 °C +/- 10 V || +/- 0.25 % full scale 60 °C +/- 5 V || +/- 0.45 % full scale 60 °C 4...20 mA
    • Local Signalling : 16 LEDs for channel status
    • Update Time : 25 ms
    • Width : 141.5 mm
    • Depth : 47.5 mm
    • Protection Type : internal 2 A slow-blow
    • Reverse Polarity Protection : internal
    • Isolation Between Supply And Ground : 500 V for 1 minute
  • Specifications
    • Country of Origin : Indonesia
    • Width : 141.5 mm
    • Height : 125 mm
    • Weight : 0.215 kg
    • Range Of Product : Modicon Momentum automation platform
    • Type Of Filter : low pass input filter 10 kHz
    • Analogue Input Range : 4...20 mA 12 bits < 0.25 Ohm || +/- 10 V 12 bits + sign > 2200 kOhm || +/- 5 V 12 bits + sign > 2200 kOhm
    • Analogue Input Type : single ended
    • Product Or Component Type : analogue input base
    • Analogue Input Number : 16
