Schneider Electric at Mayer

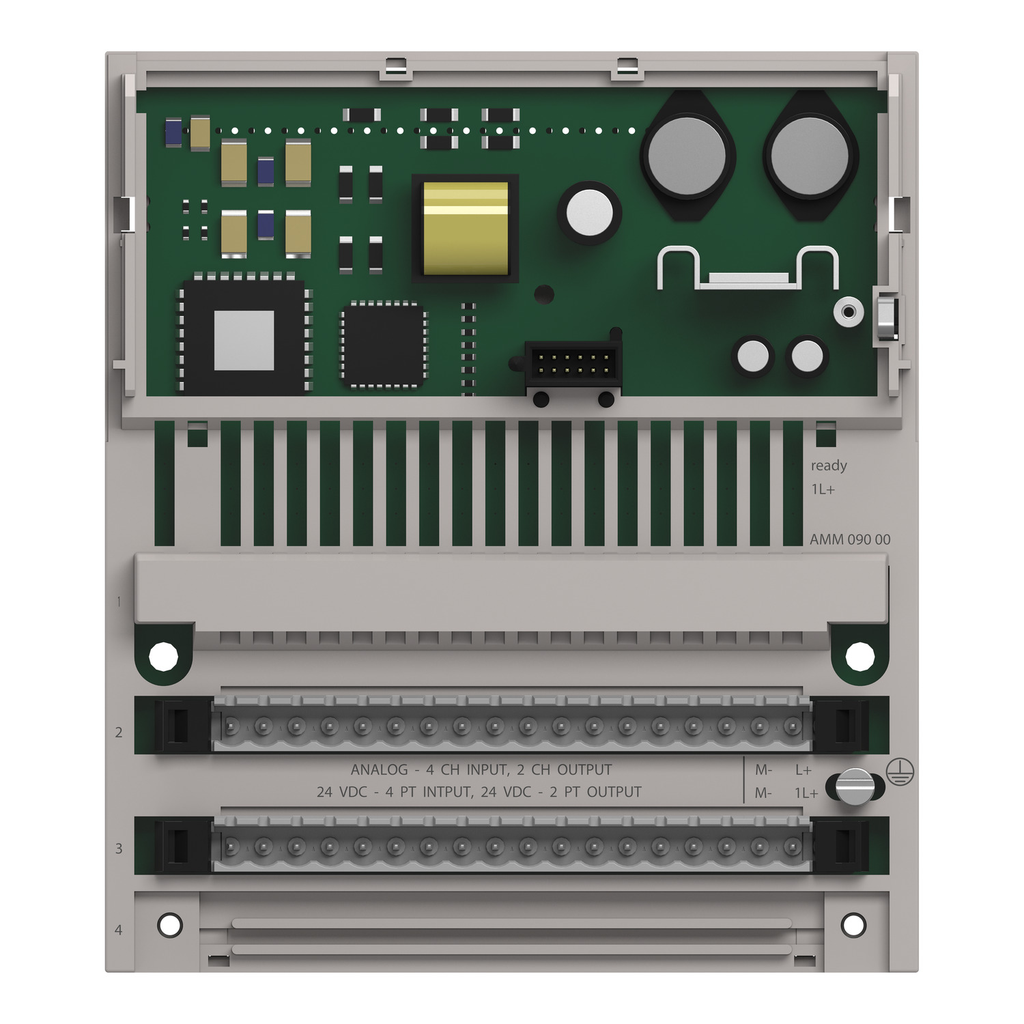

distributed analog/discrete I/O - 4 I / 8 O discrete - 6 I / 4 O analog

6 ANLG IN/4 ANLG OUT -10/10V 8

SQD170ANR12091 170ANR12091 3595862053402
2405.27 / EA
http://schema.org/OutOfStock
  • Country of Origin: Indonesia
  • Depth: 47.5 mm
  • Height: 125 mm
  • Net Weight: 0.24 kg
  • Warranty Length: 18 mth
  • Weight: 0.24 kg
  • Width: 141.5 mm
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL || CSA
    • Ambient Air Temperature For Operation : 0-60 °C
    • Resistance To Electromagnetic Fields : 10 V/m 80...1000 MHz IEC 801-3
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 95-95 % without condensation
    • Resistance To Electrostatic Discharge : 4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
    • Protective Treatment : TC
    • Operating Altitude : <= 16404.2 ft (5000 m)
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1403005EN
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : 441d5619-6318-4bbf-ac83-96d05888ee7e
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI1403005EN
    • Take-Back : No
    • Sustainable Packaging : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Maximum Analogue Input Voltage : 15 V
    • Electrical Connection : 2 connectors for removable terminal blocks
    • Discrete Output Type : transistor
    • Height : 125 mm
    • Output Load : >= 2 kOhm +/- 10 V analogue output
    • Discrete Output Logic : positive
    • [Us] Rated Supply Voltage : 24 V 19.2-30 V)DC
    • Conversion Error : +/- 0.4 % +/- 10 V 25 °C analogue output
    • Maximum Voltage Drop : <0.4 V 0.25 A at state on discrete output
    • Response Time : 1.05 ms from state 1 to state 0 discrete output || 1.2 ms from state 0 to state 1 discrete input || 1.2 ms from state 0 to state 1 discrete output || 1.2 ms from state 1 to state 0 discrete input
    • Current Consumption : 400 mA 24 V DC
    • Current State 1 Guaranteed : >= 6 mA discrete input)
    • Marking : CE
    • Surge Current : 2.5 A 1 ms discrete output
    • Input Voltage Limits : 3...32 V
    • Discrete Output Current : 2 A per group || 2 A per module || 0.25 A per point
    • Net Weight : 0.24 kg
    • Voltage State 0 Guaranteed : <= 5 V discrete input
    • Maximum Leakage Current : 0.4 mA DC 30 V discrete output
    • Voltage State 1 Guaranteed : >= 11 V discrete input
    • Isolation Voltage : 500 V 1 min) between analogue I/O and operating voltage || 500 V 1 min) between operating voltage and I/O from ground
    • Current State 0 Guaranteed : <= 2 mA discrete input)
    • Maximum Power Dissipation In W : 6 W
    • Discrete Input Logic : positive
    • Input Overvoltage Protection : 45-45 V 10 s discrete input
    • Fail State : analogue output hold || analogue output reset to zero
    • Input Resistance : 1 MOhm analogue input circuit
    • Local Signalling : 8 LEDs for channel status
    • Conversion Time : 0.75 ms analogue input circuit || 1.2 ms analogue output
    • Width : 141.5 mm
    • Depth : 47.5 mm
    • Discrete Input Number : 8 IEC 1131-2 Type 2
  • Specifications
    • Country of Origin : Indonesia
    • Width : 141.5 mm
    • Height : 125 mm
    • Weight : 0.24 kg
    • Group Of Channels : 1 group of 8 discrete outputs || 2 groups of 4 discrete inputs || 1 group of 6 analog inputs || 1 group of 4 analog outputs
    • Range Of Product : Modicon Momentum automation platform
    • Discrete Input Voltage : 24 V DC
    • Analogue Input Range : +/- 10 V DC
    • Analogue Input Type : single ended
    • Output Overload Protection : with discrete output
    • Product Or Component Type : analogue,discrete I/O base
    • Analogue Input Resolution : 14 bits +/- 10 V
    • Analogue Output Range : +/- 10 V 14 bits
    • Output Short-Circuit Protection : with discrete output
    • Discrete Output Voltage : 10...30 V
