Schneider Electric at Mayer

discrete output module, Modicon X80, 8 NO relay outputs, 100 to 150V DC, extended temperature

DIG 8Q RELAY 125 VDC 0.3A

SQDBMXDRA0804T BMXDRA0804T 3595864082202
474.74 / EA
http://schema.org/OutOfStock

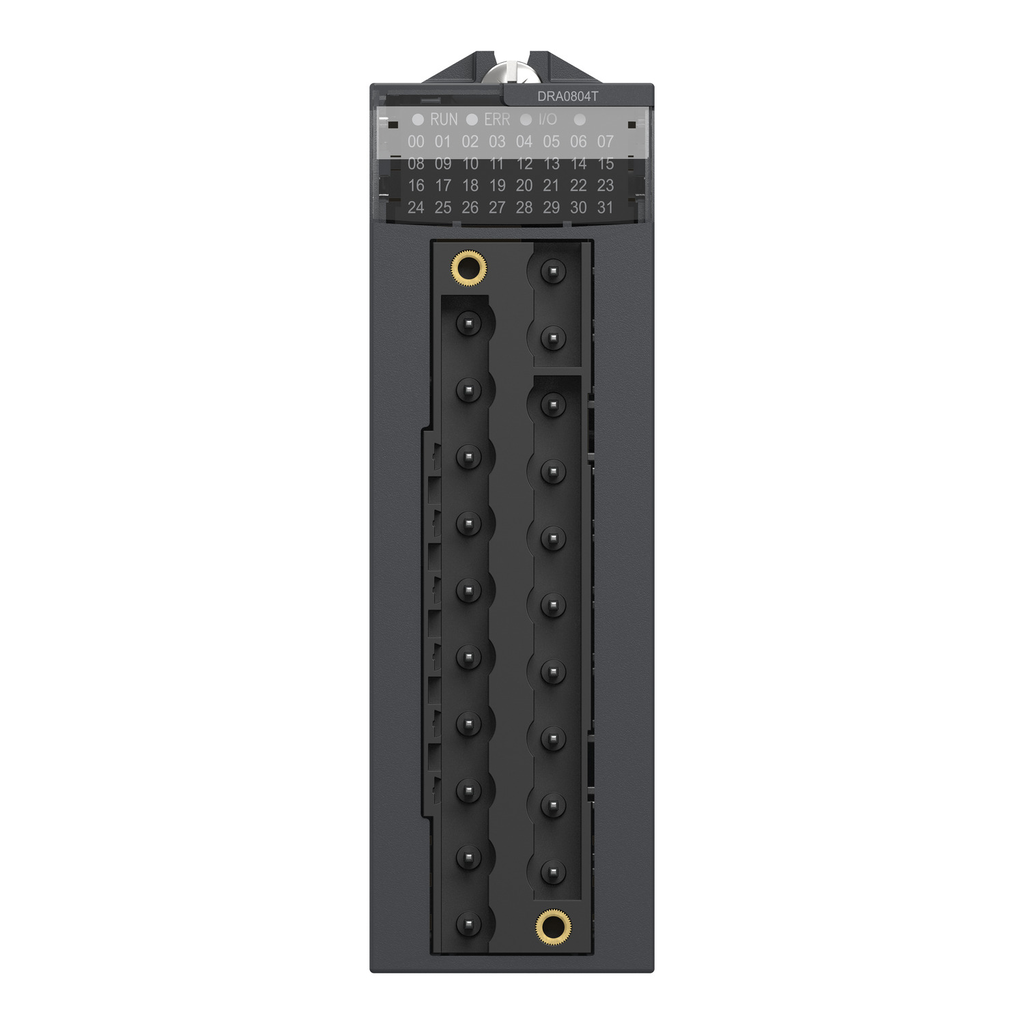

Mayer-DDS-discrete output module, Modicon X80, 8 NO relay outputs, 100 to 150V DC, extended temperature-1
  • Dielectric Strength: 2000 V, 50/60 Hz
  • Warranty Length: 18 mth
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 8 relay outputs. It is a discrete output module with an output voltage of 100V DC to 150V DC, a typical current consumption of 61mA at 3.3V DC, 104mA at 24V DC. This product is robust, high quality and based on the latest innovative technology. It offers electrical durability of 100000 cycles and mechanical durability of 20 million cycles. It is an IP20 rated product. It weighs 0.145kg. It is suitable for extended temperature, medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 8 relay outputs. It is a discrete output module with an output voltage of 100V DC to 150V DC, a typical current consumption of 61mA at 3.3V DC, 104mA at 24V DC. This product is robust, high quality and based on the latest innovative technology. It offers electrical durability of 100000 cycles and mechanical durability of 20 million cycles. It is an IP20 rated product. It weighs 0.145kg. It is suitable for extended temperature, medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0804T_3D-simpl&p_File_name=BMXDRA0804T_3D-Simpl.stp, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0804T_3D-simpl&p_File_name=BMXDRA0804T_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0804T_3D-simpl&p_File_name=BMXDRA0804T_2d-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0804T_3D-simpl&p_File_name=BMXDRA0804T_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0804T_3D-simpl&p_File_name=BMXDRA0804T_2d-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0804T_3D-simpl&p_File_name=BMXDRA0804T_2D-isom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0804T_3D-simpl&p_File_name=BMXDRA0804T_2d-isom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0804T_3D-simpl&p_File_name=BMXDRA0804T_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0804T_3D-simpl&p_File_name=BMXDRA0804T_2d-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0804T_3D-simpl&p_File_name=BMXDRA0804T_2D-rear.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0804T_3D-simpl&p_File_name=BMXDRA0804T_2d-rear.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0804T_3D-simpl&p_File_name=BMXDRA0804T_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0804T_3D-simpl&p_File_name=BMXDRA0804T_2d-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0804T_3D-simpl&p_File_name=BMXDRA0804T_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0804T_3D-simpl&p_File_name=BMXDRA0804T_2d-top.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDRA0804T_3D-simpl&p_File_name=BMXDRA0804T_terminal_block_lable.dxf
  • Complementary Attributes
    • Maximum Switching Current : 0.3 A
    • Minimum Switching Current : 100 mA 5 V DC
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Current Consumption : <= 112 mA 3.3 V DC, <= 112 mA 3.3 V DC, <= 112 mA 3.3 V DC, <= 117 mA 24 V DC, <= 117 mA 24 V DC, <= 117 mA 24 V DC, <= 112 mA 3.3 V DC, <= 112 mA 3.3 V DC, <= 112 mA 3.3 V DC, <= 117 mA 24 V DC, <= 117 mA 24 V DC
    • Electrical Durability : DC-12 100000 cycles 37 W 125 V, DC-13 100000 cycles 12 W 125 V
    • Environmental Characteristic : gas resistant class Gx, gas resistant class 3C4, dust resistant class 3S4, sand resistant class 3S4, salt resistant level 2, mold growth resistant class 3B2, fungal spore resistant class 3B2
    • Insulation Resistance : > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC
    • Status Led : 1 LED (Green) module operating (RUN), 1 LED per channel (Green) channel diagnostic, 1 LED (Red) module error (ERR), 1 LED (Red) module I/O
    • Typical Current Consumption : 61 mA 3.3 V DC, 104 mA 24 V DC
    • Carbon Footprint Of The Distribution Phase A4 : 0.0258912, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.351336
    • Carbon Footprint Of The Installation Phase A5 : 0.0527232, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 25 kg CO2 eq., 25.2984
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 131 kg CO2 eq., 131.3855461847
    • Medium Desc : discrete output module, Modicon X80, 8 NO relay outputs, 100 to 150V DC, extended temperature
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-23
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : N
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2311046EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Dielectric Strength : 2000 V AC 50/60 Hz 1 min
    • Mechanical Durability : 20000000 cycles
    • Mtbf Reliability : 2800000 H
    • Power Dissipation In W : 3.17 W
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : discrete output module
    • Product Specific Application : extended temperature
    • Protective Treatment : standard version
    • Range Of Product : Modicon X80
    • Returnability : Yes
    • Shock Resistance : 30 gn
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 157 kg CO2 eq.
    • Vibration Resistance : 3 gn
    • Discrete Output Voltage 16 : 100...150 V DC
    • Pep Code : ENVPEP2311046EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
  • Environment Attributes Main
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    • Operating Altitude : 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 157.1138965847
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Circularity Profile : ENVEOLI2311046EN
    • Environmental Disclosure : ENVPEP2311046EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % 55-55 °C without condensation
    • Pep Code : ENVPEP2311046EN
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : discrete output module
    • Range Of Product : Modicon X80
  • ETIM
    • ETIM 8 : EC001419
    • ETIM 9 : EC001419
  • Output Attributes
    • Response Time On Output : < 10 ms activation, < 10 ms activation, < 10 ms deactivation, < 10 ms deactivation, < 10 ms activation, < 10 ms activation, < 10 ms deactivation
    • Discrete Output Logic : positive
    • Discrete Output Number : 8 IEC 61131-2
    • Discrete Output Type : relay
    • Discrete Output Voltage : 100...150 V DC
    • Output Overload Protection : use 1 fast blow fuse per channel or group of channel
    • Output Overvoltage Protection : use discharge diode on each output DC
    • Output Short Circuit Protection : use 1 fast blow fuse per channel or group of channel
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
