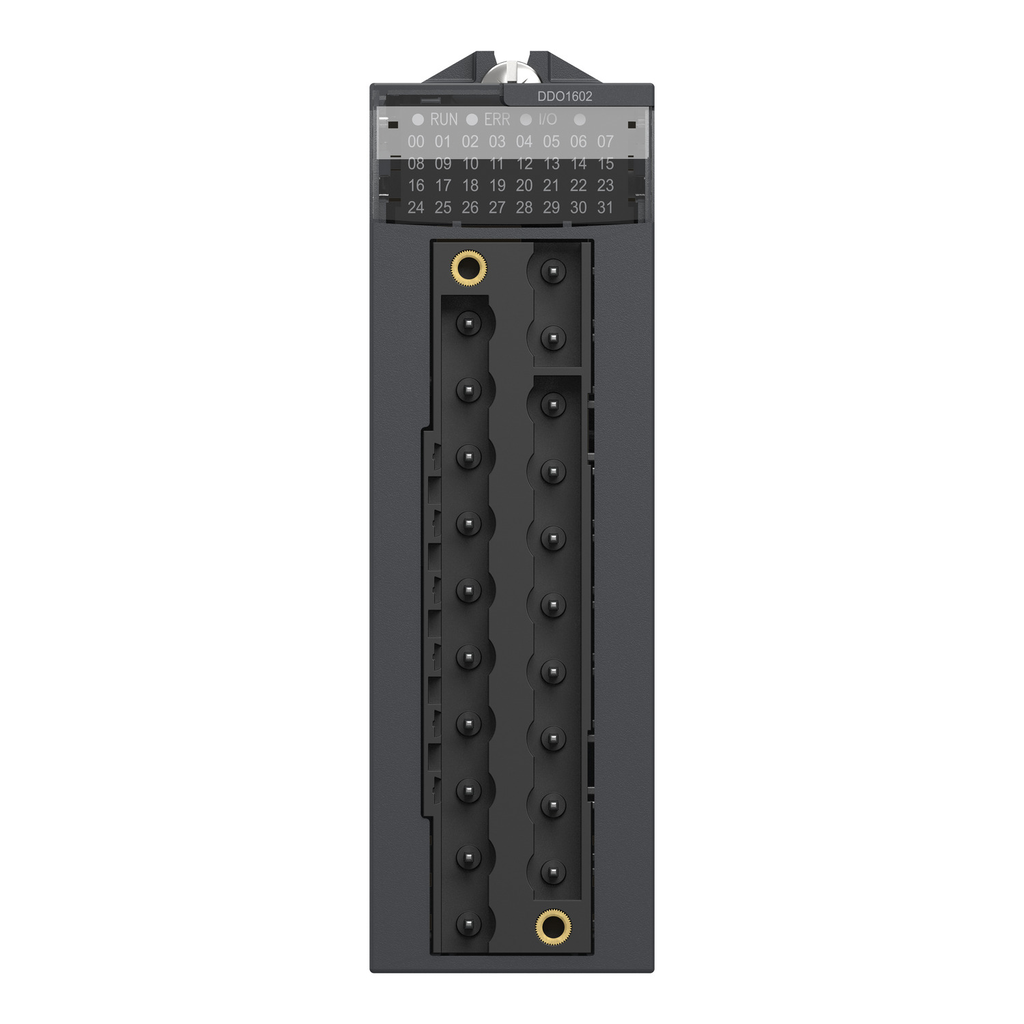

This discrete output module is part of the Modicon X80 modules. It has 16 transistor protected outputs, 24V DC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDO1602_3D-simpl&p_File_name=BMXDDO1602_3D-Simpl.stp, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDO1602_3D-simpl&p_File_name=BMXDDO1602_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDO1602_3D-simpl&p_File_name=BMXDDO1602_2d-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDO1602_3D-simpl&p_File_name=BMXDDO1602_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDO1602_3D-simpl&p_File_name=BMXDDO1602_2d-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDO1602_3D-simpl&p_File_name=BMXDDO1602_2D-isom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDO1602_3D-simpl&p_File_name=BMXDDO1602_2d-isom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDO1602_3D-simpl&p_File_name=BMXDDO1602_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDO1602_3D-simpl&p_File_name=BMXDDO1602_2d-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDO1602_3D-simpl&p_File_name=BMXDDO1602_2D-rear.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDO1602_3D-simpl&p_File_name=BMXDDO1602_2d-rear.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDO1602_3D-simpl&p_File_name=BMXDDO1602_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDO1602_3D-simpl&p_File_name=BMXDDO1602_2d-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDO1602_3D-simpl&p_File_name=BMXDDO1602_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDO1602_3D-simpl&p_File_name=BMXDDO1602_2d-top.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDO1602_3D-simpl&p_File_name=BMXDDO1602(H)_terminal_block_lable.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005691_3D-CAD&p_File_name=MCADID0005691_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005691_3D-CAD&p_File_name=mcadid0005691_3d-simplified_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005691_3D-CAD&p_File_name=mcadid0005691_3d-simplified_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005691_3D-CAD&p_File_name=mcadid0005691_3d-simplified_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005691_3D-CAD&p_File_name=mcadid0005691_3d-simplified_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005691_3D-CAD&p_File_name=mcadid0005691_3d-simplified_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005691_3D-CAD&p_File_name=mcadid0005691_3d-simplified_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005691_3D-CAD&p_File_name=mcadid0005691_3d-simplified_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005691_3D-CAD&p_File_name=mcadid0005691_3d-simplified_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005691_3D-CAD&p_File_name=mcadid0005691_3d-simplified_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005691_3D-CAD&p_File_name=mcadid0005691_3d-simplified_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005691_3D-CAD&p_File_name=mcadid0005691_3d-simplified_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005691_3D-CAD&p_File_name=mcadid0005691_3d-simplified_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005691_3D-CAD&p_File_name=mcadid0005691_3d-simplified_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005691_3D-CAD&p_File_name=mcadid0005691_3d-simplified_2D-top.dxf
• Complementary Attributes
• Maximum Voltage Drop : <1.2 V at state 1, <1.2 V at state 1, <1.2 V at state 1, <1.2 V at state 1
• Maximum Current Per Module : 10 A
• Maximum Leakage Current : 0.5 mA at state 0
• Maximum Tungsten Load : 6 W
• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Dielectric Strength : 1500 V AC 50/60 Hz 1 minute, output/ground, 1500 V AC 50/60 Hz 1 minute, output/internal logic
• Insulation Resistance : > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC
• Protection Type : external fuse reverse polarity protection, short-circuit protection, overload protection, overvoltage protection
• Status Led : 1 LED (Green) module operating (RUN), 1 LED per channel (Green) channel diagnostic, 1 LED (Red) module error (ERR), 1 LED (Red) module I/O
• Voltage Detection Threshold : < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, > 18 V DC preactuator at state 0, > 18 V DC preactuator at state 0, > 18 V DC preactuator at state 0, > 18 V DC preactuator at state 0, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, > 18 V DC preactuator at state 0, > 18 V DC preactuator at state 0
• Carbon Footprint Of The Distribution Phase A4 : 0.0209221818, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2839078788, 0.3 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0426046061
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 20 kg CO2 eq., 20.4431515152
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 13 kg CO2 eq., 13.4007088643
• Medium Desc : discrete output module, Modicon X80, 16 transistor outputs, 24V DC positive
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : Commercialised
• Html Descr : Discrete output module X80, 16 outputs, 24 V DC positive
• Return Indicator : Y
• Country Of Origin 6 : SG
• Country Of Origin 7 : US
• Stocking Flag : Y
• Manufacturer : Schneider Electric
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2311046EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• With Recycled Cardboard : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Current Per Channel : 0.625 A
• Load Impedance Ohmic : > 48 Ohm
• Mtbf Reliability : 410000 H
• Power Dissipation In W : 4 W
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : discrete output module
• Protective Treatment : standard version
• Range Of Product : Modicon X80
• Returnability : Yes
• Reverse Polarity Protection : reverse mounted diode
• Shock Resistance : 30 gn
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Switching Frequency : 0.5/LI² Hz
• Total Lifecycle Carbon Footprint : 34 kg CO2 eq.
• Typical Current Consumption : 79 mA 3.3 V DC
• Vibration Resistance : 3 gn
• Discrete Output Voltage 16 : 24 V 19...30 V DC
• Pep Code : ENVPEP2311046EN
• Database Version : 2022-01
• Pep Verification Date : 2023-11-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; FR
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
• Environment Attributes Main
• Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
• Operating Altitude : 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 34.1912950461
• Ambient Air Temperature For Operation : 0-60 °C
• Ambient Air Temperature For Storage : -40-85 °C
• Circularity Profile : ENVEOLI2311046EN
• Environmental Disclosure : ENVPEP2311046EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 5-95 % 55-55 °C without condensation
• Pep Code : ENVPEP2311046EN
• Pep Verification Date : 2023-11-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : discrete output module
• Range Of Product : Modicon X80
• ETIM
• ETIM 8 : EC001419
• ETIM 9 : EC001419
• Output Attributes
• Output Overload Protection : with electronic circuit breaker 1.5 In < Id < 2 In, with current limiter
• Discrete Output Current : 0.5 A
• Discrete Output Logic : positive
• Discrete Output Number : 16 IEC 61131-2
• Discrete Output Type : solid state
• Discrete Output Voltage : 24 V 19...30 V DC
• Output Overvoltage Protection : with transil diode
• Output Short Circuit Protection : with 2 A external fuse
• Paralleling Of Outputs : yes : 2 maximum
• Response Time On Output : 1.2 ms
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France, Indonesia
