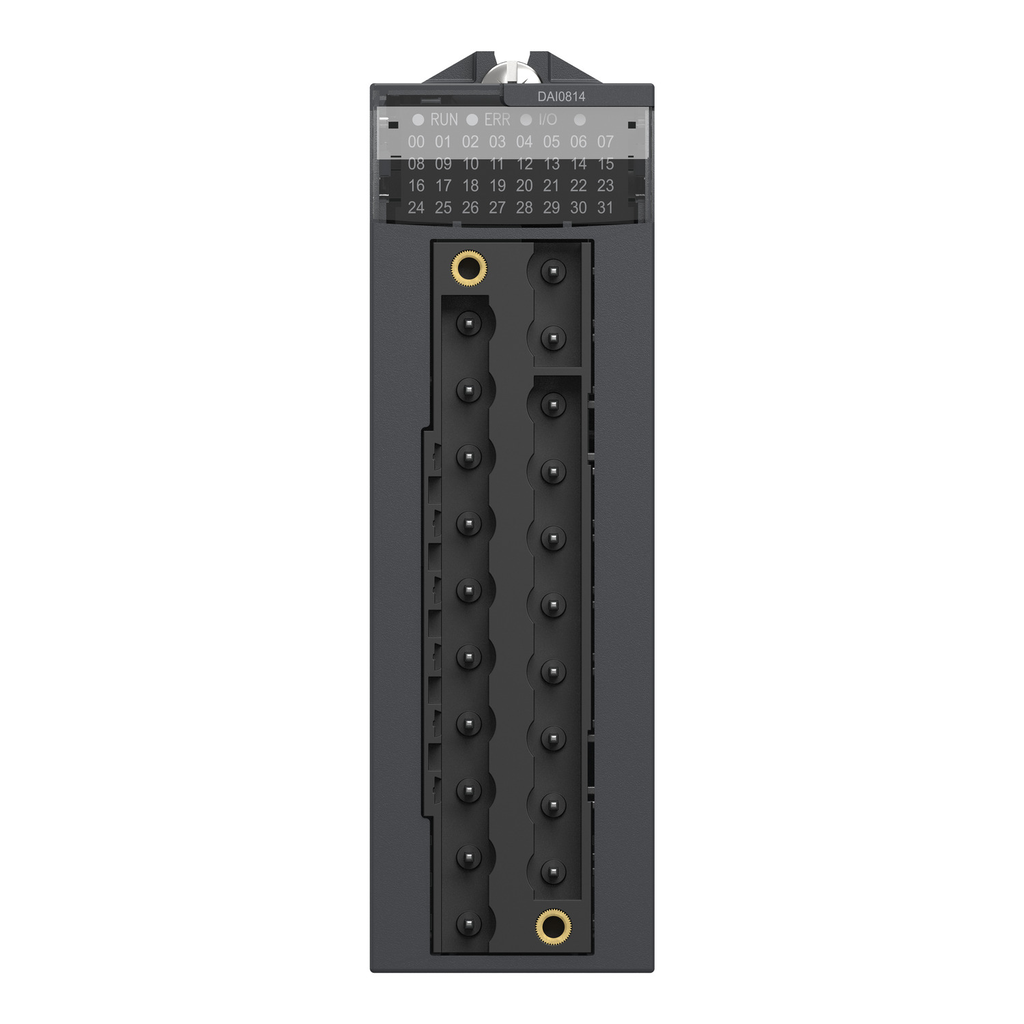

discrete input module, Modicon X80, 8 inputs, 100 to 120V AC

X80 115VAC ISOLATED DIGITAL IN

SQDBMXDAI0814 BMXDAI0814 3595864181516
471.49 / EA
http://schema.org/OutOfStock
Mayer-DDS-discrete input module, Modicon X80, 8 inputs, 100 to 120V AC-1
  • Dielectric Strength: 1780 V, 50/60 Hz
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 8 capacitive inputs. It is an input module with an input voltage of 100V AC to 120V AC, a current consumption of 90mA at 3.3V DC and a power dissipation of 2.35W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per channel 0.25A fast blow protection type. It offers 1700000 hours of MTBF. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 8 capacitive inputs. It is an input module with an input voltage of 100V AC to 120V AC, a current consumption of 90mA at 3.3V DC and a power dissipation of 2.35W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per channel 0.25A fast blow protection type. It offers 1700000 hours of MTBF. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAI0814_3D-simpl&p_File_name=BMXDAI0814_3D-Simpl.stp, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAI0814_3D-simpl&p_File_name=BMXDAI0814_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAI0814_3D-simpl&p_File_name=bmxdai0814_2d-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAI0814_3D-simpl&p_File_name=BMXDAI0814_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAI0814_3D-simpl&p_File_name=bmxdai0814_2d-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAI0814_3D-simpl&p_File_name=BMXDAI0814_2D-isom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAI0814_3D-simpl&p_File_name=bmxdai0814_2d-isom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAI0814_3D-simpl&p_File_name=BMXDAI0814_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAI0814_3D-simpl&p_File_name=bmxdai0814_2d-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAI0814_3D-simpl&p_File_name=BMXDAI0814_2D-rear.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAI0814_3D-simpl&p_File_name=bmxdai0814_2d-rear.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAI0814_3D-simpl&p_File_name=BMXDAI0814_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAI0814_3D-simpl&p_File_name=bmxdai0814_2d-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAI0814_3D-simpl&p_File_name=BMXDAI0814_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAI0814_3D-simpl&p_File_name=bmxdai0814_2d-top.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDAI0814_3D-simpl&p_File_name=BMXDAI0814_terminal_block_lable.dxf
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Current State 0 Guaranteed : <= 1 mA, <= 1 mA
    • Current State 1 Guaranteed : >= 2.5 mA, >= 2.5 mA
    • Insulation Resistance : > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC
    • Status Led : 1 LED (Green) module operating (RUN), 1 LED per channel (Green) channel diagnostic, 1 LED (Red) module error (ERR), 1 LED (Red) module I/O
    • Medium Desc : discrete input module, Modicon X80, 8 inputs, 100 to 120V AC
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Global Commercial Status : Commercialised
    • Html Descr : Discrete input module X80 - 8 inputs - 100...120 V AC isolated
    • Return Indicator : Y
    • Stocking Flag : Y
    • Manufacturer : Schneider Electric
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2311046EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Ac Activation Filtering Time : 10 ms
    • Ac Deactivation Filtering Time : 20 ms
    • Dielectric Strength : 1780 V AC 50/60 Hz 1 min
    • Mtbf Reliability : 1500000 H
    • Network Frequency : 50/60 Hz
    • Network Frequency Limits : 47-63 Hz
    • Power Dissipation In W : 2.35 W
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : discrete input module
    • Protection Type : 1 external fuse per channel 0.25 A fast blow
    • Protective Treatment : standard version
    • Range Of Product : Modicon X80
    • Returnability : Yes
    • Shock Resistance : 30 gn
    • Sustainable Packaging : Yes
    • Typical Current Consumption : 61 mA 3.3 V DC
    • Vibration Resistance : 3 gn
    • Voltage Range : 85...132 V
    • Discrete Input Voltage 2 : 100...120 V AC
    • Discrete Input Current 5 : 5 mA
    • Pep Code : ENVPEP2311046EN
  • Environment Attributes Main
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    • Operating Altitude : 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : 0-60 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Circularity Profile : ENVEOLI2311046EN
    • Environmental Disclosure : ENVPEP2311046EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % 55-55 °C without condensation
    • Pep Code : ENVPEP2311046EN
  • General Attributes
    • Product Or Component Type : discrete input module
    • Range Of Product : Modicon X80
  • ETIM
    • ETIM 8 : EC001419
    • ETIM 9 : EC001419
  • Input Attributes
    • Input Compatibility : 2-wire proximity sensor IEC 60947-5-2, 2-wire proximity sensor IEC 61131-2 type 3
    • Discrete Input Current : 5 mA
    • Discrete Input Number : 8
    • Discrete Input Type : isolated per channel
    • Discrete Input Voltage : 100...120 V AC
    • Input Impedance : 13000 Ohm
    • Input Type : capacitive
