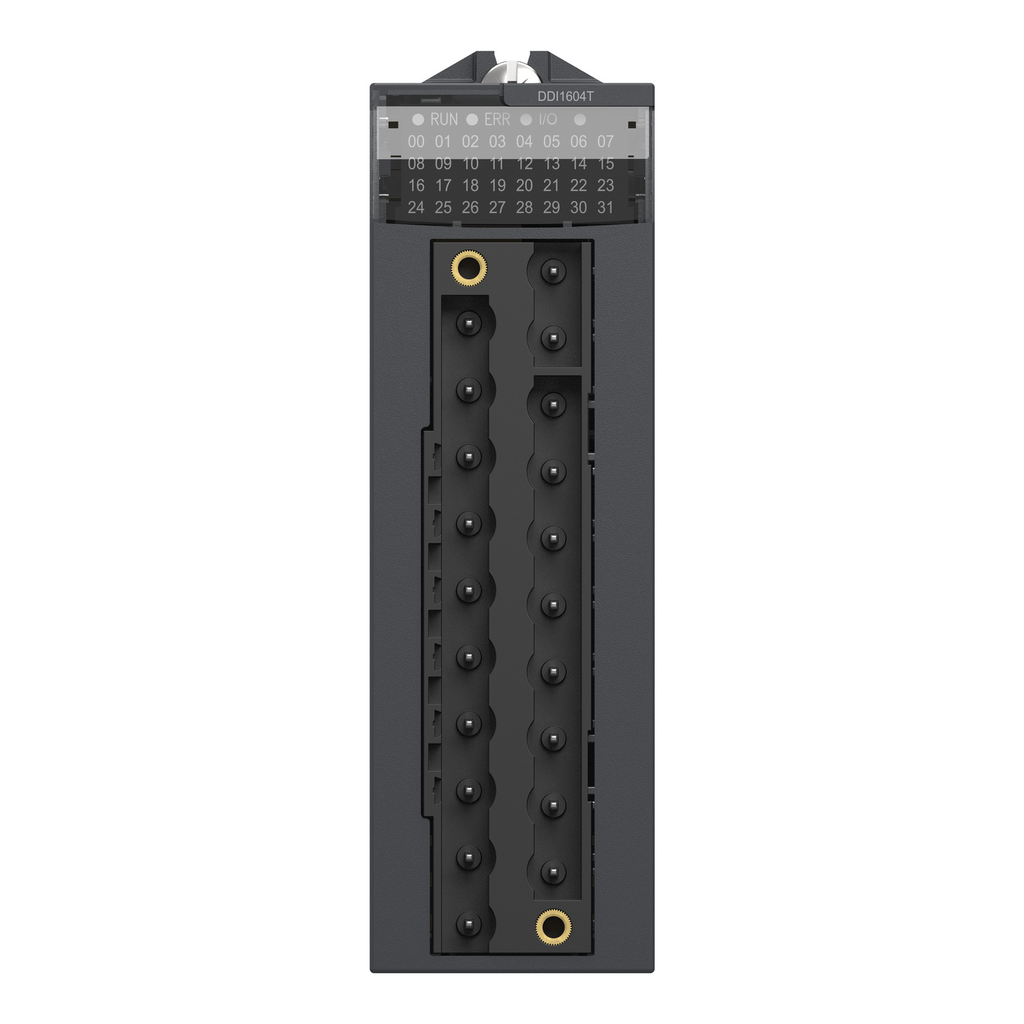

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 16 inputs with sink (positive) logic. It is an input module with an input voltage of 125V DC, a current consumption of 76mA at 3.3V DC and a power dissipation 8.5W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per group of channel 0.5A and reverse polarity protection fast blow protection type. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process and extended temperature applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Ambient Air Temperature For Operation : -25-70 °C
• Shock Resistance : 30 gn
• Environmental Characteristic : gas resistant class Gx || gas resistant class 3C4 || dust resistant class 3S4 || sand resistant class 3S4 || salt resistant level 2 || mold growth resistant class 3B2 || fungal spore resistant class 3B2
• Dielectric Strength : 2500 V AC 50/60 Hz 1 minute, primary/secondary
• Vibration Resistance : 3 gn
• Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
• Ambient Air Temperature For Storage : -40-85 °C
• Relative Humidity : 5-95 % 55-55 °C without condensation
• Operating Altitude : 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
• Protective Treatment : conformal coating
• Ip Degree Of Protection : IP20
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2311046EN
• Packaging Without Single Use Plastic : Yes
• Scip Number : 3377ad7c-3df3-40dc-a26f-b9807ced8c10
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile : ENVEOLI2311046EN
• Take-Back : No
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 12.8918199067
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 18.7821454545
• Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
• Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 32 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.2608403636
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 31.9931709612
• Complementary
• Voltage Range : 100...150 V
• Status Led : 1 LED (Green) module operating (RUN) || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) module error (ERR) || 1 LED (Red) module I/O
• Voltage Detection Threshold : < 80 V DC sensor fault || > 100 V DC sensor OK
• Current Consumption : <= 107 mA 3.3 V DC
• Insulation Resistance : > 10 MOhm 500 V DC
• Current State 1 Guaranteed : >= 2 mA
• Protection Type : reverse polarity protection fast blow || 1 external fuse per group of channel 0.5 A
• Power Dissipation In W : 3.2 W 70 °C || 5.0 W 60 °C || 6.7 W 50 °C || 8.5 W 40 °C
• Net Weight : 0.115 kg
• Paralleling Of Inputs : yes
• Dc Typical Filtering Time : 5 ms
• Typical Current Consumption : 76 mA 3.3 V DC
• Current State 0 Guaranteed : <= 0.5 mA
• Input Impedance : 50000 Ohm
• Dc Maximum Filtering Time : 9 ms
• Specifications
• Country of Origin : France
• Weight : 0.115 kg
• Range Of Product : Modicon X80
• Discrete Input Voltage : 125 V DC positive
• Product Or Component Type : discrete input module
• Input Type : current sink (logic positive)
• Discrete Input Type : isolated
• Discrete Input Number : 16
• Product Specific Application : extended temperature
• Discrete Input Current : 2.4 mA
