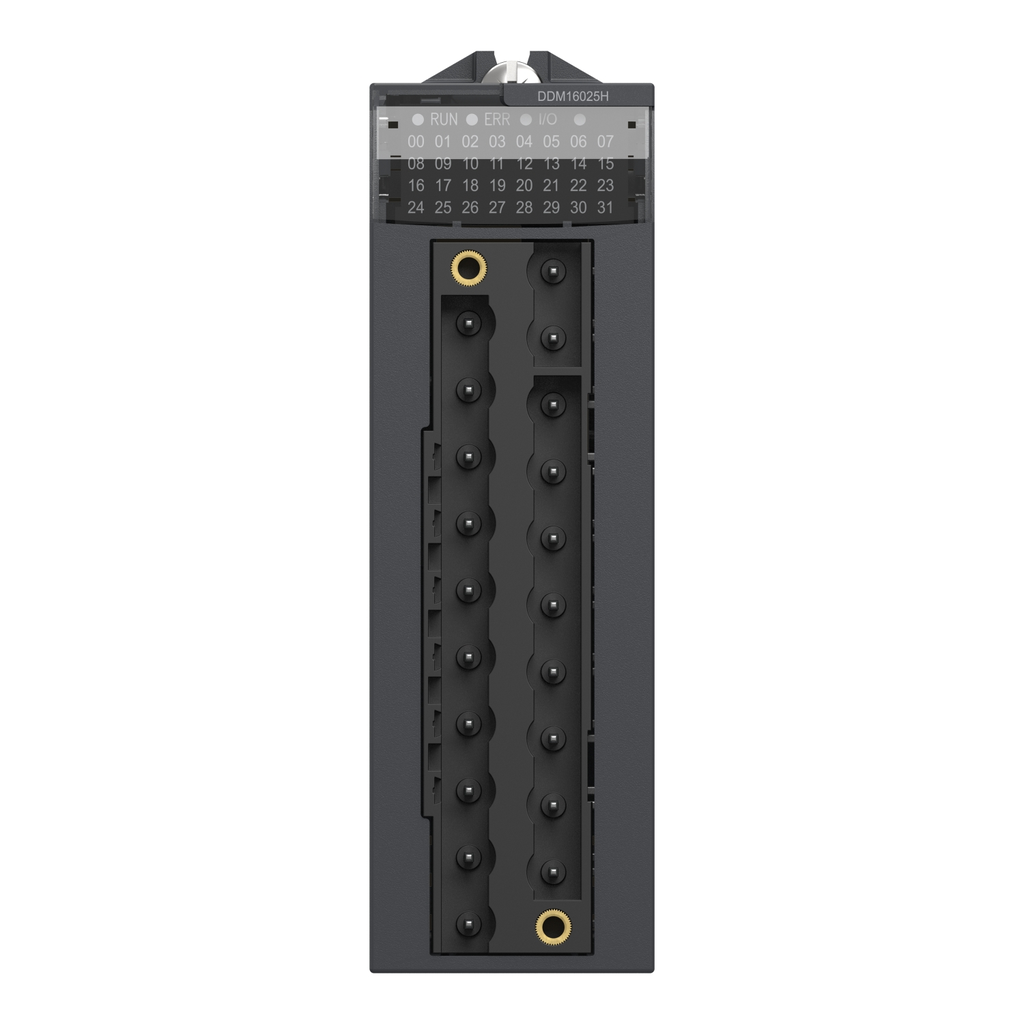

Discrete mixed I/O module, Modicon X80, 8 inputs, 24V DC, 8 relay outputs, 24 to 240V AC positive, for severe environments

H DIG 8I 24 VDC 8Q RELAYS

SQDBMXDDM16025H BMXDDM16025H 3595864025742
558.66 / EA
http://schema.org/OutOfStock
Mayer-DDS-Discrete mixed I/O module, Modicon X80, 8 inputs, 24V DC, 8 relay outputs, 24 to 240V AC positive, for severe environments-1
  • Dielectric Strength: 1500 V, 2830 V, 50/60 Hz, 500 V
  • Warranty Length: 18 mth
This discrete mixed I/O relay module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 input channels and 8 output channels and it is supplied with 24V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 940097 hours of MTBF. This discrete module has a weight of 0.135kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 type 3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDM16025H_3D-simpl&p_File_name=BMXDDM16025H_3D-Simpl.stp, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDM16025H_3D-simpl&p_File_name=BMXDDM16025H_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDM16025H_3D-simpl&p_File_name=BMXDDM16025H_2d-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDM16025H_3D-simpl&p_File_name=BMXDDM16025H_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDM16025H_3D-simpl&p_File_name=BMXDDM16025H_2d-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDM16025H_3D-simpl&p_File_name=BMXDDM16025H_2D-isom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDM16025H_3D-simpl&p_File_name=BMXDDM16025H_2d-isom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDM16025H_3D-simpl&p_File_name=BMXDDM16025H_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDM16025H_3D-simpl&p_File_name=BMXDDM16025H_2d-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDM16025H_3D-simpl&p_File_name=BMXDDM16025H_2D-rear.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDM16025H_3D-simpl&p_File_name=BMXDDM16025H_2d-rear.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDM16025H_3D-simpl&p_File_name=BMXDDM16025H_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDM16025H_3D-simpl&p_File_name=BMXDDM16025H_2d-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDM16025H_3D-simpl&p_File_name=BMXDDM16025H_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDM16025H_3D-simpl&p_File_name=BMXDDM16025H_2d-top.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMXDDM16025H_3D-simpl&p_File_name=BMXDDM16025(H)_terminal_block_lable.dxf
  • Complementary Attributes
    • Maximum Switching Voltage : 125 V DC, 264 V AC
    • Dc Maximum Filtering Time : 7 ms
    • Minimum Switching Current : 1 mA 5 V DC
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Current State 0 Guaranteed : <= 1.5 mA, <= 1.5 mA
    • Current State 1 Guaranteed : >= 2 mA, >= 2 mA
    • Dielectric Strength : 1500 V AC 50/60 Hz 1 minute, primary/secondary, 2830 V AC 50/60 Hz 1 minute, output relay, 500 V DC 1 minute, between group of I/O
    • Electrical Durability : AC-15 100000 cycles 120 VA 240 V -25-60 °C 0.35 ), AC-15 300000 cycles 36 VA 240 V -25-60 °C 0.35 ), AC-15 300000 cycles 60 VA 200 V -25-60 °C 0.35 ), AC-14 100000 cycles 120 VA 240 V 70-70 °C 0.7 ), AC-14 100000 cycles 150 VA 200 V 70-70 °C 0.7 ), AC-14 100000 cycles 240 VA 240 V -25-60 °C 0.7 ), AC-14 100000 cycles 300 VA 200 V -25-60 °C 0.7 ), AC-15 100000 cycles 100 VA 200 V 70-70 °C 0.35 ), AC-15 100000 cycles 200 VA 200 V -25-60 °C 0.35 ), AC-15 100000 cycles 60 VA 240 V 70-70 °C 0.35 ), DC-13 100000 cycles 12 W 24 V 70-70 °C, DC-13 100000 cycles 24 W 24 V -25-60 °C, AC-14 300000 cycles 36 VA 240 V 70-70 °C 0.7 ), AC-14 300000 cycles 40 VA 200 V 70-70 °C 0.7 ), AC-14 300000 cycles 72 VA 240 V -25-60 °C 0.7 ), AC-14 300000 cycles 80 VA 200 V -25-60 °C 0.7 ), AC-15 300000 cycles 18 VA 240 V 70-70 °C 0.35 ), AC-15 300000 cycles 30 VA 200 V 70-70 °C 0.35 ), DC-13 300000 cycles 3.6 W 24 V 70-70 °C, DC-13 300000 cycles 7.2 W 24 V -25-60 °C
    • Environmental Characteristic : gas resistant class Gx, gas resistant class 3C4, dust resistant class 3S4, sand resistant class 3S4, salt resistant level 2, mold growth resistant class 3B2, fungal spore resistant class 3B2
    • Insulation Resistance : > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC
    • Protection Type : 1 external fuse per group of input channel 0.5 A fast blow, reverse polarity protection on input, 1 external fuse per output channel or group of output channel fast blow
    • Status Led : 1 LED (Green) module operating (RUN), 1 LED per channel (Green) channel diagnostic, 1 LED (Red) module error (ERR), 1 LED (Red) module I/O
    • Voltage Detection Threshold : < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC sensor OK, > 18 V DC sensor OK
    • Voltage Range : 19...30 V 60 °C, 21.1...29.0 V 70 °C
    • Carbon Footprint Of The Distribution Phase A4 : 0.0219682909, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.2981032727
    • Carbon Footprint Of The Installation Phase A5 : 0.0447348364, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 21 kg CO2 eq., 21.4653090909
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 13 kg CO2 eq., 13.4007088643
    • Medium Desc : Discrete mixed I/O module, Modicon X80, 8 inputs, 24V DC, 8 relay outputs, 24 to 240V AC positive, for severe environments
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-23
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2311046EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Dc Maximum Filtering Time : 7 ms
    • Dc Typical Filtering Time : 4 ms
    • Mechanical Durability : 20000000 cycles
    • Mtbf Reliability : 940000 H
    • Power Dissipation In W : 3.1 W
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : discrete I/O module
    • Product Specific Application : for severe environments
    • Protective Treatment : conformal coating
    • Range Of Product : Modicon X80
    • Returnability : No
    • Shock Resistance : 30 gn
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Switching Frequency : 1 Hz
    • Total Lifecycle Carbon Footprint : 35 kg CO2 eq.
    • Typical Current Consumption : 79 mA 3.3 V DC
    • Vibration Resistance : 3 gn
    • Pep Code : ENVPEP2311046EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
  • Environment Attributes Main
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    • Operating Altitude : 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 35.2308243552
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Circularity Profile : ENVEOLI2311046EN
    • Environmental Disclosure : ENVPEP2311046EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % 55-55 °C without condensation
    • Pep Code : ENVPEP2311046EN
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : discrete I/O module
    • Range Of Product : Modicon X80
  • ETIM
    • ETIM 8 : EC001419
    • ETIM 9 : EC001419
  • Output Attributes
    • Discrete Output Voltage : 24 V 19...30 V DC, 24...240 V 19...264 V AC
    • Response Time On Output : <= 8 ms deactivation, <= 8 ms deactivation, <= 10 ms activation, <= 10 ms activation, <= 8 ms deactivation, <= 8 ms deactivation, <= 10 ms activation, <= 10 ms activation
    • Discrete Output Current : 2000 mA
    • Discrete Output Number : 8
    • Discrete Output Type : relay
  • Surge Protection And Filtering Attributes
    • Dc Typical Filtering Time : 4 ms
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Input Compatibility : with 2-wire/3-wire proximity sensors IEC 60947-5-2, with 2-wire/3-wire proximity sensors IEC 61131-2 type 3
    • Discrete Input Current : 3.5 mA
    • Discrete Input Number : 8
    • Discrete Input Voltage : 24 V DC positive
    • Input Impedance : 6800 Ohm
    • Input Type : current sink (logic positive)
    • Paralleling Of Inputs : no
