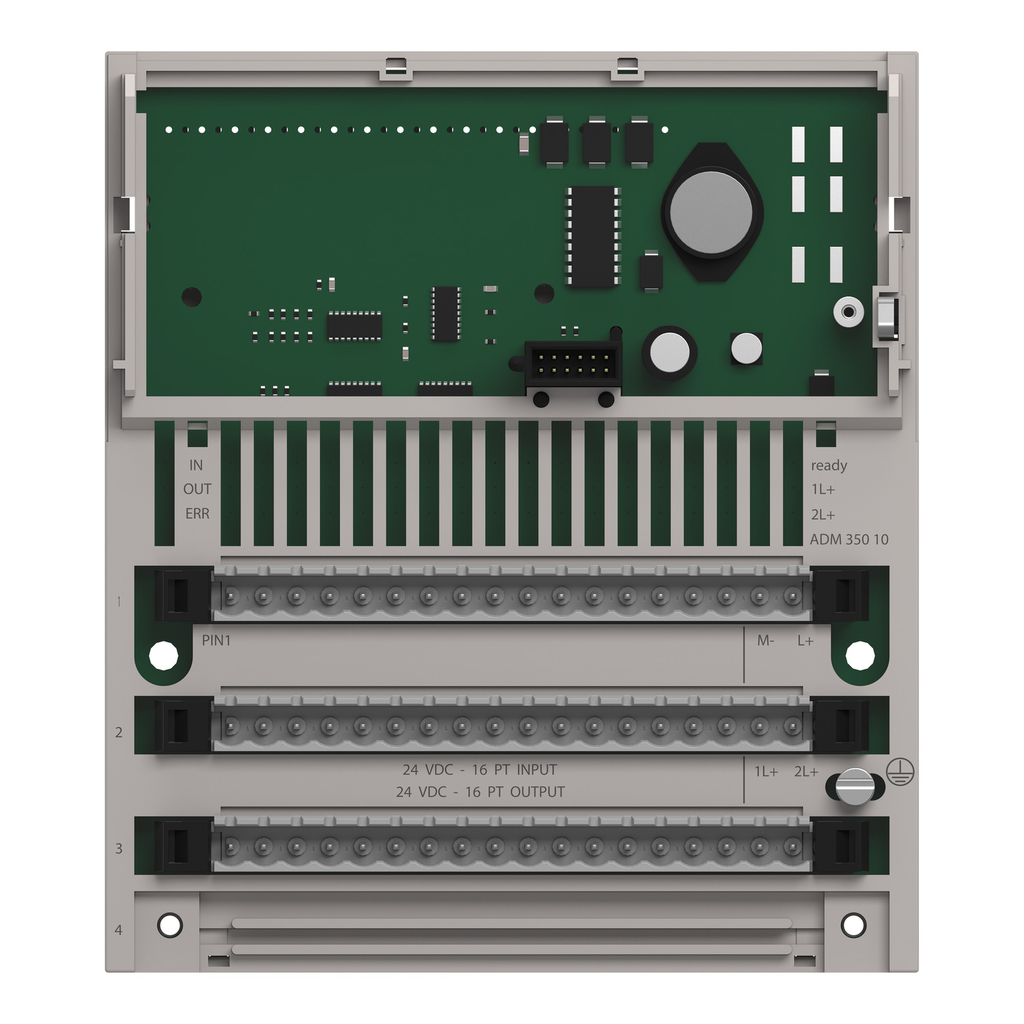

This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete I/O module has 1 group of 16 inputs and 2 groups of 8 solid state outputs with sink (positive) discrete logic. It is an I/O module with a rated supply voltage of 24V DC, an input/output voltage of 24V DC, a current consumption of 250mA at 24V DC and a power dissipation of 8W. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height) and weighs 0.2kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

• Features
• Provides foundation for the rest of momentum control system
• Serve as the mounting base
• Solid state switch discrete output
• Positive discrete output logic
• Overload on output fault
• 16 LEDs for channel status local signaling
• Wide range of operating temperature from 0°C to 60°C
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Voltage Drop : <0.5 V at state 1 output circuit, <0.5 V at state 1 output circuit, <0.5 V at state 1 output circuit<0.5 V at state 1 output circuit, <0.5 V at state 1 output circuit, <0.5 V at state 1 output circuit
• Maximum Leakage Current : 1 mA 24 V DC output circuit
• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Current State 1 Guaranteed : >= 2.5 mA, >= 2.5 mA, >= 2.5 mA, >= 2.5 mA
• Group Of Channels : 2 groups of 8 outputs, 1 group of 16 inputs
• Response Time : < 0.1 ms from state 0 to state 1 on output, < 0.1 ms from state 0 to state 1 on output, < 0.1 ms from state 1 to state 0 on output, < 0.1 ms from state 1 to state 0 on output< 0.1 ms from state 0 to state 1 on output, < 0.1 ms from state 0 to state 1 on output, < 0.1 ms from state 1 to state 0 on output2.2 ms from state 0 to state 1 on input3.3 ms from state 1 to state 0 on input
• Certificate Agency : UL, CSA
• Terminals Description Plc N°1 : (L+)PW_POS, (8)IN_DIS 8, (6)IN_DIS 6, (5)IN_DIS 5, (2)IN_DIS 2, (12)IN_DIS 12, (M-)PW_NEG, (15)IN_DIS 15, (13)IN_DIS 13, (10)IN_DIS 10, (3)IN_DIS 3, (9)IN_DIS 9, (7)IN_DIS 7, (1)IN_DIS 1, (11)IN_DIS 11, (14)IN_DIS 14, (16)IN_DIS 16, (4)IN_DIS 4, (L+)PW_POS, (8)IN_DIS 8, (6)IN_DIS 6, (5)IN_DIS 5, TB, (2)IN_DIS 2, (12)IN_DIS 12, (M-)PW_NEG, (15)IN_DIS 15, (13)IN_DIS 13, (10)IN_DIS 10, (3)IN_DIS 3, (9)IN_DIS 9, (7)IN_DIS 7, (1)IN_DIS 1, (11)IN_DIS 11, (14)IN_DIS 14, (16)IN_DIS 16, (4)IN_DIS 4
• Terminals Description Plc N°2 : (10)OUT_DIS 10, (6)OUT_DIS 6, (8)OUT_DIS 8, (1)OUT_DIS 1, (11)OUT_DIS 11, (4)OUT_DIS 4, (5)OUT_DIS 5, (15)OUT_DIS 15, (2L+)PW_POS, (7)OUT_DIS 7, (2)OUT_DIS 2, (14)OUT_DIS 14, (9)OUT_DIS 9, (13)OUT_DIS 13, (3)OUT_DIS 3, (1L+)PW_POS, (12)OUT_DIS 12, (10)OUT_DIS 10, (6)OUT_DIS 6, (8)OUT_DIS 8, (1)OUT_DIS 1, (11)OUT_DIS 11, (4)OUT_DIS 4, (5)OUT_DIS 5, (15)OUT_DIS 15, (2L+)PW_POS, TB_1, (7)OUT_DIS 7, (2)OUT_DIS 2, (14)OUT_DIS 14, (9)OUT_DIS 9, (13)OUT_DIS 13, (3)OUT_DIS 3, (1L+)PW_POS, (12)OUT_DIS 12
• Carbon Footprint Of The Distribution Phase A4 : 0.12125558099060363, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.5022395811623958, 0.5 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0.2 kg CO2 eq., 0.2229752278889432
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 131 kg CO2 eq., 131.09316971289155
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 141 kg CO2 eq., 141.10219037035654
• Local Data Status : Publishable
• Local Publishable Date : 2024-01-27
• Return Indicator : Y
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 15 year(s)
• Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1403005EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2438
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 4
• Tier : 4
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Bearing Track Assembly Possible : true
• Current State 0 Guaranteed : <= 1.2 mA<= 1.2 mA
• Fault Type : overload on output
• Front Installation Possible : false
• Isolation Between Channels And Bus : 500 V AC
• Local Signalling : 16 LEDs for channel status
• Marking : CE
• Network Type : AC/DC
• Optical Interface Present : false
• Power Dissipation In W : 6 W
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : discrete solid state I/O base DC
• Protective Treatment : TC
• Radio Standard Bluetooth : false
• Radio Standard Gprs : false
• Radio Standard Gsm : false
• Radio Standard Umts : false
• Range Of Product : Modicon Momentum automation platform
• Returnability : Yes
• Software Version : v6.2.5-6
• Supporting Protocol For Asi : false
• Supporting Protocol For Can : false
• Supporting Protocol For Devicenet : false
• Supporting Protocol For Devicenet Safety : false
• Supporting Protocol For Ethercat : false
• Supporting Protocol For Foundation Fieldbus : false
• Supporting Protocol For Interbus : false
• Supporting Protocol For Knx : false
• Supporting Protocol For Lon : false
• Supporting Protocol For Modbus : false
• Supporting Protocol For Other Bus Systems : false
• Supporting Protocol For Profibus : false
• Supporting Protocol For Profinet Cba : false
• Supporting Protocol For Profinet Io : false
• Supporting Protocol For Profisafe : false
• Supporting Protocol For Safetybus P : false
• Supporting Protocol For Sercos : false
• Supporting Protocol For Suconet : false
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 273 kg CO2 eq.
• Typical Current Consumption : 250 mA 24 V DC
• Voltage State 0 Guaranteed : -3...5 V-3...5 V
• Voltage State 1 Guaranteed : 11...30 V
• Certified For Ul Hazardous Location Class I : false
• Certified For Ul Hazardous Location Class Ii : false
• Certified For Ul Hazardous Location Class Iii : false
• Certified For Ul Hazardous Location Division 1 : false
• Certified For Ul Hazardous Location Division 2 : false
• Dc Supply Voltage : 24-24 V
• Digital Outputs Configurable : false
• Fieldbus Connection Over Separate Bus Coupler Possible : false
• System Accessory : false
• Digital Inputs Configurable : false
• Short Circuit Protection Outputs Present : true
• Time Delay At Signal Change : 3.3-3.3 ms
• Database Version : 2024-01
• Data Source : extrapolated product
• Height Nominal : 141.5 mm
• Width Nominal : 125 mm
• Supporting Protocol For Ethernet/Ip : false
• Supporting Protocol For Tcp/Ip : false
• Wall Mounting/Direct Mounting Possible : false
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8538908180
• Appendant Operation Agent Ex Ia : false
• Appendant Operation Agent Ex Ib : false
• Certified For Ul Hazardous Location Group A Acetylene : false
• Certified For Ul Hazardous Location Group B Hydrogen : false
• Certified For Ul Hazardous Location Group C Ethylene : false
• Certified For Ul Hazardous Location Group D Propane : false
• Certified For Ul Hazardous Location Group E Metal Dusts : false
• Certified For Ul Hazardous Location Group F Carbonaceous Dust : false
• Certified For Ul Hazardous Location Group G Non Conductive Dust : false
• Io Link Master Present : false
• Performance Level According To En Iso 13849 1 : none
• Rack Assembly Possible : false
• Supporting Protocol For As Interface Safety At Work : false
• Supporting Protocol For Data Highway : false
• Warranty In Months : 18
• Functional Unit Description : Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.Monitor digital & analog sensors input singal and provide Control singnal to field actuator by digial and analog output with an active power consumtion of 6W for 10 years
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 10
• Recyclability Potential In % : 4
• Environment Attributes Main
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 273.04183047329
• Ambient Air Temperature For Operation : 0-60 °C
• Ambient Air Temperature For Storage : -40-85 °C-40-85 °C
• Circularity Profile : ENVEOLI1403005EN
• Environmental Disclosure : ENVPEP1403005EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20
• Operating Altitude : <= 16404.2 ft (5000 m)<= 16404.2 ft (5000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 95-95 % without condensation
• Pep Code : ENVPEP1403005EN
• Pep Verification Date : 2026-07-28
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : discrete solid state I/O base DC
• Range Of Product : Modicon Momentum automation platform
• ETIM
• ETIM 8 : EC001599
• ETIM 9 : EC001599
• ETIM 10 : EC001599
• Output Attributes
• Discrete Output Current : 4 A, 8 A, 0.5 A4 A per group8 A per module0.5 A per point
• Discrete Output Number : solid state switch at <= 30 V DC, solid state switch at 24 V DC, 16
• Discrete Output Voltage : <= 30 V DCsolid state switch, <= 30 V DCsolid state switch, <= 30 V DCsolid state switch, <= 30 V DCsolid state switch, <= 30 V DCsolid state switch, <= 30 V DCsolid state switch, 24 V DCsolid state switch
• Discrete Output Logic : positive
• Discrete Output Type : solid state switch
• Discrete Output Voltage Type : DC
• Peak Output Current : 5 A
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Discrete Input Number : conforming to IEC 1131-2 Type 1 at 24 V DC, 16
• Input Voltage Limits : - 3...30 V, - 3...30 V
• Discrete Input Logic : positive
• Discrete Input Voltage : 24 V DC - 3...30 V)
• Discrete Input Voltage Type : DC
• Input Resistance : 4 kOhm
• Specifications
• Country of Origin : Indonesia, United States
• Weight : 406 g
• Depth : 47.5 mm
