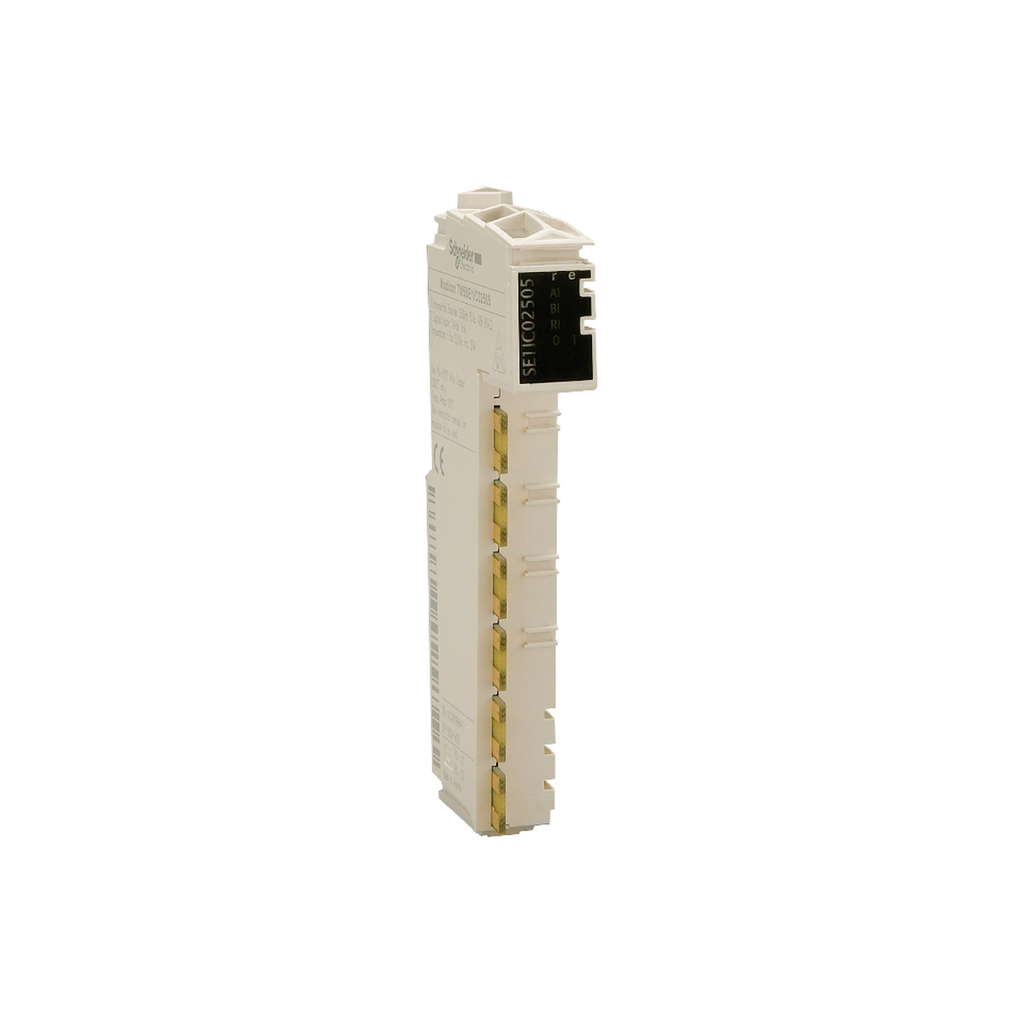

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This counter module provides 1 HSC incremental input. Its counting frequency is 250kHz per channel. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. The maximum cycle time is 2ms and counter input resolution is 16bit/32bit. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Cycle Time : 2 ms
• Maximum Power Dissipation In W : 1.51 W
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Current Consumption : 2 mA 5 V DC bus, 63 mA 24 V DC input/output
• Function Of Module : 2 x 24 V DC RS422 sink auxiliary inputs, 24 V DC encoder power supply
• Resistance To Electromagnetic Fields : 1 V/m 2...2.7 GHz IEC 61000-4-3, 10 V/m 80...2000 MHz IEC 61000-4-3
• Resistance To Electrostatic Discharge : 4 kV on contact IEC 61000-4-2, 8 kV in air IEC 61000-4-2
• Resistance To Fast Transients : 1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 shielded cable), 2 kV IEC 61000-4-4 power lines)
• Vibration Resistance : 1 gn 8.4-150 Hz DIN rail, 3.5 mm 5-8.4 Hz DIN rail
• Carbon Footprint Of The Distribution Phase A4 : 0.014005524357610438, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.06380714994773072
• Carbon Footprint Of The Installation Phase A5 : 0.027625247088581543, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.3464712652197728
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 61 kg CO2 eq., 60.910953263776626
• Certificate Agency : cULus, C-tick, GOST-R, CSA
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1511026EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1901
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Counting Frequency : 250 kHz
• Disturbance Radiated Conducted : CISPR 11
• Electromagnetic Compatibility : EN/IEC 61000-4-6
• Encoder Type : 1 incremental encoder
• Isolation : 500 Vrms AC insulation between channel and bus
• Marking : CE
• Number Of Functions : 2
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : counter module
• Range Of Product : Modicon TM5
• Returnability : No
• Shock Resistance : 15 gn 11 ms
• Software Version : v6.2.5-6
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 62 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Dc Supply Voltage : 24-24 V
• Warranty In Months : 18
• Pep Code : ENVPEP1511026EN
• Database Version : 2024-01
• Pep Verification Date : 2025-12-25
• Pcr Version : PCR-4-ed4-FR-2021 09 06
• Psr Version : PSR-0005-ed3-EN-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : To manage digital or analog I/O signal 100% of the time for 10 years with dissipation power of 1.51W.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 10
• Energy Consumption On Product Lifetime, In Kwh : 132.276
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Low voltage; 2020; Austria, AT
• Energy Model - Installation [A5] : No energy used
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; Turkey, TR
• Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
• Offer Owner Code : 190786
• Pn : 1
• Height Nominal : 99 mm
• Width Nominal : 12.5 mm
• Environment Attributes Main
• Ambient Air Temperature For Operation : 0-55 °C without derating horizontal installation), 0-60 °C with derating factor horizontal installation), 0-50 °C vertical installation)
• Ambient Air Temperature For Storage : -25-70 °C, -25-70 °C
• Product Compatibility : motion controller, logic controller
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 62.36286245039032
• Circularity Profile : ENVEOLI1511026EN
• Environmental Disclosure : ENVPEP1511026EN
• Eu Rohs Directive : Compliant
• Ip Degree Of Protection : IP20IEC 61131-2
• Operating Altitude : 0...6561.68 ft (0...2000 m)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Relative Humidity : 5-95 % without condensation
• Storage Altitude : 0-3000 m
• Pep Code : ENVPEP1511026EN
• Pep Verification Date : 2025-12-25
• Pcr Version : PCR-4-ed4-FR-2021 09 06
• Psr Version : PSR-0005-ed3-EN-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : counter module
• Range Of Product : Modicon TM5
• ETIM
• ETIM 8 : EC001601
• ETIM 9 : EC001601
• Surge Protection And Filtering Attributes
• Surge Withstand : 0.5 kV differential mode IEC 61000-4-5, 1 kV common mode IEC 61000-4-5
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Input Filtering : <= 200 ms, <= 200 ms
• Counter Inputs Resolution : 16 bits/32 bits
• Discrete Input Current : 3.3 mA 24 V
• Discrete Input Logic : sink
• Discrete Input Number : 1
• Discrete Input Voltage : 24 V DC
• Input Compatibility : 1 incremental encoder (5 V)
• Input Resistance : 7.19 kOhm
• Specifications
• Country of Origin : Austria, Brazil, France
• Depth : 75 mm
