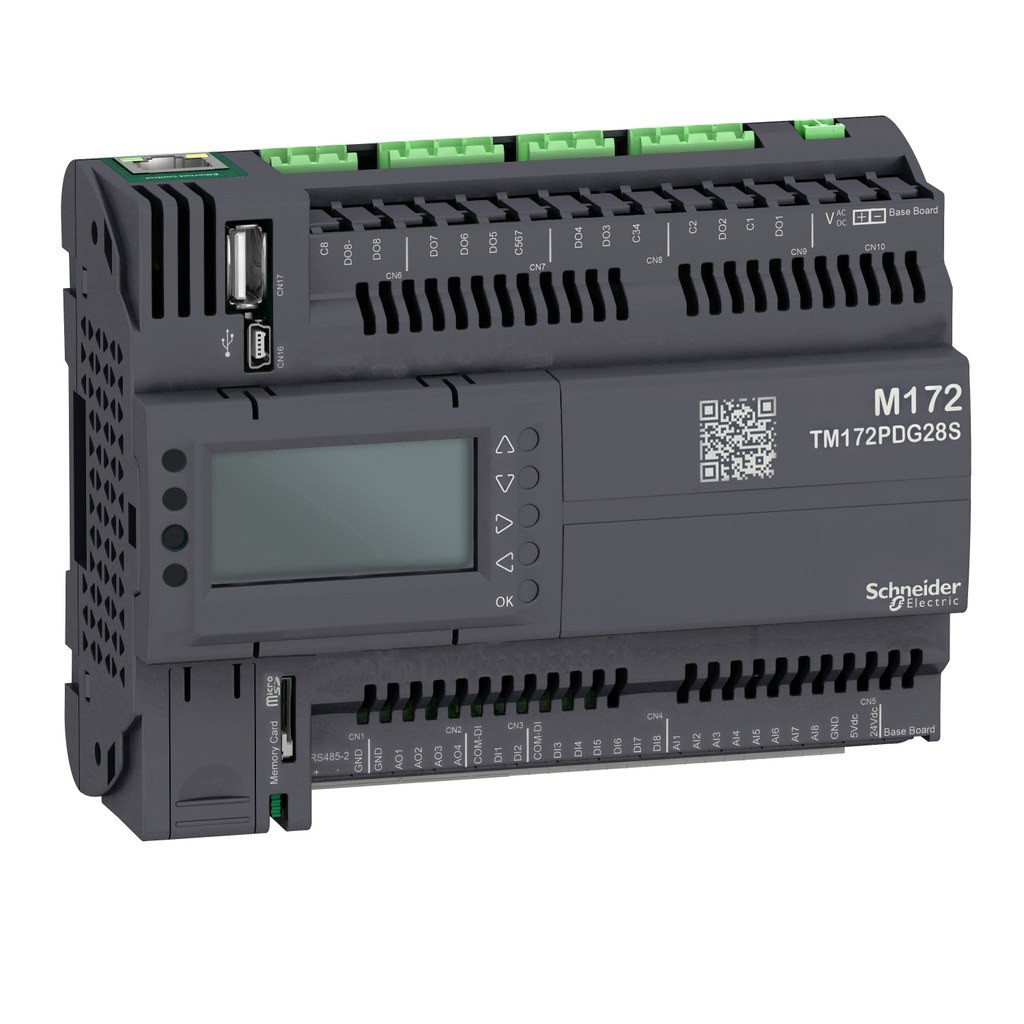

Controller, Modicon M171/M172/M173, performance display 28 IO, Modbus, solid state relay

Name: Controller, Modicon M171/M172/M173, performance display 28 IO, Modbus, solid state relay
Brand: SCHNEIDER ELECTRIC
SKU: SQDTM172PDG28S
Price: 667.62 USD
Availability: OutOfStock

CONTROLLER, MODICON M171/M172/

SQDTM172PDG28S TM172PDG28S 3606480894862

667.62 / EA

http://schema.org/OutOfStock

Mayer-DDS-Controller, Modicon M171/M172/M173, performance display 28 IO, Modbus, solid state relay-1

Country of Origin: Italy

QTY

Features
Specifications

Power Consumption In W

15 W 24 V AC/DC

US Rated Supply Voltage

24 V +/- 10 % AC
20...38 V DC

Analogue Input Type

impedance 0...1500 hOhm
impedance 0...300 daOhm
NTC temperature probe - 50...110 °C 0.1 °C extended)
voltage 0...10 V
NTC temperature probe - 40...150 °C 0.1 °C
current 0...20 mA/4...20 mA
PTC temperature probe - 55...150 °C 0.1 °C
voltage 0...5 V absolute or ratiometric)
Pt 1000 temperature probe - 200...850 °C 0.1 °C

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Input Output Number

8 digital input
8 analog input
4 analog output
8 digital output

Communication

TM171ACAN
TM171AMB
TM171ARS485

Carbon Footprint Of The Installation Phase A5

0.02976637944179302
0 kg CO2 eq.

Carbon Footprint Of The End Of Life Phase C1 To C4

1 kg CO2 eq.
1.037092482472762

Sensor Power Supply

5-5 V DC 50 mA supplied by the controller
24-24 V DC 150 mA supplied by the controller

Carbon Footprint Of The Manufacturing Phase A1 To A3

37 kg CO2 eq.
37.02101742543932

Discrete Output Number

1 relay outputs SPDT with independent common
3 relay outputs SPST with same common
2 relay outputs SPST with same common
2 solid state, isolated SSR with independent common

Accessories

TM172ASCTB28
TM172AP12PM

Discrete Input Voltage

24 V AC/DC

Analogue Input Number

8 configurable by pair

Discrete Output Current

0.5 A solid state, isolated
1 A relay SPDT
3 A relay SPST

Realtime Clock

built-in clock at -20-55 °C

Carbon Footprint Of The Use Phase B2 B3 B4 B6

622 kg CO2 eq.
621.7379964170797

Analogue Output Number

2 voltage 0...10 V
2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)

Display Type

Backlit LCD - 128 x 64 pixels

Relative Humidity

5-95 % non-condensing

Directives

2006/95/EC - low voltage directive
86/188/EEC - physical agents (noise) directive

Auxiliaries

TM172DCLWT
TM172DCLWTH

Number Of Port

1 CAN port - screw terminal block
1 USB type A - USB type A female
1 USB type mini B - USB device port Mini-B
2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP)
1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)

Carbon Footprint Of The Distribution Phase A4

0.1562931105123967
0.2 kg CO2 eq.

Local Signalling

1 LED (red) for programmable
1 LED (yellow) for programmable
1 LED (green) for programmable
1 LED (green) for power

Ambient Air Temperature For Operation

-20-55 °C UL 60730-1

Assets

CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001974_3D-CAD

Important Information Attributes

Local Data Status : Publishable
Local Publishable Date : 2025-07-09
HTML Description : Modicon M172 Performance Display 28 I/Os, Modbus, Solid State Relay
Manufacturer : Schneider Electric
Manufacturing Carbon Footprint : 37.02101742543932
Distribution Carbon Footprint : 0.1562931105123967
Installation Carbon Footprint : 0.02976637944179302
Use Carbon Footprint : 621.7379964170797
End Of Life Carbon Footprint : 1.037092482472762
WEEE Applicability : Finished product
WEEE Scope : In
Legacy WEEE Scope : In
WEEE Product Category : 5
Scope Perimeter : At least in Europe
EOLI Availability Display : Yes
End Of Life Doc Ref : ENVEOLI1709014EN
Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : CONTAINS_SVHC
Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
ROHS EUR In Scope : No
ROHS EUR Status : Compliant with Exemptions
ROHS EUR Conformity Date : 1929
ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
China ROHS In Scope : Yes
China ROHS Label : 5
Green Premium Status For Reporting : Green Premium product
With Recycled Cardboard : Yes
Without Single Use Plastic : No
Product Contributes To Saved And Avoided Emissions : No
Return Indicator : N
WD Status : 1 - GSC certified
Package Weight Lbs : 392.0 g
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : programmable controllers
Product Specific Application : HVAC and pumping solution
Range Of Product : Modicon M171/M172
Returnability : No
Sustainable Packaging : No
Total Lifecycle Carbon Footprint : 660 kg CO2 eq.
Updatability : Yes
Upgradeability : Yes
Variant : programmable
Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Carbon Footprint Kg Co2 Eq Total Life Cycle : 659.9821658149459
Relationship Type : Compatible relationship
Pep Code : ENVPEP1709014EN
Pep Verification Date : 2025-09-01
PCR Version : PEP-PCR-ed4-2021 09 06
PSR Version : No PSR
Type Of Verification For The Pep : Independent internal review
Product Weight In G : 420.5
Functional Unit Description : To manage a wide range of HVAC/R, pumping and many other applications and a 100% of the time for 10 years
Functional Unit Quantity : 1
Functional Unit Unit : unit
Reference Lifetime In Y : 10
Energy Consumption On Product Lifetime In Kwh : 1314
Recyclability Potential In : 0
Packaging Weight In G : 70.9
Nbr Of Units In Pkg : 1
Warranty In Months : 18
Energy Model Manufacturing A1 A3 : Electricity Mix; Low voltage; 2020; Italy, IT
Energy Model Installation A5 : No energy used
Energy Model Use B6 : Electricity Mix; Low voltage; 2020; Asia Pacific, APAC
Energy Model End Of Life C1 C4 : Global, European and French datasets are used.
Acidification Ap Mole Of H Equiv Total Life Cycle : 3.7142700847624908
Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.1880870362839259
Acidification Ap Mole Of H Equiv Distribution A4 : 0.001045406235279914
Acidification Ap Mole Of H Equiv Installation A5 : 0.00003690509204711782
Acidification Ap Mole Of H Equiv Maintenance B2 : 0
Acidification Ap Mole Of H Equiv Repair B3 : 0
Acidification Ap Mole Of H Equiv Replacement B4 : 0
Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 3.524403646931375
Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0006970902198627266
Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.00000000806432298116
Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 7.693324501322776
Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.07462892827067107
Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.000179701129167675
Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 7.618513500056302
Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.00000237186663474973
Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0.00000173975660987628
Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 652.2888297269748
Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 36.94637691052038
Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.1562931105123967
Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.02958667831262534
Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 614.1194829170233
Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 1.037090110606127
Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.00000152018626430691
Climate Change Total Kg Co2 Eq Total Life Cycle : 659.9821658149459
Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 37.02101742543932
Climate Change Total Kg Co2 Eq Distribution A4 : 0.1562931105123967
Climate Change Total Kg Co2 Eq Installation A5 : 0.02976637944179302
Climate Change Total Kg Co2 Eq Maintenance B2 : 0
Climate Change Total Kg Co2 Eq Repair B3 : 0
Climate Change Total Kg Co2 Eq Replacement B4 : 0
Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 621.7379964170797
Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 1.037092482472762
Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0.00000021957034556937
Components For Re Use Kg Total Life Cycle : 0
Components For Re Use Kg Manufacturing A1 A3 : 0
Components For Re Use Kg Distribution A4 : 0
Components For Re Use Kg Installation A5 : 0
Components For Re Use Kg Maintenance B2 : 0
Components For Re Use Kg Repair B3 : 0
Components For Re Use Kg Replacement B4 : 0
Components For Re Use Kg Operational Energy Use B6 : 0
Components For Re Use Kg End Of Life C1 C4 : 0
Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.008738014118126225
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.008591958201342733
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000615724139675
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000006621131699
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0001460511860785733
Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : -0.00000000149274779671
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.00000000000016201973
Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 13232.216306780472
Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 398.6065338077465
Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 2.18188506411052
Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.03458265862593621
Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 12830.13697556004
Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 1.2563296899482
Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -0.00001843137289403555
Ecotoxicity Fresh Water Ctue Total Life Cycle : 1282.2925641968818
Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 249.6308724848227
Ecotoxicity Fresh Water Ctue Distribution A4 : 0.1025560269584015
Ecotoxicity Fresh Water Ctue Installation A5 : 0.2246250386892331
Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
Ecotoxicity Fresh Water Ctue Repair B3 : 0
Ecotoxicity Fresh Water Ctue Replacement B4 : 0
Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 1013.186217478162
Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 19.14829316824949
Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -0.00003389796696726868
Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.0000249812775245423
Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000114538603575503
Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.0000000090282706586
Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.00000000016064700357
Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00002382195076561187
Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000000475180551323
Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00000000000004813303
Exported Energy Mj By Energy Vector Total Life Cycle : 0.035720068177094534
Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.03571999083989208
Exported Energy Mj By Energy Vector Distribution A4 : 0
Exported Energy Mj By Energy Vector Installation A5 : 0
Exported Energy Mj By Energy Vector Maintenance B2 : 0
Exported Energy Mj By Energy Vector Repair B3 : 0
Exported Energy Mj By Energy Vector Replacement B4 : 0
Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.00000007733720245318
Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0010131221764761251
Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.0001118170957067259
Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000005866768912746
Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000001209780075805
Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
Freshwater Eutrophication Kg P Eq Repair B3 : 0
Freshwater Eutrophication Kg P Eq Replacement B4 : 0
Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.000895987488781278
Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00000524682649823573
Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00000000002384124648
Hazardous Waste Disposed Of Kg Total Life Cycle : 58.65985752331712
Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 58.42726984578948
Hazardous Waste Disposed Of Kg Distribution A4 : 0
Hazardous Waste Disposed Of Kg Installation A5 : 0.00001554058933125131
Hazardous Waste Disposed Of Kg Maintenance B2 : 0
Hazardous Waste Disposed Of Kg Repair B3 : 0
Hazardous Waste Disposed Of Kg Replacement B4 : 0
Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.2325721369383079
Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.00000004613357256419
Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000075098632632354
Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000049115625607561
Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000000279656732
Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000000049864720629
Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000007631487436858
Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000018301375210575
Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000000000020936823
Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000280563300012701
Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000057764008528606
Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000005386185792
Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000014055611957
Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.0000022048439903582
Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000002295450650527
Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000000000000527245
Impacts Related To Land Use Soil Quality Total Life Cycle : 12.253191277955207
Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.2407822241846055
Impacts Related To Land Use Soil Quality Distribution A4 : 0
Impacts Related To Land Use Soil Quality Installation A5 : 0
Impacts Related To Land Use Soil Quality Maintenance B2 : 0
Impacts Related To Land Use Soil Quality Repair B3 : 0
Impacts Related To Land Use Soil Quality Replacement B4 : 0
Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 12.0124090537706
Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0
Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 500.92014132900795
Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 10.79336851821615
Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.0003809500810783902
Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.00004717755802383031
Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 490.1256771605369
Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0006675226157883585
Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.00000034301663170003
Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.42890265379637843
Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.02295377550547027
Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0004929506825438631
Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00001636640033007173
Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.4050946798933079
Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0003448813147263463
Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.00000000245066672633
Materials For Energy Recovery Kg Total Life Cycle : 0
Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
Materials For Energy Recovery Kg Distribution A4 : 0
Materials For Energy Recovery Kg Installation A5 : 0
Materials For Energy Recovery Kg Maintenance B2 : 0
Materials For Energy Recovery Kg Repair B3 : 0
Materials For Energy Recovery Kg Replacement B4 : 0
Materials For Energy Recovery Kg Operational Energy Use B6 : 0
Materials For Energy Recovery Kg End Of Life C1 C4 : 0
Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
Materials For Recycling Kg Total Life Cycle : 0.0114295954747583
Materials For Recycling Kg Manufacturing A1 A3 : 0.0114283654747583
Materials For Recycling Kg Distribution A4 : 0
Materials For Recycling Kg Installation A5 : 0
Materials For Recycling Kg Maintenance B2 : 0
Materials For Recycling Kg Repair B3 : 0
Materials For Recycling Kg Replacement B4 : 0
Materials For Recycling Kg Operational Energy Use B6 : 0
Materials For Recycling Kg End Of Life C1 C4 : 0.00000123
Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
Net Use Of Fresh Water M3 Total Life Cycle : 1.3163625312430778
Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.3716559801690846
Net Use Of Fresh Water M3 Distribution A4 : 0.00001382877935467936
Net Use Of Fresh Water M3 Installation A5 : 0.0001890337452497411
Net Use Of Fresh Water M3 Maintenance B2 : 0
Net Use Of Fresh Water M3 Repair B3 : 0
Net Use Of Fresh Water M3 Replacement B4 : 0
Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.9436672624655313
Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0008364260838573731
Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.00000000881273413776
Non Hazardous Waste Disposed Of Kg Total Life Cycle : 121.35807067956866
Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 18.97003642216986
Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.005490061428362404
Non Hazardous Waste Disposed Of Kg Installation A5 : 0.07172325364619755
Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
Non Hazardous Waste Disposed Of Kg Repair B3 : 0
Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 102.1844721809053
Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.1263487614189448
Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.00000091701092717209
Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00000812901087873608
Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000535627044523465
Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000002397570104
Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000011403245722
Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000027715516269133
Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000000083501712051
Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000000000004697899
Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 1.3900302192935994
Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.07275733227349411
Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.00137089687719741
Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.00004042350769774441
Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 1.315005166530387
Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0008564001048229271
Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.00000000522324994199
Radioactive Waste Disposed Of Kg Total Life Cycle : 0.029846969920033897
Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.01205565893966775
Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000039101888182855
Radioactive Waste Disposed Of Kg Installation A5 : 0.00000034822469547528
Radioactive Waste Disposed Of Kg Maintenance B2 : 0
Radioactive Waste Disposed Of Kg Repair B3 : 0
Radioactive Waste Disposed Of Kg Replacement B4 : 0
Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.01778099375909099
Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000060588077613946
Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.00000000041987335868
Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 5.894102185996199
Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.2433338784441448
Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.005408889663670824
Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.0001750331366141035
Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 5.641644621106313
Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.003539763645456231
Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.00000002022731637237
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 7.844620686697215
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 7.844620686697215
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 15961.749275709486
Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 425.7732976647079
Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 2.184796688954453
Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.03472558133857234
Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 15532.49698040231
Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 1.259475372175021
Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -0.00003546725739557175
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2729.5329689290165
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 27.1667638569614
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.002911624843932574
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0001429227126361374
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 2702.360004842272
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.003145682226820334
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.0000170358845015362
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 7.844620686697215
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 7.844620686697215
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 13224.371686093775
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 390.7619131210492
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 2.18188506411052
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.03458265862593621
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 12830.13697556004
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.2563296899482
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.00001843137289403555
Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.5890496474194916
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.5890496474194916
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.00002214
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2728.943919281597
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 26.57771420954191
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.002911624843932574
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0001429227126361374
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 2702.360004842272
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.003145682226820334
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0.00000510411549846379
Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
Use Of Renewable Secondary Fuels Mj Repair B3 : 0
Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
Use Of Secondary Materials Kg Total Life Cycle : 0.05674724399999999
Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.05674724399999999
Use Of Secondary Materials Kg Distribution A4 : 0
Use Of Secondary Materials Kg Installation A5 : 0
Use Of Secondary Materials Kg Maintenance B2 : 0
Use Of Secondary Materials Kg Repair B3 : 0
Use Of Secondary Materials Kg Replacement B4 : 0
Use Of Secondary Materials Kg Operational Energy Use B6 : 0
Use Of Secondary Materials Kg End Of Life C1 C4 : 0
Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
Water Use M3 Eq Total Life Cycle : 56.55336929530026
Water Use M3 Eq Manufacturing A1 A3 : 16.07439308573147
Water Use M3 Eq Distribution A4 : 0.0005939460732834788
Water Use M3 Eq Installation A5 : 0.00811899935847638
Water Use M3 Eq Maintenance B2 : 0
Water Use M3 Eq Repair B3 : 0
Water Use M3 Eq Replacement B4 : 0
Water Use M3 Eq Operational Energy Use B6 : 40.43433876383535
Water Use M3 Eq End Of Life C1 C4 : 0.03592450030167418
Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -0.00000037830259436191
Air Pollution M3 Total Life Cycle : 0
Air Pollution M3 Manufacturing A1 A3 : 0
Air Pollution M3 Distribution A4 : 0
Air Pollution M3 Installation A5 : 0
Air Pollution M3 Maintenance B2 : 0
Air Pollution M3 Repair B3 : 0
Air Pollution M3 Replacement B4 : 0
Air Pollution M3 Operational Energy Use B6 : 0
Air Pollution M3 End Of Life C1 C4 : 0
Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
Water Pollution M3 Total Life Cycle : 0
Water Pollution M3 Manufacturing A1 A3 : 0
Water Pollution M3 Distribution A4 : 0
Water Pollution M3 Installation A5 : 0
Water Pollution M3 Maintenance B2 : 0
Water Pollution M3 Repair B3 : 0
Water Pollution M3 Replacement B4 : 0
Water Pollution M3 Operational Energy Use B6 : 0
Water Pollution M3 End Of Life C1 C4 : 0
Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0

General Attributes

Product Or Component Type : programmable controllers
Range Of Product : Modicon M171/M172
Upgradeability : Yes

Environment Attributes

ROHS Exemption Information : Yes
China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=430427542&lang=en-us
Take Back : No
Recycled Metal Content At Cr Level : 0 %
China ROHS Regulation : X
Mercury Free : Yes
Carbon Footprint : 659.9821658149459
Circularity Profile : ENVEOLI1709014EN
Environmental Disclosure : ENVPEP1709014EN
EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
IP Degree Of Protection : IP20
Packaging Made With Recycled Cardboard : Yes
Packaging Without Single Use Plastic : No
Reach Regulation : Reference contains Substances of Very High Concern above the threshold
Pep Code : ENVPEP1709014EN
Pep Verification Date : 2025-09-01
PCR Version : PEP-PCR-ed4-2021 09 06
PSR Version : No PSR
Type Of Verification For The Pep : Independent internal review

Input Attributes

Discrete Input Current : 2.5 mA
Discrete Input Logic : sink or source (positive/negative)
Number Of Inputs Outputs : 28

Specifications

Country of Origin : Italy

Batteries & Runtime Attributes

Removable Battery : YES

Controller, Modicon M171/M172/M173, performance display 28 IO, Modbus, solid state relay

CONTROLLER, MODICON M171/M172/

characters left.
