Controller, Modicon M171/M172/M173, optimized blind, 22 IO, 2 RS485

CONTROLLER, MODICON M171/M172/

SQDTM173OBM22R TM173OBM22R 3606487008347
328.24 / EA
http://schema.org/OutOfStock

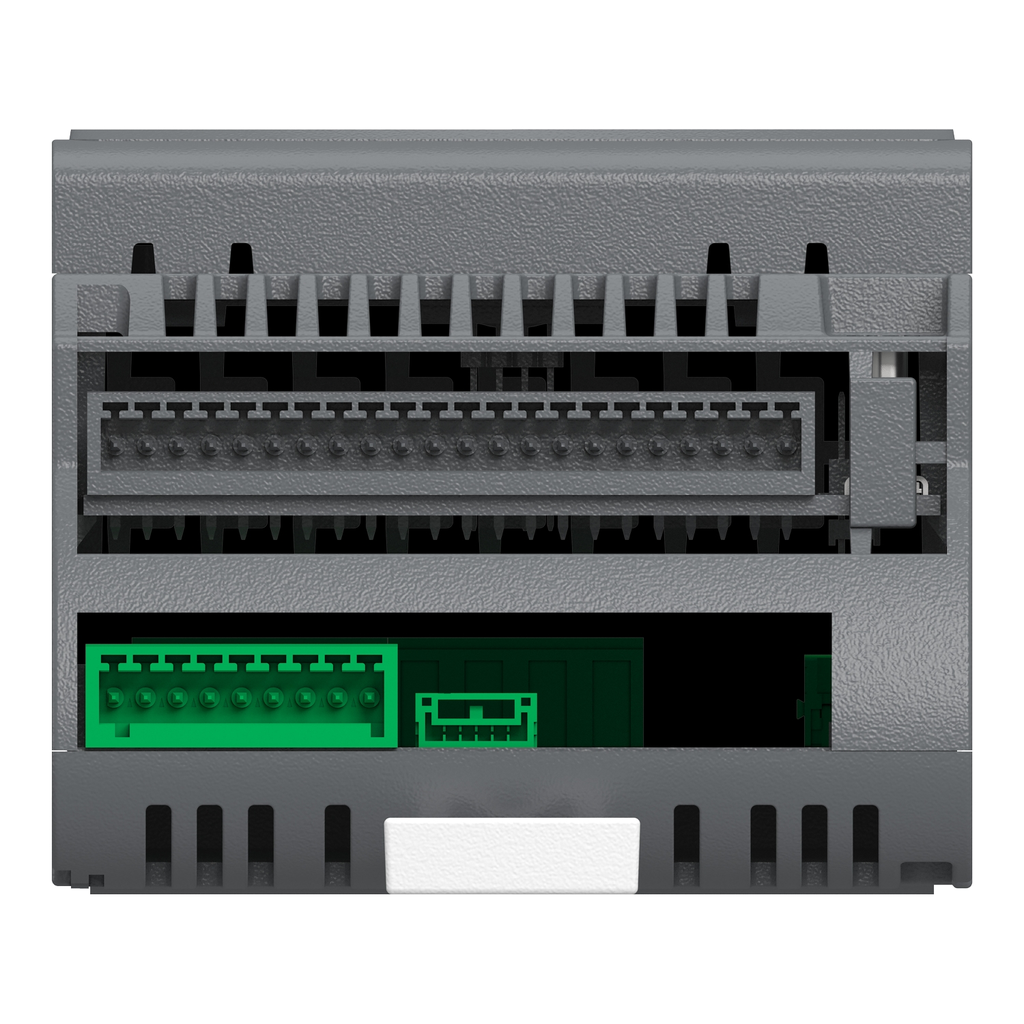

Mayer-DDS-Controller, Modicon M171/M172/M173, optimized blind, 22 IO, 2 RS485-1
  • Depth: 60 mm
This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller figures 6 digital inputs, 7 analog inputs, 5 digital outputs, 4 analog outputs. This programmable controller embeds 2 communication ports for RS485 and one CAN expansion bus port. It is a programmable logic controller for HVAC and Pumping applications. DIs are volt-free, pulse reading (up to 2kHz), and AIs are NTC (b3435 - 10kW), PT1000, 0-10V, 4-20mA, 5V, 10V, and DIs. Dos are relay 3A SPST with the same common, and AOs are 0-10V/4-20mA, 0-10 V/PWM (10Hz...2kHz). It measures 72mm wide, 60mm deep, 110mm high, and weighs 0.172kg. This controller is designed for HVAC and pumping applications. It is certified by CE, CURus, CSA, RCM and EAC. It is compatible with remote displays, IO expansion modules and Secure Interfaces It is sold in a 1-piece package. It is designed for 35mm rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
QTY
  • Product Description
  • Features
  • Specifications
This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller figures 6 digital inputs, 7 analog inputs, 5 digital outputs, 4 analog outputs. This programmable controller embeds 2 communication ports for RS485 and one CAN expansion bus port. It is a programmable logic controller for HVAC and Pumping applications. DIs are volt-free, pulse reading (up to 2kHz), and AIs are NTC (b3435 - 10kW), PT1000, 0-10V, 4-20mA, 5V, 10V, and DIs. Dos are relay 3A SPST with the same common, and AOs are 0-10V/4-20mA, 0-10 V/PWM (10Hz...2kHz). It measures 72mm wide, 60mm deep, 110mm high, and weighs 0.172kg. This controller is designed for HVAC and pumping applications. It is certified by CE, CURus, CSA, RCM and EAC. It is compatible with remote displays, IO expansion modules and Secure Interfaces It is sold in a 1-piece package. It is designed for 35mm rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=tm173obm22r_3DCAD_2024
  • Conformance Attributes
    • Product Certifications : EAC (pending), CE, cURus, CSA, RCM (pending)
    • Standards : CAN/CSA-E60730-1, CSA E60730-2-9, EN 60068-2-27, EN 60068-2-6 Fc, EN 60730-1, EN 60730-2-9, UL 60730-1, UL 60730-2-9, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11, UL94 (material V0)
  • Complementary Attributes
    • Us Rated Supply Voltage : 24 V +/- 10 % AC, 20...38 V DC
  • Important Information Attributes
    • Measurement Accuracy : NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C, NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C, NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C, PTC - 55...155 °C +/- 1.1 °C, Pt 1000 - 100...-50 °C +/- 5 °C, Pt 1000 - 50...100 °C +/- 1 °C, Pt 1000 100…400 °C +/- 5 °C, 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit, 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit, 0...10 V +/- 1 % of full scale +/- 1 digit, 0...5 V +/- 1 % of full scale +/- 1 digit, hOhm 0...1500 hOhm +/- 8.5 hOhm, daOhm 0...300 daOhm +/- 2.5 daOhm
    • Memory Type : 1 MB flash, 380 kB RAM
    • Mounting Support : panel mounting with accessory, DIN rail
    • Number Of Port : 1 CAN port - screw terminal block, 1 USB type C, 2 RS485 - screw terminal block Modbus serial link), 1 display port - TTL connector, 1 communication module port
    • Sensor Power Supply : 5-5 V DC 50 mA supplied by the controller, 24-24 V DC 125 mA supplied by the controller
    • Carbon Footprint Of The Distribution Phase A4 : 0.08024945400510809, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.6609692555164105, 0.7 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.004839072069538459
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 23 kg CO2 eq., 22.52239470664375
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 199 kg CO2 eq., 198.61765079228292
    • Medium Desc : Controller, Modicon M171/M172/M173, optimized blind, 22 IO, 2 RS485
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Pre Comm Date : 2023-11-08
    • Return Indicator : Y
    • Stocking Flag : Y
    • Weee Applicability : Finished product
    • Weee Scope : In
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2310029EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Contacts Usage : volt-free contacts
    • Local Signalling : 1 LED (green) for USB pendrive download status
    • Overvoltage Category : II
    • Power Consumption In W : 10 W 24 V AC/DC
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : programmable controllers
    • Product Specific Application : HVAC and pumping solution
    • Range Of Product : Modicon M171/M172/M173
    • Realtime Clock : built-in clock, clock drift <= 30 s/month at -20-65 °C
    • Returnability : Yes
    • Software Version : v6.2.2
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 222 kg CO2 eq.
    • Updatability : Yes
    • Upgradeability : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP2310029_V3
    • Database Version : 2024-01
    • Pep Verification Date : 2024-10-10
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : No PSR
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : To control HVAC/R applications, like chiller, heat pump or pumping station with up to 2 circuits and 4 compressors thanks to the integrated valve driver and 22 programmable IOs, and a 100% of the time for 10 years.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; Italy, IT
    • Energy Model Installation A5 2 : Electricity origin
    • Energy Model Use B6 2 : Electricity origin
    • Energy Model End Of Life C1 C4 2 : Electricity origin
    • Height Nominal : 110 mm
    • Width Nominal : 72 mm
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -20-65 °C UL 60730-1, -20-65 °C UL 60730-1, -20-65 °C UL 60730-1, -20-65 °C UL 60730-1, EN 60730-1, EN 60730-2-9
    • Directives : 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 221.88610328051774
    • Ambient Air Temperature For Storage : -30-70 °C
    • Circularity Profile : ENVEOLI2310029EN
    • Environmental Disclosure : ENVPEP2310029_V3
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20 conforming to EN/IEC 60730
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % non-condensing
    • Pep Code : ENVPEP2310029_V3
    • Pep Verification Date : 2024-10-10
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : No PSR
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : programmable controllers
    • Range Of Product : Modicon M171/M172/M173
    • Upgradeability : Yes
  • ETIM
    • ETIM 8 : EC000236
    • ETIM 9 : EC000236
  • Output Attributes
    • Analogue Output Number : 1 voltage/current 0…10 V or 4…20 mA, 3 voltage 0...10 V or PWM (10Hz...2 kHz)
    • Discrete Output Number : 3 relay outputs SPST with same common, 2 relay outputs SPST with independent common
    • Discrete Output Current : 3 A relay SPST
  • Input Attributes
    • Analogue Input Number : 6 configurable by pair, 1 configurable
    • Analogue Input Type : NTC 103AT-2 Beta 3435 temperature probe - 50...100 °C 0.1 °C 10 kOhm, Pt 1000 temperature probe - 50...400 °C 0.1 °C 2 kOhm, voltage 0...10 V 0.001 V > 10 kOhm, voltage 0...5 V 0.001 V 110 kOhm, current 4...20 mA 13 bits 100 Ohm, direct input > 10 kOhm
    • Input Output Number : 6 digital input, 5 digital output, 7 analog input, 4 analog output
    • Discrete Input Current : 2.5 mA
    • Discrete Input Logic : sink or source (positive/negative)
    • Discrete Input Number : 6
    • Discrete Input Voltage : 24 V AC/DC
    • Input Impedance : 20 kOhm
    • Number Of Inputs Outputs : 22
  • Specifications
    • Depth : 60 mm
