logic controller, Modicon M251, 2x Ethernet

logic controller, Modicon M251, 2x Ethernet

SQDTM251MESE TM251MESE 3606480648878
951.72 / EA
http://schema.org/OutOfStock

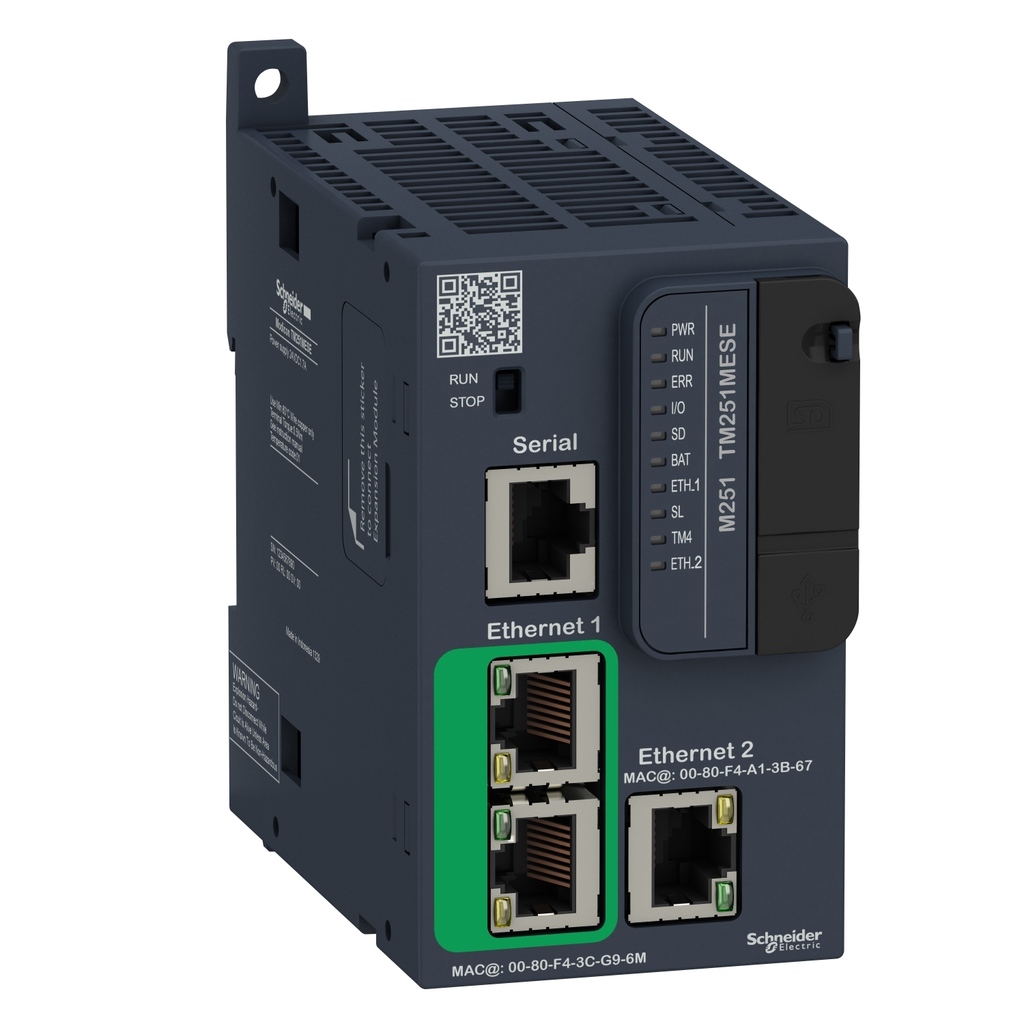

Mayer-DDS-logic controller, Modicon M251, 2x Ethernet-1
  • Depth: 95 mm
This product is part of the Modicon M251 range, an offer of logic controllers for modular and distributed architectures. This logic controller provides 7 local, 14 remote I/O expansion modules. It is a Modicon logic controller with a rated supply voltage of 24V DC, an inrush current of 50A and a power consumption of 32.6W to 40.4W. Boost the performance of machine with powerful data transfer via SD Card, embedded web and FTP server and more. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial with RJ45 connector and RS232/RS485 interface, dual-port Ethernet with RJ45 connector and ethernet port Ethernet 2 with RJ45 connector. It is a Modicon M251 controller with 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for backup of user programs and a SD card memory capacity of 32GB. It is an IP20 rated product. Its dimensions are 54mm (Width) x 95mm (Depth) x 90mm (Height). It weighs 0.22kg. The Modicon M251 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, CSA and CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M251 through intuitive machine programming with SoMachine, ready-to-use applications and function blocks. Increase flexibility, while saving space in your cabinet with the Modicon M251 logic controller for modular and distributed architectures.
QTY
  • Features
  • Specifications
  • Features
    • Intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.
    • All embedded features and functions you need to design and build machines more profitably.
    • Flexible and scalable machine control allows an easy upgrade to higher performance platforms to improve efficiency.
    • Connected everywhere via Ethernet, wireless access, web servers to simplify machine integration and maintenance
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Port Protocol : USB port USB - SoMachine-Network, non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
    • Communication Service : downloading, IEC VAR ACCESS, Modbus TCP client, Modbus TCP server, Modbus TCP slave device, monitoring, NGVL, programming, updating firmware, SMS notifications, DHCP client Eth1), DHCP server Eth2), Ethernet/IP originator Eth2), Ethernet/IP target Eth1, Eth2), Ethernet/IP scanner Eth2), Modbus TCP I/O Scanner and Messaging Eth2), FDR, FTP client/server, SNMP client/server, SQL client, send and receive email from the controller based on TCP/UDP library, web server (WebVisu & XWeb system), OPC UA server, DNS client
  • Conformance Attributes
    • Product Certifications : cULus, CE, UKCA, DNV-GL, ABS, LR
    • Standards : ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, IEC 61131-2:2007, Marine specification (LR, ABS, DNV, GL), UL 508
  • Complementary Attributes
    • Integrated Connection Type : USB port mini B USB 2.0, non isolated serial link serial RJ45 RS232/RS485, dual-port Ethernet 1 RJ45, Ethernet port Ethernet 2 RJ45
    • Maximum Number Of I O Expansion Module : 7 (local I/O-Architecture), 14 (remote I/O-Architecture)
    • Maximum Number Of Connections : 8 Modbus server, 8 Modbus client, 16 Ethernet/IP target, 4 FTP server, 10 web server, 8 SoMachine protocol
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Data Storage Equipment : <= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)
    • Electromagnetic Emission : conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011, conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011, conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011, radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
    • Insulation : non-insulated between supply and internal logic, between supply and ground 500 V AC
    • Local Signalling : 1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (red) for I/O error (I/O), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL, 1 LED (red) for bus fault on TM4 (TM4), 1 LED (green) for Ethernet activity (ETH1), 1 LED (green) for Ethernet activity (ETH2)
    • Mounting Support : top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
    • Number Of Server Device S : 16 EtherNet/IP, 64 Modbus TCP
    • Port Ethernet : Ethernet 1 10BASE-T/100BASE-TX - 2 copper cable, Ethernet 2 10BASE-T/100BASE-TX - 1 copper cable
    • Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3, 1 V/m 2 GHz...3 GHz IEC 61000-4-3
    • Resistance To Electrostatic Discharge : 8 kV in air IEC 61000-4-2, 4 kV on contact IEC 61000-4-2
    • Resistance To Fast Transients : 2 kV IEC 61000-4-4 power lines), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link)
    • Transmission Rate : 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232, 480 Mbit/s 3-3 m USB
    • Vibration Resistance : 3 gn 8.4-150 Hz panel mounting, 3.5 mm 5-8.4 Hz symmetrical rail, 3 gn 8.4-150 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting
    • Application Structure : 4 cyclic master tasks, 8 event tasks, 3 cyclic master tasks + 1 freewheeling task, 8 external event tasks
    • Clock Drift : <= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C
    • Cycle Time : 10 ms 16 EtherNet/IP, 64 ms 64 Modbus TCP
    • Execution Time For 1 Kinstruction : 0.3 ms event and periodic task, 0.7 ms other instruction
    • Resistance To Conducted Disturbances : 10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Manufacturer : Schneider Electric
    • Device Type : PLC System - PLC CPU
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1401009EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Dangerous Goods Code : LITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Electrical Connection : removable screw terminal block power supply pitch 5.08 mm)
    • Immunity To Microbreaks : 10 ms
    • Inrush Current : 50 A
    • Marking : CE
    • Memory Capacity : 64 MB system memory RAM
    • Package Weight Lbs : 371.0 g
    • Power Consumption In W : 32.6-40.4 W with max number of I/O expansion module)
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : logic controller
    • Range Of Product : Modicon M251
    • Realtime Clock : with
    • Returnability : Yes
    • Shock Resistance : 15 gn 11 ms
    • Supply : serial)serial link supply 5 V, <200 mA
    • Supply Voltage Limits : 20.4-28.8 V
    • Sustainable Packaging : Yes
    • Web Services : web server
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Us Rated Supply Voltage2 : 24 V DC
    • Medium Desc : logic controller, Modicon M251, 2x Ethernet
    • Country Of Origin 6 : US
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Pep Code : ENVPEP1401009EN
    • Data Backed Up : 128 MB built-in flash memory backup of user programs
    • Global Commercial Status : Commercialised
    • Us Rated Supply Voltage5 : 24 V DC
  • Environment Attributes Main
    • Take Back : Nej, No
    • Ambient Air Temperature For Operation : -10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation)
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • Relative Humidity : 10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Storage : -25-70 °C
    • Circularity Profile : ENVEOLI1401009EN
    • Environmental Disclosure : ENVPEP1401009EN
    • IP Degree Of Protection : IP20 with protective cover in place
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Storage Altitude : 0-3000 m
    • Pep Code : ENVPEP1401009EN
  • General Attributes
    • Product Or Component Type : logic controller
    • Range Of Product : Modicon M251
  • Surge Protection And Filtering Attributes
    • Surge Withstand : 1 kV shielded cable common mode IEC 61000-4-5, 1 kV power lines common mode IEC 61000-4-5, 0.5 kV power lines differential mode IEC 61000-4-5
  • Specifications
    • Country of Origin : Italy, Mexico
    • Depth : 95 mm
  • Batteries & Runtime Attributes
    • Battery Type : BR2032 lithium non-rechargeable 4 year(s)
