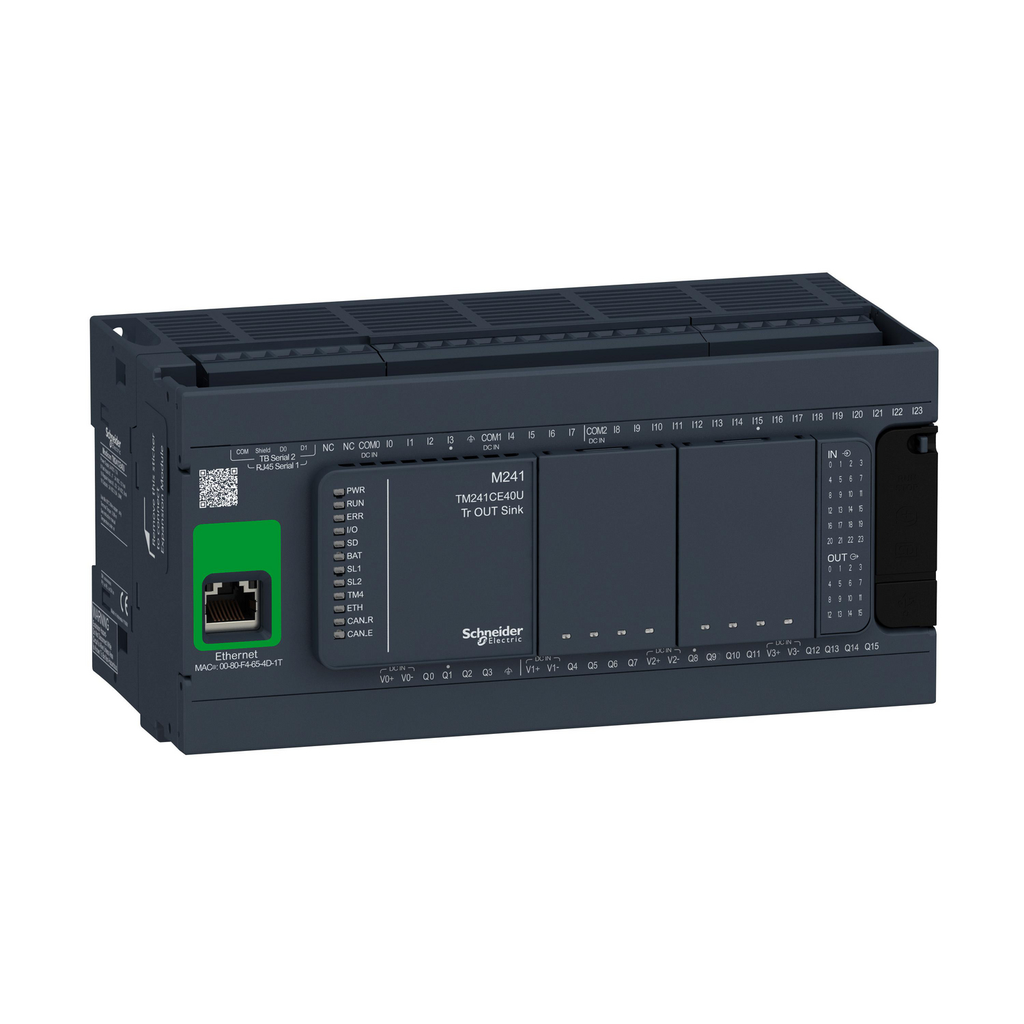

logic controller, Modicon M241, 40 IO, transistor, NPN, Ethernet

M241-40IO TR.NPN ETHERNET

SQDTM241CE40U TM241CE40U 3606480611162
856.36 / EA
http://schema.org/OutOfStock
Mayer-DDS-logic controller, Modicon M241, 40 IO, transistor, NPN, Ethernet-1
  • Depth: 95 mm
This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This logic controller provides 24 discrete, 8 fast inputs, 16 transistor, 4 fast outputs with ethernet NPN transistor output. It is a Modicon logic controller with a rated supply/output voltage of 24V DC and an output current of 0.5A for transistor output, 0.1A for fast output current with sink or source input logic negative output logic. This product enables to build application intuitively as never before due to an organised screen design. Integrated connections are USB port with mini B USB 2.0, non isolated serial link 1 with RJ45 and RS232/RS485 interface, non isolated serial link 2 with removable screw terminal block and RS485 interface and ethernet with RJ45 . It is a Modicon M241 controller with 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for backup of user programs and a SD card memory capacity of 16GB. It is an IP20 rated product. Its dimensions are 190mm (Width) x 95mm (Depth) x 90mm (Height). It weighs 0.62kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, CSA, RCM and CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Service : FDRDHCP server via TM4 Ethernet switch network moduleDHCP client embedded Ethernet port, SMS notifications, updating firmware, SNMP client/server, programming, NGVL, monitoring, IEC VAR ACCESS, FTP client/server, downloading, SQL client, Modbus TCP client I/O scanner, Ethernet/IP originator I/O scanner embedded Ethernet port, Ethernet/IP target, Modbus TCP server and Modbus TCP slave, send and receive email from the controller based on TCP/UDP library, web server (WebVisu & XWeb system), OPC UA server, DNS client
    • Communication Port Protocol : non isolated serial link Modbus master/slave
  • Complementary Attributes
    • Integrated Connection Type : non isolated serial link serial 1 RJ45 RS232/RS485, non isolated serial link serial 2 removable screw terminal block RS485USB port mini B USB 2.0, Ethernet RJ45
    • Maximum Cable Distance Between Devices : unshielded cable <50 m input, shielded cable <10 m fast input, unshielded cable <50 m outputshielded cable <3 m fast output
    • Maximum Number Of Connections : 8 Modbus server, 8 SoMachine protocol10 web server4 FTP server16 Ethernet/IP target, 8 Modbus client
    • Maximum Current Per Output Common : 2 A
    • Maximum Leakage Current : 5 µA output
    • Maximum Output Frequency : 20 kHz fast output (PWM mode)100 kHz fast output (PLS mode)1 kHz output
    • Maximum Tungsten Load : <2.4 W<2.4 W
    • Maximum Voltage Drop : <1 V<1 V
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Application Structure : 8 external event tasks, 3 cyclic master tasks + 1 freewheeling task, 4 cyclic master tasks, 8 event tasks
    • Clock Drift : <= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C<= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C
    • Configurable Filtering Time : 12 ms input, 1 s fast input, 12 ms fast input0 ms input, 1 ms input, 4 ms input
    • Control Signal Type : A/B 100 kHz fast input (HSC mode)pulse/direction 200 kHz fast input (HSC mode), single phase 200 kHz fast input (HSC mode)
    • Cycle Time : 10 ms 16 EtherNet/IP, 64 ms 64 Modbus TCP
    • Data Storage Equipment : <= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)<= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)
    • Electrical Connection : removable screw terminal block for inputs and outputs pitch 5.08 mm), removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
    • Insulation : between supply and internal logic 500 V AC, non-insulated between supply and ground, between input and internal logic 500 V AC, non-insulated between inputs, between fast input and internal logic 500 V AC, between output and internal logic 500 V AC, non-insulated between outputs, between fast output and internal logic 500 V AC, between output groups 500 V AC
    • Local Signalling : 1 LED (green) for PWR, 1 LED (green) for RUN1 LED (red) for module error (ERR), 1 LED (red) for I/O error (I/O), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED (green) for SL2, 1 LED (red) for bus fault on TM4 (TM4)1 LED per channel (green) for I/O state, 1 LED (green) for Ethernet port activity
    • Mounting Support : top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
    • Protection Type : short-circuit protection, short-circuit and overload protection with automatic resetreverse polarity protection fast output
    • Resistance To Conducted Disturbances : 10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
    • Resistance To Fast Transients : 2 kV IEC 61000-4-4 power lines)1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link), 1 kV IEC 61000-4-4 input), 1 kV IEC 61000-4-4 transistor output)
    • Response Time : <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output50 µs turn-off, I0...I15 input, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output<= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, 50 µs turn-on, I0...I15 input, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output
    • Vibration Resistance : 3 gn 8.4-150 Hz panel mounting3.5 mm 5-8.4 Hz symmetrical rail3 gn 8.4-150 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting
    • Voltage State 0 Guaranteed : <= 5 V input, <= 5 V input<= 5 V input, <= 5 V input
    • Voltage State 1 Guaranteed : >= 15 V input, >= 15 V input>= 15 V input, >= 15 V input
    • Certificate Agency : RCM, cULus, CE, UKCA, DNV-GL, ABS, LR
    • Carbon Footprint Of The Distribution Phase [A4] : 4.154071919517182, 4 kg CO2 eq.
    • Carbon Footprint Of The End-of-life Phase [C1 To C4] : 1.965432271653822, 2 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq., 0.02157846203894799
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 54 kg CO2 eq., 53.61473420828443
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 906 kg CO2 eq., 906.2480052633192
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Return Indicator : Y
    • Stocking Flag : N
    • Device Type : PLC System - PLC CPU
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1307080EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 1845
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Dangerous Goods Code : LITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Data Backed Up : 128 MB built-in flash memory backup of user programs
    • Electromagnetic Emission : conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011radiated emissions 40 dBμV/m QP class A30-230 MHz IEC 55011conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011radiated emissions 47 dBμV/m QP class A230-1000 MHz IEC 55011
    • Execution Time For 1 Kinstruction : 0.3 ms event and periodic task0.7 ms other instruction
    • Immunity To Microbreaks : 10 ms
    • Inrush Current : 50 A
    • Marking : CE
    • Memory Capacity : 64 MB system memory RAM
    • Port Ethernet : 10BASE-T/100BASE-TX - 1 copper cable
    • Positioning Functions : PTO 4 100 kHz)PTO 4 transistor output 1 kHz)
    • Power Consumption In W : 32.6-40.4 W with max number of I/O expansion module)
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : logic controller
    • Range Of Product : Modicon M241
    • Realtime Clock : with
    • Reset Time : 10 ms automatic reset output12 s automatic reset fast output
    • Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2 GHz...3 GHz IEC 61000-4-3
    • Resistance To Electrostatic Discharge : 8 kV in air IEC 61000-4-24 kV on contact IEC 61000-4-2
    • Returnability : Yes
    • Shock Resistance : 15 gn 11 ms
    • Software Version : v6.2.2
    • Supply : serial 1)serial link supply 5 V, <200 mA
    • Supply Voltage Limits : 20.4-28.8 V
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 966 kg CO2 eq.
    • Transmission Rate : 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS4851.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232480 Mbit/s 3-3 m USB10/100 Mbit/s Ethernet
    • Web Services : web server
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP1307080EN
    • Database Version : 2023-02
    • Pep Verification Date : 2024-11-01
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : referent product
    • Functional-unit Description : To perform control for applications, achieve benchmark performance and embedded motion with its 5 embedded communication ports 100% of the time for 10 years.
    • Functional-unit Quantity : 1
    • Functional-unit Unit : Unit
    • Reference Lifetime, In Y : 10
    • Energy Consumption On Product Lifetime, In Kwh : 902.28
    • Energy Model - Manufacturing [A1-a3] : Indonesia, ID
    • Energy Model - Installation [A5] : Electricity Mix; Low voltage; 2018; China, CN
    • Energy Model - Use [B6] : Electricity Mix; Low voltage; 2018; China, CN
    • Energy Model - End Of Life [C1-c4] : Electricity Mix; Low voltage; 2018; China, CN
    • Recyclability Potential, In % : 3
    • Height Nominal : 90 mm
    • Width Nominal : 190 mm
    • [Us] Rated Supply Voltage : 24 V DC
    • Discrete I/O Number : 40
    • Maximum Number Of I/O Expansion Module : 7 (local I/O-Architecture)14 (remote I/O-Architecture)
    • Number Of Server Device(S) : 64 Modbus TCP16 EtherNet/IP
    • Nbr. Of Units In Pkg. : 1
    • Package Weight(Lbs) : 770.0 g
    • Take-back : No
    • Warranty (In Months) : 18
    • Customs Code : 8537109160
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation)
    • Ambient Air Temperature For Storage : -25-70 °C, -25-70 °C
    • Relative Humidity : 10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 966.0038221248136
    • Circularity Profile : ENVEOLI1307080EN
    • Environmental Disclosure : ENVPEP1307080EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20 with protective cover in place
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Storage Altitude : 0-3000 m
    • Pep Code : ENVPEP1307080EN
    • Pep Verification Date : 2024-11-01
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : logic controller
    • Range Of Product : Modicon M241
  • ETIM
    • ETIM 8 : EC000236
    • ETIM 9 : EC000236
  • Output Attributes
    • Discrete Output Current : 0.1 A fast output (PTO mode) Q0...Q3), 0.5 A transistor output Q0...Q15)
    • Discrete Output Logic : negative logic (sink)
    • Discrete Output Number : 16 transistor 4 fast output
    • Discrete Output Type : transistor
    • Discrete Output Voltage : 24 V DC transistor output
    • Maximum Current Per Output Common : 2 A
    • Maximum Output Frequency : 20 kHz fast output (PWM mode)100 kHz fast output (PLS mode)1 kHz output
    • Output Voltage Limits : 30 V DC
  • Surge Protection And Filtering Attributes
    • Configurable Filtering Time : 12 ms input, 1 s fast input, 12 ms fast input0 ms input, 1 ms input, 4 ms input
    • Surge Withstand : 1 kV power lines (DC) common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-50.5 kV power lines (DC) differential mode IEC 61000-4-5, 1 kV relay output differential mode IEC 61000-4-5, 1 kV input common mode IEC 61000-4-5, 1 kV transistor output common mode IEC 61000-4-5
  • Input Attributes
    • Counting Input Number : 4 fast input (HSC mode) 200 kHz, 16 standard input 1 kHz
    • Discrete Input Current : 10.7 mA fast input7 mA input
    • Discrete Input Logic : sink or source
    • Discrete Input Number : 24 , discrete input 8 fast input IEC 61131-2 Type 1
    • Discrete Input Voltage : 24 V
    • Discrete Input Voltage Type : DC
    • Input Impedance : 4.7 kOhm input2.81 kOhm fast input
  • Specifications
    • Country of Origin : France, Indonesia, Singapore
    • Depth : 95 mm
  • Batteries & Runtime Attributes
    • Battery Type : BR2032 lithium non-rechargeable 4 year(s)
