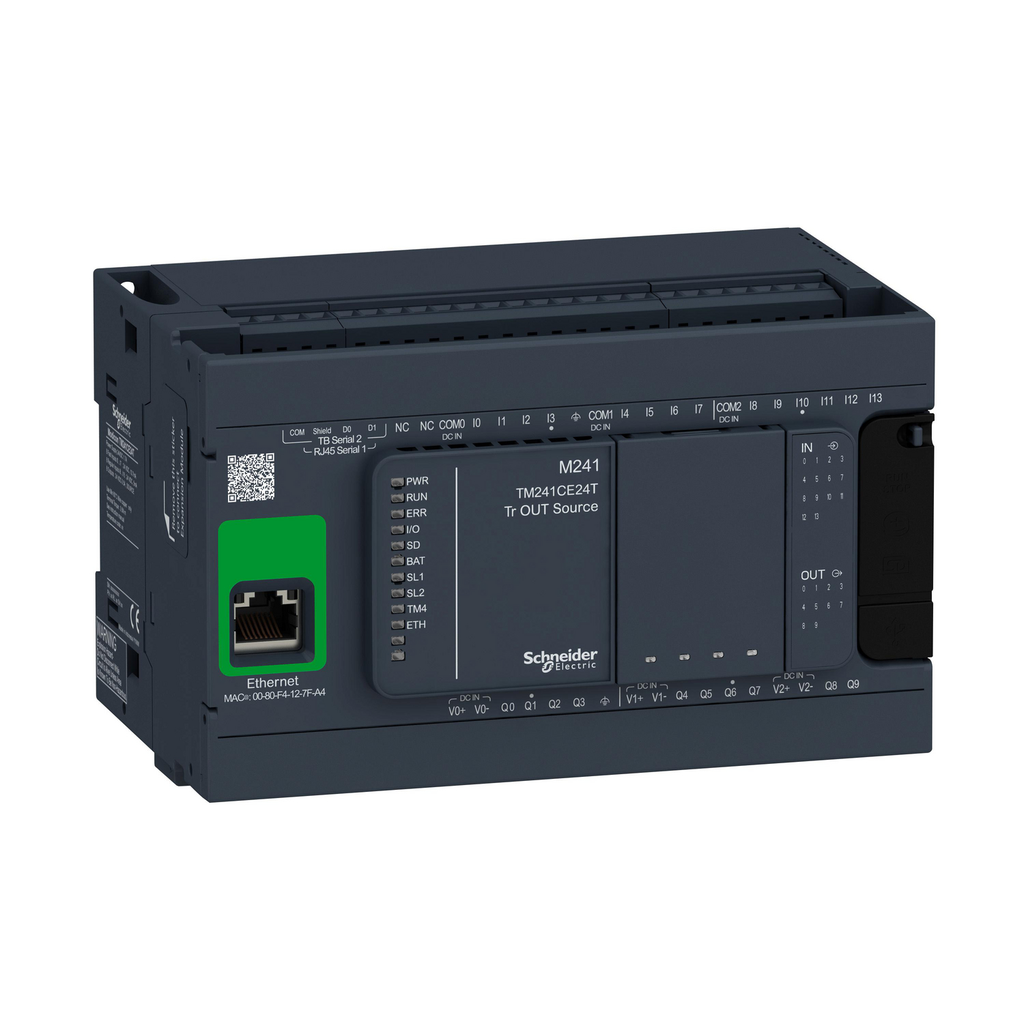

This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This logic controller provides 14 discrete, 8 fast inputs, 10 transistor, 4 fast outputs with ethernet PNP transistor output. It is a Modicon logic controller with a rated supply/output voltage of 24V DC and an output current of 0.5A for transistor output, 0.1A for fast output current with sink or source input logic positive output logic. This product enables to build application intuitively as never before due to an organised screen design. Integrated connections are USB port with mini B USB 2.0, non isolated serial link 1 with RJ45 and RS232/RS485 interface, non isolated serial link 2 with removable screw terminal block and RS485 interface and ethernet with RJ45. It is a Modicon M241 controller with 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for backup of user programs and a SD card memory capacity of 16GB. It is an IP20 rated product. Its dimensions are 150mm (Width) x 95mm (Depth) x 90mm (Height). It weighs 0.53kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, CSA, RCM and CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environmental data
• Mercury Free : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Take-Back : No
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 44.56289596532732
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 912 kg CO2 eq.
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 911.9225561049021
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP1307080EN
• Packaging Without Single Use Plastic : Yes
• Scip Number : 3d1fb974-648d-4978-8c59-b7dcc486f5a5
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase [A5] : 0.017935345071333396
• Circularity Profile : ENVEOLI1307080EN
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 862.2553836485951
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 2 kg CO2 eq.
• Carbon Footprint Of The Distribution Phase [A4] : 3 kg CO2 eq.
• Pvc Free : Yes
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Environment
• Product Certifications : RCM || cULus || CE || UKCA || DNV-GL || ABS || LR
• Storage Altitude : 0-3000 m
• Shock Resistance : 15 gn 11 ms
• Vibration Resistance : 3.5 mm 5-8.4 Hz symmetrical rail || 3 gn 8.4-150 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 3 gn 8.4-150 Hz panel mounting
• Operating Altitude : 0...6561.68 ft (0...2000 m)
• Electromagnetic Emission : conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || radiated emissions 40 dBμV/m QP class A30-230 MHz IEC 55011 || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011 || radiated emissions 47 dBμV/m QP class A230-1000 MHz IEC 55011
• Resistance To Conducted Disturbances : 10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
• Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
• Immunity To Microbreaks : 10 ms
• Standards : ANSI/ISA 12-12-01 || CSA C22.2 No 142 || CSA C22.2 No 213 || IEC 61131-2:2007 || Marine specification (LR, ABS, DNV, GL) || UL 508
• Pollution Degree : 2
• Ambient Air Temperature For Operation : -10-50 °C vertical installation) || -10-55 °C horizontal installation)
• Ambient Air Temperature For Storage : -25-70 °C
• Relative Humidity : 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
• Ip Degree Of Protection : IP20 with protective cover in place
• Resistance To Electrostatic Discharge : 8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
• Resistance To Fast Transients : 2 kV IEC 61000-4-4 power lines) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link) || 1 kV IEC 61000-4-4 input) || 1 kV IEC 61000-4-4 transistor output)
• Complementary
• Discrete Input Logic : sink or source
• Input Impedance : 4.7 kOhm input || 2.81 kOhm fast input
• Discrete Input Voltage : 24 V
• Inrush Current : 50 A
• Discrete Input Voltage Type : DC
• Port Ethernet : 10BASE-T/100BASE-TX - 1 copper cable
• Clock Drift : <= 60 s/month 25-25 °C
• Battery Type : BR2032 lithium non-rechargeable 4 year(s)
• Reset Time : 10 ms automatic reset output || 12 s automatic reset fast output
• Maximum Number Of I/O Expansion Module : 7 (local I/O-Architecture) || 14 (remote I/O-Architecture)
• Net Weight : 0.53 kg
• Maximum Voltage Drop : <1 V
• Output Voltage Limits : 30 V DC
• Communication Service : FDR || DHCP server via TM4 Ethernet switch network module || DHCP client embedded Ethernet port || SMS notifications || updating firmware || SNMP client/server || programming || NGVL || monitoring || IEC VAR ACCESS || FTP client/server || downloading || SQL client || Modbus TCP client I/O scanner || Ethernet/IP originator I/O scanner embedded Ethernet port || Ethernet/IP target, Modbus TCP server and Modbus TCP slave || send and receive email from the controller based on TCP/UDP library || web server (WebVisu & XWeb system) || OPC UA server || DNS client
• Voltage State 1 Guaranteed : >= 15 V input
• Integrated Connection Type : non isolated serial link serial 1 RJ45 RS232/RS485 || non isolated serial link serial 2 removable screw terminal block RS485 || USB port mini B USB 2.0 || Ethernet RJ45
• Mounting Support : top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
• Local Signalling : 1 LED (green) for PWR || 1 LED (green) for RUN || 1 LED (red) for module error (ERR) || 1 LED (red) for I/O error (I/O) || 1 LED (green) for SD card access (SD) || 1 LED (red) for BAT || 1 LED (green) for SL1 || 1 LED (green) for SL2 || 1 LED (red) for bus fault on TM4 (TM4) || 1 LED per channel (green) for I/O state || 1 LED (green) for Ethernet port activity
• Response Time : 50 µs turn-on, I0...I13 input || 50 µs turn-off, I0...I13 input || <= 2 µs turn-on, I0...I7 fast input || <= 2 µs turn-off, I0...I7 fast input || <= 34 µs turn-on, Q0...Q9 output || <= 250 µs turn-off, Q0...Q9 output || <= 2 µs turn-on, Q0...Q3 fast output || <= 2 µs turn-off, Q0...Q3 fast output
• Discrete Input Current : 5 mA input || 10.7 mA fast input
• Width : 150 mm
• Maximum Number Of Connections : 8 Modbus server || 8 SoMachine protocol || 10 web server || 4 FTP server || 16 Ethernet/IP target || 8 Modbus client
• Depth : 95 mm
• Maximum Tungsten Load : <2.4 W
• Maximum Leakage Current : 5 µA output
• Counting Input Number : 4 fast input (HSC mode) 200 kHz || 14 standard input 1 kHz
• Data Backed Up : 128 MB built-in flash memory backup of user programs
• Electrical Connection : removable screw terminal block for inputs and outputs pitch 5.08 mm) || removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
• Maximum Cable Distance Between Devices : unshielded cable <50 m input || shielded cable <10 m fast input || unshielded cable <50 m output || shielded cable <3 m fast output
• Height : 90 mm
• Discrete Output Logic : positive logic (source)
• Power Consumption In W : 32.6-40.4 W with max number of I/O expansion module)
• Positioning Functions : PTO 4 100 kHz) || PTO 4 transistor output 1 kHz)
• Accuracy : +/- 0.1 % 0.02-0.1 kHz fast output || +/- 1 % 0.1-1 kHz fast output
• Maximum Current Per Output Common : 2 A Q0...Q3 fast output || 2 A Q4...Q7 output || 1 A Q8...Q9 output
• Transmission Rate : 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s 3-3 m USB || 10/100 Mbit/s Ethernet
• Communication Port Protocol : non isolated serial link Modbus master/slave
• Marking : CE
• Backup Time : 2 years 25 °C
• Discrete I/O Number : 24
• Cycle Time : 10 ms 16 EtherNet/IP || 64 ms 64 Modbus TCP
• Application Structure : 8 external event tasks || 8 event tasks || 3 cyclic master tasks + 1 freewheeling task || 4 cyclic master tasks
• Voltage State 0 Guaranteed : <= 5 V input
• Configurable Filtering Time : 1 µs fast input || 12 ms fast input || 0 ms input || 1 ms input || 4 ms input || 12 ms input
• Memory Capacity : 64 MB system memory RAM
• Supply Voltage Limits : 20.4-28.8 V
• Control Signal Type : A/B 100 kHz fast input (HSC mode) || pulse/direction 200 kHz fast input (HSC mode) || single phase 200 kHz fast input (HSC mode)
• Surge Withstand : 1 kV power lines (DC) common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV relay output differential mode IEC 61000-4-5 || 1 kV input common mode IEC 61000-4-5 || 1 kV transistor output common mode IEC 61000-4-5
• Maximum Output Frequency : 20 kHz fast output (PWM mode) || 100 kHz fast output (PLS mode) || 1 kHz output
• Execution Time For 1 Kinstruction : 0.3 ms event and periodic task || 0.7 ms other instruction
• Realtime Clock : with
• Web Services : web server
• Number Of Server Device(S) : 64 Modbus TCP || 16 EtherNet/IP
• Protection Type : short-circuit protection || short-circuit and overload protection with automatic reset || reverse polarity protection fast output
• Data Storage Equipment : <= 16 GB SD card optional)
• Insulation : between supply and internal logic 500 V AC || non-insulated between supply and ground || between input and internal logic 500 V AC || non-insulated between inputs || between fast input and internal logic 500 V AC || between output and internal logic 500 V AC || non-insulated between outputs || between fast output and internal logic 500 V AC || between output groups 500 V AC
• Supply : serial 1)serial link supply 5 V, <200 mA
• Specifications
• Country of Origin : Indonesia
• Width : 150 mm
• Height : 90 mm
• Weight : 0.53 kg
• Discrete Output Number : 10 transistor 4 fast output
• Product Or Component Type : logic controller
• Discrete Output Type : transistor
• Range Of Product : Modicon M241
• Discrete Output Current : 0.5 A transistor output Q0...Q9) || 0.1 A fast output (PTO mode) Q0...Q3)
• Discrete Output Voltage : 24 V DC transistor output
• [Us] Rated Supply Voltage : 24 V DC
• Discrete Input Number : 14 , discrete input 8 fast input IEC 61131-2 Type 1
