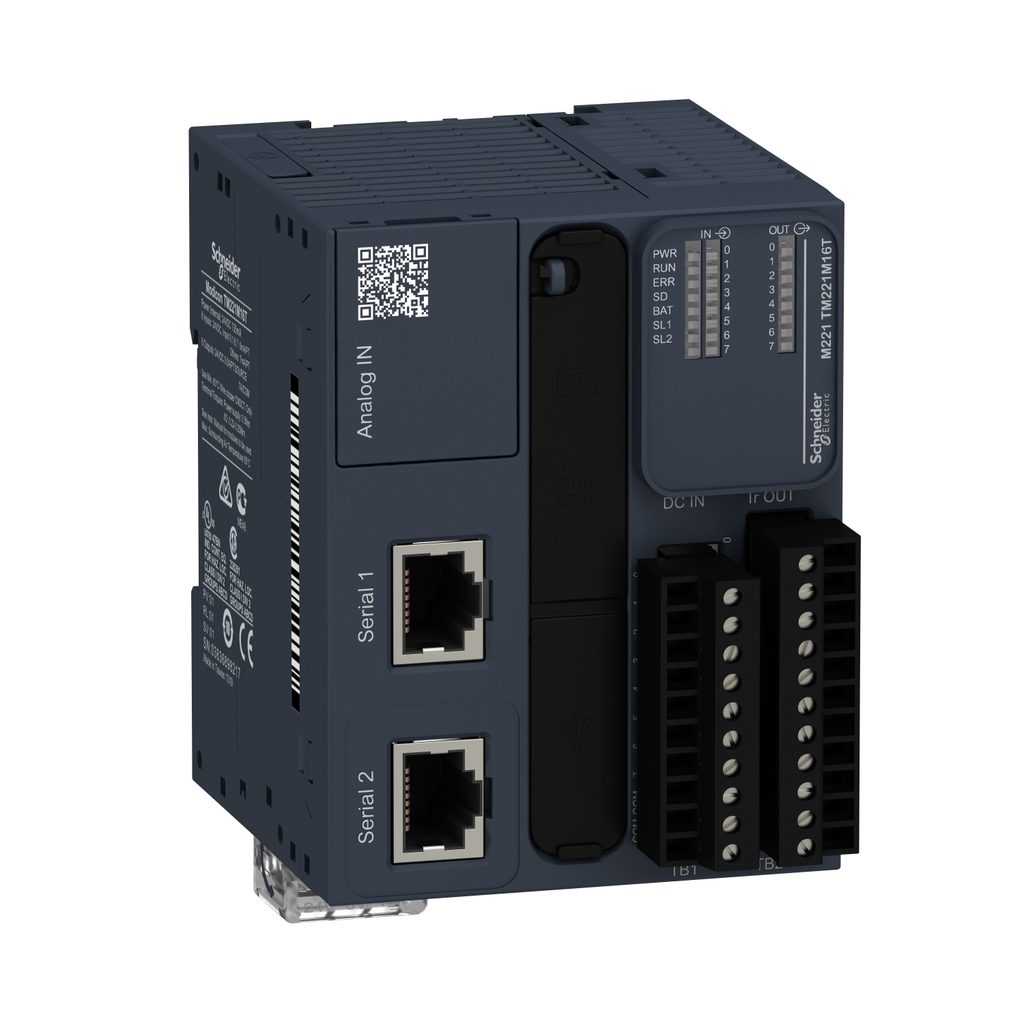

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 8 discrete, 4 fast inputs, 8 transistor, 2 fast outputs with PNP transistor output with 10bit resolution. It is a Modicon logic controller with a rated supply/output voltage of 24V DC, an output current of 0.5A with sink or source input logic and positive output logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS485 interface and non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface. It is a Modicon M221 controller with 256kB for user application and data RAM, internal variables RAM, 256kB built-in flash memory and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 70mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.264kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary
• Discrete Input Logic : sink or source (positive/negative)
• Exct Time For Event Task : 60 µs response time
• Input Impedance : 100 kOhm analog input || 3.4 kOhm input || 4.9 kOhm fast input
• Discrete Input Voltage : 24 V
• Maximum Power Consumption In W : 22 W 24 V with max number of I/O expansion module) || 3.2 W 24 V without I/O expansion module)
• Inrush Current : 35 A
• Discrete Input Voltage Type : DC
• Clock Drift : <= 30 s/month 25-25 °C
• Battery Type : BR2032 or CR2032X lithium non-rechargeable
• Output Frequency : 100 kHz fast output (PWM/PLS mode) Q0...Q1 || 5 kHz output Q2...Q3 || 0.1 kHz output Q4...Q6
• Reset Time : 1 s automatic reset
• Regulation Loop : adjustable PID regulator up to 14 simultaneous loops
• Maximum Number Of I/O Expansion Module : 7 (local I/O-Architecture) || 14 (remote I/O-Architecture)
• Net Weight : 0.264 kg
• Maximum Voltage Drop : <1 V
• Voltage State 1 Guaranteed : >= 15 V input
• Integrated Connection Type : USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS485 || non isolated serial link serial 2 RJ45 RS232/RS485
• Execution Time Per Instruction : 0.2 µs Boolean
• Mechanical Durability : 20000000 cycles transistor output
• Absolute Accuracy Error : +/- 1 % of full scale analog input
• Mounting Support : top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
• Local Signalling : 1 LED (green) for PWR || 1 LED (green) for RUN || 1 LED (red) for module error (ERR) || 1 LED (green) for SD card access (SD) || 1 LED (red) for BAT || 1 LED (green) for SL1 || 1 LED (green) for SL2 || 1 LED per channel (green) for I/O state
• Response Time : 35 µs turn-off, I2...I5 input || 5 µs turn-on, I0, I1, I6, I7 fast input || 35 µs turn-on, other terminals input || 5 µs turn-off, I0, I1, I6, I7 fast input || 100 µs turn-off, other terminals input || 5 µs turn-on, turn-off, Q0...Q1 output || 50 µs turn-on, turn-off, Q2...Q3 output || 300 µs turn-on, turn-off, other terminals output
• Discrete Input Current : 7 mA discrete input || 5 mA fast input
• Lsb Value : 10 mV
• Width : 70 mm
• Depth : 70 mm
• Maximum Tungsten Load : <12 W output and fast output
• Maximum Leakage Current : 0.1 mA transistor output
• Counting Input Number : 4 fast input (HSC mode) 100 kHz 32 bits
• Permitted Overload On Inputs : +/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input
• Data Backed Up : 256 kB built-in flash memory backup of application and data
• Electrical Connection : terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal || removable screw terminal block, 10 for inputs || removable screw terminal block, 11 for outputs
• Maximum Cable Distance Between Devices : shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input || shielded cable <3 m fast output
• Height : 90 mm
• Discrete Output Logic : positive logic (source)
• Communication Service : Modbus master || Modbus slave
• Positioning Functions : PTO 2 pulse/direction 100 kHz) || PTO 1 CW/CCW 100 kHz)
• Maximum Current Per Output Common : 4 A
• Transmission Rate : 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB
• Communication Port Protocol : USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
• Protection Type : short-circuit and overload protection with automatic reset || short-circuit protection on output || overload and short-circuit protection 1 A
• Marking : CE
• Backup Time : 1 year 25 °C by interruption of power supply)
• Discrete I/O Number : 16
• Power Supply Output Current : 0.52-0.52 A 5 V expansion bus || 0.49-0.49 A 24 V expansion bus
• Application Structure : 8 interrupt tasks || 1 cyclic auxiliary task || 1 configurable freewheeling/cyclic master task
• Voltage State 0 Guaranteed : <= 5 V input
• Configurable Filtering Time : 0 ms input || 3 ms input || 12 ms input
• Maximum Size Of Object Areas : 8000 %MW memory words || 255 %C counters || 512 %KW constant words || 255 %TM timers || 512 %M memory bits
• Memory Capacity : 256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM
• Conversion Time : 1 ms per channel + 1 controller cycle time analog input
• Function Available : frequency generator || PWM || PLS
• Control Signal Type : single phase || pulse/direction || A/B
• Supply Voltage Limits : 20.4-28.8 V
• Execution Time For 1 Kinstruction : 0.3 ms event and periodic task || 0.7 ms other instruction
• Analogue Input Resolution : 10 bits
• Realtime Clock : with
• Data Storage Equipment : 2 GB SD card optional)
• Insulation : between input and internal logic 500 V AC || between fast input and internal logic 500 V AC || non-insulated between inputs || between output and internal logic 500 V AC || between output groups 500 V AC || non-insulated between analogue input and internal logic || non-insulated between analogue inputs || between fast output and internal logic 500 V AC || non-insulated between outputs
• Supply : serial 1)serial link supply 5 V, <200 mA
• Environmental data
• Mercury Free : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Take-Back : No
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 13.797462407733914
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 81 kg CO2 eq.
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 81.1889686830777
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP1403012EN
• Packaging Without Single Use Plastic : Yes
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase [A5] : 0.006338162165841732
• Circularity Profile : ENVEOLI1403012EN
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 65.71929521021859
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.8 kg CO2 eq.
• Carbon Footprint Of The Distribution Phase [A4] : 0.9 kg CO2 eq.
• Pvc Free : Yes
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Environment
• Product Certifications : RCM || cULus || ABS || LR || DNV-GL || EAC || CE || UKCA || cULus HazLoc
• Standards : IEC 61131-2 || UL 508 || CAN/CSA C22.2 No. 213 || IACS E10 || ANSI/ISA 12-12-01
• Storage Altitude : 0-3000 m
• Shock Resistance : 147 m/s² 11 ms
• Vibration Resistance : 3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting
• Operating Altitude : 0...6561.68 ft (0...2000 m)
• Electromagnetic Emission : conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz IEC 55011
• Resistance To Conducted Disturbances : 10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
• Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2...2.7 GHz IEC 61000-4-3
• Immunity To Microbreaks : 10 ms
• Pollution Degree : <= 2
• Ambient Air Temperature For Operation : -10-55 °C horizontal installation) || -10-35 °C vertical installation)
• Resistance To Magnetic Fields : 30 A/m 50/60 Hz IEC 61000-4-8
• Ambient Air Temperature For Storage : -25-70 °C
• Environmental Characteristic : ordinary and hazardous location
• Relative Humidity : 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
• Ip Degree Of Protection : IP20 with protective cover in place
• Resistance To Electrostatic Discharge : 8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
• Surge Withstand : 2 kV power lines (AC) common mode IEC 61000-4-5 || 2 kV relay output common mode IEC 61000-4-5 || 1 kV I/O common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV power lines (AC) differential mode IEC 61000-4-5 || 1 kV relay output differential mode IEC 61000-4-5 || 0.5 kV power lines (DC) common mode IEC 61000-4-5
• Resistance To Fast Transients : 2 kV IEC 61000-4-4 power lines) || 2 kV IEC 61000-4-4 relay output) || 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link)
• Specifications
• Country of Origin : Taiwan
• Width : 70 mm
• Height : 90 mm
• Weight : 0.264 kg
• Discrete Output Number : 8 transistor 2 fast output
• Product Or Component Type : logic controller
• Analogue Input Number : 2 0...10 V
• Discrete Output Type : transistor
• Range Of Product : Modicon M221
• Discrete Output Current : 0.5 A
• Discrete Output Voltage : 24 V DC
• [Us] Rated Supply Voltage : 24 V DC
• Discrete Input Number : 8 , discrete input 4 fast input IEC 61131-2 Type 1
