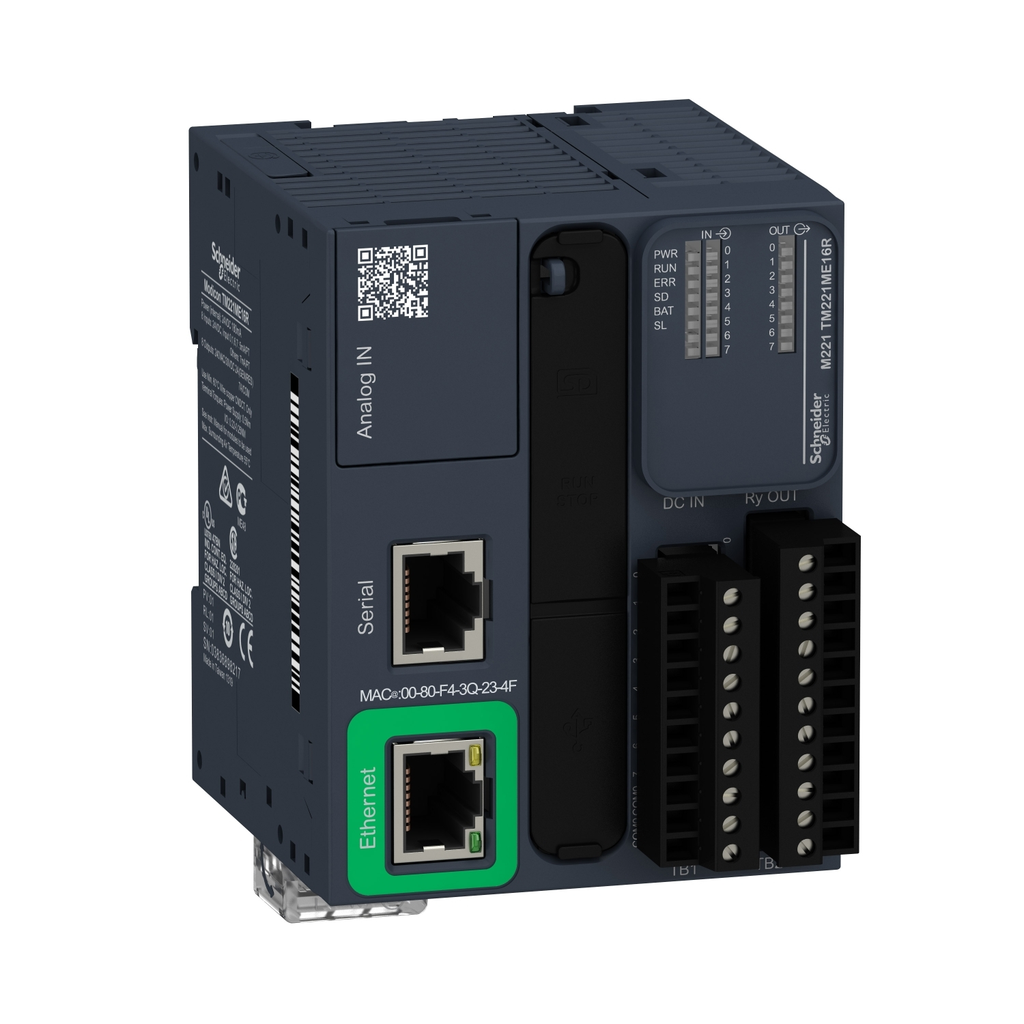

This TM221 controller is part of the Modicon M221 Logic controller range. It has 16 logic I/O and it is supplied with 24V dc. It is supplied with removable screw terminal blocks for connecting the I/O, a removable screw terminal block for connecting the power supply, a button cell backup battery BR2032 and a cable for connecting the analog inputs. M221 logic controllers have three types of integrated communication port, Ethernet, RS 232/RS 485 serial link and USB mini-B programming port. It enables the control of simple machines. The capacity of M221 logic controllers can be enhanced with the Modicon TM3 expansion module offer.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : LR || cULus || DNV-GL || RCM || EAC || ABS || CE || UKCA || cULus HazLoc
• Resistance To Conducted Disturbances : 10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
• Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2...2.7 GHz IEC 61000-4-3
• Standards : IEC 61131-2 || UL 508 || CAN/CSA C22.2 No. 213 || IACS E10 || ANSI/ISA 12-12-01
• Immunity To Microbreaks : 10 ms
• Storage Altitude : 0-3000 m
• Pollution Degree : <= 2
• Ambient Air Temperature For Operation : -10-55 °C horizontal installation) || -10-35 °C vertical installation)
• Shock Resistance : 98 m/s² 11 ms
• Resistance To Magnetic Fields : 30 A/m 50/60 Hz IEC 61000-4-8
• Vibration Resistance : 3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting
• Ambient Air Temperature For Storage : -25-70 °C
• Environmental Characteristic : ordinary and hazardous location
• Relative Humidity : 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
• Ip Degree Of Protection : IP20 with protective cover in place
• Resistance To Electrostatic Discharge : 8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
• Surge Withstand : 2 kV power lines (AC) common mode IEC 61000-4-5 || 2 kV relay output common mode IEC 61000-4-5 || 1 kV I/O common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV power lines (AC) differential mode IEC 61000-4-5 || 1 kV relay output differential mode IEC 61000-4-5 || 0.5 kV power lines (DC) common mode IEC 61000-4-5
• Resistance To Fast Transients : 2 kV IEC 61000-4-4 power lines) || 2 kV IEC 61000-4-4 relay output) || 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link)
• Operating Altitude : 0...6561.68 ft (0...2000 m)
• Electromagnetic Emission : conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz IEC 55011
• Complementary
• Discrete Input Logic : sink or source (positive/negative)
• Data Backed Up : 256 kB built-in flash memory backup of application and data
• Exct Time For Event Task : 60 µs response time
• Input Impedance : 100 kOhm analog input || 3.4 kOhm input || 4.9 kOhm fast input
• Electrical Connection : terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal || removable screw terminal block, 10 for inputs || removable screw terminal block, 11 for outputs
• Maximum Cable Distance Between Devices : shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input || shielded cable <3 m fast output
• Height : 90 mm
• Discrete Input Voltage : 24 V
• Maximum Power Consumption In W : 23.3 W 24 V with max number of I/O expansion module) || 4.3 W 24 V without I/O expansion module)
• Inrush Current : 35 A
• Discrete Input Voltage Type : DC
• Communication Service : DHCP client || Modbus TCP slave device || Ethernet/IP adapter || Modbus TCP client || Modbus TCP server
• Port Ethernet : 10BASE-T/100BASE-TX 1 100 m copper cable
• Maximum Current Per Output Common : 7 A
• Transmission Rate : 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB
• Clock Drift : <= 30 s/month 25-25 °C
• Battery Type : BR2032 or CR2032X lithium non-rechargeable
• Communication Port Protocol : USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network || Ethernet
• Protection Type : without protection 5 A
• Marking : CE
• Backup Time : 1 year 25 °C by interruption of power supply)
• Discrete I/O Number : 16
• Reset Time : 1 s
• Regulation Loop : adjustable PID regulator up to 14 simultaneous loops
• Maximum Number Of I/O Expansion Module : 7 (local I/O-Architecture) || 14 (remote I/O-Architecture)
• Power Supply Output Current : 0.52-0.52 A 5 V expansion bus || 0.46-0.46 A 24 V expansion bus
• Net Weight : 0.264 kg
• Application Structure : 1 configurable freewheeling/cyclic master task || 1 cyclic auxiliary task || 8 interrupt tasks
• Voltage State 0 Guaranteed : <= 5 V input
• Configurable Filtering Time : 0 ms input || 3 ms input || 12 ms input
• Output Voltage Limits : 125 V DC || 277 V AC
• Maximum Size Of Object Areas : 512 %KW constant words || 255 %C counters || 8000 %MW memory words || 255 %TM timers || 512 %M memory bits
• Memory Capacity : 256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM
• Conversion Time : 1 ms per channel + 1 controller cycle time analog input
• Voltage State 1 Guaranteed : >= 15 V input
• Function Available : frequency generator || PWM || PLS
• Control Signal Type : single phase || A/B || pulse/direction
• Supply Voltage Limits : 20.4-28.8 V
• Integrated Connection Type : USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS232/RS485 || Ethernet RJ45
• Execution Time Per Instruction : 0.2 µs Boolean
• Mechanical Durability : 20000000 cycles relay output
• Electrical Durability : 100000 cycles AC-12, 120 V, 240 VA, resistive || 100000 cycles AC-12, 240 V, 480 VA, resistive || 300000 cycles AC-12, 120 V, 80 VA, resistive || 300000 cycles AC-12, 240 V, 160 VA, resistive || 100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, inductive || 100000 cycles AC-15, cos phi = 0.35 , 240 V, 120 VA, inductive || 300000 cycles AC-15, cos phi = 0.35 , 120 V, 18 VA, inductive || 300000 cycles AC-15, cos phi = 0.35 , 240 V, 36 VA, inductive || 100000 cycles AC-14, cos phi = 0.7 , 120 V, 120 VA, inductive || 100000 cycles AC-14, cos phi = 0.7 , 240 V, 240 VA, inductive || 300000 cycles AC-14, cos phi = 0.7 , 120 V, 36 VA, inductive || 300000 cycles AC-14, cos phi = 0.7 , 240 V, 72 VA, inductive || 100000 cycles DC-12, 24 V, 48 W, resistive || 300000 cycles DC-12, 24 V, 16 W, resistive || 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms) || 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)
• Absolute Accuracy Error : +/- 1 % of full scale analog input
• Mounting Support : top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
• Local Signalling : 1 LED (green) for PWR || 1 LED (green) for RUN || 1 LED (red) for module error (ERR) || 1 LED (green) for SD card access (SD) || 1 LED (red) for BAT || 1 LED per channel (green) for I/O state || 1 LED (green) for SL || Ethernet network activity (green) for ACT || Ethernet network link (yellow) for Link (Link Status)
• Response Time : 35 µs turn-off, I2...I5 input || 5 µs turn-on, I0, I1, I6, I7 fast input || 35 µs turn-on, other terminals input || 5 µs turn-off, I0, I1, I6, I7 fast input || 100 µs turn-off, other terminals input || 5 µs turn-on, turn-off, Q0...Q1 output || 50 µs turn-on, turn-off, Q2...Q3 output || 300 µs turn-on, turn-off, other terminals output
• Discrete Input Current : 7 mA discrete input || 5 mA fast input
• Execution Time For 1 Kinstruction : 0.3 ms event and periodic task || 0.7 ms other instruction
• Analogue Input Resolution : 10 bits
• Realtime Clock : with
• Lsb Value : 10 mV
• Width : 70 mm
• Depth : 70 mm
• Minimum Load : 1 mA 5 V DC relay output
• Data Storage Equipment : 2 GB SD card optional)
• Insulation : between input and internal logic 500 V AC || between fast input and internal logic 500 V AC || non-insulated between inputs || between output and internal logic 500 V AC || between output groups 500 V AC || non-insulated between analogue input and internal logic || non-insulated between analogue inputs
• Supply : serial 1)serial link supply 5 V, <200 mA
• Counting Input Number : 4 fast input (HSC mode) 100 kHz 32 bits
• Permitted Overload On Inputs : +/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input
• Switching Frequency : 20 switching operations/minute with maximum load
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1403012EN
• Packaging Without Single Use Plastic : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile : ENVEOLI1403012EN
• Take-Back : No
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 88.31030293873121
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 14.182507870275325
• Carbon Footprint Of The Distribution Phase [A4] : 0.9 kg CO2 eq.
• Pvc Free : Yes
• Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 104 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.8348497531638821
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 104.21168822943754
• Specifications
• Country of Origin : Taiwan
• Width : 70 mm
• Height : 90 mm
• Weight : 0.264 kg
• Discrete Output Type : relay normally open
• Range Of Product : Modicon M221
• Discrete Output Number : 8 relay
• Product Or Component Type : logic controller
• Discrete Output Current : 2 A
• Discrete Output Voltage : 5...125 V DC || 5...250 V AC
• Analogue Input Number : 2 0...10 V
• [Us] Rated Supply Voltage : 24 V DC
• Discrete Input Number : 8 , discrete input IEC 61131-2 Type 1
