compact I/O expansion block, Modicon TM5, 42 IO, 24 DI, 18 DO, transistor

COMPACT 24VDC 24DI/18DO TR

SQDTM5C24D18T TM5C24D18T 3595864074351
1010.29 / EA
http://schema.org/OutOfStock

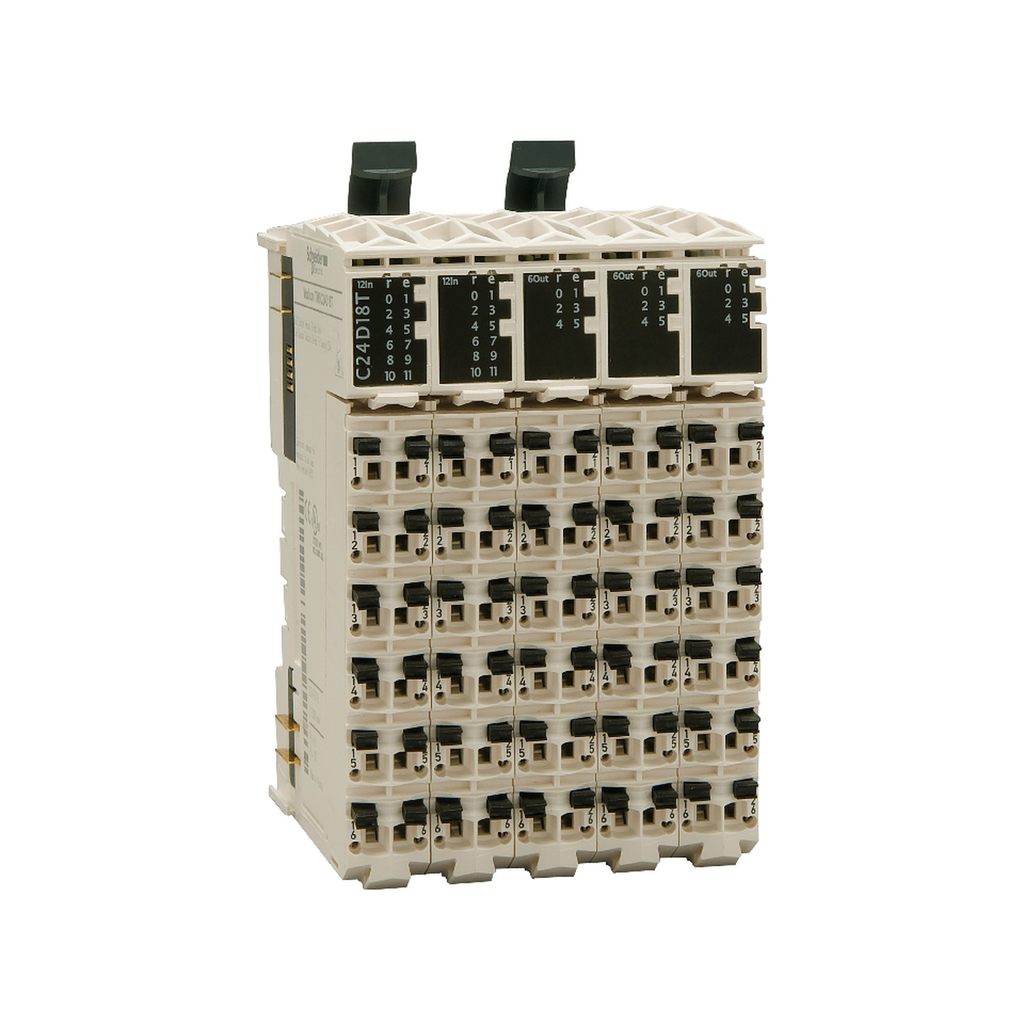

Mayer-DDS-compact I/O expansion block, Modicon TM5, 42 IO, 24 DI, 18 DO, transistor-1
  • Country of Origin: Austria
  • Enclosure Material: Plastic
  • IsSustainable: No
  • Net Weight: 0.24 kg
  • Output Voltage: 24 V
  • Warranty Length: 18 mth
  • Weight: 0.24 kg
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This compact I/O expansion block provides 42 input/outputs with sink discrete input logic and source discrete output logic. It is an expansion block with 2 module(s) x 12 digital input with input voltage of 24V DC and 3 module(s) x 6 transistor output with voltage of 24V DC. There is an isolation between 500Vrms AC insulation between channel and bus, no insulation between channels. It is furnished with removable spring terminal block for electrical connection. It is an IP20 rated product. The enclosure is made of white plastic. It weighs 0.37kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This compact I/O expansion block provides 42 input/outputs with sink discrete input logic and source discrete output logic. It is an expansion block with 2 module(s) x 12 digital input with input voltage of 24V DC and 3 module(s) x 6 transistor output with voltage of 24V DC. There is an isolation between 500Vrms AC insulation between channel and bus, no insulation between channels. It is furnished with removable spring terminal block for electrical connection. It is an IP20 rated product. The enclosure is made of white plastic. It weighs 0.37kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : C-tick || cULus || GOST-R || CSA
    • Resistance To Electromagnetic Fields : 1 V/m 2...2.7 GHz IEC 61000-4-3 || 10 V/m 80...2000 MHz IEC 61000-4-3
    • Standards : IEC 61131-2 || UL 508 || CSA C22.2 No 213 || CSA C22.2 No 142
    • Mounting Support : DIN rail
    • Storage Altitude : 0-3000 m
    • Ambient Air Temperature For Operation : -10-50 °C vertical installation) || -10-60 °C horizontal installation)
    • Ip Degree Of Protection : IP20IEC 61131-2
    • Vibration Resistance : 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
    • Shock Resistance : 15 gn 11 ms
    • Net Weight : 0.24 kg
    • Pollution Degree : 2 IEC 60664
    • Ambient Air Temperature For Storage : -40-70 °C
    • Relative Humidity : 5-95 % without condensation
    • Resistance To Electrostatic Discharge : 4 kV on contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
    • Resistance To Fast Transients : 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 shielded cable) || 2 kV IEC 61000-4-4 power lines)
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Environmental Disclosure : ENVPEP1511024EN
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI1511024EN
    • Take-Back : No
    • Pvc Free : Yes
  • Complementary
    • Discrete Output Type : transistor
    • Discrete Output Logic : source
    • Discrete Input Voltage : 24 V
    • Output Voltage : 24 V DC
    • Discrete Input Voltage Type : DC
    • Wiring Mode : 1 wire discrete input || 2-wire discrete output
    • Maximum Voltage Drop : <0.3 V at 500 mA output
    • Response Time : <= 300 µs from state 0 to state 1 output || <= 300 µs from state 1 to state 0 output
    • Discrete Input Current : 3.75 mA
    • Marking : CE
    • Input Voltage Limits : 20.4...28.8 V
    • Voltage State 0 Guaranteed : <= 5 V
    • Discrete Output Current : 0.5 A per output
    • Maximum Leakage Current : 5 µA when switched off) output
    • Input/Output Number : 42
    • Output Voltage Limits : 20.4...28.8 V DC
    • Current Consumption : 70 mA 5 V DC bus || 140 mA 24 V DC input/output
    • Disturbance Radiated/Conducted : CISPR 11
    • Input/Output Number Of Splitter Box : 24 I + 18 O
    • Electromagnetic Compatibility : EN/IEC 61000-4-6
    • Analogue Input Number : 0
    • Number Of Modules : digital input 2 x 12 || digital output 3 x 6
    • Discrete Output Number : 18
    • Maximum Power Dissipation In W : 3.71 W
    • Color : White
    • Discrete Input Logic : sink
    • Isolation : 500 Vrms AC insulation between channel and bus || no insulation between channels
    • Discrete Input Number : 24
    • Local Signalling : for power supply 5 LEDs (green) || for power supply 5 LEDs (red) || for input status 24 LEDs (green) || for output status 18 LEDs (yellow)
    • Surge Withstand : 0.5 kV differential mode 24 V DC IEC 61000-4-5 || 1 kV common mode 24 V DC IEC 61000-4-5
    • Input Impedance : 6.4 kOhm
    • Max Current : 9000 mA loads on I/O power segment
    • Electrical Connection : removable spring terminal block
    • Peak Output Current : 9 A
    • Enclosure Material : Plastic
    • Input Filtering : <= 100 ms hardware || <= 25 ms configurable by software
    • Voltage State 1 Guaranteed : >= 15 V
  • Specifications
    • Country of Origin : Austria
    • Weight : 0.24 kg
    • Range Of Product : Modicon TM5
    • Product Or Component Type : compact I/O expansion block
