CANopen communication module, Modicon TM5, FieldBus Interface

CANOPEN FIELDBUS INTERFACE MOD

SQDTM5NCO1 TM5NCO1 3595864093031
348.26 / EA
http://schema.org/OutOfStock

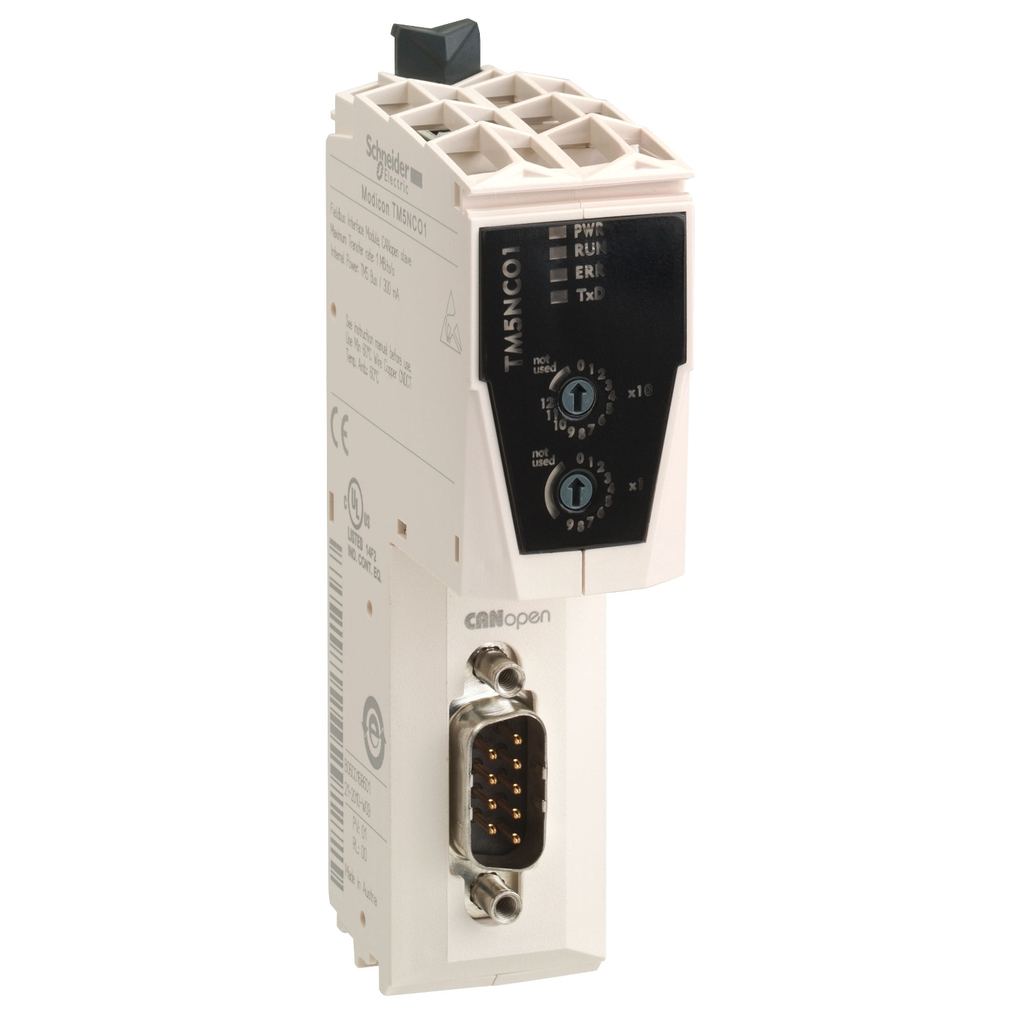

Mayer-DDS-CANopen communication module, Modicon TM5, FieldBus Interface-1
  • Country of Origin: Austria
  • Net Weight: 0.05 kg
  • Warranty Length: 18 mth
  • Weight: 0.05 kg
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a bus coupler designed for creating distributed IO islands on CANopen fieldbus, exchanging data between controller and distributed IO. Its access method is based on CSMA-MA, multi-master protocol. This is a bus coupler module designed for creating distributed IO islands on the Canopen fieldbus. This bus coupler works with an electronic power distribution module, a bus base and a terminal block. It has a 9-way SUB-D connector ISO 11898, with a 10 to 1000 Kbps data transmission rate. It weighs 0.080kg. It measures 25mm wide, 99mm high, 75mm deep. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon M258 logic controllers, Modicon LMC058/LMC078 motion controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a bus coupler designed for creating distributed IO islands on CANopen fieldbus, exchanging data between controller and distributed IO. Its access method is based on CSMA-MA, multi-master protocol. This is a bus coupler module designed for creating distributed IO islands on the Canopen fieldbus. This bus coupler works with an electronic power distribution module, a bus base and a terminal block. It has a 9-way SUB-D connector ISO 11898, with a 10 to 1000 Kbps data transmission rate. It weighs 0.080kg. It measures 25mm wide, 99mm high, 75mm deep. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon M258 logic controllers, Modicon LMC058/LMC078 motion controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : cULus || C-tick || CSA || GOST-R
    • Resistance To Electromagnetic Fields : 1 V/m 2...2.7 GHz IEC 61000-4-3 || 10 V/m 80 MHz...2 GHz IEC 61000-4-3
    • Standards : CSA C22.2 No 213 || IEC 61131-2 || UL 508 || CSA C22.2 No 142
    • Storage Altitude : 0-3000 m
    • Ambient Air Temperature For Operation : -10-55 °C without derating horizontal installation) || -10-60 °C with derating factor horizontal installation) || -10-50 °C vertical installation)
    • Ip Degree Of Protection : IP20IEC 61131-2
    • Vibration Resistance : 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
    • Shock Resistance : 15 gn 11 ms
    • Disturbance Radiated/Conducted : CISPR 11
    • Electromagnetic Compatibility : EN/IEC 61000-4-6
    • Pollution Degree : 2 IEC 60664
    • Surge Withstand : 0.5 kV differential mode IEC 61000-4-5 || 1 kV common mode IEC 61000-4-5
    • Ambient Air Temperature For Storage : -40-70 °C
    • Relative Humidity : 5-95 % without condensation
    • Resistance To Electrostatic Discharge : 4 kV on contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
    • Resistance To Fast Transients : 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 shielded cable) || 2 kV IEC 61000-4-4 power lines)
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Environmental Disclosure : ENVPEP1511025EN
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI1511025EN
    • Take-Back : No
    • Pvc Free : Yes
  • Complementary
    • Marking : CE
    • Net Weight : 0.05 kg
    • Current Consumption : 300 mA
    • Device Composition : interface module || bus base ordered separately || power supply ordered separately || terminal block ordered separately
    • Integrated Connection Type : 1 isolated serial link, male SUB-D 9 CANopen, 10, 20, 50, 125, 250, 500, 800, 1000 Kbit/s and autodetected
    • Maximum Power Dissipation In W : 1.5 W
    • Color : White
    • Local Signalling : 1 LED green/red power supply (PWR) || 1 LED green/red CAN status (RUN) || 1 LED red CAN status (ERROR) || 1 LED yellow controller communication status on TM5 bus (TxD)
    • Electrical Connection : removable spring terminal block
    • Range Compatibility : Modicon LMC058 || Modicon LMC078 || Modicon M258
    • Product Compatibility : motion controller || logic controller
  • Specifications
    • Country of Origin : Austria
    • Weight : 0.05 kg
    • Range Of Product : Modicon TM5
    • Product Or Component Type : CANopen communication module
