basic digital output module STB - 24 V DC - 16 O

24VDC OUT 16PT SOURCE BASIC 0.

SQDSTBDDO3705 STBDDO3705 3595863843460
326.84 / EA
http://schema.org/OutOfStock

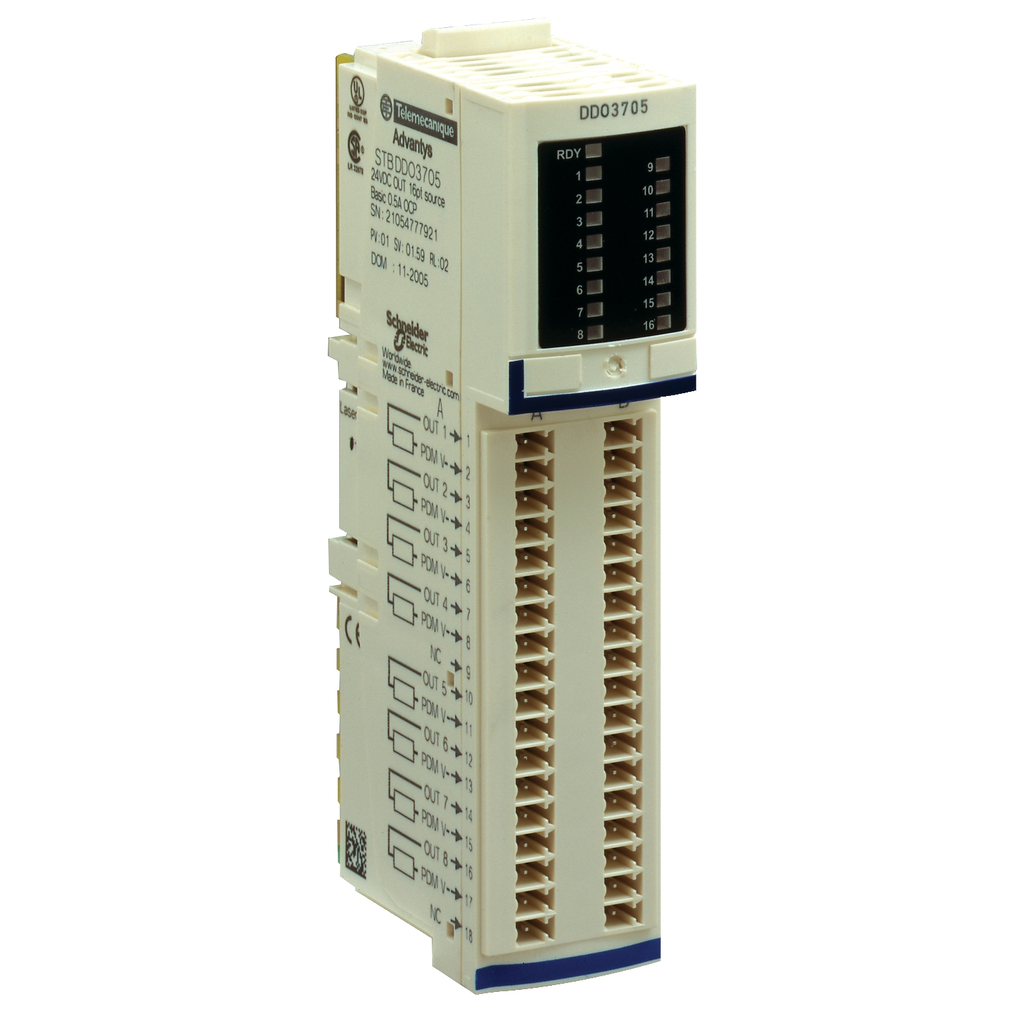

Mayer-DDS-basic digital output module STB - 24 V DC - 16 O-1
  • Country of Origin: USA
  • Depth: 70 mm
  • Height: 13.9 mm
  • Net Weight: 0.086 kg
  • Output Voltage: 19.2-30 V
  • Warranty Length: 18 mth
  • Weight: 0.086 kg
  • Width: 128.3 mm
This output module is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This basic digital output module offers 16 outputs with positive discrete output logic. It offers discrete output voltage of 24V DC with solid state discrete output. There is an insulation between channels and logic bus at 1500V for 1 minute. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN/IEC 61131-2 standard. It is compatible with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.
QTY
  • Product Description
  • Features
  • Specifications
This output module is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This basic digital output module offers 16 outputs with positive discrete output logic. It offers discrete output voltage of 24V DC with solid state discrete output. There is an insulation between channels and logic bus at 1500V for 1 minute. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN/IEC 61131-2 standard. It is compatible with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL || CSA || FM Class 1 Division 2
    • Standards : IEC 61131-2
    • Shock Resistance : 30 gn 11 ms IEC 88 reference 2-27
    • Vibration Resistance : 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
    • Ip Degree Of Protection : IP20 conforming to IEC 61131-2 class 1
    • Pollution Degree : 2 IEC 60664-1
    • Ambient Air Temperature For Storage : -40-85 °C without derating
    • Relative Humidity : 95-95 % 60-60 °C without condensation
    • Operating Altitude : <= 6561.68 ft (2000 m)
    • Ambient Air Temperature For Operation : 32...140 °F without derating
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : 6830dd70-e4bc-47df-85c7-e41f888576f4
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Take-Back : No
  • Complementary
    • Insulation Between Channels And Logic Bus : 1500 V for 1 minute
    • Cold Swapping : yes
    • Height : 13.9 mm
    • Reset : manual reset COM fault
    • Absolute Maximum Voltage : 35 V 1.3 ms
    • Discrete Output Logic : positive
    • Status Led : 1 LED (Green) module status (RDY) || 1 LED per channel (Green) channel status (OUT1 to OUT16)
    • Output Voltage : 19.2...30 V DC
    • Hot Swapping Fallback : no for basic NIMs
    • Maximum Load Inductance : 1000 mH 4 Hz
    • Supply : power distribution module
    • Response Time : 2 ms off-to-on || 2 ms on-to-off
    • Protection Type : power protection integrated fuse on PDM time lag 5 A || reverse polarity protection || short-circuit protection || thermal overload protection
    • Current Consumption : 135 mA 5 V DC logic bus
    • Marking : CE
    • Net Weight : 0.086 kg
    • Discrete Output Current : 500 mA
    • Width : 128.3 mm
    • Overvoltage Category : II
    • Depth : 70 mm
    • Product Compatibility : power distribution module STBPDT3100/3105 || I/O base STBXBA3000
    • Maximum Leakage Current : 0.4 mA at state 0 30 V
    • [Us] Rated Supply Voltage : 24 V DC
    • Maximum Load Capacitance : 10 µF
  • Specifications
    • Country of Origin : United States
    • Width : 128.3 mm
    • Height : 13.9 mm
    • Weight : 0.086 kg
    • Discrete Output Type : solid state
    • Range Of Product : Modicon STB distributed I/O solution
    • Discrete Output Voltage Type : DC
    • Product Or Component Type : basic digital output module
    • Discrete Output Voltage : 24 V
    • Discrete Output Number : 16
