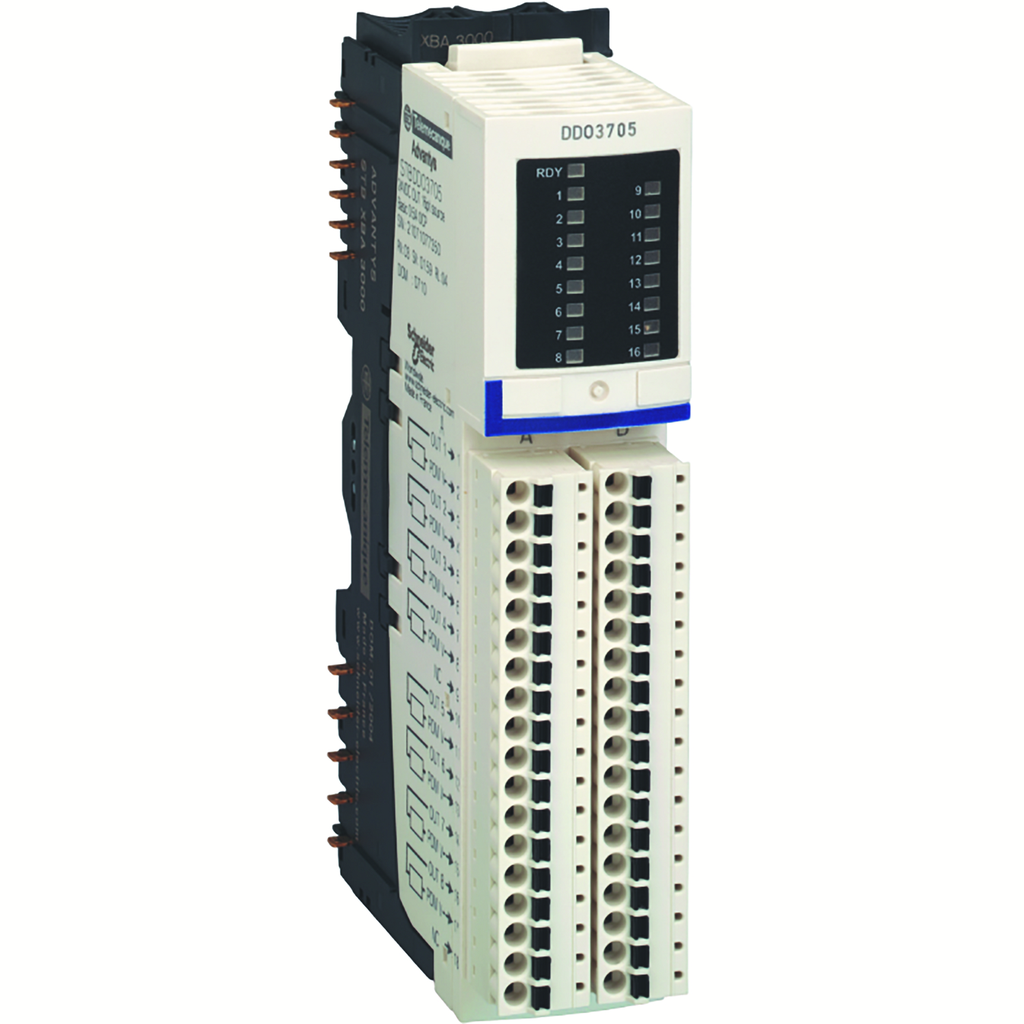

This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete output kit has 16 discrete outputs with solid state output. It is a discrete output kit with a rated supply voltage of 24V DC and a current consumption of 135mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with power distribution module STBPDT3100/3105 and I/O base STBXBA3000. The kit includes STBDDO3705 module, STBXBA3000 base and STBXTS1180, 18-terminal screw type connector. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=STB-IO6_CAD2D_all, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005035_3D-CAD&p_File_name=MCADID0005035_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005035_3D-CAD&p_File_name=MCADID0005035_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005035_3D-CAD&p_File_name=MCADID0005035_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005035_3D-CAD&p_File_name=MCADID0005035_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005035_3D-CAD&p_File_name=MCADID0005035_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005035_3D-CAD&p_File_name=MCADID0005035_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005035_3D-CAD&p_File_name=MCADID0005035_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005035_3D-CAD&p_File_name=MCADID0005035_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005035_3D-CAD&p_File_name=MCADID0005035_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005035_3D-CAD&p_File_name=MCADID0005035_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005035_3D-CAD&p_File_name=MCADID0005035_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005035_3D-CAD&p_File_name=MCADID0005035_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005035_3D-CAD&p_File_name=MCADID0005035_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005035_3D-CAD&p_File_name=MCADID0005035_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005035_3D-CAD&p_File_name=MCADID0005035_2D-top.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005721_3D-CAD&p_File_name=MCADID0005721_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005721_3D-CAD&p_File_name=mcadid0005721_3d-simplified_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005721_3D-CAD&p_File_name=mcadid0005721_3d-simplified_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005721_3D-CAD&p_File_name=mcadid0005721_3d-simplified_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005721_3D-CAD&p_File_name=mcadid0005721_3d-simplified_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005721_3D-CAD&p_File_name=mcadid0005721_3d-simplified_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005721_3D-CAD&p_File_name=mcadid0005721_3d-simplified_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005721_3D-CAD&p_File_name=mcadid0005721_3d-simplified_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005721_3D-CAD&p_File_name=mcadid0005721_3d-simplified_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005721_3D-CAD&p_File_name=mcadid0005721_3d-simplified_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005721_3D-CAD&p_File_name=mcadid0005721_3d-simplified_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005721_3D-CAD&p_File_name=mcadid0005721_3d-simplified_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005721_3D-CAD&p_File_name=mcadid0005721_3d-simplified_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005721_3D-CAD&p_File_name=mcadid0005721_3d-simplified_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005721_3D-CAD&p_File_name=mcadid0005721_3d-simplified_2D-top.dxf
• Conformance Attributes
• Product Certifications : UL, CSA, UL, CSA, FM Class 1 Division 2
• Standards : IEC 61131-2
• Complementary Attributes
• Maximum Leakage Current : 0.4 mA 30 V DC at state 0
• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Kit Composition : STBDDO3705 module, STBXBA3000 base, STBXTS1180, 18-terminal screw type connector
• Carbon Footprint Of The Distribution Phase A4 : 0.0270945, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.0625695, 0.1 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0087726
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 11 kg CO2 eq., 10.95105
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 31 kg CO2 eq., 31.4199
• Medium Desc : basic digital output kit, Modicon STB, 24V DC, 16O, screw type connector
• Local Data Status : Publishable
• Local Publishable Date : 2024-02-10
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : Y
• Device Type : Automation - Distributed inputs/ouputs
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1511012EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• With Recycled Cardboard : No
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Device Application : Industrial Application
• Electrical Connection : screw terminal
• Front Installation Possible : false
• Io Link Master Present : false
• Marking : CE
• Network Type : DC
• Optical Interface Present : false
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : basic digital output kit
• Rack Assembly Possible : true
• Radio Standard Bluetooth : false
• Radio Standard Gprs : false
• Radio Standard Gsm : false
• Radio Standard Umts : false
• Range Of Product : Modicon STB distributed I/O solution
• Returnability : Yes
• Shock Resistance : 30 gn 11 msIEC 88 reference 2-27
• Software Version : EIME v5.5
• Supporting Protocol For As Interface Safety At Work : false
• Supporting Protocol For Asi : false
• Supporting Protocol For Can : false
• Supporting Protocol For Data Highway : false
• Supporting Protocol For Devicenet : false
• Supporting Protocol For Devicenet Safety : false
• Supporting Protocol For Ethercat : false
• Supporting Protocol For Ethernet Ip : false
• Supporting Protocol For Foundation Fieldbus : false
• Supporting Protocol For Interbus : false
• Supporting Protocol For Knx : false
• Supporting Protocol For Lon : false
• Supporting Protocol For Modbus : false
• Supporting Protocol For Other Bus Systems : false
• Supporting Protocol For Profibus : false
• Supporting Protocol For Profinet Cba : false
• Supporting Protocol For Profinet Io : false
• Supporting Protocol For Profisafe : false
• Supporting Protocol For Safetybus P : false
• Supporting Protocol For Sercos : false
• Supporting Protocol For Suconet : false
• Supporting Protocol For Tcp Ip : false
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 42 kg CO2 eq.
• Typical Current Consumption : 135 mA 5 V DC
• Wall Mounting Direct Mounting Possible : false
• Certified For Ul Hazardous Location Class I : false
• Certified For Ul Hazardous Location Class Ii : false
• Certified For Ul Hazardous Location Class Iii : false
• Certified For Ul Hazardous Location Division 1 : false
• Certified For Ul Hazardous Location Division 2 : false
• Digital Outputs Configurable : false
• Fieldbus Connection Over Separate Bus Coupler Possible : true
• Appendant Operation Agent Ex Ia : false
• Appendant Operation Agent Ex Ib : false
• Certified For Ul Hazardous Location Group A Acetylene : false
• Certified For Ul Hazardous Location Group B Hydrogen : false
• Certified For Ul Hazardous Location Group C Ethylene : false
• Certified For Ul Hazardous Location Group D Propane : false
• Certified For Ul Hazardous Location Group E Metal Dusts : false
• Certified For Ul Hazardous Location Group F Carbonaceous Dust : false
• Certified For Ul Hazardous Location Group G Non Conductive Dust : false
• Pep Code : ENVPEP1511012EN
• Database Version : 2015-04
• Pep Verification Date : 2015-11-01
• Pcr Version : PEP-PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : To monitor and control industrial automation process during 10 years 100% of the time
• Energy Model Manufacturing A1 A3 2 : Energy model used: Indonesia
• Energy Model Installation A5 2 : Electricity Mix; AC; < 1kV; EU-27
• Energy Model Use B6 2 : Electricity Mix; AC; < 1kV; EU-27
• Energy Model End Of Life C1 C4 2 : Electricity Mix; AC; < 1kV; EU-27
• Height Nominal : 13.9 mm
• Width Nominal : 128.3 mm
• Environment Attributes Main
• Operating Altitude : <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
• Product Compatibility : power distribution module STBPDT3100/3105, I/O base STBXBA3000
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 42.4693866
• Circularity Profile : ENVEOLI1511012EN
• Environmental Disclosure : ENVPEP1511012EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 95-95 % 60-60 °C without condensation
• Pep Code : ENVPEP1511012EN
• Pep Verification Date : 2015-11-01
• Pcr Version : PEP-PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : basic digital output kit
• Range Of Product : Modicon STB distributed I/O solution
• ETIM
• ETIM 8 : EC001599
• ETIM 9 : EC001599
• Output Attributes
• Discrete Output Number : 16 solid state at 24 V DC, 16
• Response Time On Output : < 10 ms off to on, < 10 ms off to on, < 10 ms on to off, < 10 ms on to off, < 10 ms off to on, < 10 ms off to on, < 10 ms on to off
• Discrete Output Current : 500 mA
• Discrete Output Logic : positive logic (source)
• Discrete Output Type : solid state
• Discrete Output Voltage : 24 V DCsolid state
• Discrete Output Voltage Type : DC
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Depth : 70 mm
