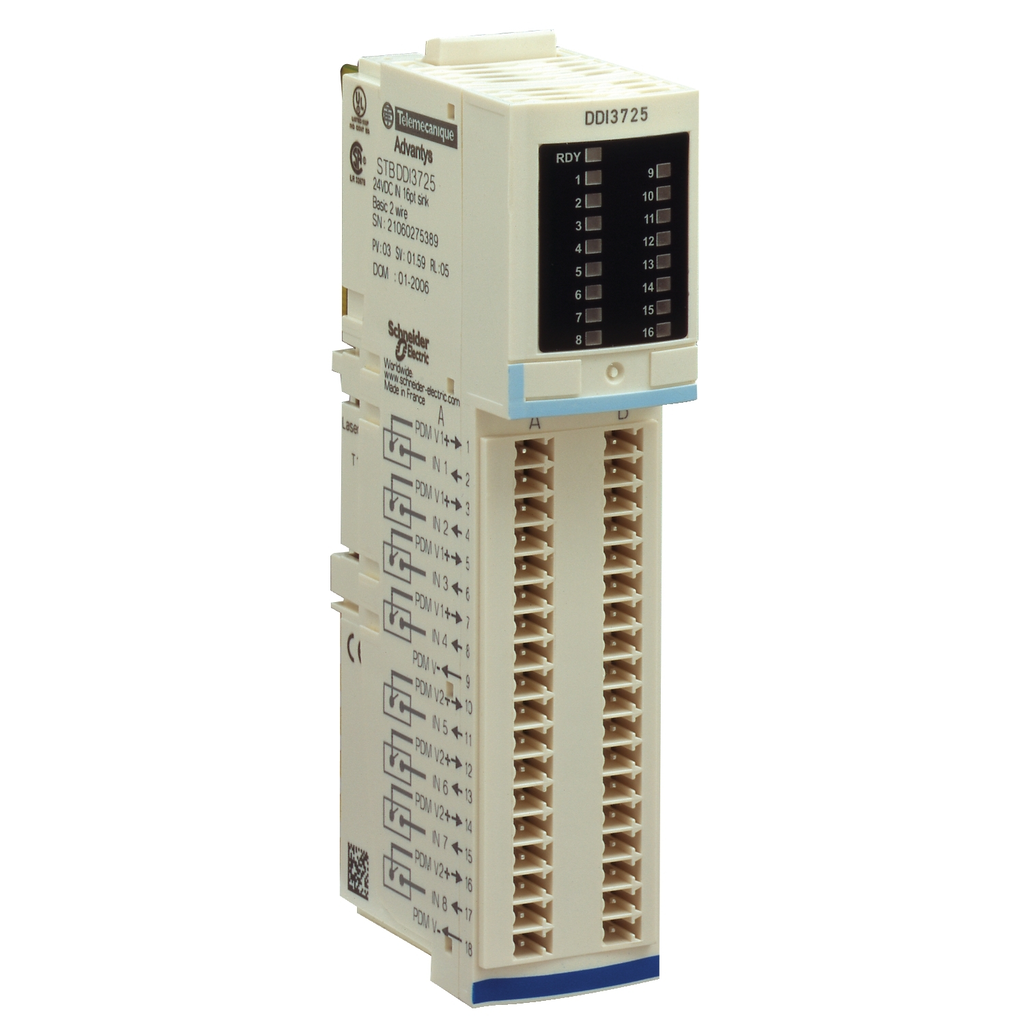

basic digital input module, Modicon STB, 24V DC, 16I

24VDC IN 16PT SINK BASIC 2 WIR

SQDSTBDDI3725 STBDDI3725 3595863843453
256.12 / EA
http://schema.org/OutOfStock
Mayer-DDS-basic digital input module, Modicon STB, 24V DC, 16I-1
  • Depth: 65.1 mm
  • Warranty Length: 18 mth
This input module is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This basic digital input module offers 16 inputs with positive discrete input logic. It is a module with discrete input voltage of 24V DC. There is an insulation between channels and logic bus at 1500V for 1 minute. It is an IP20 rated product. Its dimensions are 125mm (width) x 65.1mm (depth) x 18.4mm (height). It weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN/IEC 61131-2 type 3 standard. It is compatible with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.
QTY
  • Product Description
  • Features
  • Specifications
This input module is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This basic digital input module offers 16 inputs with positive discrete input logic. It is a module with discrete input voltage of 24V DC. There is an insulation between channels and logic bus at 1500V for 1 minute. It is an IP20 rated product. Its dimensions are 125mm (width) x 65.1mm (depth) x 18.4mm (height). It weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN/IEC 61131-2 type 3 standard. It is compatible with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=STB-IO4_CAD2D_all, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-top.dxf
  • Conformance Attributes
    • Product Certifications : FM Class 1 Division 2, CSA, FM Class 1 Division 2, CSA, UL
    • Standards : IEC 61131-2 type 3
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Current State 0 Guaranteed : <= 1.5 mA, <= 1.5 mA
    • Current State 1 Guaranteed : >= 2.5 mA, >= 2.5 mA, >= 2.5 mA
    • Local Signalling : 1 LED (green) for module status (RDY), 1 LED per channel (green) for channel status (IN1 to IN2)
    • Vibration Resistance : +/- 3.5 mm 10-58 Hz), +/- 3.5 mm 10-58 Hz), 3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/- 3.5 mm 10-58 Hz), +/- 3.5 mm 10-58 Hz)
    • Voltage State 0 Guaranteed : -3...5 V at state 0, -3...5 V at state 0, -3...5 V at state 0, -3...5 V at state 0
    • Medium Desc : basic digital input module, Modicon STB, 24V DC, 16I
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Device Type : Automation - Distributed inputs/ouputs
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Bearing Track Assembly Possible : false
    • Electrical Connection : screw terminal
    • Front Installation Possible : false
    • Io Link Master Present : false
    • Marking : CE
    • Network Type : AC/DC
    • Optical Interface Present : false
    • Power Supply Type : power distribution module
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : basic digital input module
    • Rack Assembly Possible : false
    • Radio Standard Bluetooth : false
    • Radio Standard Gprs : false
    • Radio Standard Gsm : false
    • Radio Standard Umts : false
    • Range Of Product : Modicon STB distributed I/O solution
    • Returnability : No
    • Shock Resistance : 30 gn 11 msIEC 88 reference 2-27
    • Supporting Protocol For As Interface Safety At Work : false
    • Supporting Protocol For Asi : false
    • Supporting Protocol For Can : false
    • Supporting Protocol For Data Highway : false
    • Supporting Protocol For Devicenet : false
    • Supporting Protocol For Devicenet Safety : false
    • Supporting Protocol For Ethercat : false
    • Supporting Protocol For Ethernet Ip : false
    • Supporting Protocol For Foundation Fieldbus : false
    • Supporting Protocol For Interbus : false
    • Supporting Protocol For Knx : false
    • Supporting Protocol For Lon : false
    • Supporting Protocol For Modbus : true
    • Supporting Protocol For Other Bus Systems : false
    • Supporting Protocol For Profibus : false
    • Supporting Protocol For Profinet Cba : false
    • Supporting Protocol For Profinet Io : false
    • Supporting Protocol For Profisafe : false
    • Supporting Protocol For Safetybus P : false
    • Supporting Protocol For Sercos : false
    • Supporting Protocol For Suconet : false
    • Supporting Protocol For Tcp Ip : false
    • Sustainable Packaging : No
    • Typical Current Consumption : 100 mA 5 V DC for logic bus
    • Voltage State 1 Guaranteed : at state 1 15...30 V
    • Wall Mounting Direct Mounting Possible : false
    • Certified For Ul Hazardous Location Class I : false
    • Certified For Ul Hazardous Location Class Ii : false
    • Certified For Ul Hazardous Location Class Iii : false
    • Certified For Ul Hazardous Location Division 1 : false
    • Certified For Ul Hazardous Location Division 2 : false
    • Dc Supply Voltage : 24-24 V
    • Digital Outputs Configurable : false
    • Fieldbus Connection Over Separate Bus Coupler Possible : true
    • Performance Level According To En Iso 13849 1 : none
    • System Accessory : true
    • Digital Inputs Configurable : false
    • Short Circuit Protection Outputs Present : false
    • Silcl Acc To En 62061 : false
    • Time Delay At Signal Change : 2-2 ms
    • Appendant Operation Agent Ex Ia : false
    • Appendant Operation Agent Ex Ib : false
    • Certified For Ul Hazardous Location Group A Acetylene : false
    • Certified For Ul Hazardous Location Group B Hydrogen : false
    • Certified For Ul Hazardous Location Group C Ethylene : false
    • Certified For Ul Hazardous Location Group D Propane : false
    • Certified For Ul Hazardous Location Group E Metal Dusts : false
    • Certified For Ul Hazardous Location Group F Carbonaceous Dust : false
    • Certified For Ul Hazardous Location Group G Non Conductive Dust : false
    • Height Nominal : 18.4 mm
    • Width Nominal : 125 mm
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -25-70 °C without derating), -25-70 °C without derating), -25-70 °C without derating), -25-70 °C without derating)
    • Ambient Air Temperature For Storage : -40-85 °C without derating, -40-85 °C without derating, -40-85 °C without derating, -40-85 °C without derating
    • Operating Altitude : <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
    • Product Compatibility : I/O base STBXBA3000, power distribution module STBPDT3100/3105
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 95-95 % 60-60 °C without condensation
  • General Attributes
    • Product Or Component Type : basic digital input module
    • Range Of Product : Modicon STB distributed I/O solution
  • ETIM
    • ETIM 8 : EC001599
    • ETIM 9 : EC001599
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Discrete Input Number : 16 type 3 at 24 V DC, 16
    • Discrete Input Voltage : - 3...5 V, 11...30 Vtype 3, - 3...5 V
    • Input Protection Type : input protection resistor-limited, reverse polarity protection
    • Input Voltage Limits : 11...30 V, -3...5 V
    • Response Time On Input : 2 ms (off to on), 2 ms (on to off)
    • Discrete Input Current : 4.5 mA at 24 V DC
    • Discrete Input Logic : positive
    • Discrete Input Voltage Type : DC
    • Input Filtering : 1 ms
  • Specifications
    • Depth : 65.1 mm
