basic digital input kit STB - 24 V DC - 6 I

Name: basic digital input kit STB - 24 V DC - 6 I
Brand: SCHNEIDER ELECTRIC
SKU: SQDSTBDDI3615K
Price: 88.79 USD
Availability: OutOfStock

24VDC IN 6PT BASIC KIT CONNS,

SQDSTBDDI3615K STBDDI3615K 3595863949032

88.79 / EA

http://schema.org/OutOfStock

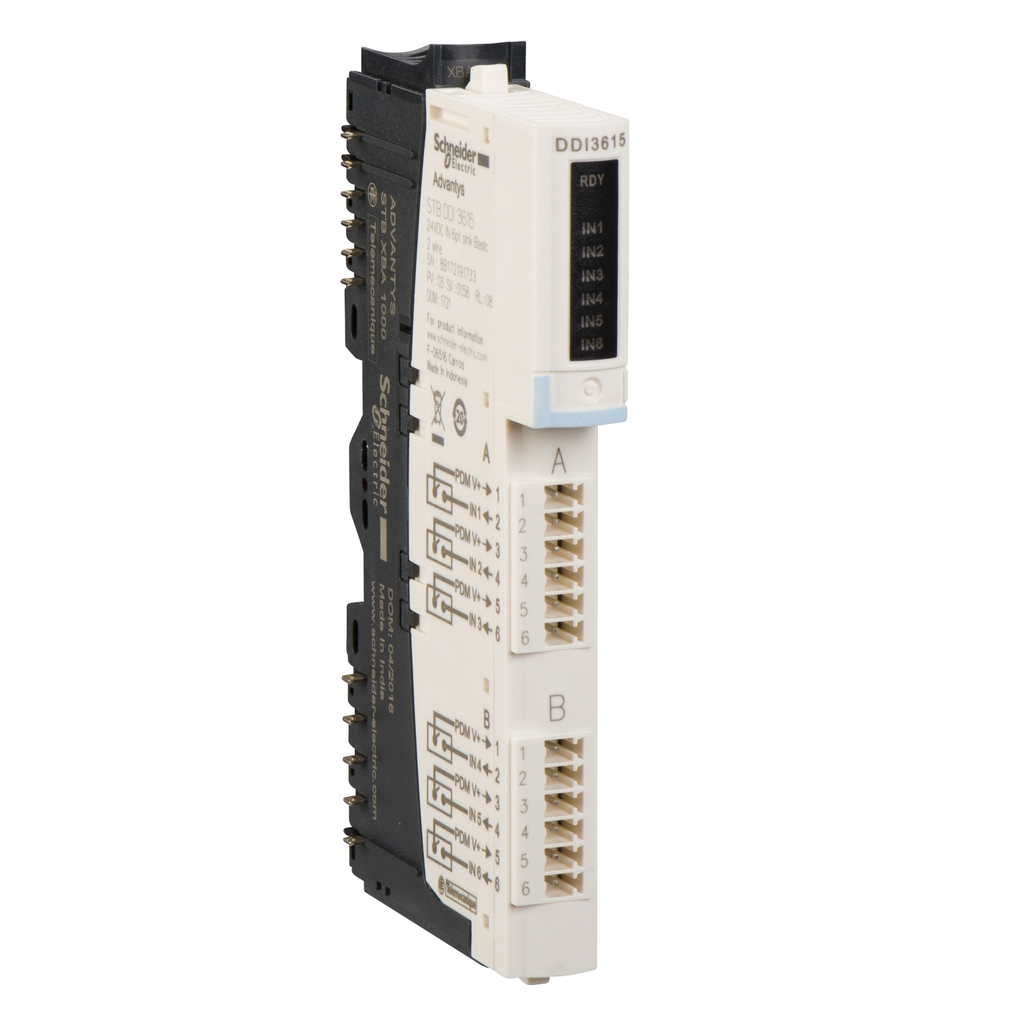

Mayer-DDS-basic digital input kit STB - 24 V DC - 6 I-1

Country of Origin: USA
Depth: 65.1 mm
Warranty Length: 18 mth

QTY

Features
Specifications

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Assets

Cad : https://download.schneider-electric.com/files?p_Doc_Ref=STB-IO4_CAD2D_all, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005033_3D-CAD&p_File_name=MCADID0005033_2D-top.dxf

Conformance Attributes

Product Certifications : UL, FM Class 1 Division 2, UL, FM Class 1 Division 2, CSA
Standards : EN/IEC 61131-2 type 1

Important Information Attributes

Persona Type Ids : EU, OM8, SI
Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
Current State 0 Guaranteed : <= 0.5 mA, <= 0.5 mA
Current State 1 Guaranteed : >= 2.5 mA, >= 2.5 mA, >= 2.5 mA
Kit Composition : STBXTS1100, 6-terminal screw type connector, STBDDI3615 module, STBXBA1000 base, STBXTS2100, 6-terminal spring clamp connector
Local Signalling : 1 LED (green) for module status (RDY), 1 LED per channel (green) for channel status (IN1 to IN2)
Vibration Resistance : +/- 3.5 mm 10-58 Hz), +/- 3.5 mm 10-58 Hz), 3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/- 3.5 mm 10-58 Hz), +/- 3.5 mm 10-58 Hz)
Voltage State 0 Guaranteed : -3...5 V at state 0, -3...5 V at state 0, -3...5 V at state 0, -3...5 V at state 0
Medium Desc : basic digital input kit STB - 24 V DC - 6 I
Local Data Status : Publishable
Local Publishable Date : 2026-01-12
Global Commercial Status : Commercialised
Return Indicator : N
Stocking Flag : Y
Device Type : Automation - Distributed inputs/ouputs
Serviceability : No
Traceability : Yes
Field Service Division : IDIBS
Legacy Weee Scope : Out
Scope Perimeter : At least in Europe
Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : CONTAINS_SVHC
Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
Rohs Eur In Scope : No
Rohs Eur Status : Compliant By Exemption
Rohs Eur Full Compliance Status : Compliant By Exemption
China Rohs In Scope : Yes
With Recycled Cardboard : No
Without Single Use Plastic : No
Product Contributes To Saved And Avoided Emissions : No
Function Option Id : STANDARD
Function Option : Standard
Market Segmentation Id : INDUSTRIAL
Market Segmentation : Industrial
Product Kit Identifier : N
Bearing Track Assembly Possible : false
Electrical Connection : screw/spring terminal block
Front Installation Possible : false
Io Link Master Present : false
Marking : CE
Network Type : AC/DC
Optical Interface Present : false
Power Supply Type : power distribution module
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : basic digital input kit
Rack Assembly Possible : false
Radio Standard Bluetooth : false
Radio Standard Gprs : false
Radio Standard Gsm : false
Radio Standard Umts : false
Range Of Product : Modicon STB distributed I/O solution
Returnability : No
Shock Resistance : 30 gn 11 msIEC 88 reference 2-27
Supporting Protocol For As Interface Safety At Work : false
Supporting Protocol For Asi : false
Supporting Protocol For Can : false
Supporting Protocol For Data Highway : false
Supporting Protocol For Devicenet : false
Supporting Protocol For Devicenet Safety : false
Supporting Protocol For Ethercat : false
Supporting Protocol For Ethernet Ip : false
Supporting Protocol For Foundation Fieldbus : false
Supporting Protocol For Interbus : false
Supporting Protocol For Knx : false
Supporting Protocol For Lon : false
Supporting Protocol For Modbus : false
Supporting Protocol For Other Bus Systems : false
Supporting Protocol For Profibus : false
Supporting Protocol For Profinet Cba : false
Supporting Protocol For Profinet Io : false
Supporting Protocol For Profisafe : false
Supporting Protocol For Safetybus P : false
Supporting Protocol For Sercos : false
Supporting Protocol For Suconet : false
Supporting Protocol For Tcp Ip : false
Sustainable Packaging : No
Typical Current Consumption : 45 mA 5 V DC for logic bus
Voltage State 1 Guaranteed : at state 1 15...30 V
Wall Mounting Direct Mounting Possible : false
Certified For Ul Hazardous Location Class I : false
Certified For Ul Hazardous Location Class Ii : false
Certified For Ul Hazardous Location Class Iii : false
Certified For Ul Hazardous Location Division 1 : false
Certified For Ul Hazardous Location Division 2 : false
Dc Supply Voltage : 24-24 V
Digital Outputs Configurable : false
Fieldbus Connection Over Separate Bus Coupler Possible : true
Performance Level According To En Iso 13849 1 : none
System Accessory : true
Digital Inputs Configurable : false
Short Circuit Protection Outputs Present : false
Silcl Acc To En 62061 : false
Time Delay At Signal Change : 5.25-5.75 ms
Appendant Operation Agent Ex Ia : false
Appendant Operation Agent Ex Ib : false
Certified For Ul Hazardous Location Group A Acetylene : false
Certified For Ul Hazardous Location Group B Hydrogen : false
Certified For Ul Hazardous Location Group C Ethylene : false
Certified For Ul Hazardous Location Group D Propane : false
Certified For Ul Hazardous Location Group E Metal Dusts : false
Certified For Ul Hazardous Location Group F Carbonaceous Dust : false
Certified For Ul Hazardous Location Group G Non Conductive Dust : false
Height Nominal : 18.4 mm
Width Nominal : 125 mm

Environment Attributes Main

Ambient Air Temperature For Storage : -40-85 °C without derating, -40-85 °C without derating, -40-85 °C without derating, -40-85 °C without derating
Operating Altitude : <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
Product Compatibility : power distribution module STBPDT3100/3105, I/O base STBXBA1000
Take Back : Nej
Recycled Metal Content At Cr Level : 0 %
China Rohs Regulation : X
Mercury Free : Yes
Ambient Air Temperature For Operation : 0-60 °C without derating)
Eu Rohs Directive : Compliant By Exemption
Ip Degree Of Protection : IP20
Packaging Made With Recycled Cardboard : No
Packaging Without Single Use Plastic : No
Reach Regulation : Reference contains Substances of Very High Concern above the threshold
Relative Humidity : 95-95 % 60-60 °C without condensation

General Attributes

Product Or Component Type : basic digital input kit
Range Of Product : Modicon STB distributed I/O solution

ETIM

ETIM 8 : EC001599
ETIM 9 : EC001599

Contractual Warranty Attributes

Warranty Period : 18 months
Warranty : 18 months

Input Attributes

Discrete Input Number : 6 type 1 at 24 V DC, 6
Discrete Input Voltage : - 3...5 V, 15...30 Vtype 1, - 3...5 V
Input Protection Type : input protection resistor-limited, reverse polarity protection
Input Voltage Limits : 15...30 V, -3...5 V
Response Time On Input : 5.25 ms (off to on), 5.75 ms (on to off)
Discrete Input Current : 4.5 mA at 24 V DC
Discrete Input Logic : positive
Discrete Input Voltage Type : DC
Input Filtering : 5 ms

Specifications

Country of Origin : United States
Depth : 65.1 mm

basic digital input kit STB - 24 V DC - 6 I
