basic digital input kit, Modicon STB, 24V DC, 16I, spring clamp connector

24VDC IN 16PT BASIC KIT CLAMP,

SQDSTBDDI3725KC STBDDI3725KC 3595863932980
298.68 / EA
http://schema.org/OutOfStock

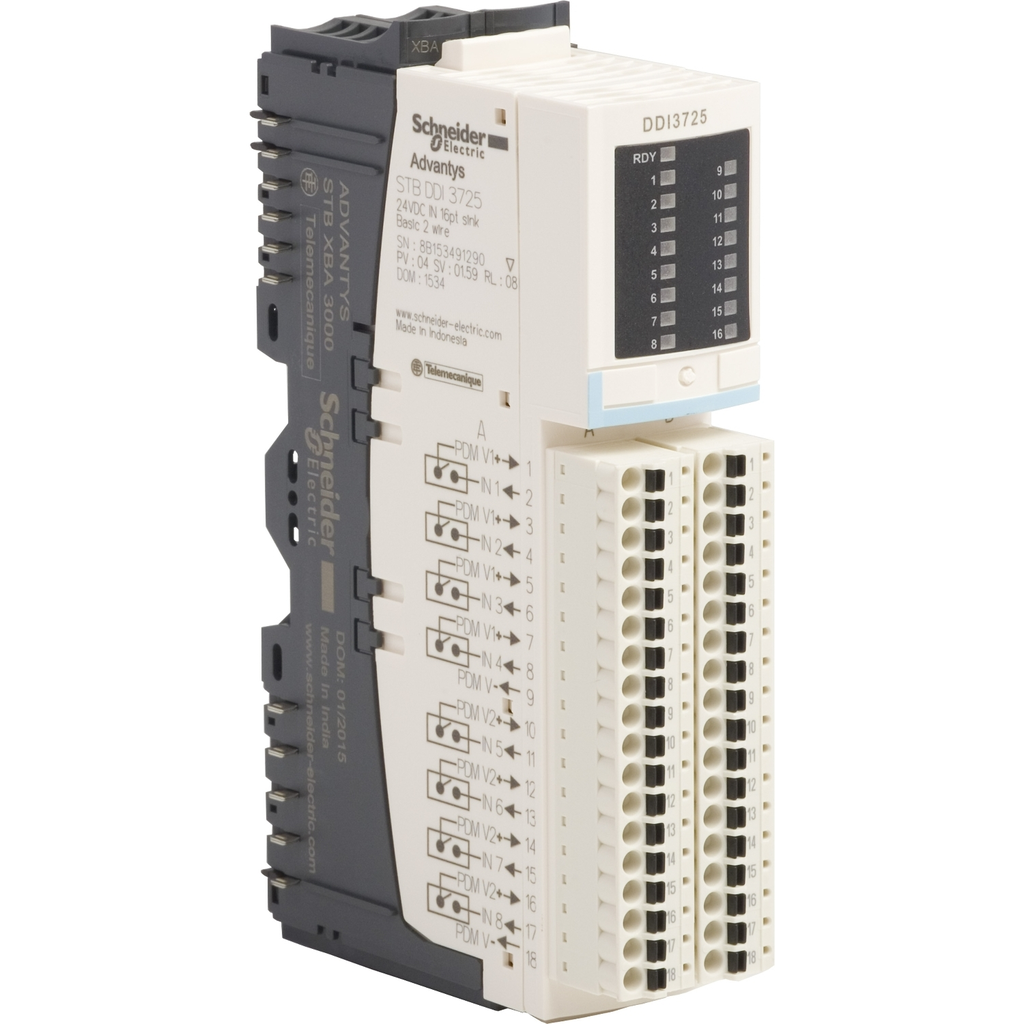

Mayer-DDS-basic digital input kit, Modicon STB, 24V DC, 16I, spring clamp connector-1
  • Country of Origin: Indonesia
  • Depth: 65.1 mm
  • Height: 125 mm
  • Net Weight: 0.086 kg
  • Warranty Length: 18 mth
  • Weight: 0.086 kg
  • Width: 28.1 mm
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete input kit has 16 discrete inputs with positive logic. It is a discrete input kit with a rated supply voltage of 24V DC and a current consumption of 100mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 28.1mm (Length) x 65.1mm (width) x 125mm (depth) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. The kit includes STBXTS2180, 18-terminal spring clamp connector, STBDDI3725 module and STBXBA3000 base. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete input kit has 16 discrete inputs with positive logic. It is a discrete input kit with a rated supply voltage of 24V DC and a current consumption of 100mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 28.1mm (Length) x 65.1mm (width) x 125mm (depth) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. The kit includes STBXTS2180, 18-terminal spring clamp connector, STBDDI3725 module and STBXBA3000 base. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : FM Class 1 Division 2 || UL || CSA
    • Standards : IEC 61131-2 type 3
    • Shock Resistance : 30 gn 11 ms IEC 88 reference 2-27
    • Vibration Resistance : 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
    • Ip Degree Of Protection : IP20 conforming to IEC 61131-2 class 1
    • Pollution Degree : 2 IEC 60664-1
    • Ambient Air Temperature For Storage : -40-85 °C without derating
    • Relative Humidity : 95-95 % 60-60 °C without condensation
    • Operating Altitude : <= 6561.68 ft (2000 m)
    • Ambient Air Temperature For Operation : 32...140 °F without derating
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Environmental Disclosure : ENVPEP1511012EN
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : 6830dd70-e4bc-47df-85c7-e41f888576f4
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI1511012EN
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 33.1659213371
  • Complementary
    • Insulation Between Channels And Logic Bus : 1500 V for 1 minute
    • Cold Swapping : yes
    • Height : 125 mm
    • Status Led : 1 LED (Green) module status (RDY) || 1 LED per channel (Green) channel status (IN1 to IN16)
    • Hot Swapping Fallback : yes for basic NIMs
    • Permissible Voltage : 30 V
    • Supply : power distribution module
    • Protection Type : power protection integrated fuse on PDM time lag 5 A || input protection resistor-limited || reverse polarity protection
    • Current Consumption : 100 mA 5 V DC logic bus
    • Discrete Input Current : 4.5 mA
    • Marking : CE
    • Current State 0 Guaranteed : <= 1.5 mA
    • Net Weight : 0.086 kg
    • Current State 1 Guaranteed : >= 2.5 mA
    • Input Voltage Limits : 11...30 V at state 1 || -3...5 V at state 0
    • Discrete Input Logic : positive
    • Response Time : 2 ms off-to-on || 2 ms on-to-off
    • Width : 28.1 mm
    • Overvoltage Category : II
    • Depth : 65.1 mm
    • Product Compatibility : I/O base STBXBA3000 || power distribution module STBPDT3100/3105
    • [Us] Rated Supply Voltage : 24 V DC
  • Specifications
    • Country of Origin : Indonesia
    • Width : 28.1 mm
    • Height : 125 mm
    • Weight : 0.086 kg
    • Range Of Product : Modicon STB distributed I/O solution
    • Discrete Input Voltage : 24 V
    • Discrete Input Voltage Type : DC
    • Product Or Component Type : basic digital input kit
    • Discrete Input Number : 16
    • Kit Composition : STBXTS2180, 18-terminal spring clamp connector || STBDDI3725 module || STBXBA3000 base
