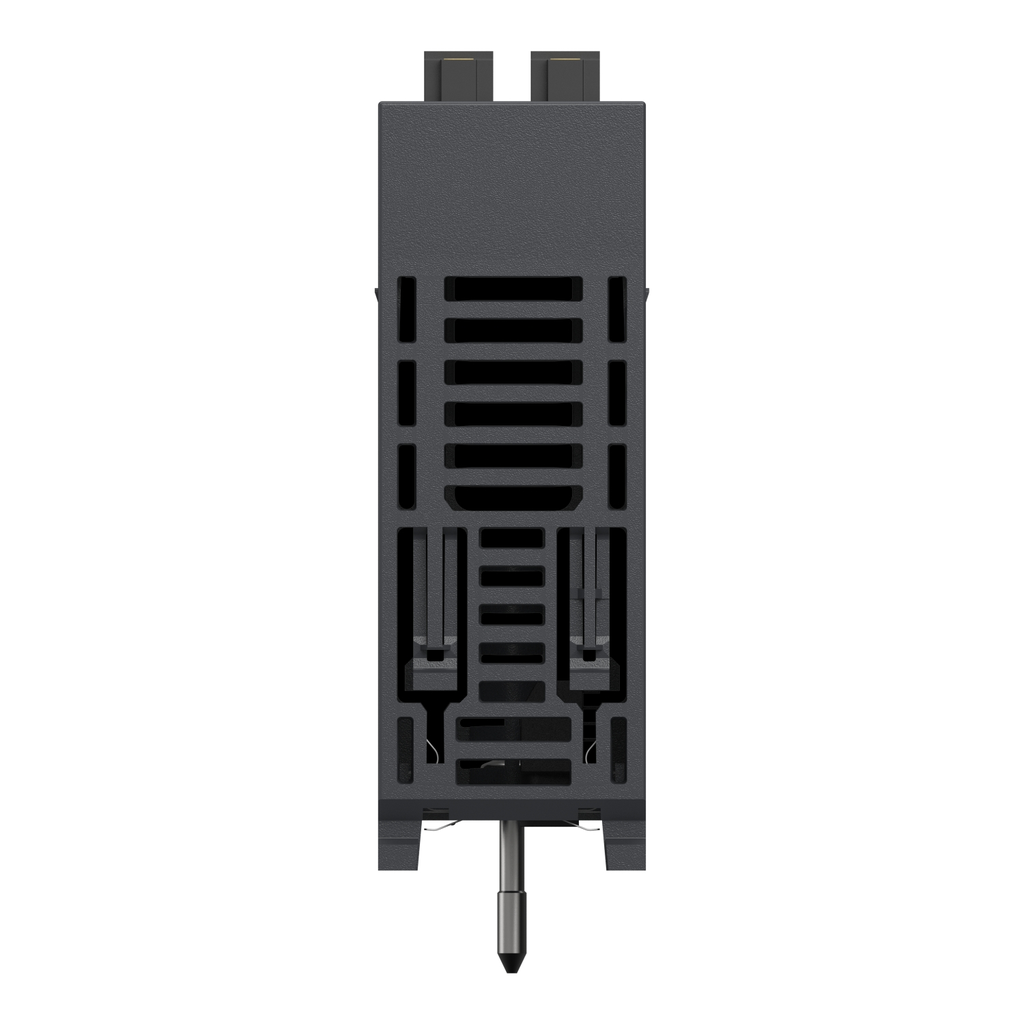

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an analogue input module with a current consumption of 150mA at 3.3V DC. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It is furnished with 40-way connector for electrical connection. It is an IP20 rated product. It weighs 0.165kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

• Environment
• Product Certifications : CE || EAC || UL || CSA || Merchant Navy || RCM
• Ambient Air Temperature For Operation : 0-60 °C
• Standards : IEC 61131-2 || IEC 61000-6-4 || IEC 61000-6-2 || EN 61010-2-201
• Shock Resistance : 30 gn
• Environmental Characteristic : 3C3 IEC 60721-3-3 || 3C4 IEC 60721-3-3
• Vibration Resistance : 3 gn
• Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
• Ambient Air Temperature For Storage : -40-85 °C
• Relative Humidity : 5-95 % 55-55 °C without condensation
• Ip Degree Of Protection : IP20
• Contractual warranty
• Warranty : 18 months
• Offer Sustainability
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation : X
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Mtbf Reliability : 900000 H
• Measurement Error : +/- 0.7 °C Ni 1000 25 °C || +/- 2 °C Pt 100 0...60 °C || +/- 2 °C Pt 1000 0...60 °C || +/- 2.1 °C Ni 100 25 °C || +/- 2.1 °C Pt 100 25 °C || +/- 2.1 °C Pt 1000 25 °C || +/- 2.7 °C thermocouple U 25 °C || +/- 2.8 °C thermocouple J 25 °C || +/- 3 °C Ni 100 0...60 °C || +/- 3 °C thermocouple L 25 °C || +/- 3.2 °C thermocouple R 25 °C || +/- 3.2 °C thermocouple S 25 °C || +/- 3.5 °C thermocouple B 25 °C || +/- 3.7 °C thermocouple E 25 °C || +/- 3.7 °C thermocouple K 25 °C || +/- 3.7 °C thermocouple N 25 °C || +/- 3.7 °C thermocouple T 25 °C || +/- 4 °C Cu 10 0...60 °C || +/- 4 °C Cu 10 25 °C || +/- 4.5 °C thermocouple J 0...60 °C || +/- 4.5 °C thermocouple L 0...60 °C || +/- 4.5 °C thermocouple R 0...60 °C || +/- 4.5 °C thermocouple S 0...60 °C || +/- 4.5 °C thermocouple U 0...60 °C || +/- 5 °C thermocouple B 0...60 °C || +/- 5 °C thermocouple E 0...60 °C || +/- 5 °C thermocouple K 0...60 °C || +/- 5 °C thermocouple N 0...60 °C || +/- 5 °C thermocouple T 0...60 °C || <= 0.15 % of full scale +/- 1.28 V 0...60 °C || <= 0.15 % of full scale +/- 160 mV 0...60 °C || <= 0.15 % of full scale +/- 320 mV 0...60 °C || <= 0.15 % of full scale +/- 640 mV 0...60 °C || <= 0.15 % of full scale +/- 80 mV 0...60 °C || <= 0.2 % of full scale 4000 Ohm 0...60 °C || 0.05 % of full scale +/- 1.28 V 25 °C || 0.05 % of full scale +/- 160 mV 25 °C || 0.05 % of full scale +/- 320 mV 25 °C || 0.05 % of full scale +/- 40 mV 25 °C || 0.05 % of full scale +/- 640 mV 25 °C || 0.05 % of full scale +/- 80 mV 25 °C || 0.12 % of full scale 400 Ohm 25 °C || 0.12 % of full scale 4000 Ohm 25 °C || <= 0.2 % of full scale +/- 40 mV 0...60 °C || <= 0.3 % of full scale 400 Ohm 0...60 °C || 1.3 °C Ni 1000 0...60 °C
• Maximum Conversion Value : +/- 100 % 400 Ohm || +/- 100 % 4000 Ohm || +/- 102.5 % +/- 1.28 V || +/- 102.5 % +/- 160 mV || +/- 102.5 % +/- 320 mV || +/- 102.5 % +/- 40 mV || +/- 102.5 % +/- 640 mV || +/- 102.5 % +/- 80 mV
• Type Of Filter : first order digital filtering
• Status Led : 1 LED (Green) RUN || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) ERR || 1 LED (Red) I/O
• Temperature Drift : 25 ppm/°C 400 Ohm || 25 ppm/°C 4000 Ohm || 25 ppm/°C Ni 1000 || 25 ppm/°C thermocouple B || 25 ppm/°C thermocouple E || 25 ppm/°C thermocouple J || 25 ppm/°C thermocouple K || 25 ppm/°C thermocouple L || 25 ppm/°C thermocouple N || 25 ppm/°C thermocouple R || 25 ppm/°C thermocouple S || 25 ppm/°C thermocouple T || 25 ppm/°C thermocouple U || 30 ppm/°C +/- 1.28 V || 30 ppm/°C +/- 160 mV || 30 ppm/°C +/- 320 mV || 30 ppm/°C +/- 40 mV || 30 ppm/°C +/- 640 mV || 30 ppm/°C +/- 80 mV || 30 ppm/°C Cu 10 || 30 ppm/°C Ni 100 || 30 ppm/°C Pt 100 || 30 ppm/°C Pt 1000
• Recalibration : internal
• Cold Junction Compensation : external by Pt100 probe
• Current Consumption : 150 mA 3.3 V DC || 50 mA 24 V DC
• Analogue Input Resolution : 15 bits + sign
• Net Weight : 0.165 kg
• Differential Mode Rejection : 60 dB 50/60 Hz
• Nominal Read Cycle Time : 400 ms with temperature probe || 200 ms with thermocouple
• Detection Type : open circuit Cu 10 || open circuit Ni 100 || open circuit Ni 1000 || open circuit Pt 100 || open circuit Pt 1000 || open circuit thermocouple B || open circuit thermocouple E || open circuit thermocouple J || open circuit thermocouple K || open circuit thermocouple L || open circuit thermocouple N || open circuit thermocouple R || open circuit thermocouple S || open circuit thermocouple T || open circuit thermocouple U
• Maximum Wiring Resistance : 20 Ohm 2 wires Cu 10 || 20 Ohm 2 wires Ni 100 || 20 Ohm 2 wires Pt 100 || 20 Ohm 3 wires Cu 10 || 20 Ohm 3 wires Ni 100 || 20 Ohm 3 wires Pt 100 || 200 Ohm 2 wires Ni 1000 || 200 Ohm 2 wires Pt 1000 || 200 Ohm 3 wires Ni 1000 || 200 Ohm 3 wires Pt 1000 || 50 Ohm 4 wires Cu 10 || 50 Ohm 4 wires Ni 100 || 50 Ohm 4 wires Pt 100 || 500 Ohm 4 wires Ni 1000 || 500 Ohm 4 wires Pt 1000
• Operating Altitude : 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
• Common Mode Rejection : 120 dB 50/60 Hz
• Analog/Digital Conversion : sigma delta 16 bits
• Measurement Resolution : 0.1 °C Cu 10 || 0.1 °C Ni 100 || 0.1 °C Ni 1000 || 0.1 °C Pt 100 || 0.1 °C Pt 1000 || 0.1 °C thermocouple B || 0.1 °C thermocouple E || 0.1 °C thermocouple J || 0.1 °C thermocouple K || 0.1 °C thermocouple L || 0.1 °C thermocouple N || 0.1 °C thermocouple R || 0.1 °C thermocouple S || 0.1 °C thermocouple T || 0.1 °C thermocouple U || 1280/2exp14 mV +/- 1.28 V || 160/2exp14 mV +/- 160 mV || 320/2exp14 mV +/- 320 mV || 40/2exp14 mV +/- 40 mV || 12.5 mOhm 400 Ohm || 125 mOhm 4000 Ohm || 640/2exp14 mV +/- 640 mV || 80/2exp14 mV +/- 80 mV
• Permitted Overload On Inputs : +/- 7.5 V +/- 1.28 V || +/- 7.5 V +/- 160 mV || +/- 7.5 V +/- 320 mV || +/- 7.5 V +/- 40 mV || +/- 7.5 V +/- 640 mV || +/- 7.5 V +/- 80 mV
• Specifications
• Range Of Product : Modicon X80
• Product Or Component Type : analog input module
• Input Level : low level
• Electrical Connection : 40 ways 2 connectors
• Input Output Isolation : isolated
• Analogue Input Number : 8
• Analogue Input Type : voltage +/- 1.28 V || voltage +/- 160 mV || voltage +/- 320 mV || voltage +/- 40 mV || voltage +/- 640 mV || voltage +/- 80 mV || resistor 400 Ohm 2 wires || resistor 400 Ohm 3 wires || resistor 400 Ohm 4 wires || resistor 4000 Ohm 2 wires || resistor 4000 Ohm 3 wires || resistor 4000 Ohm 4 wires || temperature probe -100...+260 °C Cu 10 || temperature probe -100...+450 °C Pt 100 UL/JIS || temperature probe -100...+450 °C Pt 1000 UL/JIS || temperature probe -200...+850 °C Pt 100 IEC || temperature probe -200...+850 °C Pt 1000 IEC || temperature probe -60...+180 °C Ni 100 || temperature probe -60...+180 °C Ni 1000 || thermocouple +130...+1820 °C thermocouple B || thermocouple +270...+1300 °C thermocouple N || thermocouple -200...+600 °C thermocouple U || thermocouple -200...+760 °C thermocouple J || thermocouple -200...+900 °C thermocouple L || thermocouple -270...+1000 °C thermocouple E || thermocouple -270...+1370 °C thermocouple K || thermocouple -270...+400 °C thermocouple T || thermocouple -50...+1769 °C thermocouple R || thermocouple -50...+1769 °C thermocouple S
