Timing Relay, Type JCK, plug In, on delay, adjustable time, 0.3 to 30 seconds, 10A, 240 VAC, 120 VAC/110 VDC

Timing Relay, Type JCK, plug In, on delay, adjustable time, 0.3 to 30 seconds, 10A, 240 VAC, 120 VAC/110 VDC

SQD9050JCK12V20 9050JCK12V20 785901032557
104.39 / EACH
http://schema.org/OutOfStock

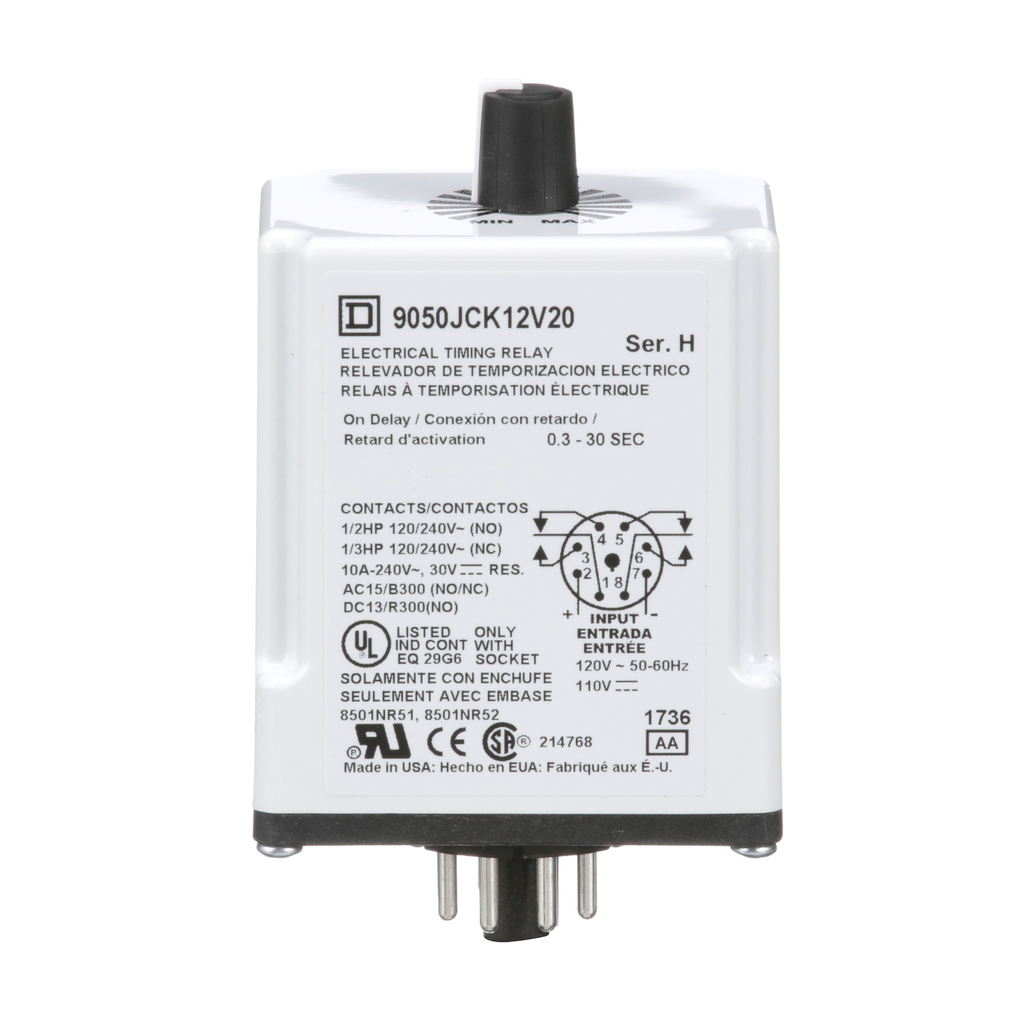

Mayer-DDS-Timing Relay, Type JCK, plug In, on delay, adjustable time, 0.3 to 30 seconds, 10A, 240 VAC, 120 VAC/110 VDC-2
  • Country of Origin: USA
  • Depth: 4.09 in
  • Height: 2.4 in
  • Warranty Length: 18 mth
  • Width: 1.69 in
9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer has an on delay timing mode. When the input voltage is applied, the time delay begins. Relay contacts change state after time delay is complete. When the inpu
QTY
  • Product Description
  • Features
  • Specifications
9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer has an on delay timing mode. When the input voltage is applied, the time delay begins. Relay contacts change state after time delay is complete. When the inpu
  • Uc Control Circuit Voltage
    • 120 V AC
    • 110 V DC
  • Carbon Footprint Of The Installation Phase A5
    • 0.0014015888
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.1 kg CO2 eq.
    • 0.0675164184
  • Maximum Switching Voltage
    • 240 V AC
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 1 kg CO2 eq.
    • 1.3645561589
  • Accessories
    • 8501NR51
    • 8501NR52
    • 8501NH7
    • 8501NR51B
    • 9080MH320
    • 9080MH339
    • 9080MH220
    • 9080MH239
    • 9080MHA10
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 49 kg CO2 eq.
    • 48.5228571429
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0641814645
    • 0.1 kg CO2 eq.
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Product Compatibility
    • 8501NR51
    • 8501NR52
  • Product Certifications
    • UL Recognized
    • UL Listed
    • CE
  • Complementary Attributes
    • Line Rated Current : 10 A
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-18
    • Manufacturing Carbon Footprint : 1.3645561589
    • Distribution Carbon Footprint : 0.0641814645
    • Installation Carbon Footprint : 0.0014015888
    • Use Carbon Footprint : 48.5228571429
    • End Of Life Carbon Footprint : 0.0675164184
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2506023EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1930
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 4
    • Tier : 4
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Contacts Material : silver nickel
    • Contacts Type And Composition : 2 NO + 2 NC
    • Hold In Power Consumption In Va : 2-2 VA
    • Mounting Support : socket
    • Package Weight Lbs : 122.47 g
    • Pin Number : 8
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : timer
    • Range Of Product : 9050JCK
    • Returnability : Yes
    • Shape Of Pin : tubular
    • Sustainable Packaging : No
    • Switch Function : DPDT
    • Time Delay Range : 0.3...30 s
    • Time Delay Type : on-delay
    • Total Lifecycle Carbon Footprint : 50 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 50.0205127734
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : timer
    • Range Of Product : 9050JCK
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=369675&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 50.0205127734
    • Ambient Air Temperature For Operation : -18-150 °F
    • Circularity Profile : ENVEOLI2506023EN
    • Environmental Disclosure : ENVPEP2506023EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
    • Height : 2.4 in
    • Width : 1.69 in
    • Depth : 4.09 in
