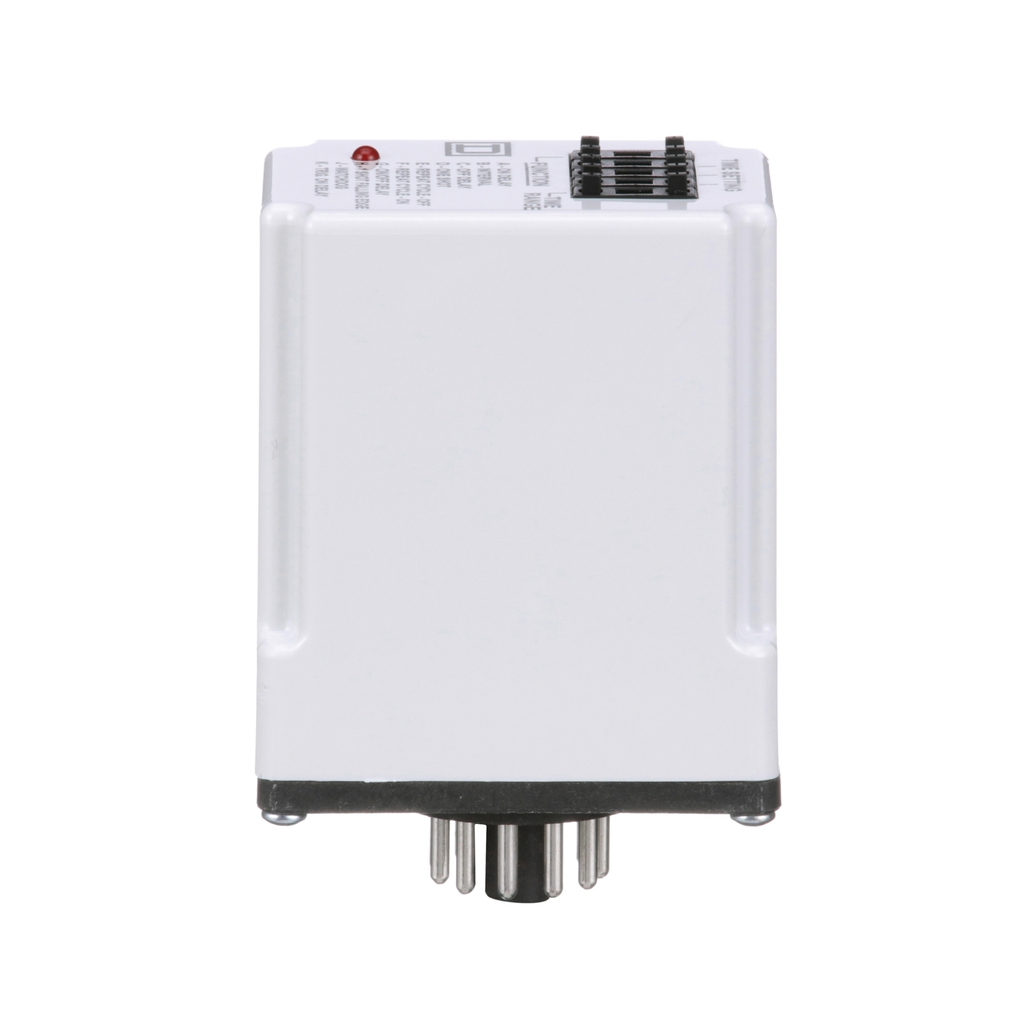

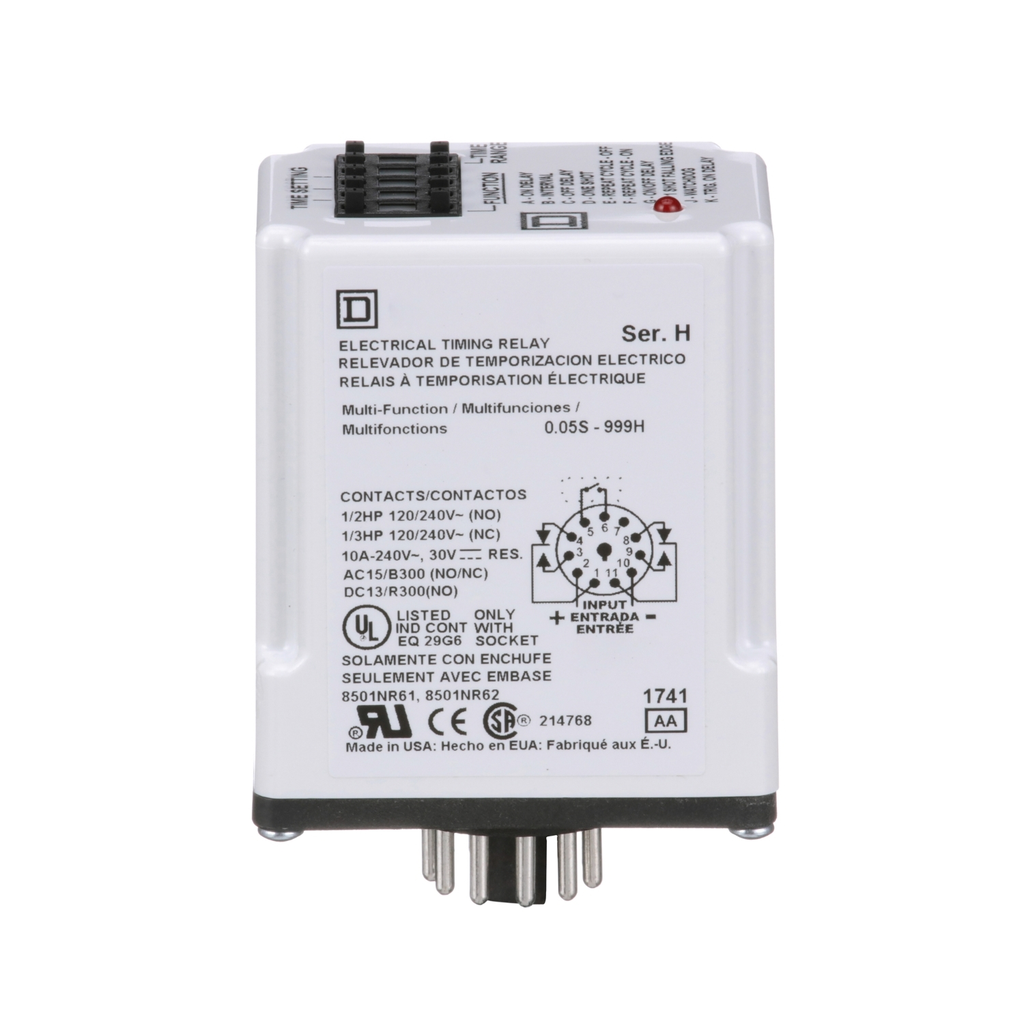

9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer can be programed to have an on delay, off delay, interval, one shot, repeat cycle off, repeat cycle on, on/off delay, one shot falling edge, watchdog or trigg

• Uc Control Circuit Voltage
• 24 V AC
• Carbon Footprint Of The Installation Phase A5
• 0.0014535003
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.1 kg CO2 eq.
• 0.0700170673
• Maximum Switching Voltage
• 240 V AC
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 1 kg CO2 eq.
• 1.4150961012
• Time Delay Range
• 0.1...99.9 h
• 0.05...9.99 s
• 0.1...99.9 min
• 1...999 h
• 1...999 s
• 1...999 min
• Accessories
• 8501NR61
• 8501NR62
• 8501NH7
• 8501NR61B
• 9080MH320
• 9080MH339
• 9080MH220
• 9080MH239
• 9080MHA10
• Time Delay Type
• watchdog
• on-delay and off-delay
• one shot falling edge
• one shot
• trigger on-delay
• off-delay
• on-delay
• interval
• repeat cycle
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 49 kg CO2 eq.
• 48.5228571429
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Carbon Footprint Of The Distribution Phase A4
• 0.0665585946
• 0.1 kg CO2 eq.
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Product Compatibility
• 8501NR62
• 8501NR61
• Product Certifications
• UL Recognized
• CE
• UL Listed

• Complementary Attributes
• Line Rated Current : 10 A
• Important Information Attributes
• B2B Bullet Point 1 : Easy to set up and install
• B2B Bullet Point 2 : CE, UL Recognized and UL approved
• B2B Bullet Point 3 : Wide range of operating temperature from -28°C to 66°C
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-23
• Html Descr : TIMER RELAY 240VAC 10AMP +OPT
• Manufacturer : Schneider Electric
• Manufacturing Carbon Footprint : 1.4150961012
• Distribution Carbon Footprint : 0.0665585946
• Installation Carbon Footprint : 0.0014535003
• Use Carbon Footprint : 48.5228571429
• End Of Life Carbon Footprint : 0.0700170673
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2506023EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1930
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 4
• Tier : 4
• Function Option Id : STANDARD
• Function Option : Standard
• Contacts Material : silver nickel
• Contacts Type And Composition : 2 NO + 2 NC
• Hold In Power Consumption In Va : 3-3 VA
• Mounting Support : socket
• Package Weight Lbs : 127.006 g
• Pin Number : 11
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : timer
• Range Of Product : 9050JCK
• Returnability : Yes
• Shape Of Pin : tubular
• Sustainable Packaging : No
• Switch Function : DPDT
• Total Lifecycle Carbon Footprint : 50 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 50.0759824063
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : timer
• Range Of Product : 9050JCK
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=370919&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 50.0759824063
• Ambient Air Temperature For Operation : -18-150 °F
• Circularity Profile : ENVEOLI2506023EN
• Environmental Disclosure : ENVPEP2506023EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States
• Height : 2.36 in
• Width : 1.73 in
• Depth : 3.58 in
