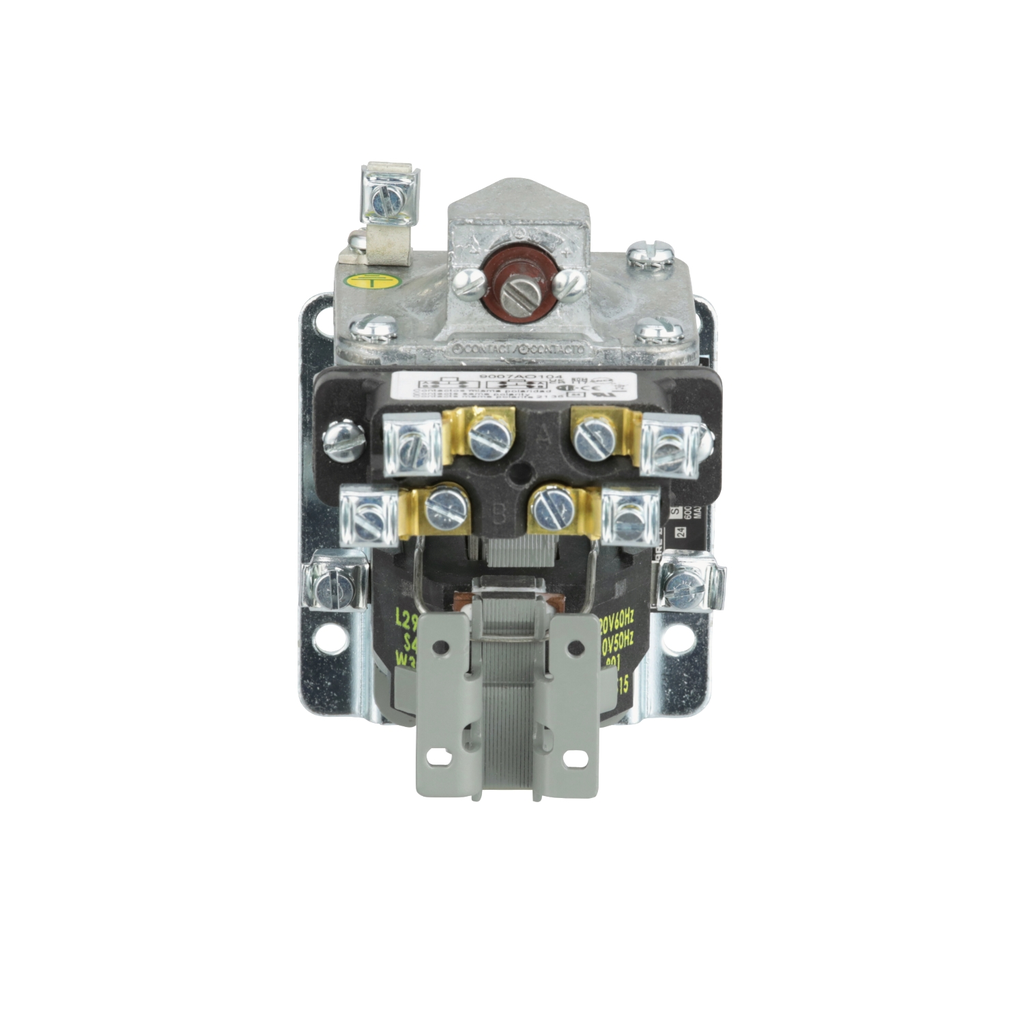

Timing Relay, Type A, pneumatic, on delay, 0.1 to 60 seconds, 15A, 600V, SPDT, timed, 110/120VAC 50/60Hz coil, open

PNEUMATIC TIMER 600V 15AMP A +

SQD9050AO10EV02 9050AO10EV02 785901864318
534.59 / EA
http://schema.org/OutOfStock
Mayer-DDS-Timing Relay, Type A, pneumatic, on delay, 0.1 to 60 seconds, 15A, 600V, SPDT, timed, 110/120VAC 50/60Hz coil, open-2
  • Country of Origin: Mexico
  • Warranty Length: 18 mth
9050A pneumatic timing relays are designed for very rugged conditions. The timing range of this on delay timer is typically about one minute. This timing relay can be converted by a customer from on delay to off delay. The replacement snap switch for this timing relay is a 9007AO104. The contacts have a 15A resistive rating at 600 VAC. The coil can be replaced. This timing relay has a 110/120 VAC 50/60 Hz coil. This product is not enclosed in an enclosure. This pneumatic timing relay is 2.64 inches tall, 4.02 inches wide and 4.37 inches deep. 9050A pneumatic timing relays are UL listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
9050A pneumatic timing relays are designed for very rugged conditions. The timing range of this on delay timer is typically about one minute. This timing relay can be converted by a customer from on delay to off delay. The replacement snap switch for this timing relay is a 9007AO104. The contacts have a 15A resistive rating at 600 VAC. The coil can be replaced. This timing relay has a 110/120 VAC 50/60 Hz coil. This product is not enclosed in an enclosure. This pneumatic timing relay is 2.64 inches tall, 4.02 inches wide and 4.37 inches deep. 9050A pneumatic timing relays are UL listed and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Maximum Switching Voltage
    • 600 V AC
  • UC Control Circuit Voltage
    • 120 V AC 60 Hz
    • 110 V AC 50 Hz
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Contact Operation
    • time delayed 1 NO + 1 NC
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Reset Response Time
    • 29 ms - on-delay
    • 27 ms - off-delay
  • Important Information Attributes
    • B2B Bullet Point 1 : This Type A pneumatic SPDT timing relay has an AC operated timing coil with an on delay
    • B2B Bullet Point 2 : Coil voltage is 110/120VAC at 50/60Hz with a maximum switching voltage of 600VAC
    • B2B Bullet Point 3 : On delay timing can be set from 0.1 seconds to 60 seconds
    • B2B Bullet Point 4 : These pneumatic timers are solid performers in industries with high risk of electronic fires
    • B2B Bullet Point 5 : UL and CE certified
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2506023EN
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1444
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 4
    • Tier : 4
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Package Weight Lbs : 789.250 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : timer
    • Range Of Product : 9050A/H
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Pep Code : ENVPEP2506023EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : timer
    • Range Of Product : 9050A/H
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=369429&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2506023EN
    • Environmental Disclosure : ENVPEP2506023EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Pep Code : ENVPEP2506023EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
