Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600 V, timed and instantaneous, 120 VAC 60 Hz coil

Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600 V, timed and instantaneous, 120 VAC 60 Hz coil

SQD9050AO11DV02 9050AO11DV02 785901485919
667.18 / EACH
http://schema.org/OutOfStock

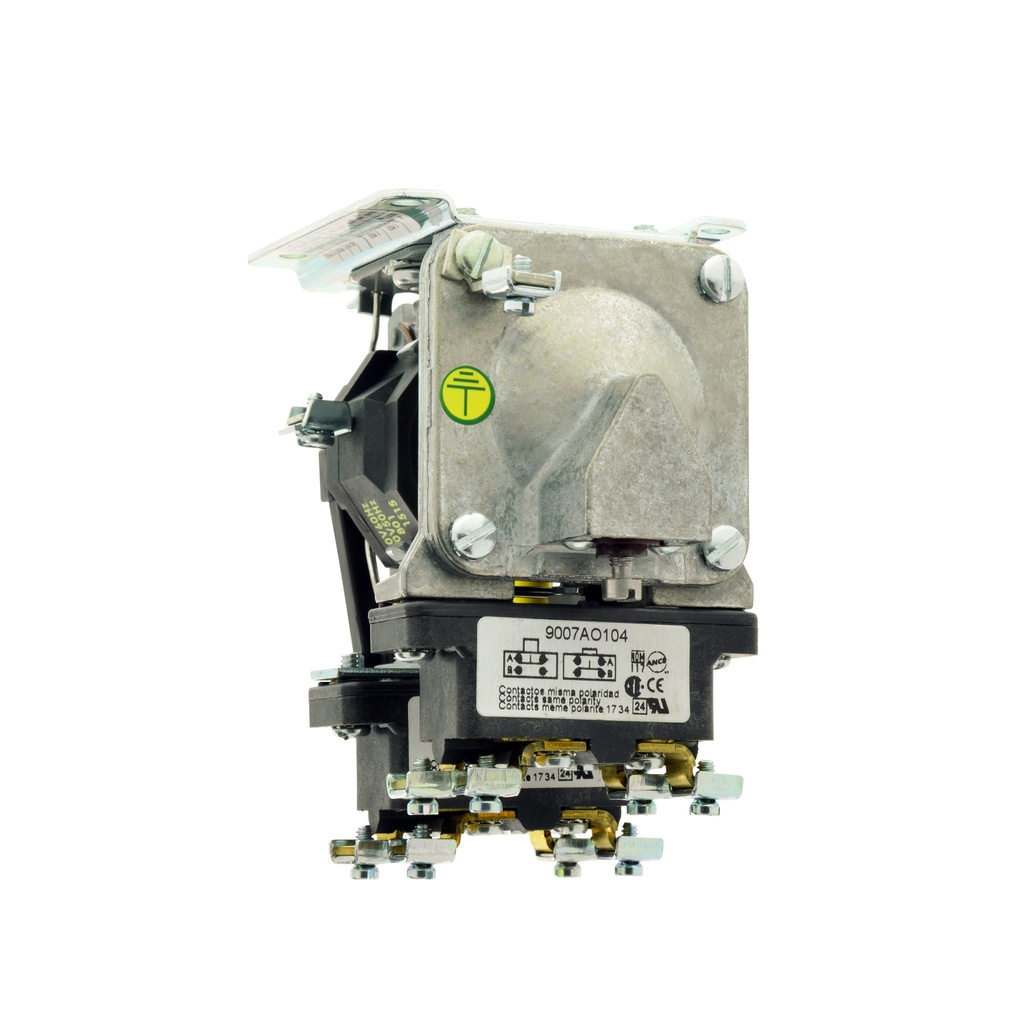

Mayer-DDS-Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600 V, timed and instantaneous, 120 VAC 60 Hz coil-1
  • Depth: 111 mm
  • Warranty Length: 18 mth
9050A NEMA pneumatic timers are designed for very rugged applications where precise timing is not required. This off delay timer has a timing range from 0.1 to 60 seconds. This timer has one normally open and one normally closed timed contact and one normally open and one normally closed instantaneous contact. They are controlled by a variety of VAC coils. This timer has a 110/120 VAC 50/60 Hz coil. 9050A pneumatic timers are UL listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
9050A NEMA pneumatic timers are designed for very rugged applications where precise timing is not required. This off delay timer has a timing range from 0.1 to 60 seconds. This timer has one normally open and one normally closed timed contact and one normally open and one normally closed instantaneous contact. They are controlled by a variety of VAC coils. This timer has a 110/120 VAC 50/60 Hz coil. 9050A pneumatic timers are UL listed and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL Listed, CSA
  • Complementary Attributes
    • Line Rated Current : 15 A
    • Maximum Switching Voltage : 600 V AC
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Contact Operation : time delayed 1 NO + 1 NC, instantaneous 1 NO + 1 NC
    • Uc Control Circuit Voltage2 : 120 V AC 60 Hz, 110 V AC 50 Hz
    • Reset Response Time : 29 ms - on-delay, 27 ms - off-delay
    • Uc Control Circuit Voltage5 : 120 V AC 60 Hz, 110 V AC 50 Hz
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : Out
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2506023EN
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Electrical Connection : screw-clamp terminals
    • Mounting Support : panel
    • Package Weight Lbs : 875.433 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : timer
    • Range Of Product : 9050A/H
    • Returnability : No
    • Sustainable Packaging : Yes
    • Switch Function : SPDT
    • Time Delay Range : 0.1 s...1 min
    • Time Delay Type : off-delay
    • Medium Desc : Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600 V, timed and instantaneous, 120 VAC 60 Hz coil
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2506023EN
    • Global Commercial Status : End of commerc. announced
  • Environment Attributes Main
    • Take Back : No, Nej
    • China ROHS Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : 68-104 °F
    • Circularity Profile : ENVEOLI2506023EN
    • Environmental Disclosure : ENVPEP2506023EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Pep Code : ENVPEP2506023EN
  • General Attributes
    • Product Or Component Type : timer
    • Range Of Product : 9050A/H
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 111 mm
