SQUARE D

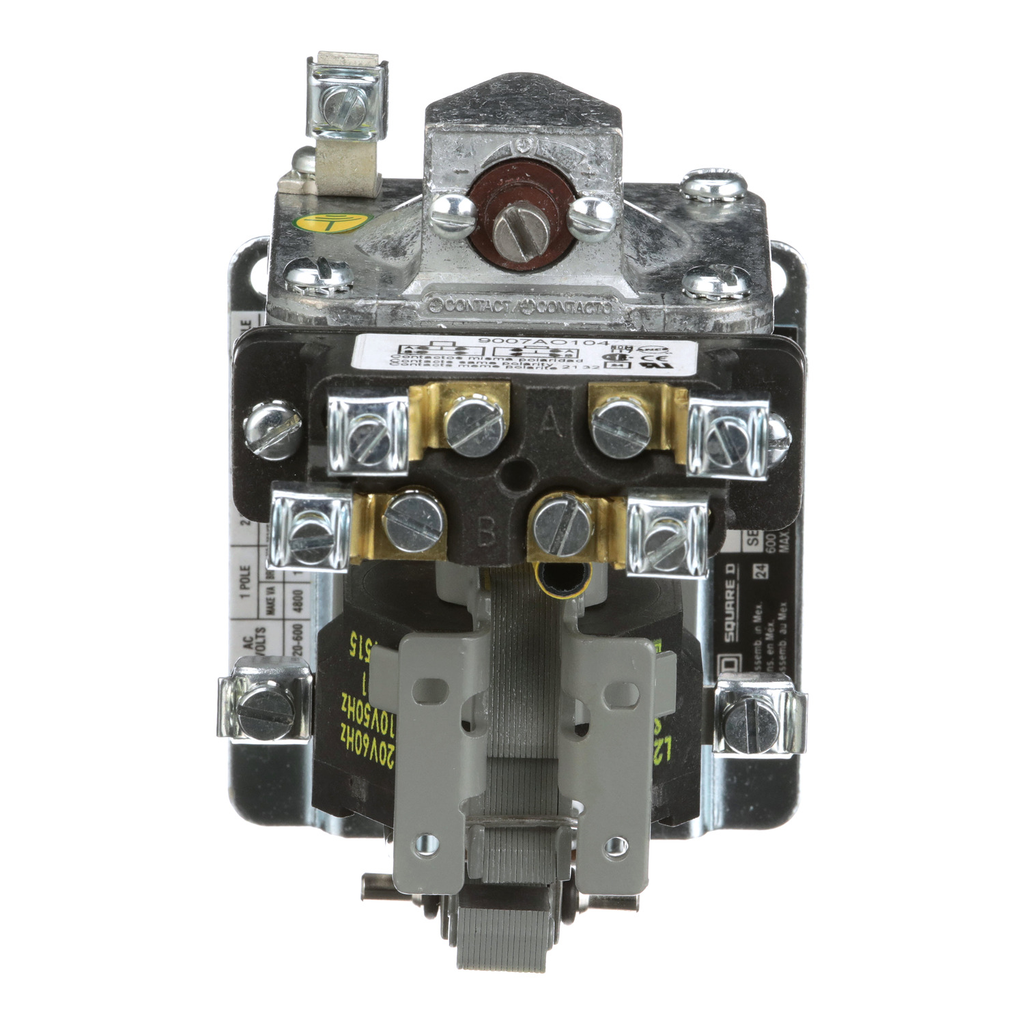

Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600V, SPDT, timed, 110/120VAC 50/60Hz coil, open

PNEUMATIC TIMER 600V 15AMP A +

SQD9050AO10DV02 9050AO10DV02 785901864110
521.36 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600V, SPDT, timed, 110/120VAC 50/60Hz coil, open-2
  • Certifications: CSA, UL Listed
  • Depth: 111 mm
  • Height: 67 mm
  • Line Rated Current: 15 A
  • Warranty Length: 18 mth
  • Width: 102 mm
9050A pneumatic timing relays are designed for very rugged conditions. The timing range of this off delay timer is typically about one minute. This timing relay can be converted by a customer from off delay to on delay. The replacement snap switch for this timing relay is a 9007AO104. The contacts have a 15A resistive rating at 600 VAC. The coil can be replaced. This timing relay has a 110/120 VAC 50/60 Hz coil. This product is not enclosed in an enclosure. 9050A pneumatic timing relays are UL listed and CSA certified. 9050A pneumatic timing relays are UL listed and CSA certified.
QTY
  • Product Description
  • Specifications
9050A pneumatic timing relays are designed for very rugged conditions. The timing range of this off delay timer is typically about one minute. This timing relay can be converted by a customer from off delay to on delay. The replacement snap switch for this timing relay is a 9007AO104. The contacts have a 15A resistive rating at 600 VAC. The coil can be replaced. This timing relay has a 110/120 VAC 50/60 Hz coil. This product is not enclosed in an enclosure. 9050A pneumatic timing relays are UL listed and CSA certified. 9050A pneumatic timing relays are UL listed and CSA certified.
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 68-104 °F
    • Height : 67 mm
    • Width : 102 mm
    • Depth : 111 mm
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Reset Response Time : 29 ms - on-delay || 27 ms - off-delay
    • Mounting Support : panel
    • Maximum Switching Voltage : 600 V AC
    • Electrical Connection : screw-clamp terminals
  • Specifications
    • [Uc] Control Circuit Voltage : 120 V AC 60 Hz || 110 V AC 50 Hz
    • Range Of Product : 9050A/H
    • Product Or Component Type : timer
    • Contact Operation : time delayed 1 NO + 1 NC
    • Time Delay Range : 0.1 s...1 min
    • Line Rated Current : 15 A
    • Switch Function : SPDT
    • Time Delay Type : off-delay
