SQUARE D

Safety switch, double throw, non fusible, 3 pole, 3 wire, 480VAC, 250VDC, 200A, Type 3R, bolt on hub prov

SWITCH NONFUSIBLE DT 600V 200A

SQD82344RB 82344RB 785901453819
4187.03 / EACH
http://schema.org/OutOfStock

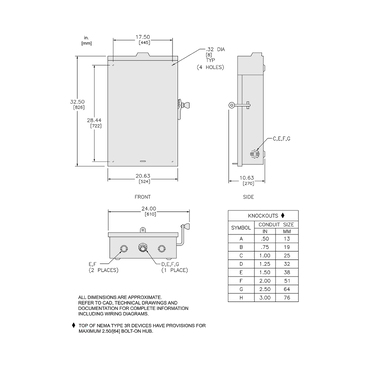

Mayer-DDS-Safety switch, double throw, non fusible, 3 pole, 3 wire, 480VAC, 250VDC, 200A, Type 3R, bolt on hub prov-2
  • Depth: 10.63 in
  • Fuse Type: H, J
  • Height: 32.5 in
  • Net Weight: 34.01 kg
  • Number of Poles: 3
  • Short Circuit Current Rating: 10 kA
  • Warranty Length: 18 mth
  • Weight: 34.01 kg
  • Width: 24 in
Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a non fusible disconnect and has a rated current of 200A for 480VAC and 250VDC. This general duty switch has a 3 wire configuration with 3 poles. The enclosure is surface mounted and is a Type 3R with bolt on provisions. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.
QTY
  • Product Description
  • Features
  • Specifications
Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a non fusible disconnect and has a rated current of 200A for 480VAC and 250VDC. This general duty switch has a 3 wire configuration with 3 poles. The enclosure is surface mounted and is a Type 3R with bolt on provisions. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1307076EN
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant
  • Complementary
    • Height : 32.5 in
    • Device Mounting : surface
    • Tightening Torque : 340-340 lbf.in (AWG 6...300 kcmil)
    • Short-Circuit Current : 10 kA H or J
    • Net Weight : 34.01 kg
    • Fuse Type : H or J
    • Awg Gauge : AWG 6...300 kcmil copper or aluminium
    • Width : 24 in
    • Depth : 10.63 in
  • Specifications
    • Country of Origin : Mexico
    • Width : 24 in
    • Height : 32.5 in
    • Weight : 34.01 kg
    • Disconnector Device Type : non-fusible disconnect
    • Product Or Component Type : Double Throw Safety Switch
    • Series Name : general duty
    • Nema Degree Of Protection : NEMA 3
    • Line Rated Current : 200 A
    • Device Composition : none
    • Number Of Poles : 3
    • [Ue] Rated Operational Voltage : 480 V AC || 250 V DC
