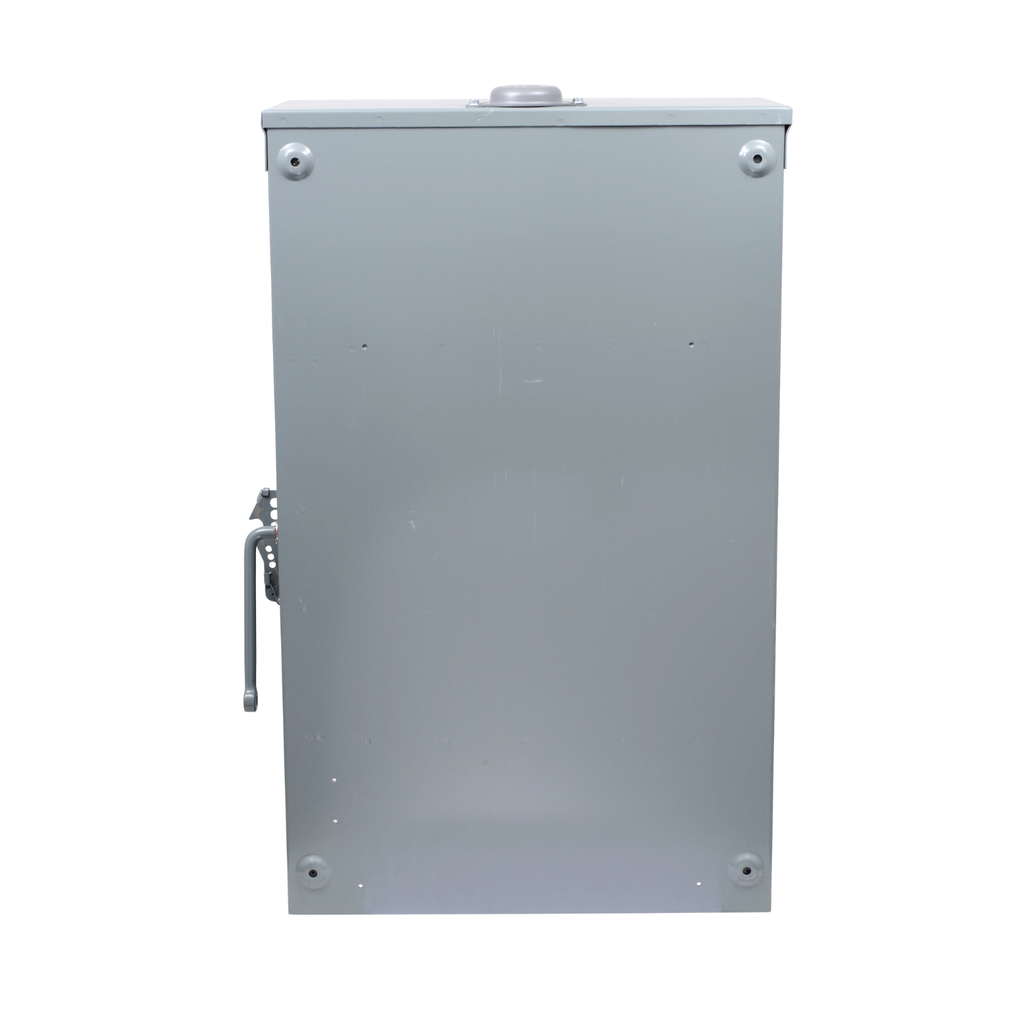

Safety switch, double throw, non fusible, 3 pole, 3 wire, 480VAC, 250VDC, 200A, Type 1

SQD 82344 SWITCH NOT FUSIBLE D

SQD82344 82344 785901453772
2527.14 / EACH
http://schema.org/OutOfStock

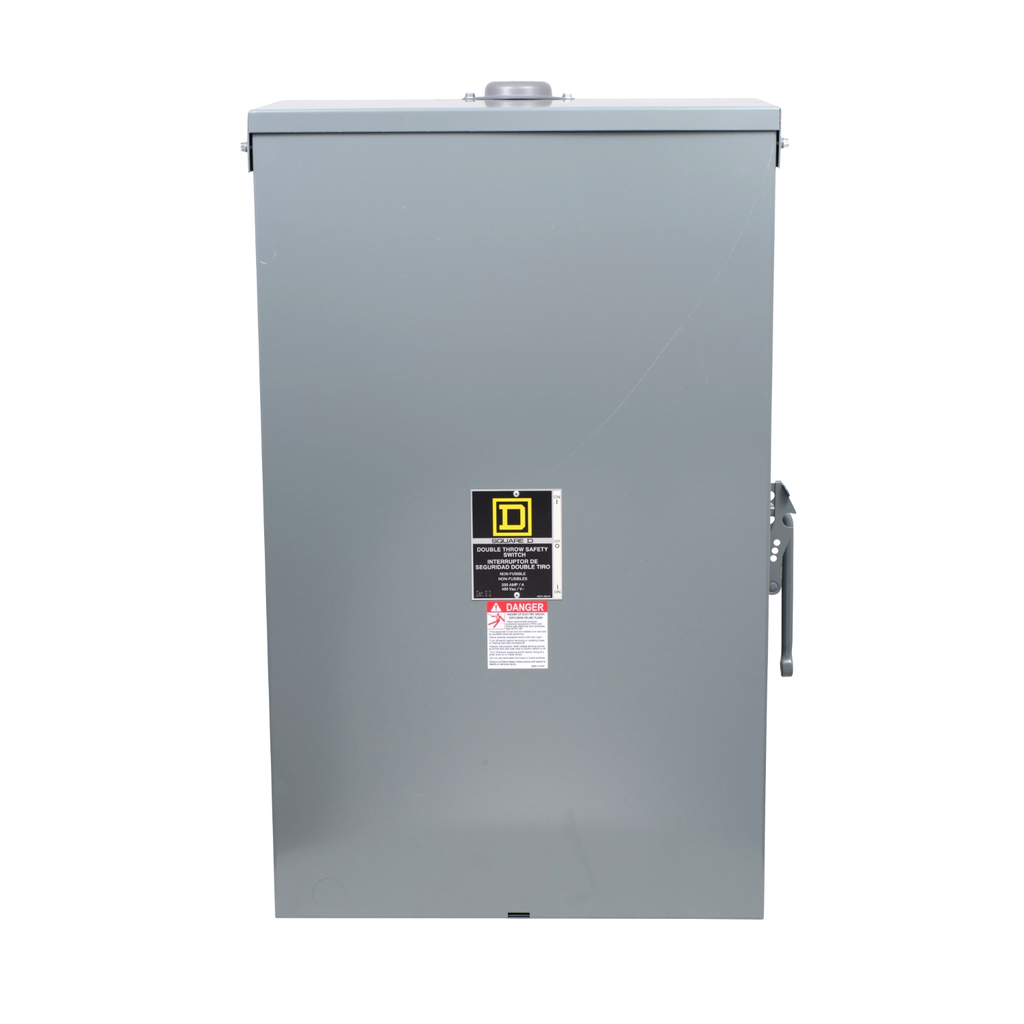

Mayer-DDS-Safety switch, double throw, non fusible, 3 pole, 3 wire, 480VAC, 250VDC, 200A, Type 1-2
  • Country of Origin: Mexico
  • Number of Poles: 3
  • Warranty Length: 18 mth
Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a non fusible disconnect and has a rated current of 200A for 480VAC and 250VDC. This general duty switch has a 3 wire configuration with 3 poles. The enclosure is surface mounted and is a Type 1. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.
QTY
  • Product Description
  • Features
  • Specifications
Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a non fusible disconnect and has a rated current of 200A for 480VAC and 250VDC. This general duty switch has a 3 wire configuration with 3 poles. The enclosure is surface mounted and is a Type 1. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=2194&p_File_name=2194.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=2194&p_File_name=2194.dxf
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Accessories
    • APJ6485
    • DT100SG
  • Short Circuit Current
    • 10 kA H or J
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • OEM - Control Panelbuilder
    • Panel Builder
  • Persona Type Ids
    • LC
    • OM8
    • PB
  • Tightening Torque
    • 340-340 lbf.in (AWG 6...300 kcmil)
  • AWG Gauge
    • AWG 6...300 kcmil copper or aluminium
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • UE Rated Operational Voltage
    • 480 V AC
    • 250 V DC
  • Important Information Attributes
    • B2B Bullet Point 1 : Reliable performance
    • B2B Bullet Point 2 : Long term durability
    • B2B Bullet Point 3 : Enclosed operating mechanism
    • B2B Bullet Point 4 : Meets or exceeds NEMA KS1
    • B2B Bullet Point 5 : CSA and UL certifed
    • B2B Bullet Point 6 : Red and black handle indicates the ON (red) or OFF (black) condition of the switch
    • B2B Bullet Point 7 : UL listed
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Device Type : LV equipment - LV fuse - switch
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1920
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Number Of Poles : 3
    • Package Weight Lbs : 28.458 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Double Throw Safety Switch
    • Returnability : Yes
    • Series Name : general duty
    • Sustainable Packaging : Yes
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2503028_V1
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : Double Throw Safety Switch
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=362795&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2503028_V1
    • EU ROHS Directive : Compliant
    • Nema Degree Of Protection : NEMA 1
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503028_V1
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
