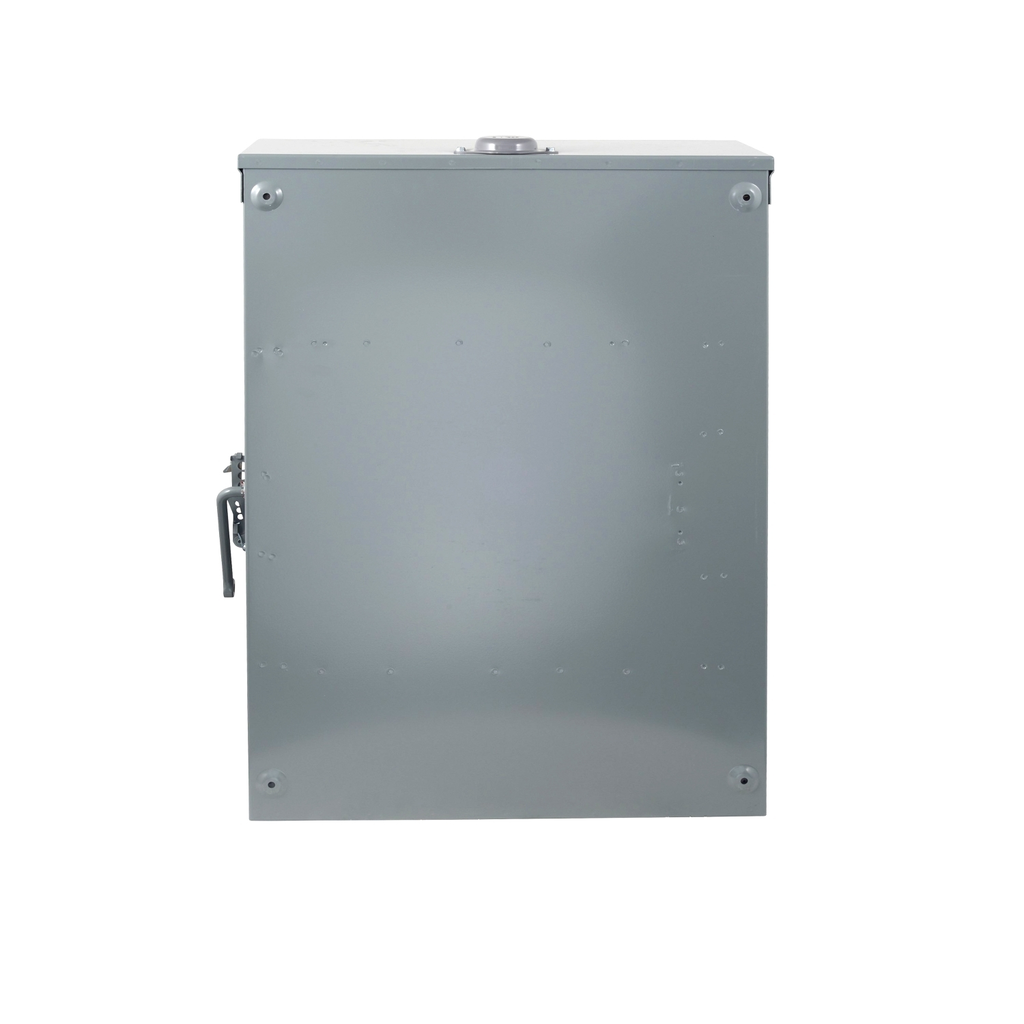

Safety switch, double throw, non fusible, 200A, 600V, 3 pole, 15HP, neutral factory installed, NEMA 3R, bolt on

Safety switch, double throw, non fusible, 200A, 600V, 3 pole, 15HP, neutral factory installed, NEMA 3R, bolt on

SQD82344NRB 82344NRB 785901149170
5847.08 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Safety switch, double throw, non fusible, 200A, 600V, 3 pole, 15HP, neutral factory installed, NEMA 3R, bolt on-1
  • Depth: 10.63 in
  • Fuse Type: H, J
  • Warranty Length: 18 mth
The Square D™ by Schneider Electric brand Double Throw Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for Residential, light commercial, and industrial installations. Double throw safety switches transfer a load from one power source to another power source. 30A-100A F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require and switches can be field-converted to transfer a power source from one load to another. These switches come in fusible or non-fusible configurations and my be padlocked in the ON-OFF positions. This Double Throw Safety Switch has a rated current of 200A. This non-fusible disconnect switch is surface mounted. This Double Throw Safety Switch comply's to UL listed certifications. Dimensions for this product are 24 in (H),32.5 in (W),10.63 in (D). This procuct comes with an 18 month warranty.
QTY
  • Product Description
  • Features
  • Specifications
The Square D™ by Schneider Electric brand Double Throw Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for Residential, light commercial, and industrial installations. Double throw safety switches transfer a load from one power source to another power source. 30A-100A F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require and switches can be field-converted to transfer a power source from one load to another. These switches come in fusible or non-fusible configurations and my be padlocked in the ON-OFF positions. This Double Throw Safety Switch has a rated current of 200A. This non-fusible disconnect switch is surface mounted. This Double Throw Safety Switch comply's to UL listed certifications. Dimensions for this product are 24 in (H),32.5 in (W),10.63 in (D). This procuct comes with an 18 month warranty.
  • Features
    • Reliable performance
    • Long term durability
    • Enclosed operating mechanism
    • Meets or exceeds NEMA KS1
    • CSA and UL certifed
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Complementary Attributes
    • Line Rated Current : 200 A
  • Important Information Attributes
    • Persona Type Ids : LC, OM8, PB
    • Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Ue Rated Operational Voltage2 : 480 V AC, 250 V DC
    • Ue Rated Operational Voltage5 : 480 V AC, 250 V DC
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Function Option Id : STANDARD
    • Function Option : Standard
    • AWG Gauge : AWG 6...300 kcmil copper or aluminium
    • Device Composition : neutral (factory installed)
    • Disconnector Device Type : non-fusible disconnect switch
    • Energy Efficiency Optimized : False
    • Fuse Type : H or J
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Double Throw Safety Switch
    • Returnability : No
    • Series Name : general duty
    • Short Circuit Current : 10 kA H or J
    • Sustainable Packaging : Yes
    • Tightening Torque : 340-340 lbf.in (AWG 6...300 kcmil)
    • Medium Desc : Safety switch, double throw, non fusible, 200A, 600V, 3 pole, 15HP, neutral factory installed, NEMA 3R, bolt on
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2503028EN
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • EU ROHS Directive : Compliant , Compliant
    • ROHS Exemption Information : Yes
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2503028EN
    • Nema Degree Of Protection : NEMA 3
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503028EN
  • General Attributes
    • Product Or Component Type : Double Throw Safety Switch
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 10.63 in
