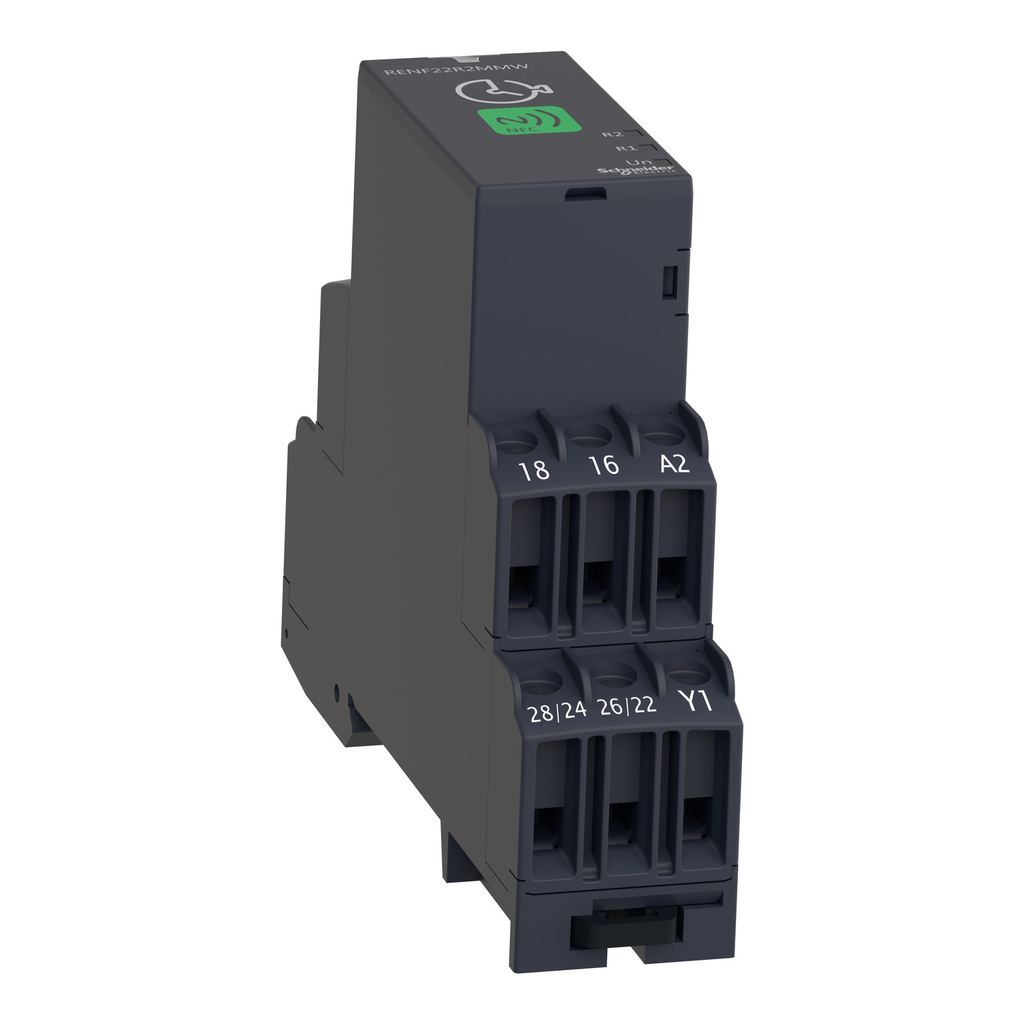

This modular timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers.

• Features
• Diagnostic button to check downstream circuit immediately, shorten the commission and troubleshooting time
• Wide range of time delay for adjustment: from 0.01 s to 999 hrs
• Compatible with a wide range of applications including machines, buildings, water segments, and HVAC
• Unprecedented accuracy, predictive maintenance, and superior security
• Flexible choice of screw or spring connection terminals for wiring
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : CE, CSA, KC, UL, CCC, EAC, DNV-GL
• Standards : IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-4, EN 61812-1, IEC 61000-6-3
• Complementary Attributes
• Minimum Pulse Duration : 100 ms with load in parallel, 60 ms no-load
• Line Rated Current : 5 A
• Maximum Operating Frequency : 13.56 MHz
• Maximum Switching Current : 8 A
• Maximum Switching Voltage : 250 V
• Minimum Switching Current : 10 mA 5 V
• Maximum Delay Response : 100 ms
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Contacts Type And Composition : 2 C/O timed contact, cadmium free, 1 C/O timed and instantaneous contact, cadmium free, 2 C/O
• Electromagnetic Compatibility : electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11, radiated emission class B conforming to EN 55022, conducted emission class A conforming to EN 55022, electromagnetic field immunity test - test level: 3 V/m level 2 (1.4 GHz...2 GHz) conforming to IEC 61000-4-3, electromagnetic field immunity test - test level: 1 V/m level 1 (2...2.7 GHz) conforming to IEC 61000-4-3
• Function Available : A- Power on-delay relay-2 C/O, Ac- On-delay and off-delay relay w/ control signal-2 C/O, Ad- Pulse delayed relay w/ control signal-2 C/O, Ah- Pulse delayed relay (single cycle) w/ control signal-2 C/O, Ak- Asymmetrical on-delay and off -delay relay w/ control signal-2 C/O, At- Power on-delay relay w/ pause/summation (Y1)-2 C/O, B- Single interval relay w/ control signal-2 C/O, Bw- Double interval relay w/ control signal-2 C/O, C- Off-delay relay w/ control signal-2 C/O, D- Symmetrical flashing relay (starting pulse-off)-2 C/O, Di- Symmetrical flashing relay (starting pulse-on)-2 C/O, Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (Y1)-2 C/O, Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1)-2 C/O, H- Interval relay-2 C/O, Ht- Interval relay w/ pause/summation (Y1)-2 C/O, Li- Asymmetrical flashing relay (starting pulse-on)-2 C/O, Lt- Asymmetrical fl ashing relay (starting pulse-off) w/ pause/summation (Y1)-2 C/O, Lit- Asymmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1)-2 C/O, N- Safe-guard relay-2 C/O, O- Delayed Safe-guard relay-2 C/O, P- Pulse delayed relay w/ fixed pulse length-2 C/O, Pt- Pulse delayed relay w/ fixed pulse length and pause/summation-2 C/O, Qt- Star-delta relay (2 CO outputs w/ split common)-2 C/O, Qtt- Star-delta relay (2 CO outputs w/ split common) w/ pause/summation (Y1)-2 C/O, TI- Bistable relay w/ control signal on-2 C/O, Tt- Retriggerable bistable relay w/ control signal on-2 C/O, W- Interval relay w/ control signal off-2 C/O, L- Asymmetrical flashing relay (starting pulse-off)-2 C/O
• Local Signalling : R2, amber LED blinking)timing in progress, Un, green LED steady)power ON, R1, amber LED steady)relay energised, R2, amber LED steady)relay energised, pairing, green LED steady)communication status, Un, green LED fast blinking)diagnosis mode, R1, amber LED blinking)timing in progress
• Operating System : Androidversion >= V7.0, iOSversion >= V14.5
• Power Consumption In W : 1.5 W 240 V DC, 0.6 W 24 V DC
• Repeat Accuracy : +/- 0.2 % 10 s...999 h, +/- 0.2 % 10 s...999 h, +/- 0.5 % 100 ms...10 s, +/- 0.5 % 100 ms...10 s, +/- 0.7 % 50...100 ms, +/- 0.7 % 50...100 ms, +/- 0.2 % 10 s...999 h, +/- 0.2 % 10 s...999 h, +/- 0.5 % 100 ms...10 s, +/- 0.5 % 100 ms...10 s, +/- 0.7 % 50...100 ms, +/- 0.7 % 50...100 ms
• Shock Resistance : 15 gn not operating 11 ms IEC 60068-2-27, 5 gn in operation 11 ms IEC 60068-2-27
• Tightening Torque : 0.6-1 N.m IEC 60947-1, 5.3-8.8 lbf.in IEC 60947-1
• Time Delay Type : power on-delay - A- Power on-delay relay, on-delay and off-delay - Ac- On-delay and off-delay relay w/ control signal, pulse delay - Ad- Pulse delayed relay w/ control signal, pulse delay - Ah- Pulse delayed relay (single cycle) w/ control signal, on-delay and off-delay - Ak- Asymmetrical on-delay and off -delay relay w/ control signal, power on-delay - At- Power on-delay relay w/ pause/summation (Y1), interval - B- Single interval relay w/ control signal, interval - Bw- Double interval relay w/ control signal, off-delay - C- Off-delay relay w/ control signal, symmetrical flashing - D- Symmetrical flashing relay (starting pulse-off), symmetrical flashing - Di- Symmetrical flashing relay (starting pulse-on), symmetrical flashing - Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (Y1), symmetrical flashing - Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1), interval - H- Interval relay, interval - Ht- Interval relay w/ pause/summation (Y1), asymmetrical flashing - Li- Asymmetrical flashing relay (starting pulse-on), asymmetrical flashing - Lt- Asymmetrical fl ashing relay (starting pulse-off) w/ pause/summation (Y1), asymmetrical flashing - Lit- Asymmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1), safe-guard - N- Safe-guard relay, safe-guard - O- Delayed Safe-guard relay, pulse delay - P- Pulse delayed relay w/ fixed pulse length, pulse delay - Pt- Pulse delayed relay w/ fixed pulse length and pause/summation, star-delta - Qt- Star-delta relay (2 CO outputs w/ split common), star-delta - Qtt- Star-delta relay (2 CO outputs w/ split common) w/ pause/summation (Y1), bistable - TI- Bistable relay w/ control signal on, bistable - Tt- Retriggerable bistable relay w/ control signal on, interval - W- Interval relay w/ control signal off, asymmetrical flashing - L- Asymmetrical flashing relay (starting pulse-off), power on-delay, on-delay andpulse delay, asymmetrical on-delay andinterval, off-delay, symmetrical flashing, safe-guard, star-delta, asymmetrical flashing, bistable
• Carbon Footprint Of The Distribution Phase A4 : 0.0133710823, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.0624854032
• Carbon Footprint Of The Installation Phase A5 : 0.0005799028, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 1.9843344154
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 62 kg CO2 eq., 61.80384
• Connections Terminals : screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw connectors
• Setting Accuracy Of Time Delay : +/- 1 % 1...999 h 25 °C, +/- 1 % 1...999 h 25 °C, +/- 1 % 1...999 h 25 °C, +/- 2 % 1...3600 s 25 °C, +/- 2 % 1...3600 s 25 °C, +/- 2 % 1...3600 s 25 °C, +/- 20 ms 100 ms...10 s 25 °C, +/- 20 ms 100 ms...10 s 25 °C, +/- 20 ms 100 ms...10 s 25 °C, +/- 30 ms 50...100 ms 25 °C, +/- 30 ms 50...100 ms 25 °C, +/- 30 ms 50...100 ms 25 °C, +/- 1 % 1...999 h 25 °C, +/- 1 % 1...999 h 25 °C, +/- 1 % 1...999 h 25 °C, +/- 2 % 1...3600 s 25 °C, +/- 2 % 1...3600 s 25 °C, +/- 20 ms 100 ms...10 s 25 °C, +/- 20 ms 100 ms...10 s 25 °C, +/- 30 ms 50...100 ms 25 °C, +/- 30 ms 50...100 ms 25 °C
• Connections Terminals3 : screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Manufacturer : Square D
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2506028EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Control Type : without test button
• Device Short Name : RENF22
• Dielectric Strength : 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply with basic insulation
• Electrical Durability : 100000 cycles for resistive load, 8 A at 250 V, AC
• Housing Material : polycarbonate
• Immunity To Microbreaks : 10 ms
• Insulation Resistance : 100 MOhm 500 V DC IEC 60664-1
• Mechanical Durability : 10000000 cycles
• Mounting Position : any position
• Mounting Support : 35 mm DIN rail conforming to IEC 60715
• Nominal Power : 0.0002 mW
• Operating Distance : 10 mm
• Overvoltage Category : III conforming to IEC 60664-1
• Package Weight Lbs : 103.635 g
• Power Consumption In VA : 3-3 VA 240 V AC
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : NFC timer relay
• Range Of Product : Harmony Timer Relays
• Returnability : Yes
• Software Designation : Ecostruxure Industrial Device downloadable from Google Play store or Apple Store)
• Supply Frequency : 50...60 Hz +/- 5 %
• Sustainable Packaging : Yes
• Temperature Drift : +/- 0.05 %/°C
• Time Delay Range : 0.05 s...999 h
• Total Lifecycle Carbon Footprint : 64 kg CO2 eq.
• Vibration Resistance : 20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
• Voltage Range : 0.85...1.1 Un
• Uc Control Circuit Voltage2 : 24...240 V
• Uimp Rated Impulse Withstand Voltage2 : 5 kV 1.2/50 µs IEC 60664-1
• Us Rated Supply Voltage2 : 24...240 V AC/DC
• Medium Desc : multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s to 999h asymmetrical on delay and off delay 24 to 240V AC DC
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP2506028EN
• Database Version : 2018-03
• Pep Verification Date : 2018-04-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : To control an event based on time. The contacts switch ON or OFF before or after some period of time to control automation industrial system. during 10 years with a 100% use rate, in compliance with French standard.
• Functional Unit Unit : unité (unit)
• Energy Model Manufacturing A1 A3 2 : Energy model used: Indonesia
• Energy Model Installation A5 2 : Electricity mix; AC; < 1kV; EU-27
• Energy Model Use B6 2 : Electricity mix; AC; < 1kV; EU-27
• Energy Model End Of Life C1 C4 2 : Electricity mix; AC; < 1kV; EU-27
• Creepage Distance : 4 kV/3 IEC 60664-1
• Reset Time : 120 ms on de-energisation
• Safety Reliability Data : MTTFd = 227.5 years 100 % duty cycle continuous operating condition at 30 °C
• Switching Capacity In Va : 2000 VA
• Voltage Drift : +/- 0.2 %/V
• Global Commercial Status : Commercialised
• Uimp Rated Impulse Withstand Voltage5 : 5 kV 1.2/50 µs IEC 60664-1
• Us Rated Supply Voltage5 : 24...240 V AC/DC
• Environment Attributes Main
• Take Back : No, Nej
• Directives : 2014/35/EU - low voltage directive, 2014/53/EU - radio equipment directive, 2014/30/EU - electromagnetic compatibility
• EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP40 housing: conforming to IEC 60529, IP40 front face: conforming to IEC 60529, IP20 terminals: conforming to IEC 60529
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 63.8646108037
• Ambient Air Temperature For Operation : -20-60 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2506028EN
• Environmental Disclosure : ENVPEP2506028EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Product Compatibility : NFC enabled mobile device
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 95-95 % 25-55 °C
• Pep Code : ENVPEP2506028EN
• Pep Verification Date : 2018-04-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : NFC timer relay
• Range Of Product : Harmony Timer Relays
• Output Attributes
• Discrete Output Type : relay
• Nominal Output Current : 8 A
• Output Type : relay
• Input Attributes
• Input Voltage : <= 2.4 V
