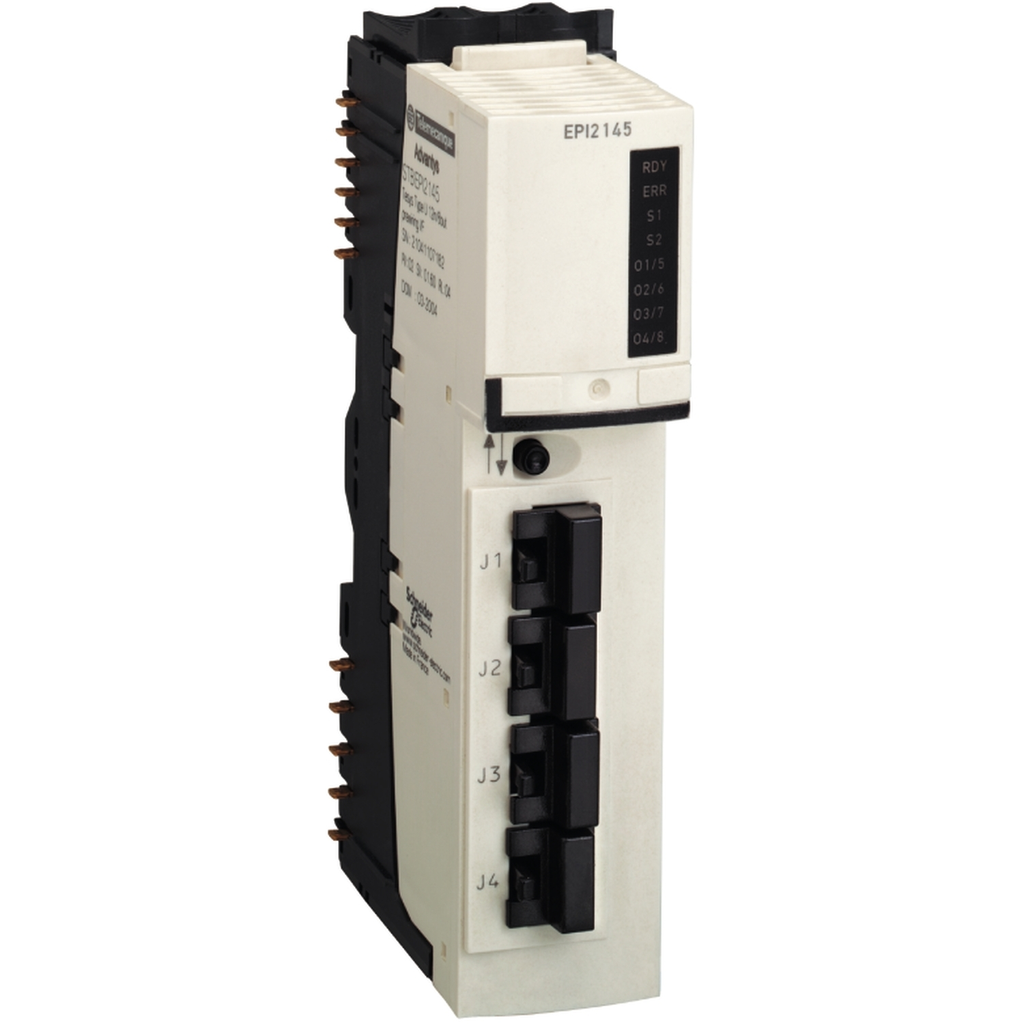

parallel interface kit, Modicon STB, 12 inputs 8 outputs channel

TESYS TYPE U 12IN/8OUT KIT WIT

SQDSTBEPI2145K STBEPI2145K 3595863933130
285.03 / EA
http://schema.org/OutOfStock
Mayer-DDS-parallel interface kit, Modicon STB, 12 inputs 8 outputs channel-1
  • Certifications: CSA, FM Class 1 Division 2, UL
  • Current: 100 mA, 220 mA, 24 V, 5 V, 50 mA, 80 mA
  • Depth: 170 mm
  • Height: 28.1 mm
  • Input Voltage: 24 V
  • Net Weight: 0.165 kg
  • Output Voltage: 24 V
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth
  • Width: 128.3 mm
This product is part of the Modicon STB range, an offer of modular distributed I/O. This parallel interface kit has 12 inputs channels and 8 output channels. It is a parallel interface kit with a rated supply voltage of I/O voltage of 24V DC, a current consumption of ≤100mA at 24V DC for sensor bus, ≤220mA at 24V DC for actuator bus for 150ms, 100mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is furnished with 4 RJ45 connectors for electrical connection. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 170mm (depth) x 28.1mm (height) and weighs 0.165kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA3000. The kit includes terminal spring clamp connector, STBXBA3000 base, terminal screw type connector and STBEPI2145 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
QTY
  • Product Description
  • Specifications
This product is part of the Modicon STB range, an offer of modular distributed I/O. This parallel interface kit has 12 inputs channels and 8 output channels. It is a parallel interface kit with a rated supply voltage of I/O voltage of 24V DC, a current consumption of ≤100mA at 24V DC for sensor bus, ≤220mA at 24V DC for actuator bus for 150ms, 100mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is furnished with 4 RJ45 connectors for electrical connection. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 170mm (depth) x 28.1mm (height) and weighs 0.165kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA3000. The kit includes terminal spring clamp connector, STBXBA3000 base, terminal screw type connector and STBEPI2145 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
  • Environment
    • Product Certifications : FM Class 1 Division 2 || UL || CSA
    • Ambient Air Temperature For Operation : -25-70 °C without derating)
    • Shock Resistance : 30 gn 11 ms IEC 88 reference 2-27
    • Vibration Resistance : 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
    • Ip Degree Of Protection : IP20 conforming to IEC 61131-2 class 1
    • Pollution Degree : 2 IEC 60664-1
    • Ambient Air Temperature For Storage : -40-85 °C
    • Relative Humidity : 95-95 % 60-60 °C without condensation
    • Operating Altitude : <= 6561.68 ft (2000 m)
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Cold Swapping : yes
    • Height : 28.1 mm
    • Status Led : 1 LED (Green) module status (RDY) || 1 LED (Red) module error (ERR) || 2 LEDs (Green) switch position (S1 and S2) || 4 LEDs (Green) output status
    • Hot Swapping Fallback : yes for standard NIMs
    • Number Of Input Channels : 12
    • Output Voltage Type : DC
    • Supply : power distribution module
    • Protection Type : power protection integrated fuse on PDM time lag 10 A || overload protection || short-circuit protection || input protection resistor-limited
    • Current Consumption : <= 100 mA 24 V DC sensor bus || <= 220 mA 24 V DC actuator bus for 150 ms || 100 mA 5 V DC logic bus || 50 mA 24 V DC actuator bus (with all 8 outputs at state 0) || 80 mA 24 V DC actuator bus per output at state 1
    • Marking : CE
    • Current State 0 Guaranteed : <= 0.5 mA
    • Net Weight : 0.165 kg
    • Fallback Status : state 0 basic NIMs || user configurable standard NIMs
    • Input Voltage Limits : 15...30 V at state 1 || -3...5 V at state 0
    • Current State 1 Guaranteed : >= 2 mA
    • Input Voltage : 24 V
    • Output Voltage : 24 V
    • Electrical Connection : 4 RJ45 connectors
    • Input Voltage Type : DC
    • Width : 128.3 mm
    • Overvoltage Category : II
    • Depth : 170 mm
    • Product Compatibility : power distribution module STBPDT3100/3105 || mounting base STBXBA3000
    • Number Of Output Channels : 8
    • [Us] Rated Supply Voltage : 24 V DC
    • Kit Composition : terminal spring clamp connector || STBXBA3000 base || terminal screw type connector || STBEPI2145 module
  • Specifications
    • Range Of Product : Modicon STB distributed I/O solution
    • Product Or Component Type : parallel interface kit
    • Product Specific Application : TeSys Quickfit || TeSys U
