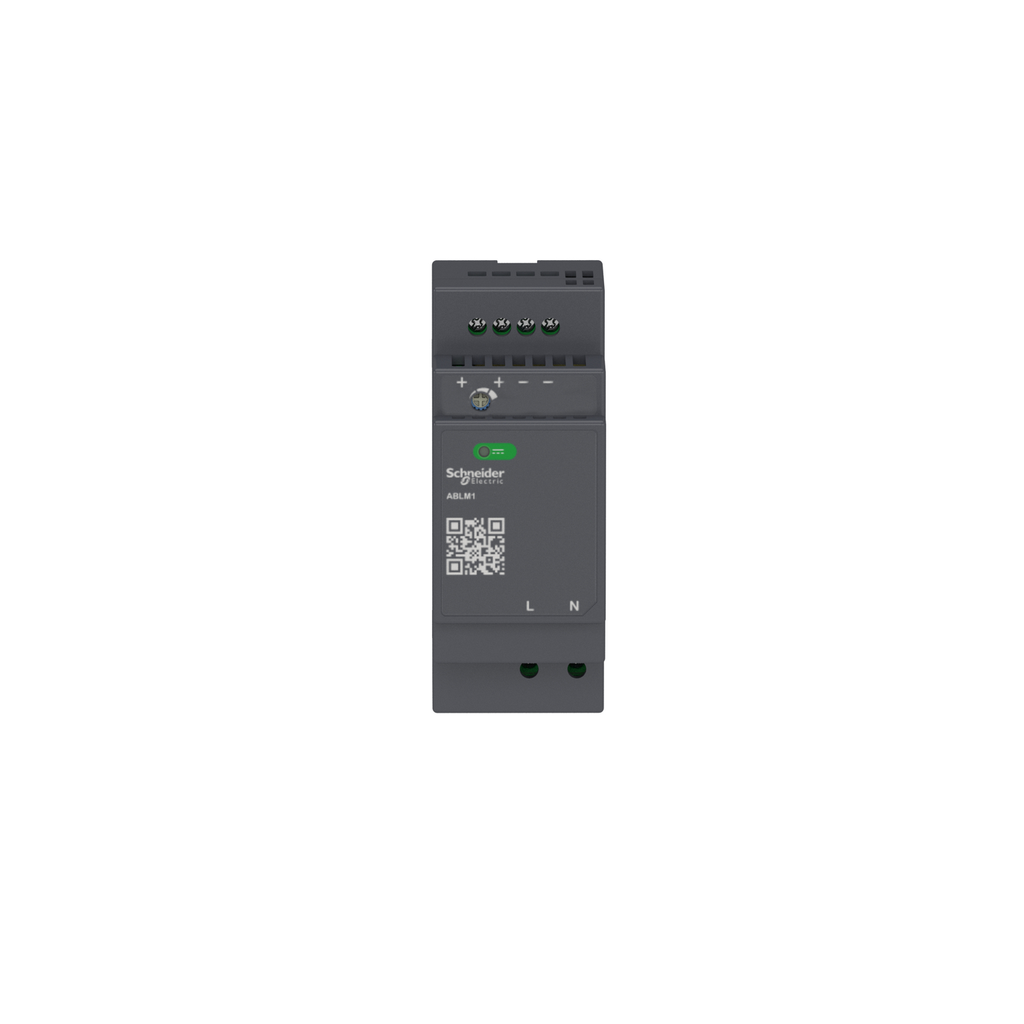

Regulated Power Supply, 100 to 240V AC, 5V, 3.6A, single phase, Modular

Regulated Power Supply, 100-24

SQDABLM1A05036 ABLM1A05036 3606481500137
169.74 / EA
http://schema.org/OutOfStock

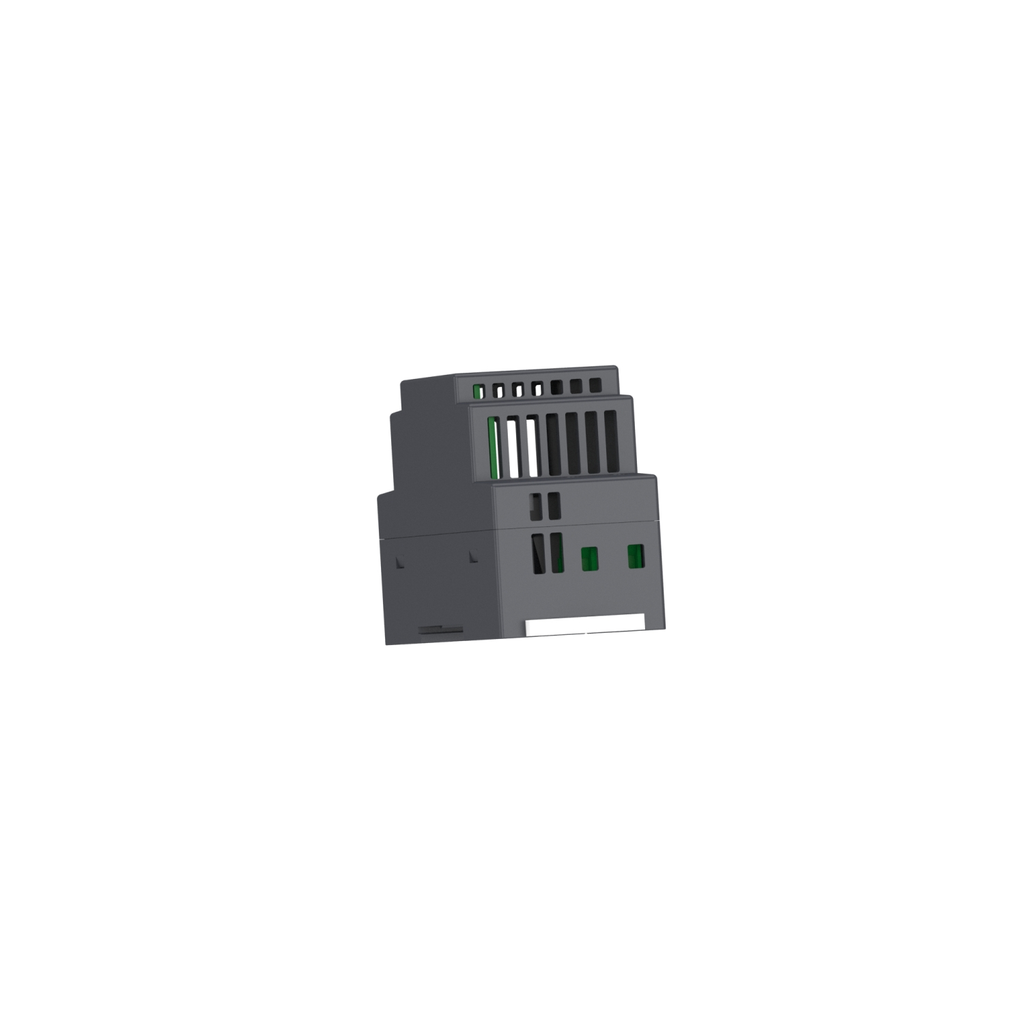

Mayer-DDS-Regulated Power Supply, 100 to 240V AC, 5V, 3.6A, single phase, Modular-2
  • Country of Origin: India
This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 3,6A at 5V DC and a rated power output of 18W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 36mm, its height is 91mm, its depth is 55,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.170kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 4A, B or C curve . It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
QTY
  • Product Description
  • Features
  • Specifications
This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 3,6A at 5V DC and a rated power output of 18W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 36mm, its height is 91mm, its depth is 55,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.170kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 4A, B or C curve . It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
  • Connections Terminals
    • screw connection 0.5...1.5 mm², AWG 20...AWG 16) without wire end ferrule input/output
    • screw connection 0.5...1 mm², AWG 20...AWG 18) with wire end ferrule input/output
  • Current Consumption
    • < 0.6 A 115 V AC
    • < 0.4 A 230 V AC
  • Mounting Support
    • top hat type TH35-15 rail IEC 60715
    • top hat type TH35-7.5 rail IEC 60715
    • double-profile DIN rail
    • panel mounting
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005311_3D-CAD&p_File_name=MCADID0005311_3D-simplified-ec.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005311_3D-CAD&p_File_name=MCADID0005311_2D-back.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005311_3D-CAD&p_File_name=MCADID0005311_2D-back.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005311_3D-CAD&p_File_name=MCADID0005311_2D-bottom.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005311_3D-CAD&p_File_name=MCADID0005311_2D-bottom.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005311_3D-CAD&p_File_name=MCADID0005311_2D-front.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005311_3D-CAD&p_File_name=MCADID0005311_2D-front.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005311_3D-CAD&p_File_name=MCADID0005311_2D-isometric.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005311_3D-CAD&p_File_name=MCADID0005311_2D-isometric.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005311_3D-CAD&p_File_name=MCADID0005311_2D-left.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005311_3D-CAD&p_File_name=MCADID0005311_2D-left.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005311_3D-CAD&p_File_name=MCADID0005311_2D-right.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005311_3D-CAD&p_File_name=MCADID0005311_2D-right.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005311_3D-CAD&p_File_name=MCADID0005311_2D-top.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005311_3D-CAD&p_File_name=MCADID0005311_2D-top.dxf
  • Power Factor
    • 0.48 at 115 V AC
    • 0.38 at 230 V AC
  • Inrush Current
    • 25 A 115 V
    • 50 A 230 V
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Earthing System
    • TN
    • TT
    • IT
  • Carbon Footprint Of The Installation Phase A5
    • 0.0017714786
    • 0 kg CO2 eq.
  • Holding Time
    • > 20 ms 115 V AC
    • > 60 ms 230 V AC
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.1 kg CO2 eq.
    • 0.1488373217
  • Maximum Leakage Current
    • 0.25 mA 240 V AC
  • Status Led
    • 1 LED (Green) output voltage
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 2 kg CO2 eq.
    • 2.441107225
  • Electrical Shock Protection Class
    • class II without PE connection
  • Output Protection Type
    • against overload and short-circuits, protection technology: automatic reset
    • against over temperature, protection technology: manual reset
    • against overvoltage, protection technology: manual reset
  • Supply
    • SELV IEC 60950-1
    • SELV IEC 60204-1
    • SELV IEC 60364-4-41
  • Efficiency
    • 80 % 115 V AC
    • 80 % 230 V AC
  • Vibration Resistance
    • 3 mm (f= 2-9 Hz) conforming to IEC 60721-3-3
    • 10 m/s² (f= 9-200 Hz) conforming to IEC 60721-3-3
  • Persona Type Names
    • End User
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 193 kg CO2 eq.
    • 193.14
  • Electromagnetic Compatibility
    • immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2
    • immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2
    • electromagnetic field immunity test - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3
    • electromagnetic field immunity test - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3
    • electromagnetic field immunity test - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3
    • immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4
    • surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5
    • surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5
    • immunity to conducted disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6
    • immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8
    • immunity to voltage dips - test level: 100 % (1 cycle) conforming to IEC 61000-4-11
    • immunity to voltage dips - test level: 60 % (10 cycles) conforming to IEC 61000-4-11
    • immunity to voltage dips - test level: 30 % (25 cycles) conforming to IEC 61000-4-11
    • disturbing field emission conforming to EN 55016-2-3
    • limits for harmonic current emissions conforming to IEC 61000-3-2
    • conforming to EN 55016-1-2
    • conforming to EN 55016-2-1
  • Persona Type Ids
    • EU
    • OM
    • OM8
  • Line And Load Regulation
    • < 0.5 % network in line
    • < 1 % network 0 to 100 % load
  • Input Voltage
    • 100...240 V AC single phase
    • 100...240 V AC phase to phase
  • Dielectric Strength
    • 3000 V AC input/output
  • Electromagnetic Emission
    • conducted emissions IEC 61000-6-3
    • radiated emissions IEC 61000-6-4
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0223212195
    • 0 kg CO2 eq.
  • Operating Altitude
    • < 6561.68 ft (2000 m) overvoltage category III
    • 2000 m...5000 m overvoltage category II
  • Meantime Between Failure MTBF
    • 2500000 h at 25 °C, full load
    • 1000000 h at 55 °C, 80 % load
  • Efficiency At Full Load
    • 90...264 V AC
  • Shock Resistance
    • 150 m/s² 11 ms
  • Input Protection Type
    • integrated fuse (not interchangeable) 3.15 A
    • external protection (recommended) 20 A Curve B
    • external protection (recommended) 20 A Curve C
    • external protection (recommended) 4 A Curve B
    • external protection (recommended) 4 A Curve C
  • Ambient Air Temperature For Operation
    • -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m)
    • 55-70 °C with current derating of 2.67 % per °C mounting position A < 6561.68 ft (2000 m)
  • Product Certifications
    • CE
    • cUL Listed
    • cUL Recognized
    • RCM
    • CB Scheme
    • EAC
    • KC
    • NEC class 2
  • Output Voltage
    • 5 V DC
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • HTML Description : Regulated Power Supply, 100-240V AC, 5V 3.6 A, single phase, Modular
    • Manufacturer : Schneider Electric
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Manufacturing Carbon Footprint : 2.441107225
    • Distribution Carbon Footprint : 0.0223212195
    • Installation Carbon Footprint : 0.0017714786
    • Use Carbon Footprint : 193.14
    • End Of Life Carbon Footprint : 0.1488373217
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2004005EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2010
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Load Capacitance : 3000 µF
    • Package Weight Lbs : 175.000 g
    • Power Supply Type : regulated switch mode
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : power supply
    • Range Of Product : Modicon Power Supply
    • Returnability : Yes
    • Service Life : 10 year(s)
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 196 kg CO2 eq.
    • Variant Option : modular
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 195.7540372448
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2004005EN
    • Pep Verification Date : 2020-03-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0010-ed1.1-EN-2015 10 16
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 173
    • Functional Unit Description : To supply control circuits in industrial and building automation up to 6,5 W at 100% for 10 years.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 394.2
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
    • Energy Model Manufacturing A1 A3 : Energy model used: Thailand
    • Energy Model Installation A5 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model Use B6 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 : Electricity mix; AC; < 1kV; EU-27
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0002052679
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0001884848
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000009
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000001
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000167815
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000006
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 2214.0567886134
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 21.1684169351
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.3135893695
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.0229652922
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 2192.2615384615
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.290278555
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.0046893589
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0045956061
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0.0000937528
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 0.8512290785
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.3776224574
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.000000087
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.1006892308
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.3729173033
    • Materials For Energy Recovery Kg Total Life Cycle : 0.0415645835
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0415645835
    • Materials For Recycling Kg Total Life Cycle : 0.0592801657
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.0093505983
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.0325658767
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.0173636908
    • Net Use Of Fresh Water M3 Total Life Cycle : 700.2947704315
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0254651542
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0000019976
    • Net Use Of Fresh Water M3 Installation A5 : 0.0000001936
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 700.2692307692
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0000723169
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 720.4887538983
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.4175724804
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0007930533
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0002404485
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 720.0692307692
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0009171468
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000129501
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000003636
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000125813
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000051
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.4813350694
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0004135281
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000005648
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0000000473
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.4809184615
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000024676
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3396.40524502
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 28.8837551772
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.3151816383
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0230982467
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 3366.8307692308
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.3524407271
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 3888.1814205607
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 30.1591624482
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.3156035895
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.0231340727
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 3857.3307692308
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.3527512195
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 491.7758587278
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.2750888173
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0004205898
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000359303
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 490.5
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0003133903
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.3981955821
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.3981955821
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3394.0072882782
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 26.4857984353
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.3151816383
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0230982467
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 3366.8307692308
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.3524407271
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.6269398988
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.6269398988
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 491.1489188291
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.6481489185
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0004205898
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000359303
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 490.5
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0003133903
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.0021654059
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0021654059
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Air Pollution M3 Total Life Cycle : 8576.0226674611
    • Air Pollution M3 Manufacturing A1 A3 : 259.8980671882
    • Air Pollution M3 Distribution A4 : 0.9495494708
    • Air Pollution M3 Installation A5 : 0.0706481684
    • Air Pollution M3 Operational Energy Use B6 : 8312.5384615385
    • Air Pollution M3 End Of Life C1 C4 : 2.5659410953
    • Water Pollution M3 Total Life Cycle : 8443.8397540302
    • Water Pollution M3 Manufacturing A1 A3 : 463.9711919006
    • Water Pollution M3 Distribution A4 : 3.6705775426
    • Water Pollution M3 Installation A5 : 0.268647584
    • Water Pollution M3 Operational Energy Use B6 : 7969.8461538462
    • Water Pollution M3 End Of Life C1 C4 : 6.0831831569
    • Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.8103997202
    • Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.0447753
    • Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.0497343545
    • Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.0045668656
    • Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0001019132
    • Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.000007381
    • Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.8056384615
    • Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0000850988
    • Global Warming Kg Equivalent Co2 Total Life Cycle : 195.7540372448
    • Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 2.441107225
    • Global Warming Kg Equivalent Co2 Distribution A4 : 0.0223212195
    • Global Warming Kg Equivalent Co2 Installation A5 : 0.0017714786
    • Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 193.14
    • Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.1488373217
    • Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0004932291
    • Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0000072727
    • Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000005517
    • Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.0442675385
    • Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0000067081
    • Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.001021122
    • Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0000234732
    • Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0000017938
    • Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.0486422308
    • Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0000457347
  • General Attributes
    • Product Or Component Type : power supply
    • Range Of Product : Modicon Power Supply
  • Output Attributes
    • Output Coupling : serial
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=501114367&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 195.7540372448
    • Circularity Profile : ENVEOLI2004005EN
    • Environmental Disclosure : ENVPEP2004005EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2004005EN
    • Pep Verification Date : 2020-03-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0010-ed1.1-EN-2015 10 16
    • Type Of Verification For The Pep : Independent internal review
  • Specifications
    • Country of Origin : India
