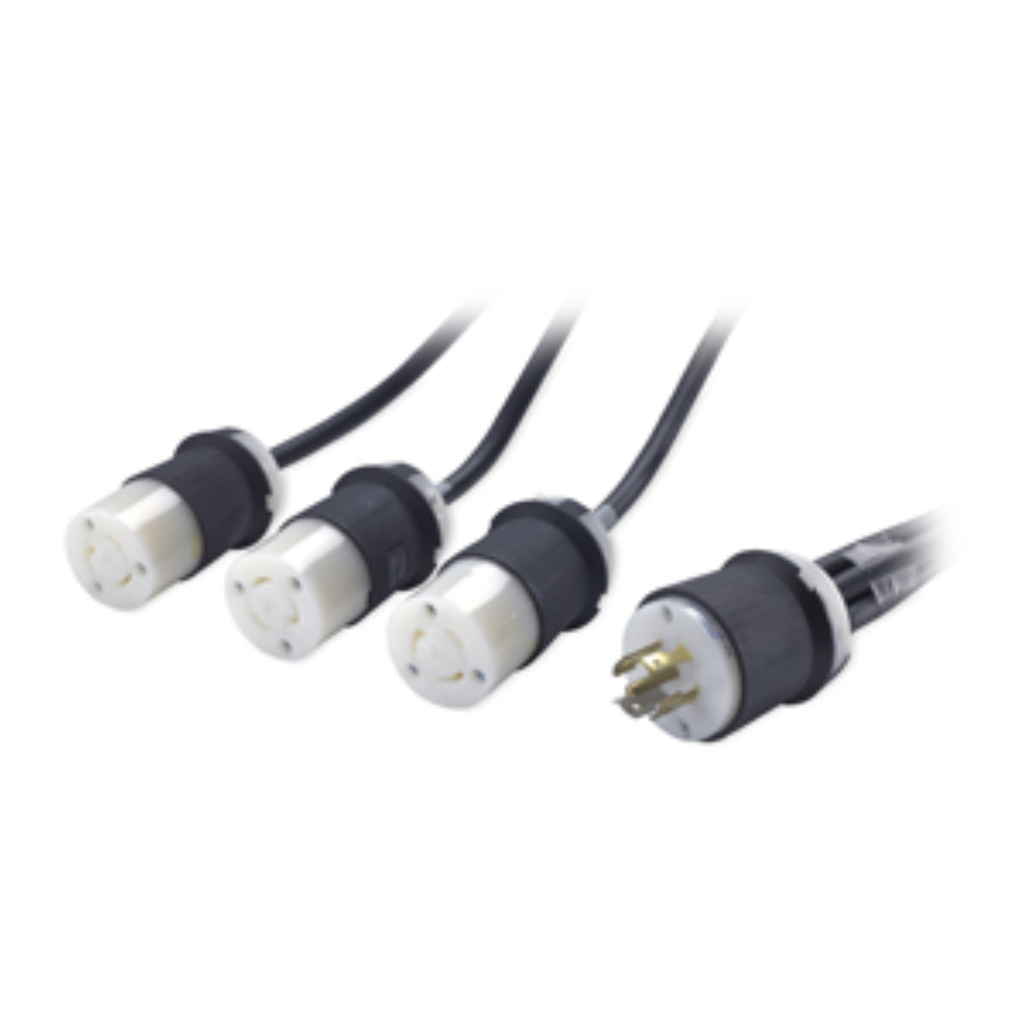

Power Cord Splitter, L21-20P to (3)L5-20R

NetShelter Power Cords AP9883

SQDAP9883 AP9883 731304198796
238.86 / EA
http://schema.org/OutOfStock
Mayer-DDS-Power Cord Splitter, L21-20P to (3)L5-20R-1
  • Country of Origin: USA
  • Warranty Length: 2 yr
QTY
  • Features
  • Specifications
  • Input Connection Type
    • NEMA L21-20P
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Persona Type Names
    • Consumer
    • IT Channel Partner
  • Persona Type Ids
    • EUA
    • VR
  • Cord Length
    • 2 ft
    • 4 ft
    • 6 ft
  • Number Of Power Socket Outlets
    • 3 NEMA L5-20R
  • Physical Attributes
    • Color : Black
  • Complementary Attributes
    • Maximum Total Current Draw Per Phase : 16 A
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-12
    • Pre Comm Date : 2002-08-01
    • ETIM 10 : EC001576
    • Html Descr : Power Cord Splitter, L21-20P to (3)L5-20R
    • Manufacturer : Square D
    • Device Type : IT Power Distribution - Rack Power Distribution
    • Serviceability : No
    • Traceability : No
    • Field Service Division : SPIBS
    • Preventive Maintenance : 0
    • Cr Shelf Life : 0
    • Spare Used In Spare Kit : No
    • Spare Part Order Method : ERP to ERP
    • Spare Part Order Method Direction : Consult local ERP Setup
    • Service Catalog Item : Finished good
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1511004_EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1922
    • ROHS Eur Full Compliance Status : Compliant
    • ROHS Eur Full Compliance Status Id : COMPLIANT
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : L - LOB initialized
    • Tier Id : 3
    • Tier : 3
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • Additional Specification : adapters
    • Halogen Free Status : Product contains halogen above thresholds
    • Max Line Current : 20 A
    • Maximum Total Current Draw Per Phase : 16 A
    • Mounting Location : front
    • Mounting Mode : not rack-mountable
    • Mounting Preference : no preference
    • Number Of Cables : 1
    • Number Of Rack Unit : 0U
    • Package Weight Lbs : 1.36 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : power cord
    • Returnability : Yes
    • Sustainable Packaging : No
    • Ups Size : S
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Additional Specification : adapters
    • Product Or Component Type : power cord
  • Environment Attributes
    • Take Back : No
    • Reach Free Shvc : Yes
    • Halogene Performance : Product contains halogen above thresholds
    • Lead Free : Yes
    • Ambient Air Temperature For Operation : 0-40 °C
    • Ambient Air Temperature For Storage : 0-45 °C
    • Circularity Profile : ENVEOLI1511004_EN
    • Environmental Disclosure : ENVPEP1511004_EN
    • Eu Rohs Directive : Compliant
    • Halogen Content Performance : Product contains halogen above thresholds
    • Operating Altitude : 0...10000 ft
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Relative Humidity : 0-95 %
    • Storage Altitude : 0-50000 ft
    • Storage Relative Humidity : 0-95 %
  • Contractual Warranty Attributes
    • Warranty Period : 2 years repair or replace
    • Warranty : 2 years repair or replace
  • Input Attributes
    • Input Current Limits : 20 A
    • Input Frequency : 50/60 Hz
  • Specifications
    • Country of Origin : United States
