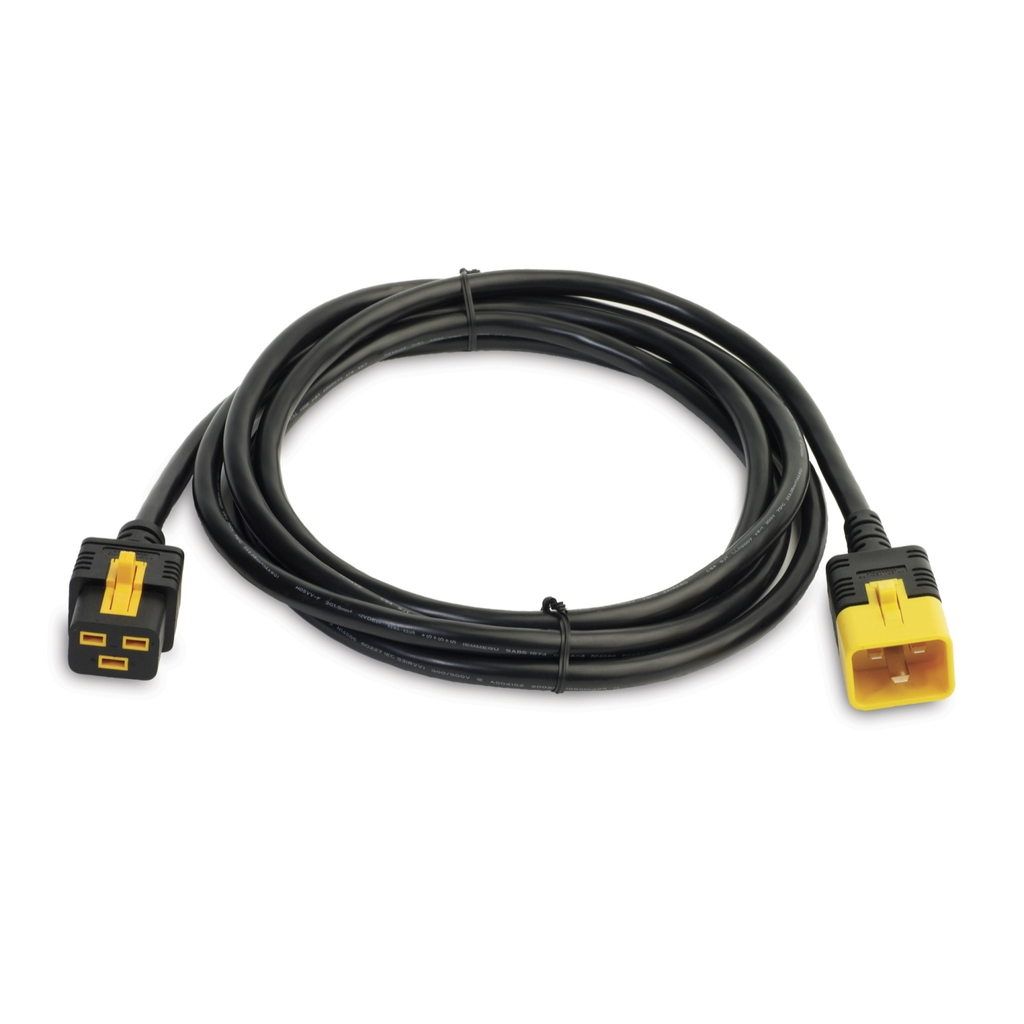

AP8760 is NetShelter range of Power Cord ensuring reliable power delivery and secure connections for your Rack PDUs and servers. This locking IEC power cord comes in cable length 9.84ft (3.0m), IEC 60320 C20 as input and IEC 60320 C19 as output receptacle. Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.

• Prop 65
• WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Total Current Draw Per Phase : 16 A
• Important Information Attributes
• Persona Type Ids : EUA, VR
• Persona Type Names : Consumer, IT Channel Partner
• Carbon Footprint Of The Distribution Phase A4 : 0.03848991206799019, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.9 kg CO2 eq., 0.8942664556590711
• Carbon Footprint Of The Installation Phase A5 : 0.2221362852862744, 0.2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 2.3752192030540784
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 56 kg CO2 eq., 55.7459766001859
• Local Data Status : Publishable
• Local Publishable Date : 2025-10-06
• Pre Comm Date : 2011-06-30
• Device Type : IT Power Distribution - Rack Power Distribution
• Serviceability : No
• Traceability : No
• Field Service Division : SPIBS
• Spare Used In Spare Kit : No
• Spare Part Order Method : ERP to ERP
• Spare Part Order Method Direction : Consult local ERP Setup
• Service Catalog Item : Finished good
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1511004_EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : L - LOB initialized
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• Cord Length : 10 ft
• Energy Efficiency Optimized : False
• Halogen Free Status : Product contains halogen above thresholds
• Input Connection Type : IEC 60320 C20
• Max Line Current : 16 A
• Maximum Total Current Draw Per Phase : 16 A
• Mounting Preference : no preference
• Number Of Power Socket Outlets : 1 IEC 60320 C19
• Package Weight Lbs : 0.51 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : power cord
• Returnability : No
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 59 kg CO2 eq.
• Ups Size : S
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Pep Code : ENVPEP1511004EN
• Pep Verification Date : 2025-10-25
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : No PSR
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Product Manager : SWATHI H.V
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Compliant
• Take Back : No
• Reach Free SHVC : Yes
• Halogene Performance : Product contains halogen above thresholds
• Recycled Metal Content At Cr Level : 0 %
• Lead Free : Yes
• Carbon Footprint : 59.27608845625331
• Circularity Profile : ENVEOLI1511004_EN
• Environmental Disclosure : ENVPEP1511004EN
• Halogen Content Performance : Product contains halogen above thresholds
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Relative Humidity : 20-80 %
• Storage Altitude : 0-50000 ft
• Storage Relative Humidity : 20-80 %
• Pep Code : ENVPEP1511004EN
• Pep Verification Date : 2025-10-25
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : No PSR
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : power cord
• Contractual Warranty Attributes
• Warranty Period : 2 years repair or replace
• Warranty : 2 years repair or replace
• Overview Attributes
• Presentation : Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.
