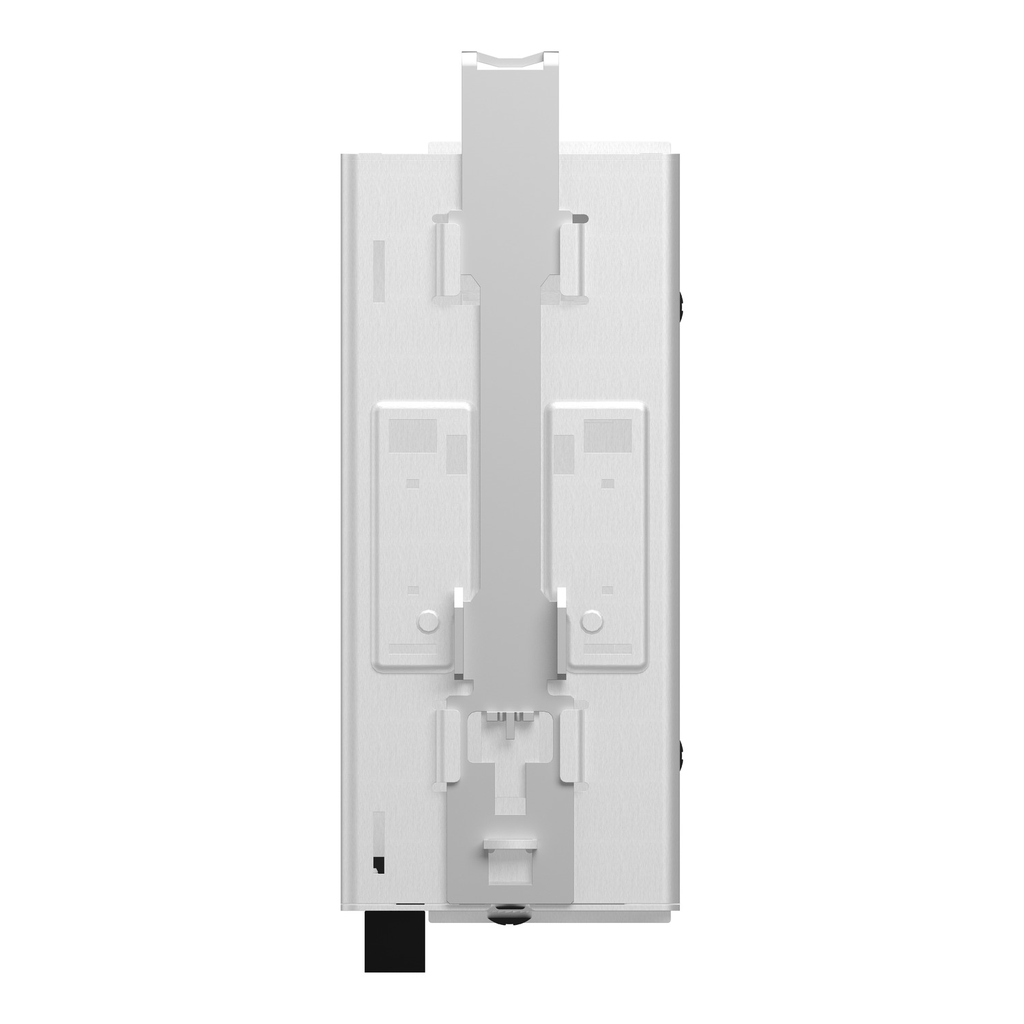

universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 5 A

PWR SPLY DIN MNT 120-240VAC

SQDABL8RPS24050 ABL8RPS24050 3389119405614
381.82 / EA
http://schema.org/OutOfStock
Mayer-DDS-universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 5 A-5
  • Country of Origin: France
  • Depth: 125 mm
  • Dielectric Strength: 3500 V, 4000 V, 500 V
  • Height: 143 mm
  • Input Voltage: 100-120 V, 200-500 V
  • Net Weight: 0.7 kg
  • Operating Position: Vertical
  • Output Voltage: 24 V
  • Warranty Length: 18 mth
  • Weight: 0.7 kg
  • Width: 56 mm
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 500V AC, a rated output current of 5A at 24V DC and a rated power output of 120W. Most of these power supplies have auto protection reset. A few have auto / manual protection reset. Some of these power supplies can be mounted directly to a panel. It is also equipped with a PFC (Power Factor Correction) filter. It has LED diagnostics indicator available in the front for troubleshooting instantly. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It installs on DIN rail and is 56mm-wide. It weighs 0,700kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD07, GB2CD08, GV2RT06 and GV2ME06 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
QTY
  • Product Description
  • Features
  • Specifications
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 500V AC, a rated output current of 5A at 24V DC and a rated power output of 120W. Most of these power supplies have auto protection reset. A few have auto / manual protection reset. Some of these power supplies can be mounted directly to a panel. It is also equipped with a PFC (Power Factor Correction) filter. It has LED diagnostics indicator available in the front for troubleshooting instantly. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It installs on DIN rail and is 56mm-wide. It weighs 0,700kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD07, GB2CD08, GV2RT06 and GV2ME06 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Standards : CSA C22.2 No 60950-1 || UL 508 || EN/IEC 62368-1
    • Ambient Air Temperature For Operation : 50-60 °C with derating factor mounting position A < 6561.68 ft (2000 m) || -25-50 °C without derating mounting position A < 6561.68 ft (2000 m)
    • Product Certifications : cCSAus || EAC || KC || RCM || UL
    • Environmental Characteristic : EMC conforming to IEC 61000-6-1 || EMC conforming to IEC 61000-6-3 || EMC conforming to EN 55024 || EMC conforming to IEC 61000-6-4 || EMC conforming to EN/IEC 61204-3 || safety conforming to IEC 60950-1 || safety conforming to EN/IEC 61204-3
    • Ip Degree Of Protection : IP20 conforming to IEC 60529
    • Operating Altitude : 6561.68 ft (2000 m)
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Environmental Disclosure : ENVPEP061201EN
    • Packaging Without Single Use Plastic : No
    • Scip Number : 974297e5-68e4-4a61-9a40-1443e8973a61
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI120913EN
    • Take-Back : No
    • Pvc Free : Yes
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 283.95
  • Complementary
    • Output Coupling : parallel || series
    • Height : 143 mm
    • Provided Equipment : power factor correction filter IEC 61000-3-2
    • Status Led : 1 LED (green and red) output voltage || 1 LED (green, red and orange) output current
    • Efficiency At Full Load : 85...132 V AC || 170...550 V AC
    • Connections - Terminals : removable screw terminal block 2 x 2.5 mm², diagnostic relay || screw type terminals 3 x 0.5...3 x 4 mm², AWG 22...AWG 12) input connection || screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) input ground connection || screw type terminals 4 x 0.5...4 x 4 mm², AWG 22...AWG 12) output connection || screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) output ground connection
    • Dielectric Strength : 3500 V with between input and ground || 4000 V with between input and output || 500 V with between output and ground
    • Marking : CE
    • Supply : SELV IEC 60950-1 || SELV IEC 60204-1 || SELV IEC 60364-4-41
    • Net Weight : 0.7 kg
    • Output Protection Type : against overload, protection technology: manual or automatic reset || against overvoltage, protection technology: 30...32 V, manual reset || against short-circuits, protection technology: manual or automatic reset || against undervoltage, protection technology: tripping if U < 21.6 V || thermal, protection technology: automatic reset
    • Power Dissipation In W : 15.5 W
    • Output Voltage Limits : 24...28.8 V adjustable
    • Mounting Support : 35 x 15 mm symmetrical DIN rail || 35 x 7.5 mm symmetrical DIN rail
    • Operating Position : vertical
    • Width : 56 mm
    • Inrush Current : 30 A
    • Efficiency : 87 %
    • Depth : 125 mm
    • Power Factor : 0.51 at 240 V AC || 0.59 at 120 V AC
  • Specifications
    • Country of Origin : France
    • Width : 56 mm
    • Height : 143 mm
    • Weight : 0.7 kg
    • Range Of Product : Modicon Power Supply
    • Output Voltage : 24 V DC
    • Product Or Component Type : power supply
    • Power Supply Type : regulated switch mode
    • Anti-Harmonic Filter : low frequency harmonic currents
    • Input Voltage : 100...120 V AC single phase N-L1 || 200...500 V AC phase to phase L1-L2
    • Permissible Temporary Current Boost : 1.5 x In for 4 s)
    • Power Supply Output Current : 5 A
    • Kw Rating : 120 W
