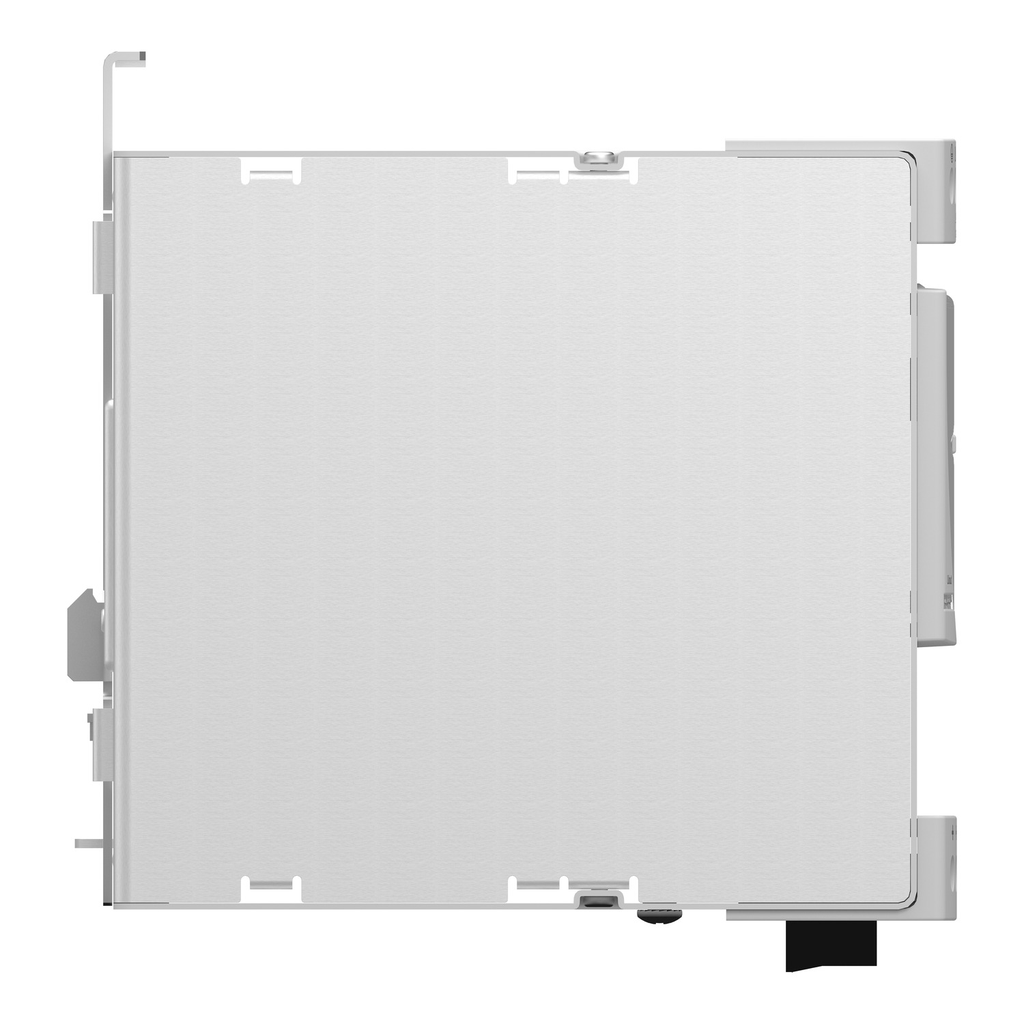

universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 10 A

POWER SUPPLY 24VDC 10AMP PHASE

SQDABL8RPS24100 ABL8RPS24100 3389119405621
520.37 / EA
http://schema.org/OutOfStock
Mayer-DDS-universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 10 A-3
  • Certifications: CCSAus, EAC, KC, RCM, UL
  • Depth: 145 mm
  • Efficiency: 87 %
  • Height: 125 mm
  • Input Voltage: 100-120 V, 200-500 V
  • Net Weight: 1 kg
  • Output Voltage: 24 V
  • Standard: CSA C22.2 No 60950-1, EN/IEC 62368-1, UL 508
  • Warranty Length: 18 mth
  • Width: 86 mm
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 500V AC, a rated output current of 10A at 24V DC and a rated power output of 240W. Most of these power supplies have auto protection reset. A few have auto / manual protection reset. Some of these power supplies can be mounted directly to a panel. It is also equipped with a PFC (Power Factor Correction) filter. It has LED diagnostics indicator available in the front for troubleshooting instantly. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It installs on DIN rail and is 85mm-wide. It weighs 1,000kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD08, GB2CD12, GV2RT07 and GV2ME07 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
QTY
  • Product Description
  • Specifications
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 500V AC, a rated output current of 10A at 24V DC and a rated power output of 240W. Most of these power supplies have auto protection reset. A few have auto / manual protection reset. Some of these power supplies can be mounted directly to a panel. It is also equipped with a PFC (Power Factor Correction) filter. It has LED diagnostics indicator available in the front for troubleshooting instantly. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It installs on DIN rail and is 85mm-wide. It weighs 1,000kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD08, GB2CD12, GV2RT07 and GV2ME07 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
  • Environment
    • Standards : UL 508 || CSA C22.2 No 60950-1 || EN/IEC 62368-1
    • Ambient Air Temperature For Operation : 50-60 °C with derating factor mounting position A < 6561.68 ft (2000 m) || -25-50 °C without derating mounting position A < 6561.68 ft (2000 m)
    • Product Certifications : cCSAus || EAC || KC || RCM || UL
    • Environmental Characteristic : EMC IEC 61000-6-1 || EMC IEC 61000-6-3 || EMC EN 55024 || EMC IEC 61000-6-4 || EMC EN/IEC 61204-3 || safety IEC 60950-1 || safety EN/IEC 61204-3
    • Ip Degree Of Protection : IP20 conforming to IEC 60529
    • Operating Altitude : 6561.68 ft (2000 m)
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP061201EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI120913EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Output Coupling : parallel || series
    • Height : 125 mm
    • Provided Equipment : power factor correction filter IEC 61000-3-2
    • Status Led : 1 LED (green and red) output voltage || 1 LED (green, red and orange) output current
    • Efficiency At Full Load : 170...550 V AC || 85...132 V AC
    • Connections - Terminals : removable screw terminal block 2 x 2.5 mm², diagnostic relay || screw type terminals 3 x 0.5...3 x 4 mm², AWG 22...AWG 12) input connection || screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) input ground connection || screw type terminals 4 x 0.5...4 x 4 mm², AWG 22...AWG 12) output connection || screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) output ground connection
    • Dielectric Strength : 3500 V with between input and ground || 4000 V with between input and output || 500 V with between output and ground
    • Marking : CE
    • Supply : SELV IEC 60950-1 || SELV IEC 60204-1 || SELV IEC 60364-4-41
    • Net Weight : 1 kg
    • Output Protection Type : against overload manual or automatic reset || against overvoltage 30...32 V, manual reset || against short-circuits manual or automatic reset || against undervoltage tripping if U < 21.6 V || thermal automatic reset
    • Power Dissipation In W : 31 W
    • Output Voltage Limits : 24...28.8 V adjustable
    • Mounting Support : 35 x 7.5 mm symmetrical DIN rail || 35 x 15 mm symmetrical DIN rail
    • Operating Position : vertical
    • Width : 86 mm
    • Inrush Current : 30 A
    • Efficiency : 87 %
    • Depth : 145 mm
    • Power Factor : 0.68 at 240 V AC || 0.69 at 120 V AC
  • Specifications
    • Range Of Product : Modicon Power Supply
    • Output Voltage : 24 V DC
    • Product Or Component Type : power supply
    • Power Supply Type : regulated switch mode
    • Anti-Harmonic Filter : low frequency harmonic currents
    • Input Voltage : 100...120 V AC single phase N-L1 || 200...500 V AC phase to phase L1-L2
    • Permissible Temporary Current Boost : 1.5 x In for 4 s)
    • Power Supply Output Current : 10 A
    • Kw Rating : 240 W
