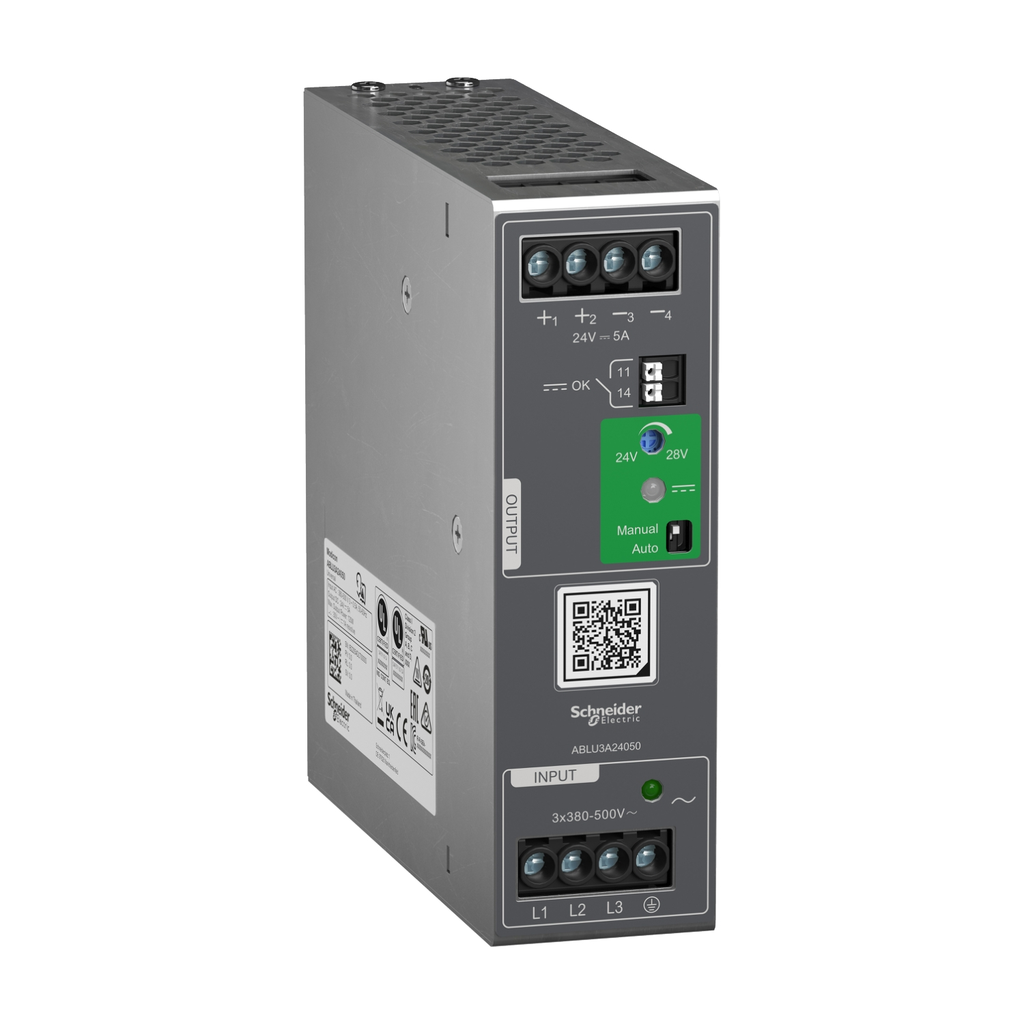

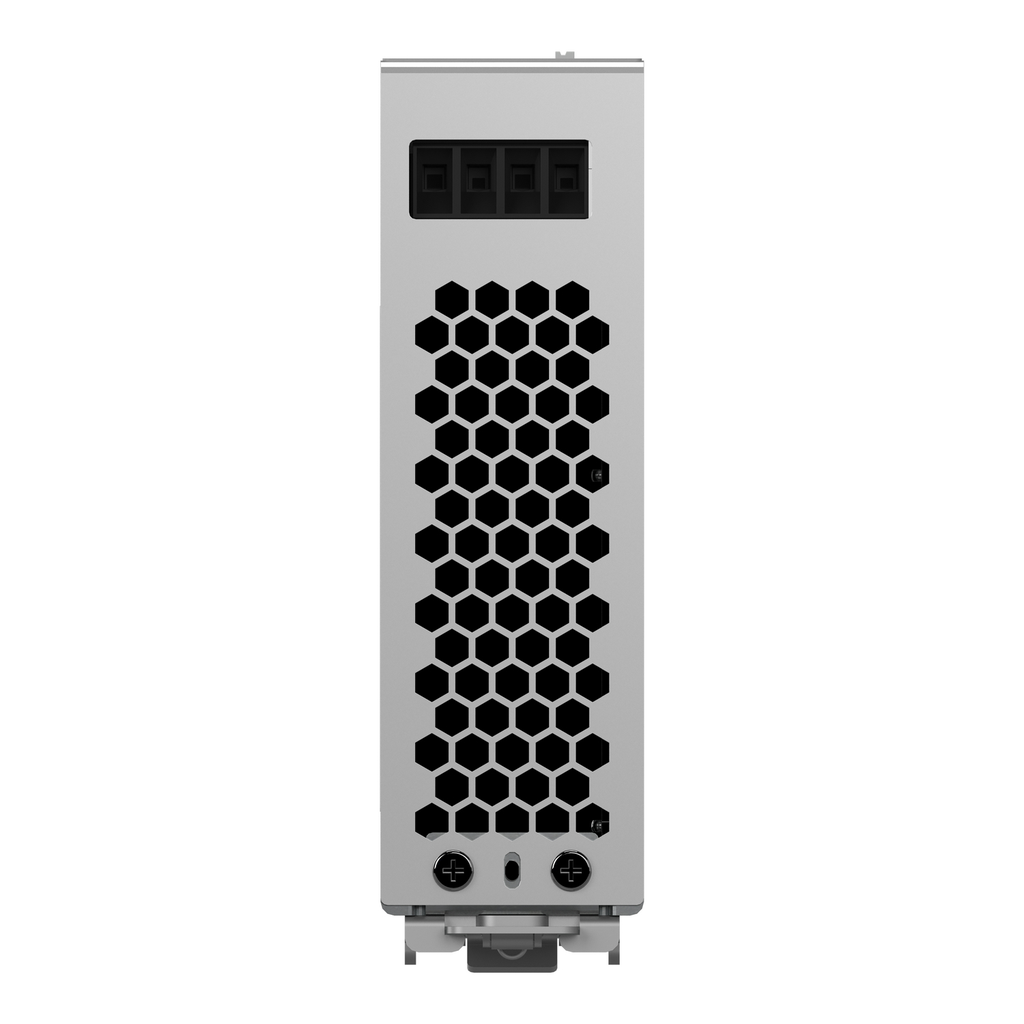

This product is part of the Modicon ABL range, an offer of power supplies for industrial use. It is a regulated switch mode power supply. It has a rated input of 380V to 500V AC, a rated output current of 5A at 24V DC and a rated power output of 120W. It supplies direct current voltage and ensures a protection against overloads and short-circuits with automatic or manual restart. It operates from minus 25 to plus 55degrees celcius and plus 55 to 70degrees celcius with a current derating of 3.3%, at an altitude of less than 2000meters. It measures 124mm high, 38mm wide, and 125.3mm deep. It weighs 0.60kg. It is a power supply for industrial use. It meets CE, CB Scheme, cULus Listed, UL HazLoc Class1Div2, cURus Recognized, RCM, EAC, UKCA, KC. To IEC/EN-UL/CSA 62368-1, IEC/EN-UL/CSA 61010-1/2 standards. GV2ME07 or GV2RT06 circuit breakers are recommanded for its protection. It installs on 35mm DIN rail. It brings energy to your automated systems. Designed with extreme compactness for simple machines and applications.

• Complementary
• Height : 124 mm
• Residual Ripple : < 100 mV
• Status Led : 1 LED (green and red) product status || 1 LED (Green) input voltage
• Holding Time : > 20 ms 380 V AC || > 40 ms 500 V AC
• Efficiency At Full Load : 320...575 V AC 3 phase
• Earthing System : TN || TT || IT
• Connections - Terminals : screw connection 0.75…6 mm², AWG 18...AWG 10) without wire end ferrule output || screw connection 0.75...4 mm², AWG 18...AWG 12) with wire end ferrule output || screw connection 0.75…6 mm², AWG 18...AWG 10) without wire end ferrule input || screw connection 0.75...4 mm², AWG 18...AWG 12) with wire end ferrule input || cage clamp 0.2...1.5 mm², AWG 22...AWG 16) without wire end ferrule diagnostic relay || cage clamp 0.2...0.75 mm², AWG 22...AWG 18) with wire end ferrule diagnostic relay || cage clamp 0.2...0.75 mm², AWG 22...AWG 18) with wire end ferrule shut down input
• Dielectric Strength : 4000 V AC with input to output || 2000 V AC with input to ground || 1500 V AC with output to ground || 4000 V AC with input to diagnostic relay || 500 V AC with output to diagnostic relay || 1500 V AC with diagnostic relay to ground || with shutdown input not isolated from output
• Network Frequency Limits : 50-60 Hz
• Marking : CE || UKCA
• Current Consumption : < 0.5 A 380 V AC || < 0.4 A 500 V AC
• Relay Type : electromechanical relay 1000.0 mA 30 V
• Supply : SELV IEC 60950-1 || SELV IEC 60204-1 || SELV IEC 60364-4-41
• Net Weight : 0.60 kg
• Maximum Leakage Current : 2 mA 500 V AC
• Input Protection Type : integrated fuse (not interchangeable) 3.15 A || external protection (recommended)
• Output Protection Type : against overload and short-circuits, protection technology: manual or automatic reset by switch || against over temperature, protection technology: automatic reset || against overvoltage, protection technology: manual reset
• Service Life : 10 year(s) 40 °C 80 % load
• Meantime Between Failure [Mtbf] : 2168900 h at 25 °C, full load conforming to SR 332 || 816200 h at 55 °C, 80 % load conforming to SR 332
• Power Dissipation In W : 18.5 W
• Output Voltage Limits : 24...28 V
• Mounting Support : top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || double-profile DIN rail
• Load Capacitance : 200000 µF
• Response Time : < 1 s
• Line And Load Regulation : < 0.17 % network 100 % load in line at 25 °C || < 0.6 % +/- 0.5 % network 150 % load at 25 °C
• Width : 38 mm
• Overvoltage Category : III || II
• Inrush Current : 25 A 380 V || 25 A 500 V
• Efficiency : 86.5 % 380 V AC || 86.5 % 500 V AC
• Depth : 125.3 mm
• Power Factor : 0.40 at 380 V AC || 0.40 at 500 V AC
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : No
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2212024EN
• Packaging Without Single Use Plastic : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Circularity Profile : ENVEOLI2212024EN
• Take-Back : No
• Sustainable Packaging : No
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Environment
• Standards : IEC 62368-1 || EN/IEC 61204-3 || IEC 61000-6-1 || IEC 61000-6-2 || IEC 61000-6-3 || IEC 61000-6-4 || IEC 61000-3-2 || EN 61000-3-3 || UL 62368-1 || CSA C22.2 No 62368-1 || CSA C22.2 No. 107.1
• Ambient Air Temperature For Operation : -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m) || 55-70 °C with current derating of 3.3 % per °C mounting position A < 6561.68 ft (2000 m)
• Product Certifications : CE || cUL Listed || cUL Recognized || RCM || CB Scheme || EAC || KC || UKCA || cURus
• Pollution Degree : 2
• Electromagnetic Compatibility : immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 || immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2 || immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3 || immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3 || immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3 || immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4 || surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5 || surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5 || immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6 || immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8 || immunity to voltage dips conforming to IEC 61000-4-11 || disturbing field emission conforming to EN 55016-2-3 || limits for harmonic current emissions conforming to IEC 61000-3-2 || conforming to EN 55016-1-2 || conforming to EN 55016-2-1
• Shock Resistance : 150 m/s² 11 ms
• Vibration Resistance : 3.5 mm (f= 3-11.9 Hz) conforming to IEC 60068-2-6 || 20 m/s² (f= 11.9-150 Hz) conforming to IEC 60068-2-6
• Ip Degree Of Protection : IP20
• Operating Altitude : < 5000 m overvoltage category III || overvoltage category II
• Electrical Shock Protection Class : class I
• Electromagnetic Emission : conducted emissions IEC 61000-6-3 || radiated emissions IEC 61000-6-4
• Specifications
• Country of Origin : Thailand
• Width : 38 mm
• Height : 124 mm
• Weight : 0.60 kg
• Range Of Product : Modicon Power Supply
• Output Voltage : 24 V DC
• Product Or Component Type : power supply
• Power Supply Type : regulated switch mode
• Input Voltage : 380...500 V AC three phase
• Permissible Temporary Current Boost : 1.5 x In for 5 seconds)
• Power Supply Output Current : 5 A
• Kw Rating : 120 W
• Enclosure Material : metal
