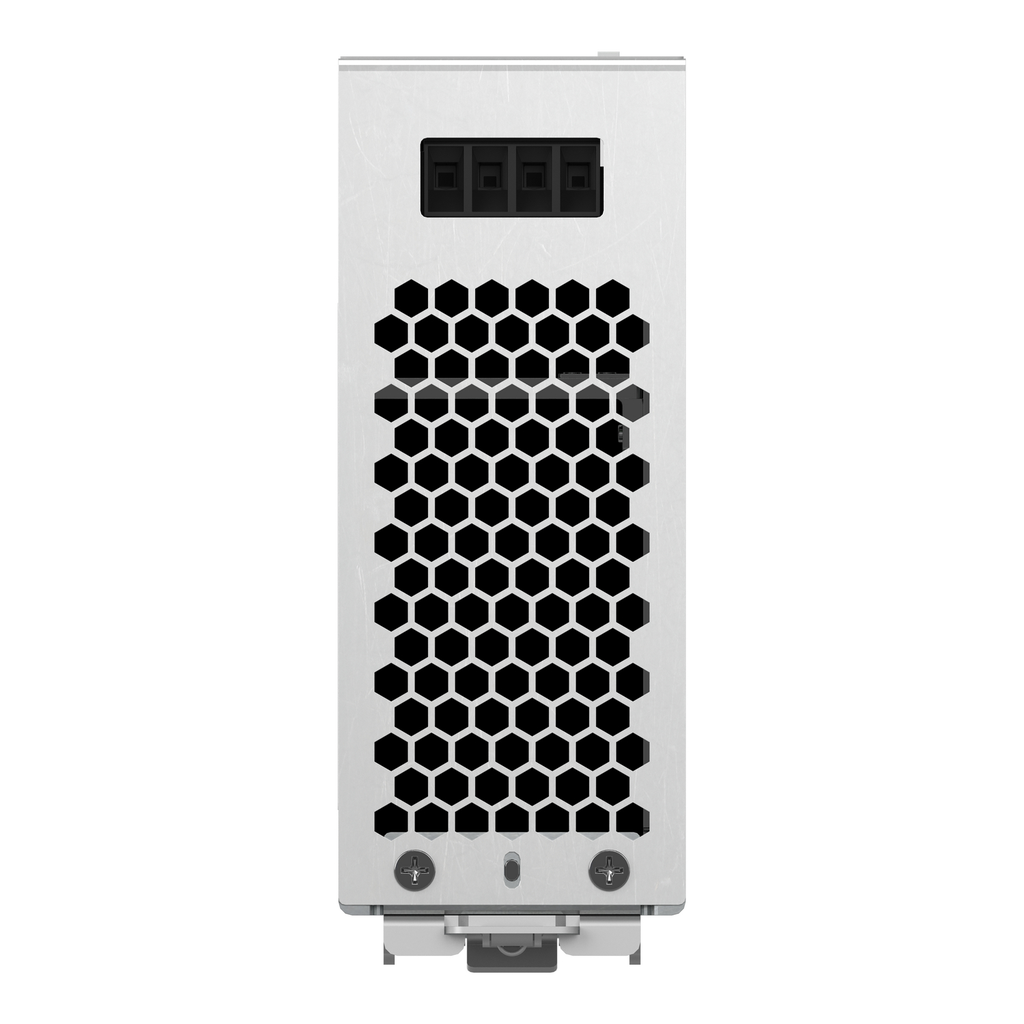

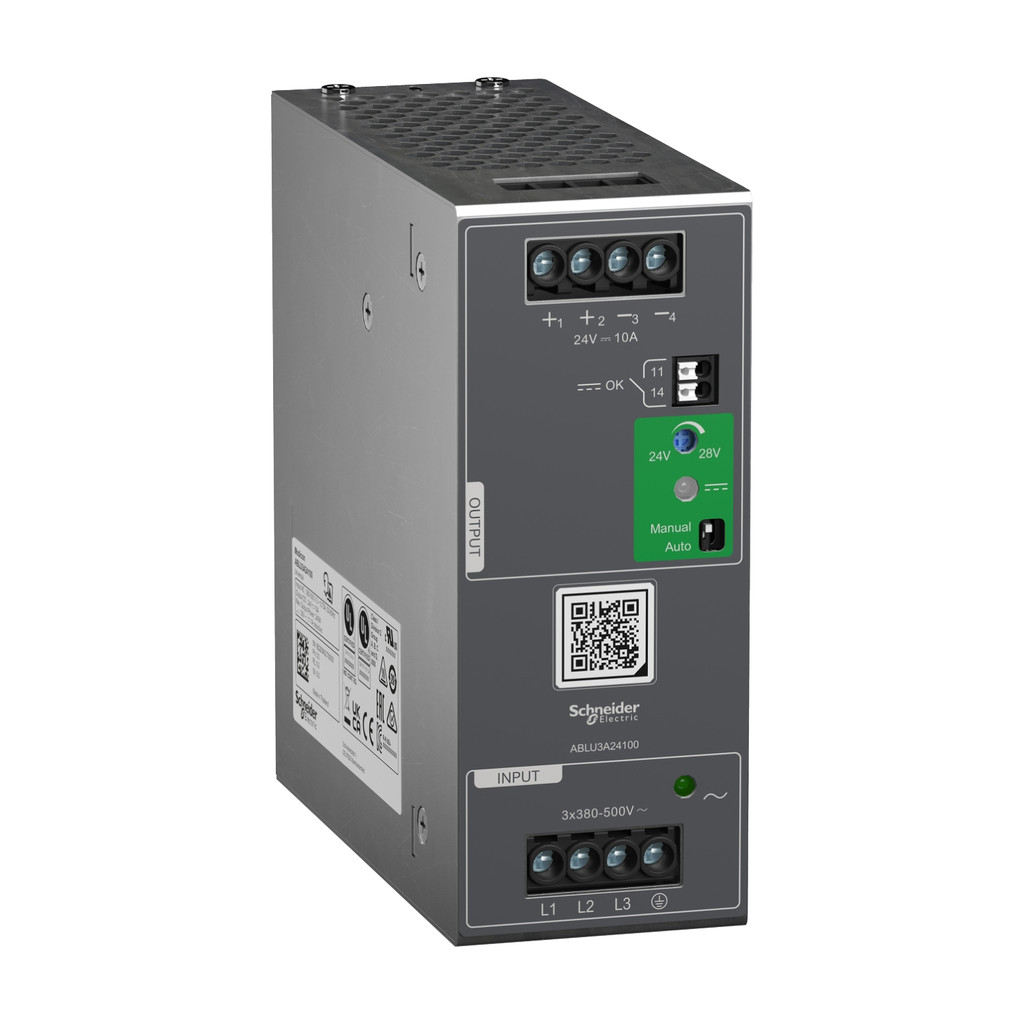

This product is part of the Modicon ABL range, an offer of power supplies for industrial use. It is a regulated switch mode power supply. It has a rated input of 380V to 500V AC, a rated output current of 10A at 24V DC and a rated power output of 240W. It supplies direct current voltage and ensures a protection against overloads and short-circuits with automatic or manual restart. It operates from minus 25 to plus 55degrees celcius and plus 55 to 70degrees celcius with a current derating of 3.3%, at an altitude of less than 2000meters. It measures 124mm high, 50mm wide, and 125.2mm deep. It weighs 0.91kg. It is a power supply for industrial use. It meets CE, CB Scheme, cULus Listed, UL HazLoc Class1Div2, cURus Recognized, RCM, EAC, UKCA, KC. To IEC/EN-UL/CSA 62368-1, IEC/EN-UL/CSA 61010-1/2 standards. GV2ME07 or GV2RT06 circuit breakers are recommanded for its protection. It installs on 35mm DIN rail. It brings energy to your automated systems. Designed with extreme compactness for simple machines and applications.

• Connections Terminals
• screw connection 1.5...6 mm², AWG 16...AWG 10) without wire end ferrule output
• screw connection 1.5 x 4 mm², AWG 16...AWG 12) with wire end ferrule output
• screw connection 0.75…6 mm², AWG 18...AWG 10) without wire end ferrule input
• screw connection 0.75...4 mm², AWG 18...AWG 12) with wire end ferrule input
• cage clamp 0.2...1.5 mm², AWG 22...AWG 16) without wire end ferrule diagnostic relay
• cage clamp 0.2...0.75 mm², AWG 22...AWG 18) with wire end ferrule diagnostic relay
• cage clamp 0.2...0.75 mm², AWG 22...AWG 18) with wire end ferrule shut down input
• Current Consumption
• < 0.75 A 380 V AC
• < 0.65 A 500 V AC
• Mounting Support
• top hat type TH35-15 rail IEC 60715
• top hat type TH35-7.5 rail IEC 60715
• double-profile DIN rail
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=ABLU3A24100_3D-simpl&p_File_name=ABLU_24V_10A_Univ_3D_simpl.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=ABLU3A24100_3D-simpl&p_File_name=ABLU_24V_10A_Univ_2D_Bottom.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=ABLU3A24100_3D-simpl&p_File_name=ablu_24v_10a_univ_2d_bottom.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=ABLU3A24100_3D-simpl&p_File_name=ABLU_24V_10A_Univ_2D_Face.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=ABLU3A24100_3D-simpl&p_File_name=ablu_24v_10a_univ_2d_face.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=ABLU3A24100_3D-simpl&p_File_name=ABLU_24V_10A_Univ_2D_Isometric.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=ABLU3A24100_3D-simpl&p_File_name=ablu_24v_10a_univ_2d_isometric.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=ABLU3A24100_3D-simpl&p_File_name=ABLU_24V_10A_Univ_2D_Left.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=ABLU3A24100_3D-simpl&p_File_name=ablu_24v_10a_univ_2d_left.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=ABLU3A24100_3D-simpl&p_File_name=ABLU_24V_10A_Univ_2D_rear.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=ABLU3A24100_3D-simpl&p_File_name=ablu_24v_10a_univ_2d_rear.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=ABLU3A24100_3D-simpl&p_File_name=ABLU_24V_10A_Univ_2D_Right.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=ABLU3A24100_3D-simpl&p_File_name=ablu_24v_10a_univ_2d_right.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=ABLU3A24100_3D-simpl&p_File_name=ABLU_24V_10A_Univ_2D_Top.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=ABLU3A24100_3D-simpl&p_File_name=ablu_24v_10a_univ_2d_top.dxf
• Power Factor
• 0.50 at 380 V AC
• 0.50 at 500 V AC
• Inrush Current
• 25 A 380 V
• 25 A 500 V
• Earthing System
• TN
• TT
• IT
• Holding Time
• > 20 ms 380 V AC
• > 40 ms 500 V AC
• Maximum Leakage Current
• 2 mA 500 V AC
• Status Led
• 1 LED (green and red) product status
• 1 LED (Green) input voltage
• Output Protection Type
• against overload and short-circuits, protection technology: manual or automatic reset by switch
• against over temperature, protection technology: automatic reset
• against overvoltage, protection technology: manual reset
• Supply
• SELV IEC 60950-1
• SELV IEC 60204-1
• SELV IEC 60364-4-41
• Service Life
• 10 year(s) 40 °C 80 % load
• Permissible Temporary Current Boost
• 1.5 x In for 5 seconds)
• Efficiency
• 89.5 % 380 V AC
• 89.5 % 500 V AC
• Vibration Resistance
• 3.5 mm (f= 3-11.9 Hz) conforming to IEC 60068-2-6
• 20 m/s² (f= 11.9-150 Hz) conforming to IEC 60068-2-6
• Persona Type Names
• End User
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Electromagnetic Compatibility
• immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2
• immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2
• immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3
• immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3
• immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3
• immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4
• surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5
• surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5
• immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6
• immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8
• immunity to voltage dips conforming to IEC 61000-4-11
• disturbing field emission conforming to EN 55016-2-3
• limits for harmonic current emissions conforming to IEC 61000-3-2
• conforming to EN 55016-1-2
• conforming to EN 55016-2-1
• Persona Type Ids
• EU
• OM
• OM8
• Line And Load Regulation
• < 0.17 % network 100 % load in line at 25 °C
• < 0.6 % +/- 0.5 % network 150 % load at 25 °C
• Input Voltage
• 380...500 V AC three phase
• Dielectric Strength
• 4000 V AC with input to output
• 2000 V AC with input to ground
• 1500 V AC with output to ground
• 4000 V AC with input to diagnostic relay
• 500 V AC with output to diagnostic relay
• 1500 V AC with diagnostic relay to ground
• with shutdown input not isolated from output
• Electromagnetic Emission
• conducted emissions IEC 61000-6-3
• radiated emissions IEC 61000-6-4
• Relay Type
• electromechanical relay 1000.0 mA 30 V
• Operating Altitude
• < 5000 m overvoltage category III
• overvoltage category II
• Meantime Between Failure MTBF
• 1095200 h at 25 °C, full load conforming to SR 332
• 416700 h at 55 °C, 80 % load conforming to SR 332
• Efficiency At Full Load
• 320...575 V AC 3 phase
• Shock Resistance
• 150 m/s² 11 ms
• Input Protection Type
• integrated fuse (not interchangeable) 3.15 A
• external protection (recommended)
• Ambient Air Temperature For Operation
• -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m)
• 55-70 °C with current derating of 3.3 % per °C mounting position A < 6561.68 ft (2000 m)
• Product Certifications
• CE
• cUL Listed
• cUL Recognized
• RCM
• CB Scheme
• EAC
• KC
• UKCA
• cURus
• Output Voltage
• 24 V DC

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-13
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2212024EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 2247
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Electrical Shock Protection Class : class I
• Load Capacitance : 200000 µF
• Package Weight Lbs : 1.168 kg
• Power Supply Type : regulated switch mode
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : power supply
• Range Of Product : Modicon Power Supply
• Returnability : Yes
• Sustainable Packaging : No
• Variant Option : universal
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2212024EN
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=570360061&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2212024EN
• Environmental Disclosure : ENVPEP2212024EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2212024EN
• Specifications
• Country of Origin : Thailand
• General Attributes
• Product Or Component Type : power supply
• Range Of Product : Modicon Power Supply
